| Categories | Conference / Large Venue Interchangeable Lens Lens Shift Installation HD LED/Laser HD |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-RZ770BEJ Optical Features | |
| System | 1 * 0.67" DMD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| ANSI Lumens | 7000 |
| ECO Mode Lumens | 1900 |
| Contrast | 10000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20000hrs. (87600hrs. ECO mode) |
| Lens | F1.7–1.9, f=25.6–35.7mm Powered zoom and focus |
| Interchageable | Yes |
| Throw Ratio | 1.7 - 2.4:1 |
| Image Size | 50"-600" diagonal |
| Throw Distance | 1.82-31.64m |
| Throw distance for 100" image | 3.66 - 5.17m |
| Lens Shift | Ver.+50/-15%, Hor.+30/-10% |
| Keystone Correction | 40° (Vertical) |
| 15° (Horizontal) | |
Panasonic PT-RZ770BEJ Compatibility | |
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video | PAL, SECAM, NTSC |
| HDTV | 1080p, 1080i, 720p |

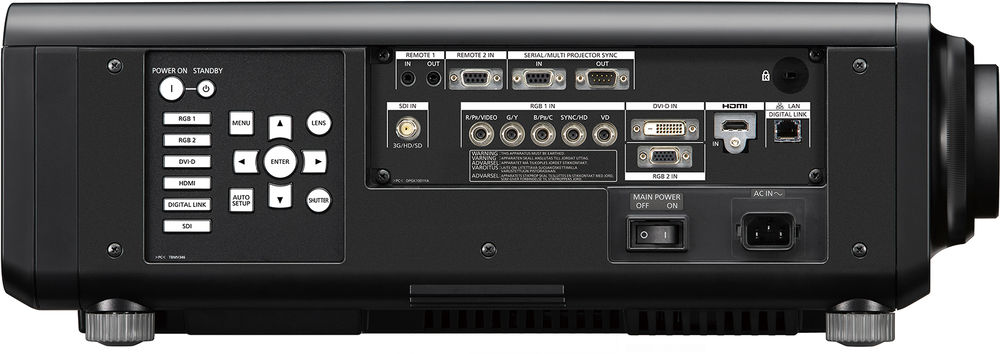

Panasonic PT-RZ770BEJ Terminals | |
| DVI | 1 |
| HDMI | 1 |
| RGBHV (15-pin HD) | 2 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| RS-232 | 3 |
Panasonic PT-RZ770BEJ General | |
| Speakers | No |
| Remote Control | Panasonic PT-RZ770BEJ only |
| Noise | 36db |
| Dimensions | 480*200*581mm (W*H*D) |
| Weight | 23.20kg |
| Power Supply | 100–240 V AC, 10.4–5.0 A, 50/60 Hz |
| Power Consumption | 825Watts |
| Manufacturers Warranty | (90 Days/1000 hours (whichever first) on lamp) |
Panasonic PT-RZ770BEJ Package Contents | |
| Accessories | Power cord with secure lock (× 1) (× 2 for EU models) Wireless/wired remote control unit (× 1) Batteries for re mote control (R03/AAA type ×2) Software CD-ROM (Logo Transfer Software Multi Monitoring & Control Software) (× 1) Lens Mount Cover (× 1) Lens cover (× 1) (Only models with lens) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
| Description | Price | Inc. VAT |
| Panasonic ET-DLE030 Ultra short throw mirror Lens | £4716 | £5659.20 |
| Panasonic ET-DLE055 Ultra short throw fixed Lens | £2770 | £3324.00 |
| Panasonic ET-DLE085 Ultra short throw zoom Lens | £3402 | £4082.40 |
| Panasonic ET-DLE150 Short throw zoom Lens | £2192 | £2630.40 |
| Panasonic ET-DLE250 Mid-range zoom Lens | £2292 | £2750.40 |
| Panasonic ET-DLE350 Semi-long throw zoom Lens | £2292 | £2750.40 |
| Panasonic ET-DLE450 Long throw zoom Lens | £2292 | £2750.40 |
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £220 | £264.00 |
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Digital Projection E-Vision Laser 6500 | DLP | 6500 | 25 | £5208 | £6249.60 |
| Panasonic PT-RZ770LBEJ | DLP | 7000 | 23.2 | £8278 | £9933.60 |
| Sony VPL-FH500L | LCD | 7000 | 20 | £5305 | £6366.00 |
