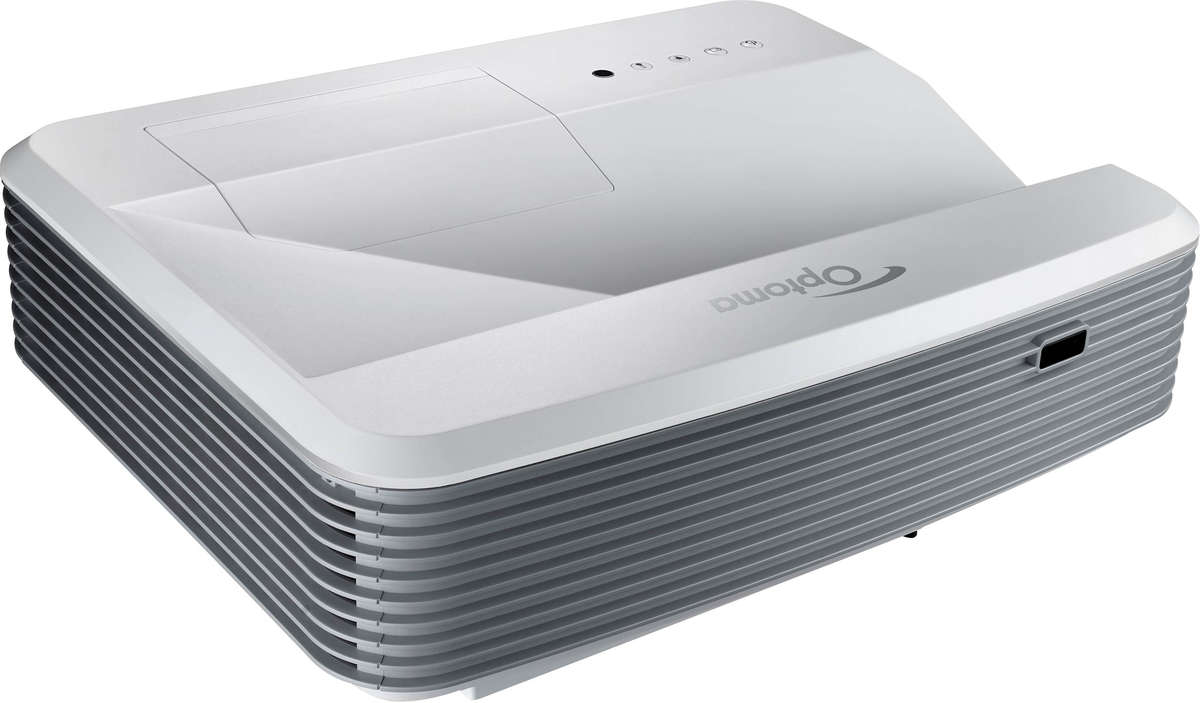

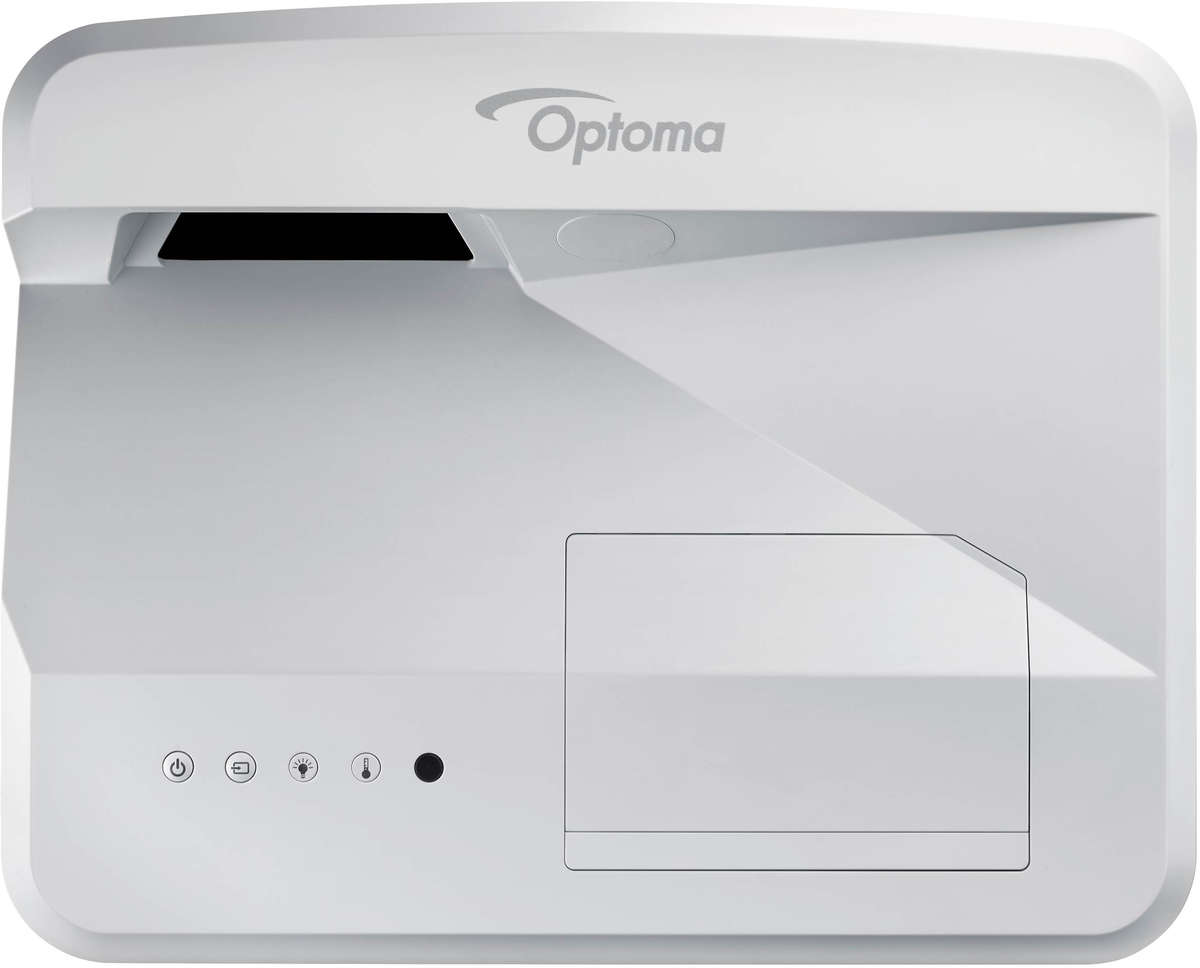

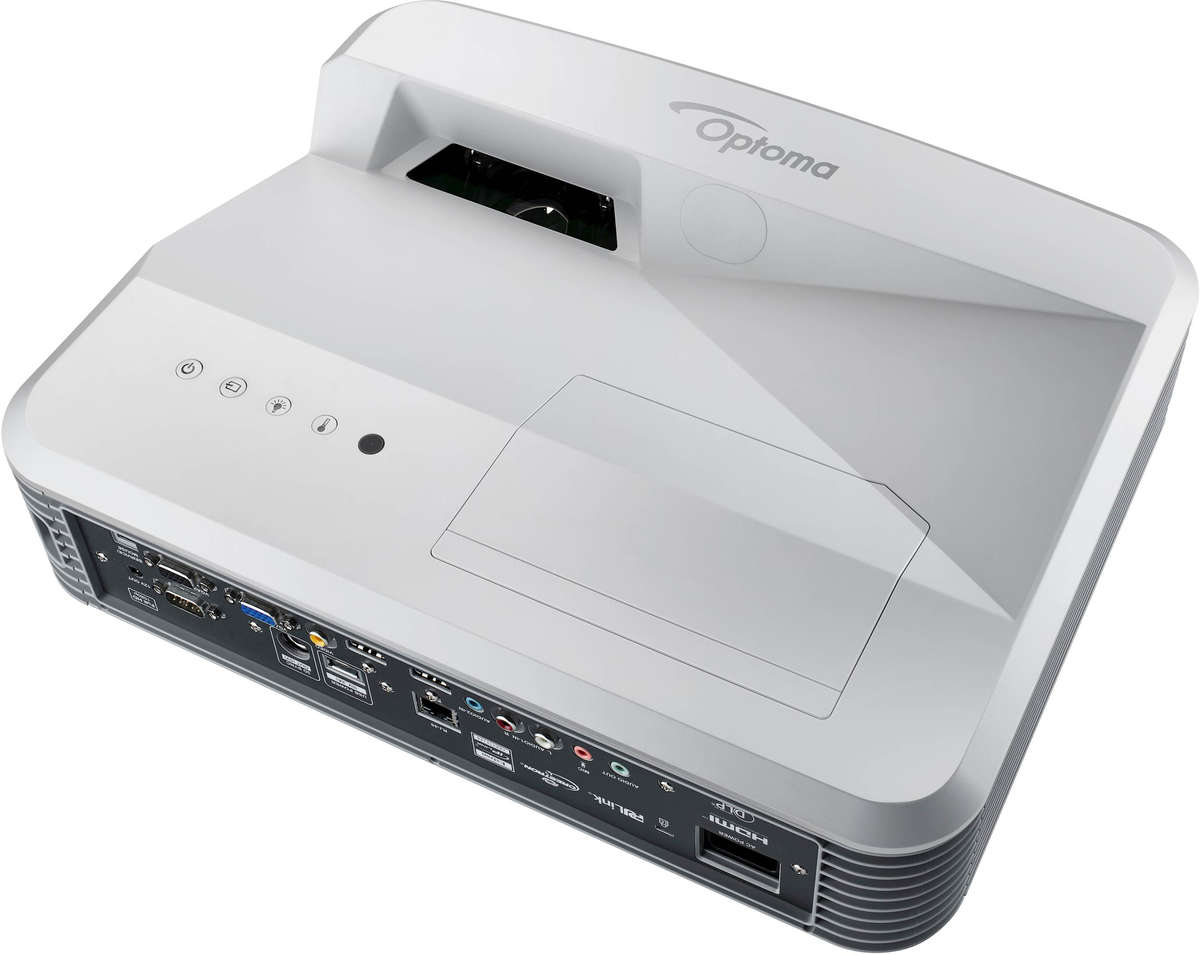

Optoma W320UST Projector

Register purchase for 5 year loan support warranty

No Longer Available

Click for Current Optoma range

Optoma W320UST Key Features

• FREE Delivery on this item
• DLP Display Technology
• 4,000 Lumens
• Wide XGA Resolution
• 3,000 hour lamp life (typical)
• 20,000:1 Contrast Ratio
• 4.78kg (10.5lb.)
• Ultra Short Throw (0.27:1)
• Native Widescreen
• 12v Trigger
• Direct Power On
• Direct Power Off

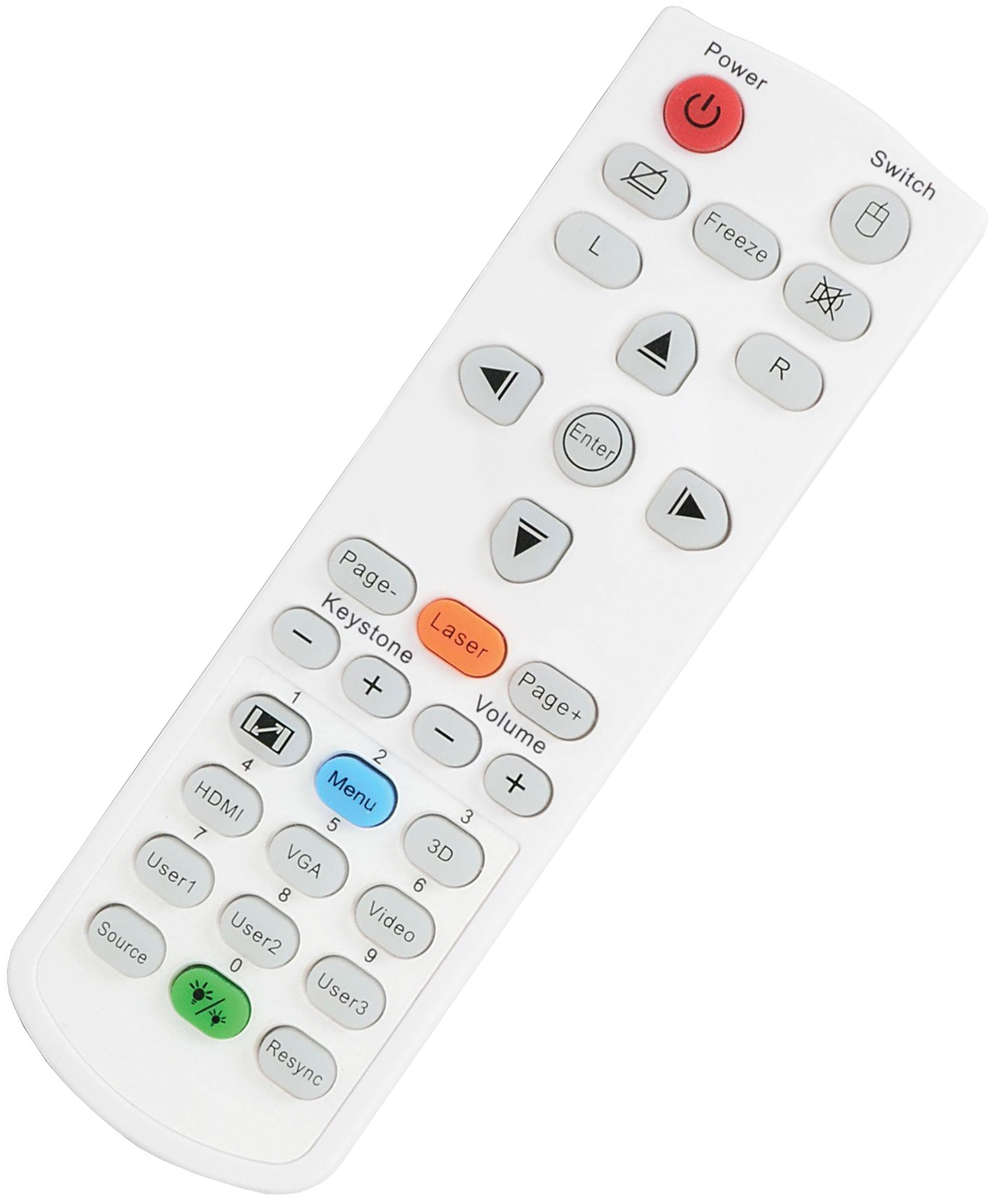

• Mouse Emulation Remote
• Laser Pointer Remote
• PIN Code Security
• Warrantied for 24/7 use
• 3D Projection Ready
• Monitor Out
• Network Control
• Register purchase for 5 year loan support warranty

Instruction Manual

• Conference rooms (20 - 50 people)
• Ultra short throw

Optoma W320UST Specifications

Categories	Ultra Short Throw
Manufacturer	Optoma (Click for rest of range)
Optoma W320UST Optical Features
System	1 * DMD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	4,000
Contrast	20,000:1
Lamp	260w
Lamp Life	3,000hrs. (6,500hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.27 - 0.27:1
Image Size	84"-113" diagonal
Throw Distance	0.49-0.66m
Throw distance for 100" image	0.58 - 0.58m
KeystoneCorrection	±15° (Vertical)
Optoma W320UST Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, FHD
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

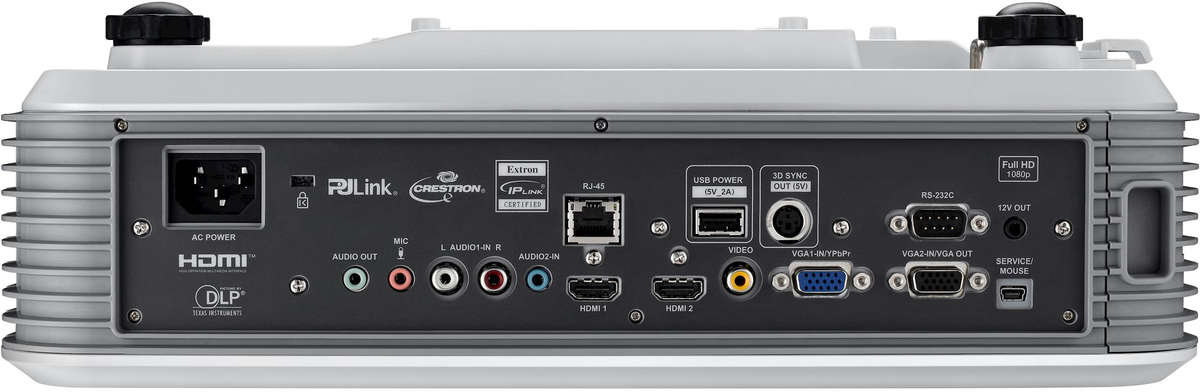

Optoma W320UST Terminals
HDMI	2
RGBHV (15-pin HD)	2
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma W320UST General
Speakers	16w Mono
Remote Control	Optoma W320UST + Mouse Emulation + Laser Pointer
Noise	28db
Dimensions	385*120*310mm (W*H*D)
Weight	4.78kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	235Watts
Manufacturers Warranty	3 year/3000 hours (whichever first) loan support
Light Source Warranty	1 year/1000 hours (whichever first)
Optoma W320UST Package Contents
Accessories	AC power cord Remote control 2x AAA batteries Basic user manual

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.

Optoma W320UST Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
