NEC PA803UL Projector
NEC PA803UL Key Features
- LCD Display Technology
- 8000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 2,500,000:1 Contrast Ratio
- 18.2kg (40.1lb.)
- Native Widescreen
- Lens Shift
- Seamless Switching
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Edge Blending
- DICOM Simulation Mode
- Stacking Function
- Monitor Out
- Network Control
NEC PA803UL Downloads
- CAD, engineering and precision presentations
- Church Projectors
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Film Societies and Community Cinema
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- School Halls
- Theatres
NEC PA803UL Specifications
| Categories | Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift LED/Laser HD |
| Manufacturer | NEC (Click for rest of range) |
NEC PA803UL Optical Features |
|
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 8,000 |
| ECO Mode Lumens | 6,400 |
| Colour Light Output | 8000 Lumens |
| Eco Mode CLO | 6400 Lumens |
| Contrast | 2,500,000:1 |
| Lamp | Laser Light Source |
| Lamp Life | 20,000hrs. (20,000hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | Vertical: 20/-0.1 Horizontal: +10/-50 |
| Keystone |
±40° (Vertical) |
| ±40° (Horizontal) | |
NEC PA803UL Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
| Video Resolutions | PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 15-153Hz |

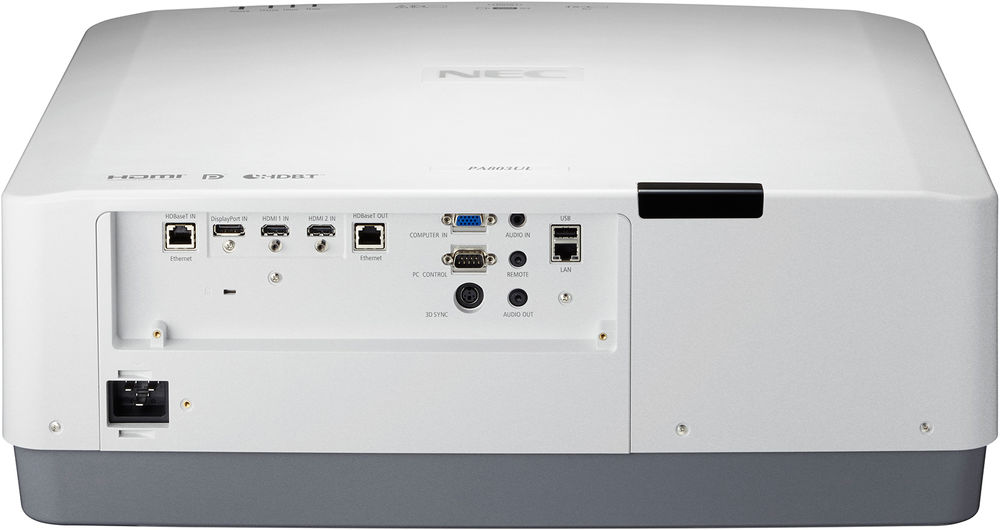

NEC PA803UL Terminals |
|
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC PA803UL General |
|
| Speakers | No |
| Remote Control | NEC PA803UL + Mouse Emulation |
| Noise | 39db (33db ECO mode) |
| Dimensions | 580*208*494mm (W*H*D) |
| Weight | 18.20kg |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 774Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC PA803UL Package Contents |
|
| Accessories | Cable Cover (NP11CV); IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC PA803UL Optional Lenses
| Description | Price | Inc. VAT |
| NEC NP40ZL Motorized Ultra Short Throw Zoom Lens | £972 | £1166.40 |
| NEC NP41ZL Motorized Mid to Semi Long Throw Lens | £393 | £471.60 |
| NEC NP42ZL Mid to Long Throw Zoom Lens | Discontinued | |
NEC PA803UL Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
NEC PA803UL Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1008B | LCD | 8500 | 15.4 | £5512 | £6614.40 |
| Epson EB-PU1008W | LCD | 8500 | 15.4 | £5487 | £6584.40 |
| Christie DWU880-GS-BK | DLP | 8000 | 19 | £5482 | £6578.40 |
| Christie DWU880-GS-WH | DLP | 8000 | 19 | £5482 | £6578.40 |
| Fujifilm FP-Z8000-B | DLP | 8000 | 18.4 | £14154 | £16984.80 |
| Panasonic PT-RZ890WEJ | DLP | 8500 | 21.3 | £11022 | £13226.40 |
| Vivitek DU7199Z-BK | DLP | 8600 | 20.6 | £4447 | £5336.40 |
| Vivitek DU7199Z-WH | DLP | 8600 | 20.6 | £4447 | £5336.40 |
