Maxell MC-WU5501 Projector
Maxell MC-WU5501 Key Features
- LCD Display Technology
- 5200 Lumens Colour Light Output
- WUXGA 1920*1200 Native Resolution
- 4,000 hour lamp life (typical)
- 16,000:1 Contrast Ratio
- 7.1kg (15.7lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Image Over Network
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Edge Blending
- DICOM Simulation Mode
- Monitor Out
- Network Control
Maxell MC-WU5501 Downloads
- Boardroom Projectors
- CAD, engineering and precision presentations
- Conference rooms (20 - 50 people)
- Medical Imaging
Maxell MC-WU5501 Specifications
| Categories | HDBaseT Lens Shift Installation HD |
| Manufacturer | Maxell (Click for rest of range) |
Maxell MC-WU5501 Optical Features |
|
| System | 3 * 0.67" LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 5,200 |
| ECO Mode Lumens | 3,640 |
| Colour Light Output | 5200 Lumens |
| Eco Mode CLO | 3640 Lumens |
| Contrast | 16,000:1 |
| Lamp | 300W |
| Lamp Life | 4,000hrs. (6,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.6x |
| Throw Ratio | 1.4 - 2.3:1 |
| Image Size | 40"-200" diagonal |
| Throw Distance | 1.21-9.91m |
| Throw distance for 100" image | 3.02 - 4.95m |
| Lens Shift | Vertical: 0-50% Horizontal: 4.4% |
| Keystone |
±30° (Vertical) |
| ±30° (Horizontal) | |
Maxell MC-WU5501 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |

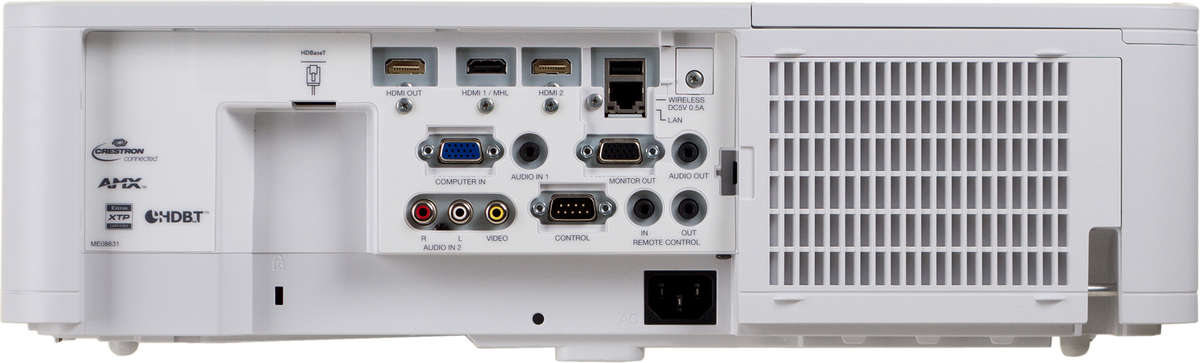

Maxell MC-WU5501 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
Maxell MC-WU5501 General |
|
| Speakers | 16w mono |
| Remote Control | Maxell MC-WU5501 only |
| Noise | 38db (29db ECO mode) |
| Dimensions | 460*138*334mm (W*H*D) |
| Weight | 7.10kg |
| Power Supply | AC 100V-120V (50/60Hz) 4.4A, AC 220V-240V (50/60Hz |
| Power Consumption | 420Watts |
| Manufacturers Warranty | 3 year return to base |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
Maxell MC-WU5501 Package Contents |
|
| Accessories | Power Cable (1.8m) Computer Cable (1.8m) IR Remote Control Unit AA Batteries Application CD (for network etc.) CD User Manual Concise User Manual Security Label Lens Cover Adapter Cover Terminal Cover HDMI Cable Holder x3 Cable Tie (large x1 medium x3) Hook Metal Screw |
Additional |
|
| Colour Modes | Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM Simulation |
| Security | PIN Security Lock, MyScreen Password Lock, Transition Detector, MyText Password Lock, Key Lock (Key pad, Remote Control) |
| Network Features | AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling, Crestron RoomView® (Not accessible through the wireless adaptor), Displaying text data transferred via network, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, Network Presentation (PC still picture transfer), Frame rate (practical) is under 12fps (640x480 movie) |
Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
Maxell MC-WU5501 Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Optoma ZU500USTe | DLP | 5000 | 5.7 | POA | |
| NEC PE506UL | LCD | 5200 | 7.95 | £1443 | £1731.60 |
| Epson EB-L520U | LCD | 5200 | 7.7 | £1760 | £2112.00 |
| Epson EB-L530U | LCD | 5200 | 8.2 | £2000 | £2400.00 |
| Epson EB-L570U | LCD | 5200 | 8.3 | £2129 | £2554.80 |
| BenQ LU930 | DLP | 5000 | 6.3 | £1703 | £2043.60 |
| BenQ LU935ST | DLP | 5500 | 7 | £2889 | £3466.80 |
| Panasonic PT-EZ57EJ | LCD | 5000 | 7.9 | £1527 | £1832.40 |
| Panasonic PT-VMZ51EJ | LCD | 5200 | 7.2 | £2154 | £2584.80 |
| Panasonic PT-VMZ51SEJ | LCD | 5200 | 7.2 | £2021 | £2425.20 |
