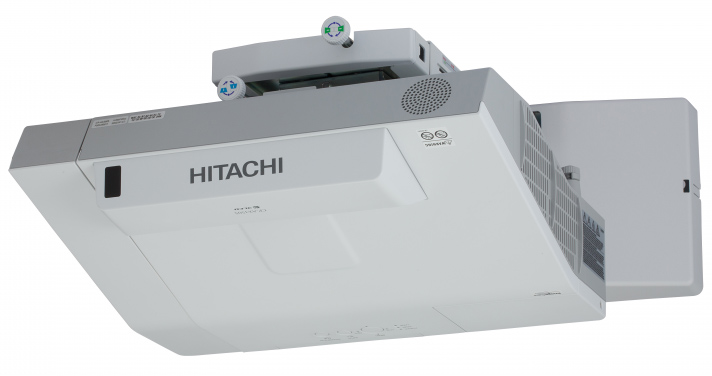

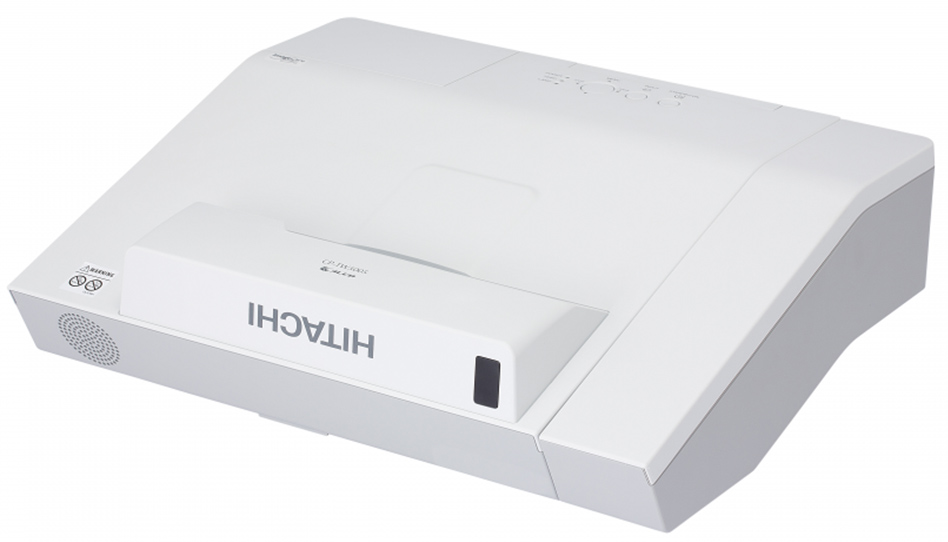

Hitachi CP-TW3005 Projector

No Longer Available

Click for Current Projector range

Hitachi CP-TW3005 Key Features

• LCD Display Technology
• 3300 Lumens Colour Light Output
• Wide XGA Resolution
• 4,000 hour lamp life (typical)
• 10,000:1 Contrast Ratio
• 4.5kg (9.9lb.)
• Ultra Short Throw (0.3:1)
• Native Widescreen
• PC Free Presentations
• Interactive (Pen)
• Mouse Emulation Remote
• Logo capture and display
• DICOM Simulation Mode
• Monitor Out
• Network Control

Hitachi CP-TW3005
Brochure

• PC Free Presentations
• Ultra short throw

Hitachi CP-TW3005 Specifications

Categories	PC Free Portable Widescreen Ultra Short Throw
Manufacturer	Hitachi (Click for rest of range)
Hitachi CP-TW3005 Optical Features
System	3 * 0.59" LCD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	3,300
ECO Mode Lumens	2,200
Colour Light Output	3300 Lumens
Eco Mode CLO	2200 Lumens
Contrast	10,000:1
Lamp	250W
Lamp Life	4,000hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.3 - 0.3:1
Image Size	60"-100" diagonal
Throw Distance	0.13-0.77m
Throw distance for 100" image	0.65 - 0.65m
Hitachi CP-TW3005 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

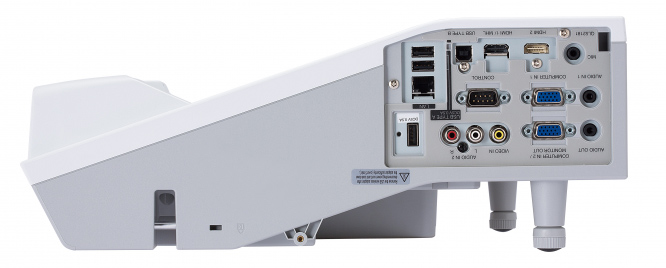

Hitachi CP-TW3005 Terminals
HDMI	2
RGBHV (15-pin HD)	2
Composite	1
Monitor Out	Yes
Audio In	3
Audio Out	1
USB	3
RS-232	1
Network Ready	Yes
Hitachi CP-TW3005 General
Speakers	16w mono
Remote Control	Hitachi CP-TW3005 + Mouse Emulation
Noise	36db (28db ECO mode)
Dimensions	377*136*360mm (W*H*D)
Weight	4.50kg
Power Supply	100-120V/220-240V, auto switching
Power Consumption	350Watts
Manufacturers Warranty	3 year loan support
Light Source Warranty	3 years/4000 hours (whichever first)
Hitachi CP-TW3005 Package Contents
Accessories	Remote control with batteries (HL03033) RGB cable Power cord Cable cover Wireless USB adapter cover Manual CD Application CD User manual (concise) Wall mount (HAS-WM03)

Ivojo Multimedia are approved Hitachi dealers and supply only UK products with full UK warranties.
