Epson EB-L790U Projector

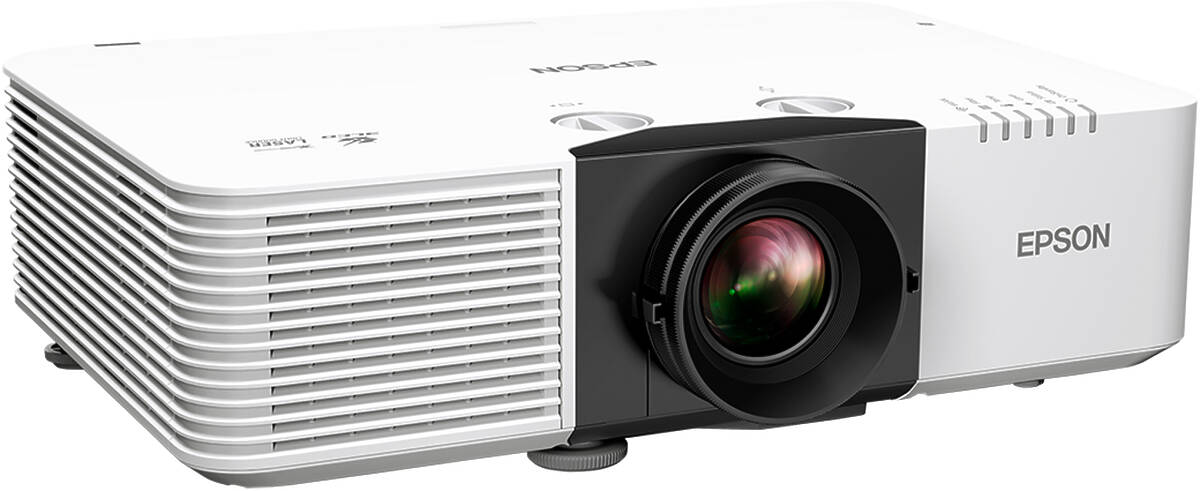

Epson EB-L790U 7300 Lumens WUXGA projector product image. Click to enlarge.

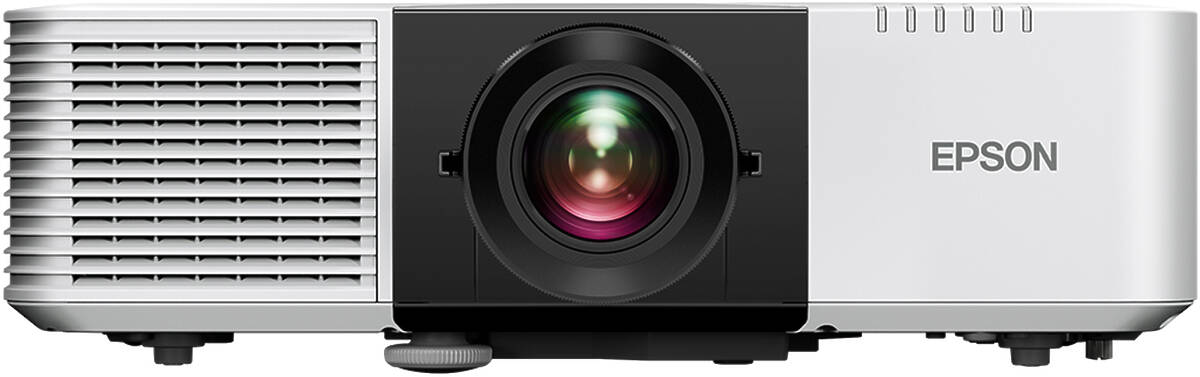

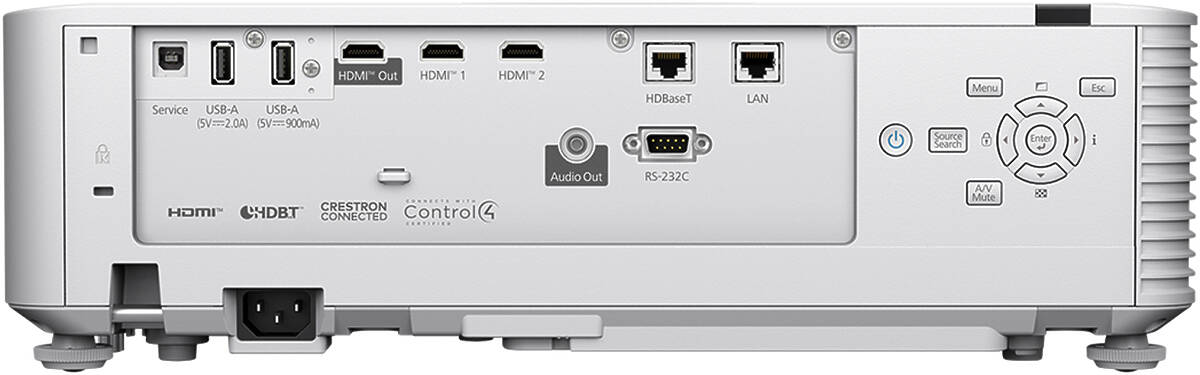

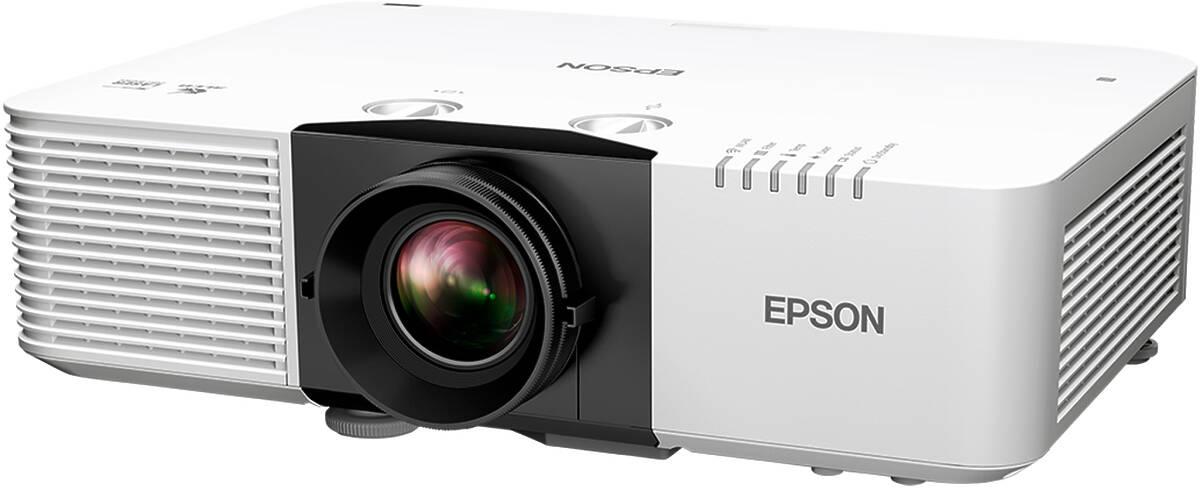

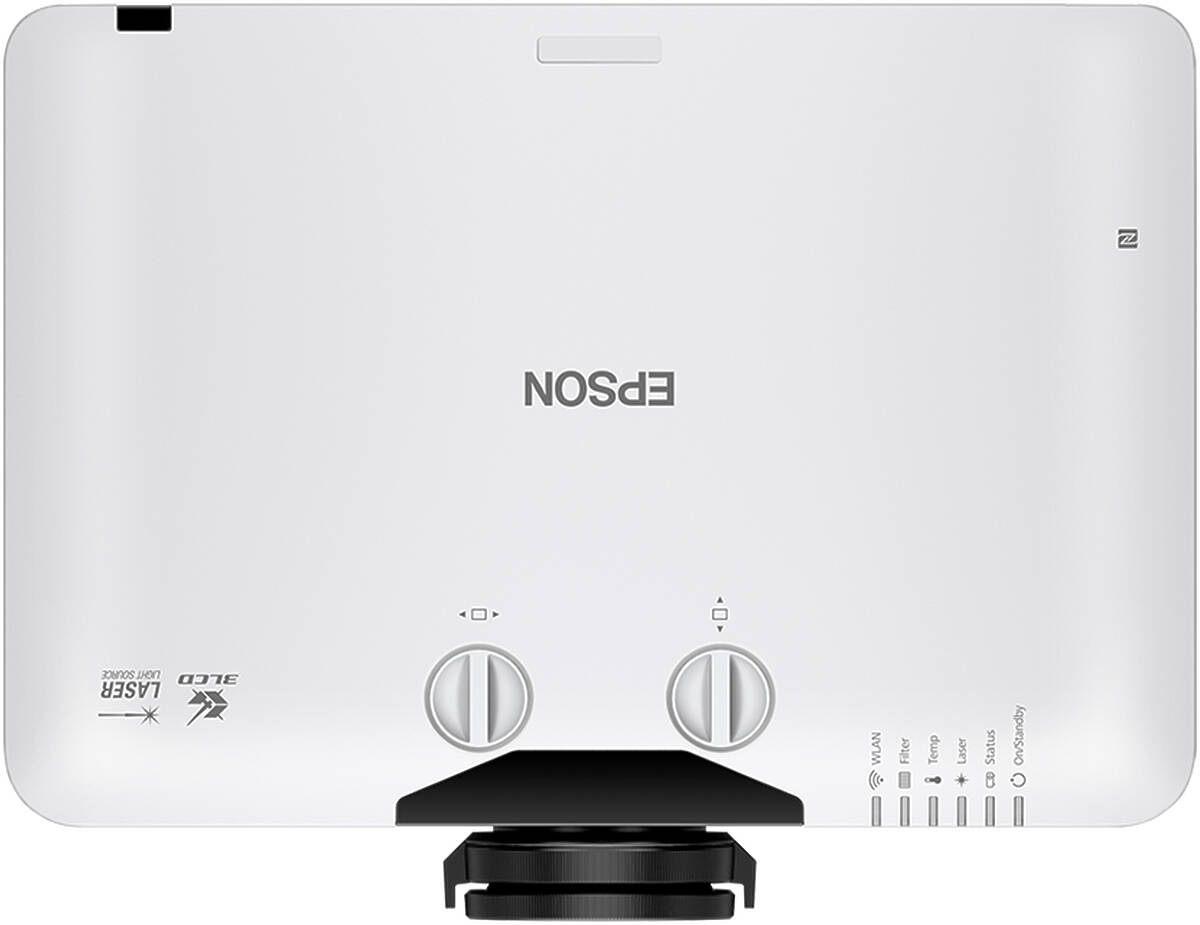

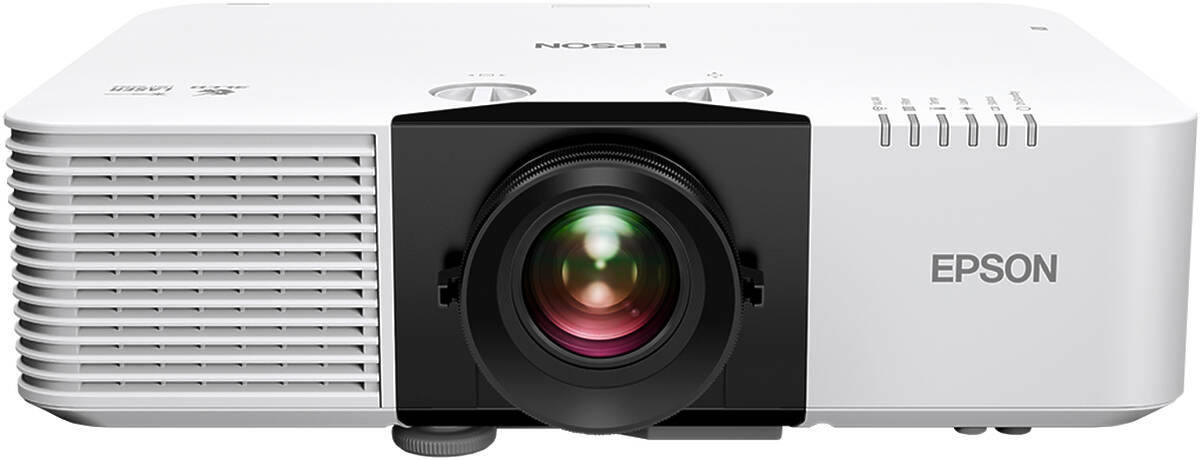

Epson EB-L790U 7300 Lumens WUXGA projector connectivity (terminals) product image Epson EB-L790U 7300 Lumens WUXGA projector Front View product image Epson EB-L790U 7300 Lumens WUXGA projector Front View product image Epson EB-L790U 7300 Lumens WUXGA projector Top View product image Epson EB-L790U 7300 Lumens WUXGA projector product image
£2341 (£2809.20 inc. VAT)
Availability: In stock

Epson EB-L790U Key Features

  • LCD Display Technology
  • 7300 Lumens Colour Light Output
  • WUXGA 1920×1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 5,000,000:1 Contrast Ratio
  • Built-in wireless networking
  • 8.2kg (18.1lb.)
  • Finished in White
  • Wide zoom range for flexible placement
  • 360° Installation
  • Lens Shift
  • Wireless Network
  • Direct Power On
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • iOS App Compatible
  • HDBaseT
  • Miracast
  • Picture-and-Picture
  • Lens-centred Design
  • Logo capture and display
  • PIN Code Security
  • Warrantied for 24/7 use
  • DICOM Simulation Mode
  • sRGB Colour Mode
  • Monitor Out
  • Network Control
  • Apple AirPlay

Epson EB-L790U Downloads

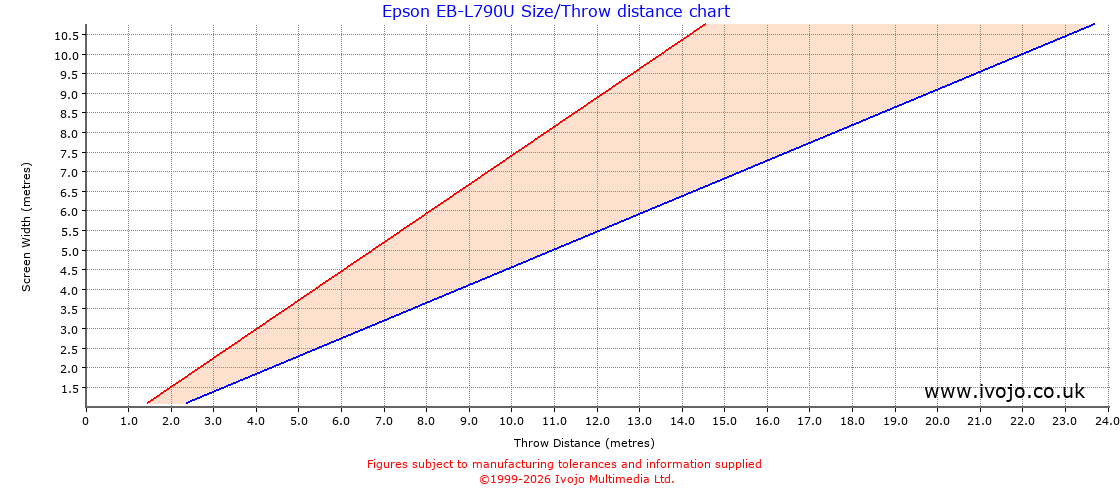

Epson EB-L790U Throw Chart (Click for details)

Epson EB-L790U throw distance chart

Epson EB-L790U Specifications

Categories HDBaseT
Lens Shift
PC Free
Short Throw Zoom
Wireless
Ultra Short Throw HD
LED/Laser HD
Manufacturer Epson (Click for rest of range)

Epson EB-L790U Optical Features
System 3 × 0.67″ LCD with C2 Fine
Resolution WUXGA (1920×1200)
Aspect Ratio 16:10
Lumens 7,300
ECO Mode Lumens 5,110
Colour Light Output 7300 Lumens
Eco Mode CLO 5110 Lumens
Contrast 5,000,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (30,000hrs. ECO mode)
Lens F1.5–17m, f=20–31.8mm, 1.4x Manual Zoom and Focus
Interchangeable No
Zoom Range 1.6x
Throw Ratio 1.35 - 2.2:1
Image Size 50"-500" diagonal
Throw Distance 1.44-23.84m
Throw distance for 100" image 2.91 - 4.74m
Lens Shift Manual - Vertical ±50%, horizontal ±20%
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Epson EB-L790U Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, UHD, 4K, 1080p, 1080i, 720p

Epson EB-L790U Terminals
HDMI 2
RGBHV (15-pin HD) 2
Monitor Out Yes
Audio In 2
Audio Out 1
USB 3
RS-232 1
HDBaseT 1
Network Ready Yes
Wireless Network No

Epson EB-L790U General
Speakers 10w mono
Remote Control Epson EB-L790U only
Noise 34db (25db ECO mode)
Dimensions 440*138*340mm (W*H*D)
Weight 8.20kg
Power Supply 100–240V AC; 50–60Hz
Power Consumption 399Watts
Manufacturers Warranty 3 years/12000 hours (whichever first) RTB
Light Source Warranty 3 years/12000 hours (whichever first) RTB

Epson EB-L790U Package Contents
Accessories Main unit
Power cable
Quick Start Guide
Remote control incl. batteries
User guide
Warranty document

Additional
Ceiling Mount VESA 100×100
Connectivity Details 2 × HDMI (HDCP 2.3)
USB 2.0 (2x), USB 2.0 Type B (Service Only)
RS-232C, Ethernet interface (100 Base-TX / 10 Base-T)
Wireless LAN IEEE 802.11a/b/g/n/ac
HDMI out
HDBaseT
Miracast
Jack plug out
HDMI (HDCP 2.3) (2x)
Near Field Communication (NFC)Apple AirPlay 2
Colour Video Processing 10 Bits
2D Colour Modes Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Security Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features 21:9 aspect ratio support, A/V mute, Auto Power On, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.

Epson EB-L790U Accessories

Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

Epson EB-L790U Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Epson EB-L790SU LCD 7000 9.3 £2789 £3346.80
Epson EB-L795SE LCD 7000 9.3 £3209 £3850.80
Epson EB-L890E LCD 8000 8.5 £2960 £3552.00
Epson EB-L890U LCD 8000 8.5 £2572 £3086.40
Epson EB-L895U LCD 8000 8.5 £2572 £3086.40
Sharp P701U LCD 7000 9.7 £4321 £5185.20
