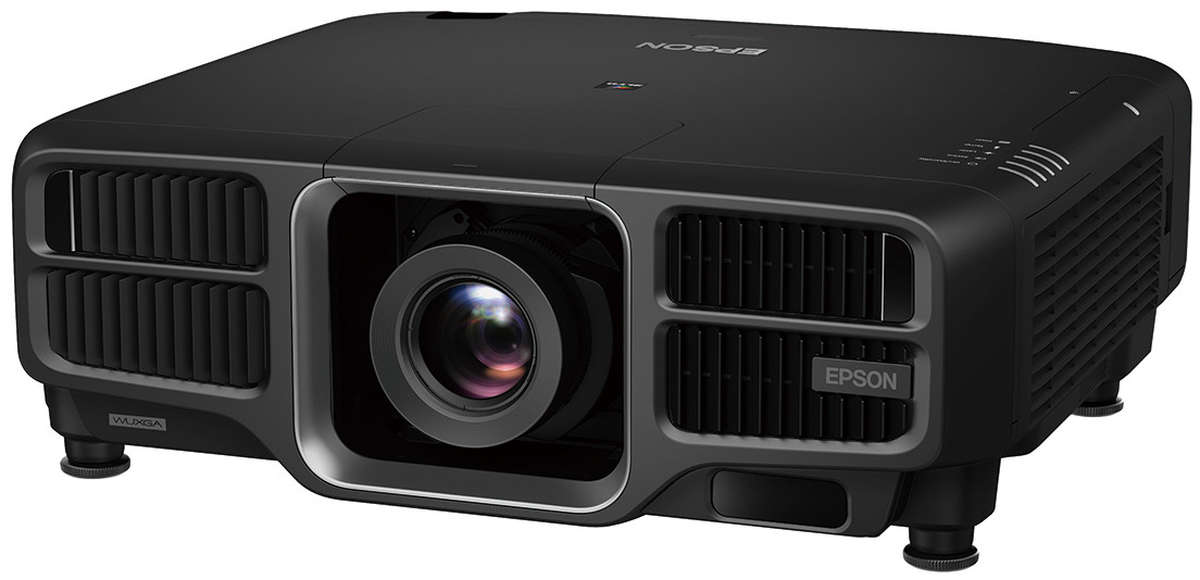

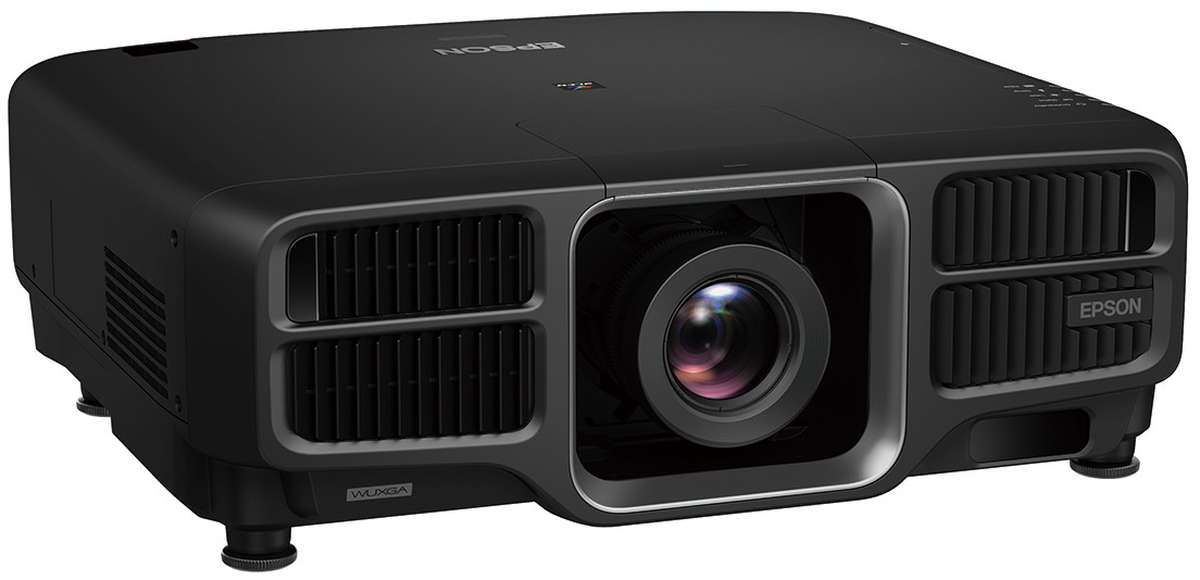

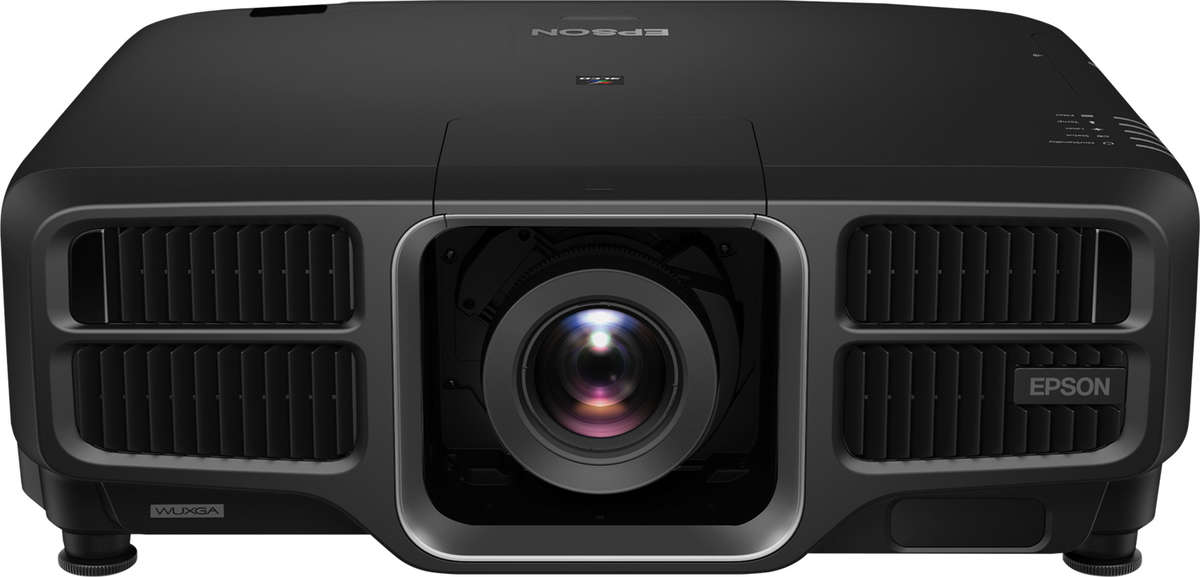

Epson EB-L1505UH Projector
Epson EB-L1505UH Key Features
- LCD Display Technology
- 12000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 2,500,000:1 Contrast Ratio
- 23.7kg (52.2lb.)
- Finished in Black
- Wide zoom range for flexible placement
- Native Widescreen
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- HDBaseT
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Warrantied for 24/7 use
- DICOM Simulation Mode
- Monitor Out
- Network Control
- Exhibitions and large venues
- Horizontal Surface Projection
- Lecture Theatres
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- Super bright applications
Epson EB-L1505UH Specifications
| Categories | Conference / Large Venue HDBaseT Interchangeable Lens LED/Laser HD |
| Manufacturer | Epson (Click for rest of range) |
Epson EB-L1505UH Optical Features |
|
| System | 3 * 1.03" C2Fine LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 12,000 |
| ECO Mode Lumens | 8,400 |
| Colour Light Output | 12000 Lumens |
| Eco Mode CLO | 8400 Lumens |
| Contrast | 2,500,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20,000hrs. (30,000hrs. ECO mode) |
| Interchangeable | Yes |
| Throw Ratio | 1.57 - 2.56:1 |
| Image Size | 60"-500" diagonal |
| Throw Distance | 2.00-27.80m |
| Throw distance for 100" image | 3.38 - 5.51m |
Epson EB-L1505UH Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |

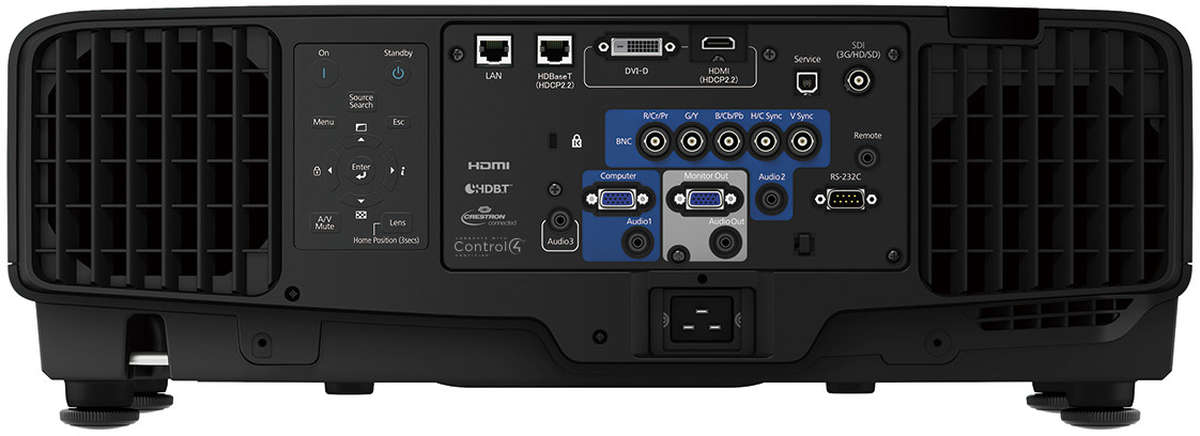

Epson EB-L1505UH Terminals |
|
| DVI | 1 |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
Epson EB-L1505UH General |
|
| Speakers | No |
| Remote Control | Epson EB-L1505UH only |
| Noise | 37db (30db ECO mode) |
| Dimensions | 586*211*492mm (W*H*D) |
| Weight | 23.70kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 908Watts |
| Manufacturers Warranty | 5 year/20,000 hours (whichever first) RTB |
| Light Source Warranty | 5 year/20,000 hours (whichever first) RTB |
Epson EB-L1505UH Package Contents |
|
| Accessories | CD Manual Cable cover VGA cable Power and signal cable (3 m) Quick Start Guide Remote control incl. batteries |
Additional |
|
| Security | Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | 4K enhancement, Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory |
| Video Color Modes | Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709 |
| Projector control | via: AMX, Crestron, Extron |
Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.
Epson EB-L1505UH Optional Lenses
| Description | Price | Inc. VAT |

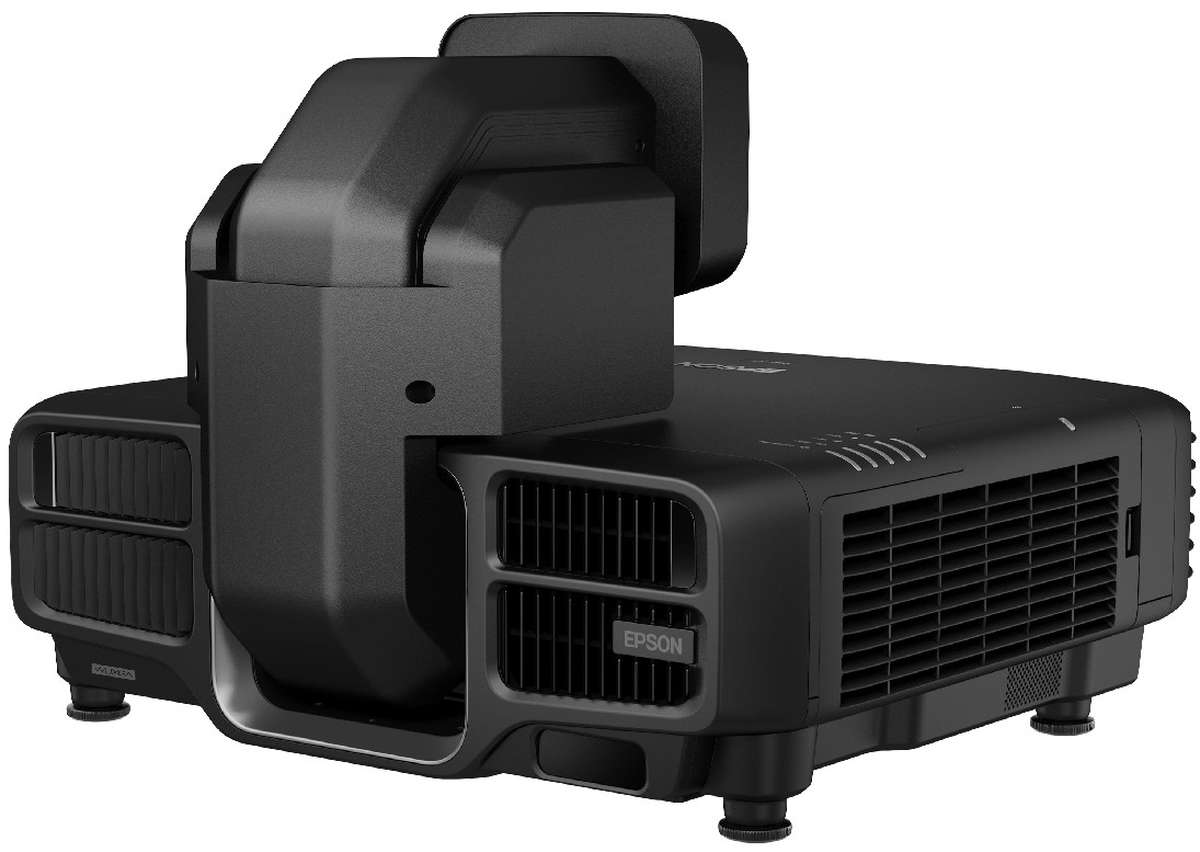

| Epson ELPLX02 Ultra Short Throw Mirror Lens | £17136 | £20563.20 |
| Epson ELPLU03 Ultra short throw zoom Lens | Discontinued | |
| Epson ELPLU04 Semi-ultra short throw zoom Lens | £2943 | £3531.60 |
| Epson ELPLW05 Short Throw Zoom Lens | £1341 | £1609.20 |
| Epson ELPLM15 Middle Throw Zoom Lens | £1120 | £1344.00 |
| Epson ELPLM10 Middle Zoom Lens Lens | £1311 | £1573.20 |
| Epson ELPLM11 Semi long throw zoom Lens | £1311 | £1573.20 |
| Epson ELPLL08 Long throw zoom Lens | £2145 | £2574.00 |
Epson EB-L1505UH Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU2113W | LCD | 13000 | 23.7 | £11188 | £13425.60 |
| Epson EB-PU2213B | LCD | 13000 | 23.7 | £12033 | £14439.60 |
| Christie DWU1100-GS | DLP | 12000 | 22.8 | £9320 | £11184.00 |
| Christie DWU1400-GS | DLP | 12000 | 22.8 | £11210 | £13452.00 |
| Panasonic PT-MZ11KLBEJ | LCD | 11000 | 22.5 | £9942 | £11930.40 |
| Panasonic PT-MZ11KLWEJ | LCD | 11000 | 22.5 | £10053 | £12063.60 |
| Panasonic PT-REQ12BEJ | DLP | 12000 | 27 | £17462 | £20954.40 |
| Panasonic PT-REQ12WEJ | DLP | 12000 | 27 | £17462 | £20954.40 |
| Sony VPL-FHZ120 | LCD | 12000 | 27 | £13698 | £16437.60 |
| Sony VPL-FHZ120B | LCD | 12000 | 27 | £13698 | £16437.60 |
