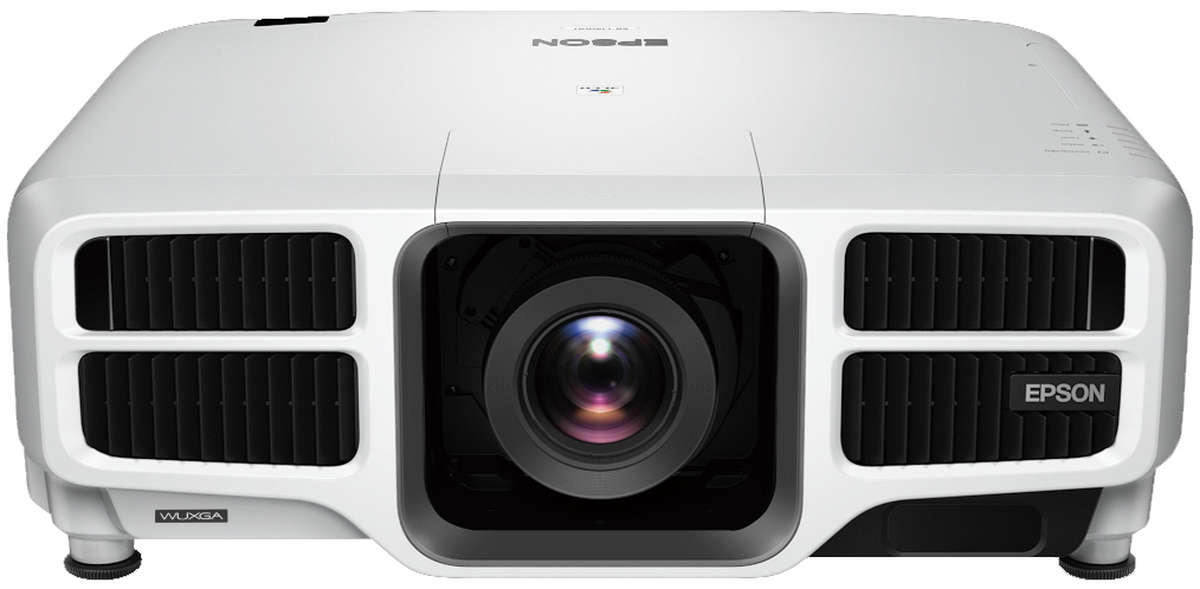

Epson EB-L1490U Projector
Epson EB-L1490U Key Features
- LCD Display Technology
- 9000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 2,000:1 Contrast Ratio
- 23.7kg (52.2lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Corner Projection
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- HDBaseT
- Picture-and-Picture
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Warrantied for 24/7 use
- Edge Blending
- DICOM Simulation Mode
- Monitor Out
- Network Control
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- Super bright applications
- Theatres
Epson EB-L1490U Specifications
| Categories | Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift LED/Laser HD |
| Manufacturer | Epson (Click for rest of range) |
Epson EB-L1490U Optical Features |
|
| System | 3 * 1.03" C2Fine LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 9,000 |
| ECO Mode Lumens | 6,300 |
| Colour Light Output | 9000 Lumens |
| Eco Mode CLO | 6300 Lumens |
| Contrast | 2,000:1 |
| Lamp | Laser |
| Lamp Life | 20,000hrs. (30,000hrs. ECO mode) |
| Interchangeable | Yes |
| Throw Ratio | 1.57 - 2.56:1 |
| Image Size | 60"-1000" diagonal |
| Throw Distance | 2.00-27.80m |
| Throw distance for 100" image | 3.38 - 5.51m |
| Lens Shift | Vertical: ± 60 % Horizontal: ± 18 % |
| Keystone |
±45° (Vertical) |
| ±30° (Horizontal) | |
Epson EB-L1490U Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |
Epson EB-L1490U Terminals |
|
| DVI | 1 |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
Epson EB-L1490U General |
|
| Speakers | No |
| Remote Control | Epson EB-L1490U only |
| Noise | 37db (30db ECO mode) |
| Dimensions | 586*211*492mm (W*H*D) |
| Weight | 23.70kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 626Watts |
| Manufacturers Warranty | 5 years/20000 hours (whichever first) |
| Light Source Warranty | 5 years/20000 hours (whichever first) |
Epson EB-L1490U Package Contents |
|
| Accessories | CD Manual Cable cover VGA cable Power and signal cable (3 m) Quick Start Guide Remote control incl. batteries |
Additional |
|
| Security | Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | 4K enhancement, Absolute Black, Auto Calibration, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory |
| Video Colour Modes | Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709 |
| Projector control | via: AMX, Crestron, Extron |
Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.
Epson EB-L1490U Optional Lenses
| Description | Price | Inc. VAT |
| Epson ELPLX02 Ultra Short Throw Mirror Lens | £17136 | £20563.20 |
| Epson ELPLU03 Ultra short throw zoom Lens | Discontinued | |
| Epson ELPLU04 Semi-ultra short throw zoom Lens | £2815 | £3378.00 |
| Epson ELPLW05 Short Throw Zoom Lens | £1282 | £1538.40 |
| Epson ELPLW08 Wide Zoom Lens | £4631 | £5557.20 |
| Epson ELPLW06 Wide Zoom Lens | £2052 | £2462.40 |
| Epson ELPLM15 Middle Throw Zoom Lens | £1096 | £1315.20 |
| Epson ELPLM10 Middle Zoom Lens Lens | £1282 | £1538.40 |
| Epson ELPLM11 Semi long throw zoom Lens | £1282 | £1538.40 |
| Epson ELPLL08 Long throw zoom Lens | £2052 | £2462.40 |
Epson EB-L1490U Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Epson EB-L1490U Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC PA804UL BK | LCD | 8200 | 24.1 | £5406 | £6487.20 |
| NEC PA804UL WH | LCD | 8200 | 24.1 | £5406 | £6487.20 |
| Panasonic PT-RZ890WEJ | DLP | 8500 | 21.3 | £11022 | £13226.40 |
| Vivitek DU6198Z | DLP | 8500 | 26 | £8531 | £10237.20 |
| Vivitek DU7199Z-BK | DLP | 8600 | 20.6 | £4447 | £5336.40 |
| Vivitek DU7199Z-WH | DLP | 8600 | 20.6 | £4447 | £5336.40 |
| Vivitek DU7299Z-BK | DLP | 9600 | 20.6 | £5352 | £6422.40 |
