Sharp A175U B Projector &
Sharp XP-52ZL Projector Lens

Sharp A175U B projector lens image

Sharp A175U B

  • 16000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28.7kg (63.3lb.)
  • 3 year loan support warranty
  • Sharp A175U B
Sharp A175U B & Sharp XP-52ZL
£18028 (£21633.60 inc. VAT)
Availability: Please Call
Sharp XP-52ZL projector lens image

Sharp XP-52ZL
Suitable For

Sharp XP-52ZL Lens Only
£4181 (£5017.20 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.30m 1.72m 594.58

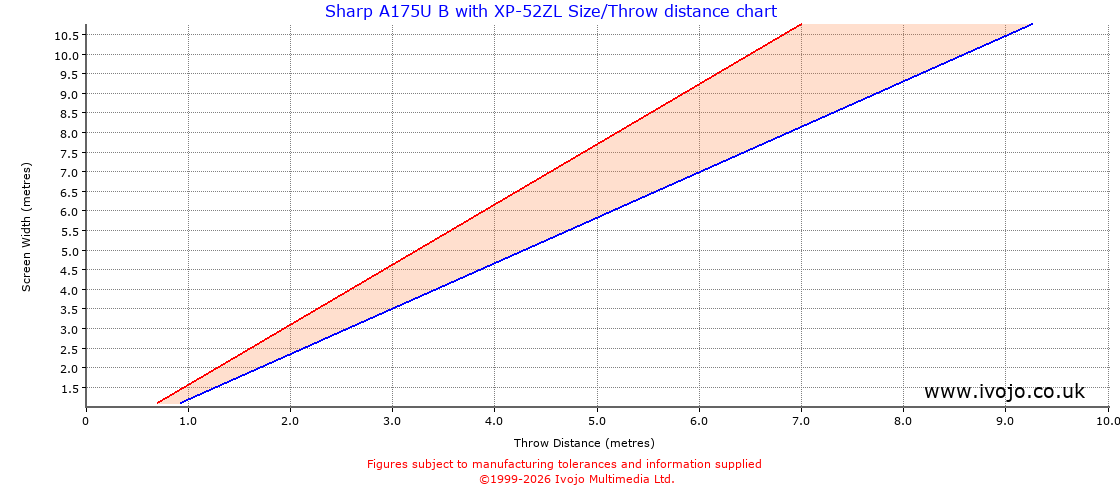

Throw Chard for Sharp A175U B fitted with Sharp XP-52ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.33 0.43 0.14 sq.m. 10570.30
1.00 0.56 1.15 0.65 0.86 0.56 sq.m. 2642.58
1.50 0.84 1.72 0.98 1.29 1.27 sq.m. 1174.48
2.00 1.12 2.29 1.30 1.72 2.25 sq.m. 660.64
2.50 1.41 2.87 1.62 2.15 3.52 sq.m. 422.81
3.00 1.69 3.44 1.95 2.58 5.06 sq.m. 293.62
4.00 2.25 4.59 2.60 3.44 9.00 sq.m. 165.16
5.00 2.81 5.74 3.25 4.30 14.06 sq.m. 105.70

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.16 1.54
2 2.33 3.08
3 3.49 4.62
4 4.65 6.15
5 5.81 7.69
6 6.98 9.23
7 8.14 10.77
8 9.30 12.31

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
