NEC P554U

NEC P554U Key Features

  • 5300 Lumens Colour Light Output
  • Native Widescreen
  • WUXGA 1920*1200 Native Resolution
  • 4000 hour lamp life (typical)
  • 20000:1 Contrast Ratio
  • Native Widescreen
  • Lens Shift
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Mouse Emulation Remote
  • HDBaseT
  • Logo capture and display
  • PIN Code Security
  • DICOM Simulation Mode
  • sRGB Colour Mode
  • Monitor Out
  • Network Control
  • 4.8kg (10.6lb.)
  • Click for NEC P554U Detailed Specifications
£1130 (£1356.00 inc. VAT)
Availability: 3-5 days
Throw Calculator


Size Range: 65 to 646cm
Lens Minimum
Throw
Maximum
Throw
Foot
Lamberts
Standard Lens 0.78m 1.3m 1865
Click for Throw Calculator

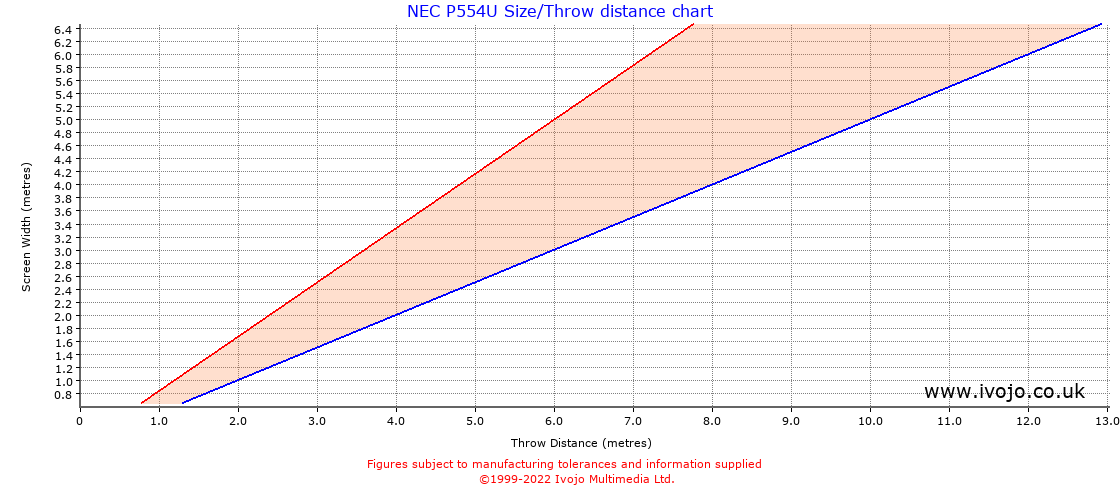

NEC P554U Throw Chart

NEC P554U throw distance chart
How the graph works

Along the horizontal axis is the distance in metres between the front of the projector and the projection screen. Up the vertical axis is the width of the image the projector will produce. We use width rather than diagonal as the width will remain consistent with the throw distance and zoom setting whereas the height and therefore the diagonal will vary depending on the source. For example, if you have a 4:3 aspect ratio projector and use it to watch a 16:9 aspect ratio DVD then the image will be "letterboxed", i.e. the width will remain the same but the height will be reduced.


Projector Throw From Screen Size Table (16:10 aspect ratio, in metres)
Diag.WidthHeightMin. ThrowMax ThrowAreaNits
0.76 0.640.400.771.290.26²6498.7
1.00 0.850.531.021.700.45²3753.7
1.50 1.270.791.532.541.01²1668.3
2.00 1.701.062.043.391.80²938.4
2.50 2.121.322.544.242.81²600.6
3.00 2.541.593.055.094.04²417.1
3.50 2.971.853.565.945.51²306.4
4.00 3.392.124.076.787.19²234.6
4.50 3.822.384.587.639.10²185.4
5.00 4.242.655.098.4811.24²150.1

Nits are a measure of the brightness of the final image. Multiply the figure in the Nits column by the gain of your screen to obtain a true figure.

Projector lamps dim over their life spans so make allowances by multiplying the foot nits by 0.75 to get a reasonable average.If you intend to calibrate your projector then this will also affect brightness. For home cinema use in a well darkened roon, about 42-70 Nits is ideal. For office use, aim for at least 175.

Screen Size For Given Throw Table
Throw Min. Width Max. Width
0.80 0.40 0.67
1.00 0.50 0.83
1.50 0.75 1.25
2.00 1.00 1.67
2.50 1.25 2.08
3.00 1.50 2.50
3.50 1.75 2.92
4.00 2.00 3.33
4.50 2.25 3.75
5.00 2.50 4.17
5.50 2.75 4.58
6.00 3.00 5.00
6.50 3.25 5.42
