Vogel’s PFW 3030

Tilt and Turn Single Arm TV/Monitor Wall Mount
39–55″ / Max 35kg; VESA 100×100–400×400; -15~+10° tilt

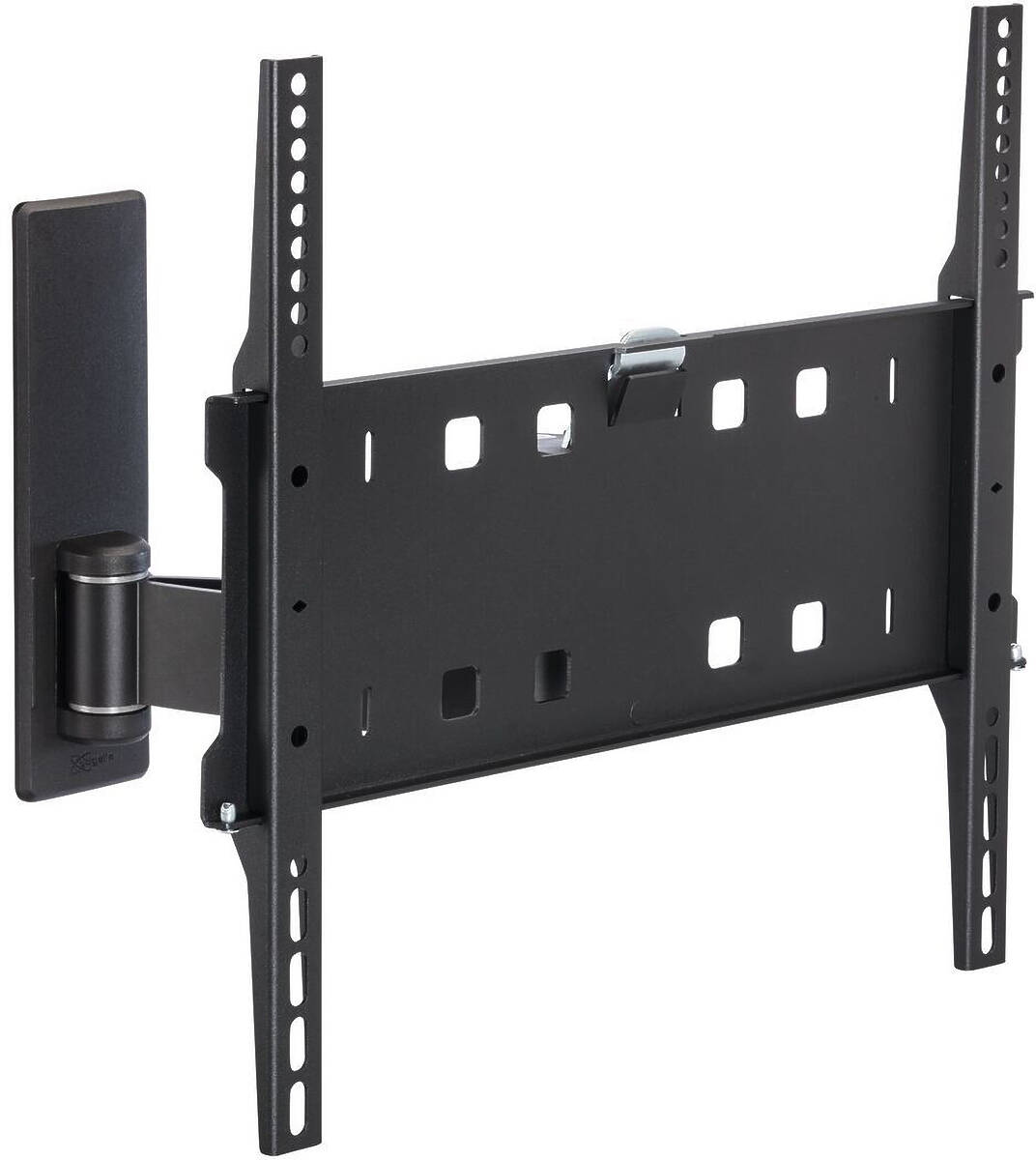

Vogels PFW 3030 Tilt and Turn Single Arm TV/Monitor Wall Mount product image

Vogels PFW 3030 (7330300) Description

The safe and elegant Vogel’s PFW3000 Series is designed with hospitality content in mind.

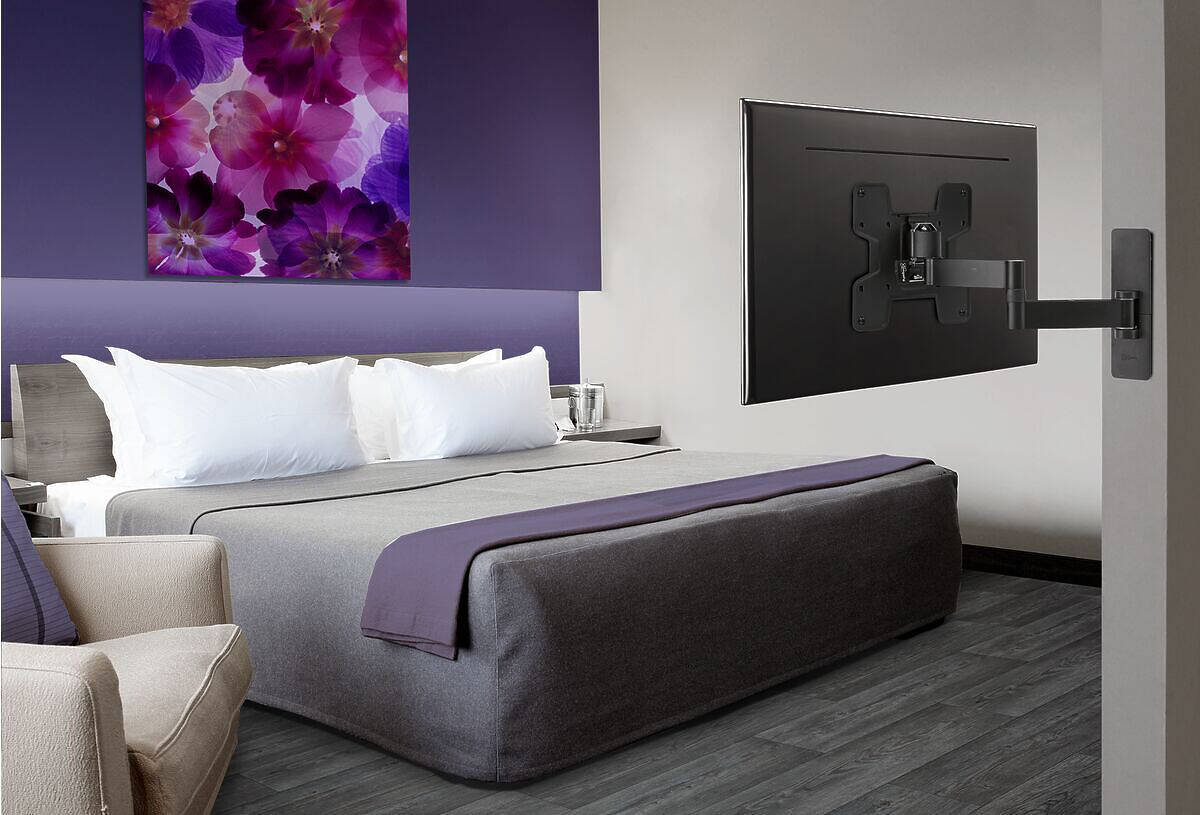

Hospitality is about providing your guest with the best possible services. One of those services is in-room entertainment, of which guests expect nothing but the best. The PFW3000 Series is thanks to its clean aesthetics and slim profile perfect to make your content pop. The included discrete padlock ensures that your Hotel TV is secure.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

Key Features

Stylish high-end design
400 x 400 fitment out of the box
Continuous smooth tilt
Post-installation levelling

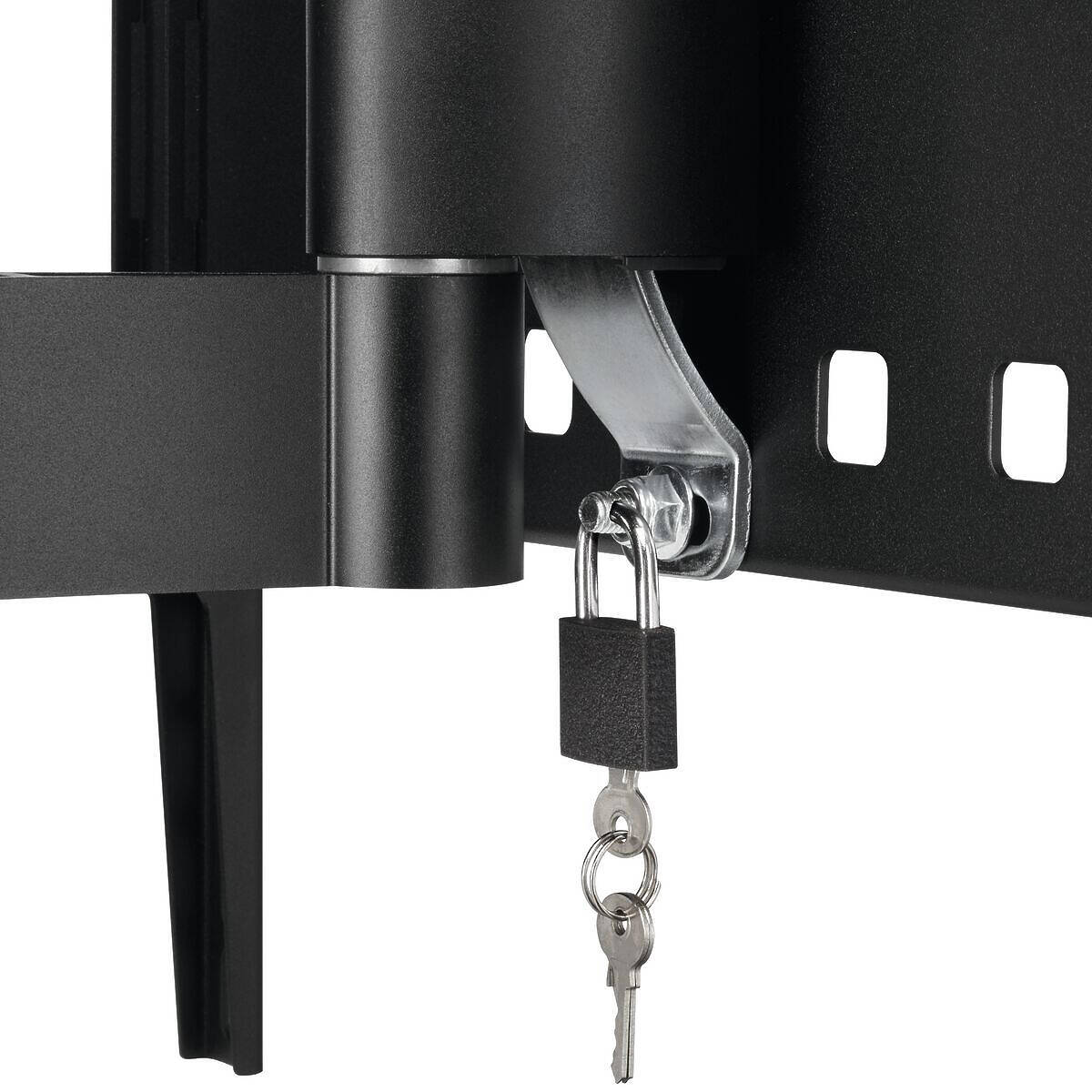

Theft-delaying padlock
Designed to accomodate a single monitor
See entire Vogels PFW3000 Range Range

£91 (£109.20 inc. VAT)
Availability: In Stock

Vogels PFW 3030 Specifications

Product Group	Vogels PFW3000 Range
UPC / EAN	8712285335167
Screen Size	39–55″
Screen Orientation	Landscape
Max Load	35kg
VESA Mount Points	100×100–400×400mm
Bracket Tilt	–15–10°
Warranty	5 Years
Series	PFW 3000 Series
Product group	Display mount turn
Guarantee	5 years
Colour	Black
Min. screen size	39 inch
Max. screen size	55 inch
Max. weight load	35kg
Max. weight load (lbs)	77.16
Number of pivot points	2
Turn	Up to 120°
Tilt	Tilt -15°/+10°
Lock options	Lock included / integrated
Lockable	Yes
Levelling function	Post-installation horizontal levelling
Min. horizontal hole pattern	100mm
Max. horizontal hole pattern	400mm
Min. vertical hole pattern	100mm
Max. vertical hole pattern	400mm
Number of arms	1
Min Depth (Closed)	107mm
Min. distance to the wall	4.21 inch
Max Depth (Open)	309mm
