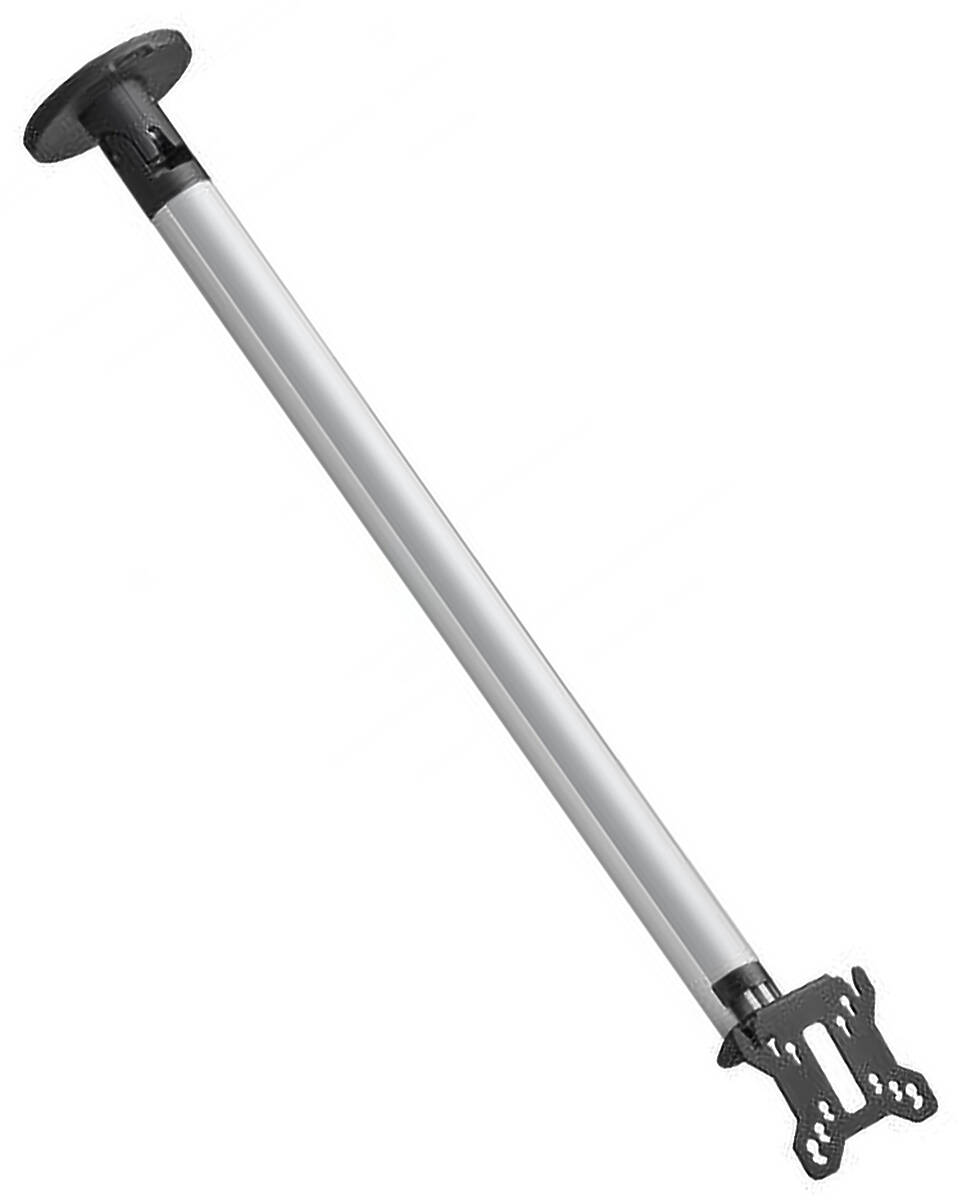

Vogel’s CT243011S
TV/Monitor Turning Ceiling Mount
Up to 32″ / Max 30kg; VESA 50×50–100×100mm; 3209mm to screen centre; 360° of turn, Silver finish
Designed to fit VESA measurements 50×50, 75×75 and 100×100.
Key Features
- Designed to accomodate a single monitor
- See entire Vogels Connect-it Ceiling Mount Range
Vogels CT243011S Specifications
| Product Group | Vogels Connect-it Ceiling Mount |
| UPC / EAN | 8712285347108 |
| Monitor Count | 1 |
| Colour | Black & Silver |
| Screen Size | 10 – 32″ |
| Screen Orientation | Landscape / Portrait |
| Max Load | 30.00kg. |
| VESA Mount Points | 50×50 – 100×100 |
| Ceiling to Monitor Centre | 3219.00mm |
| Dimensions |
157.0mm width 3319.0mm height 157.0mm depth |
| Bracket Tilt | 0, 10, 20° |
| Bracket Turn | 360° |
| Warranty | 5 Years |
| Series | Connect-it |
| Product group | Display ceiling mount |
| Guarantee | 5 years |
| Colour | Silver |
| Ceiling to Display Centre | 3209mm |
| Turn | Up to 360° |
| Tilt | Tilt up to 20° |
| Orientation | Landscape / Portrait |
| Height | 3000mm |
| Levelling function | Post-installation horizontal levelling |
| Ceiling types | Flat / inclined ceiling |
Ideal For
- Digital Signage
- Exhibitions
- Health Care / Clinics
- Hospitality
- Lobby / Reception Areas
- Museums and Art Galleries
- Restaurants & Cafe's
- Retail
- Scheduling Displays
£253 (£303.60 inc. VAT)
Availability: In Stock with FREE Delivery
Availability: In Stock with FREE Delivery

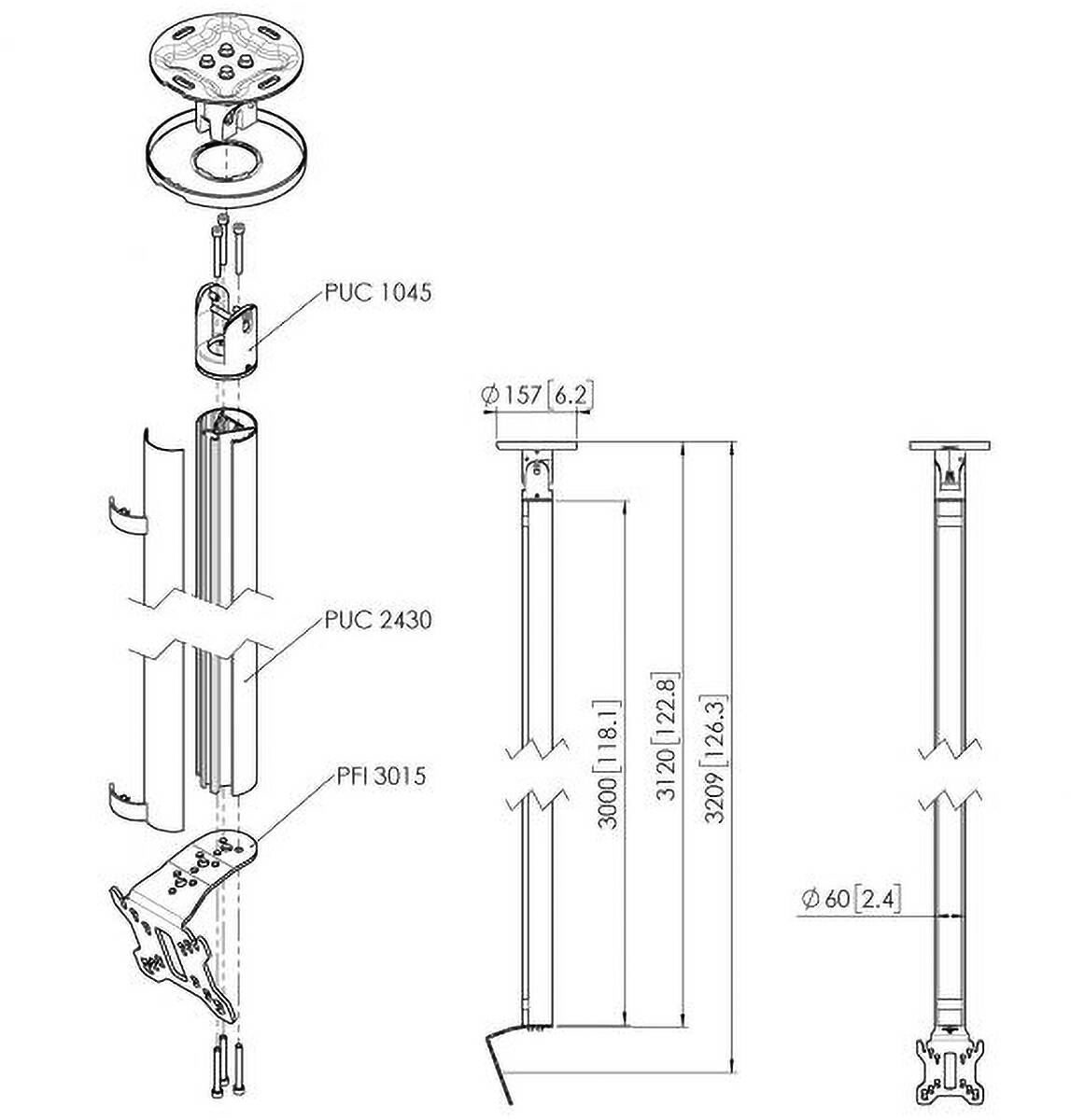

CT243011S Component Parts
| Product Code | Description |
| 1 × Vogels PFI 3015 | Monitor Mount Display Interface (VESA 50×50–100×100mm; Max 30kg.; Tilt 0–20°) |
| 1 × Vogels PUC 1045 | Tilt and Turn Ceiling Plate for Vogel's Connect-it Range |
| 1 × Vogels PUC 2430B | 300㎝ Connect-it Video Wall column finished in black |
