Unicol VTS1

Vertical Serviceable Cassette Screen Mount
71–110″ / Max 110kg; VESA 400×200–900×600

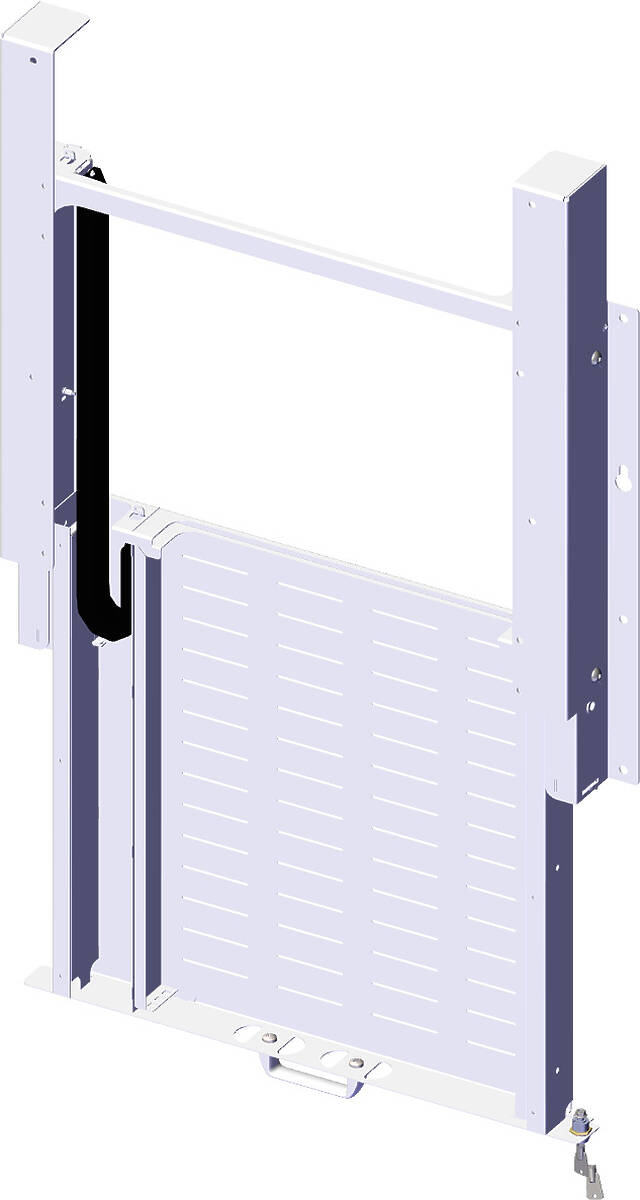

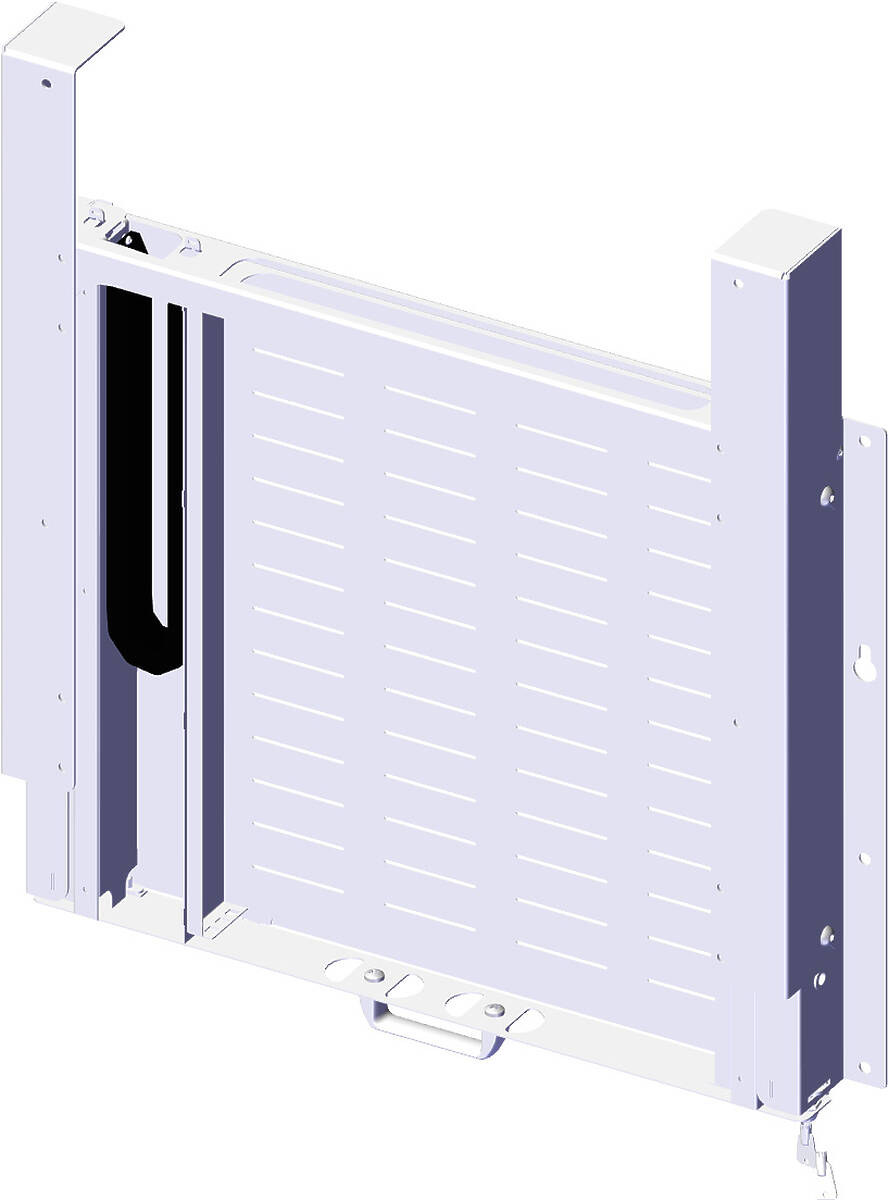

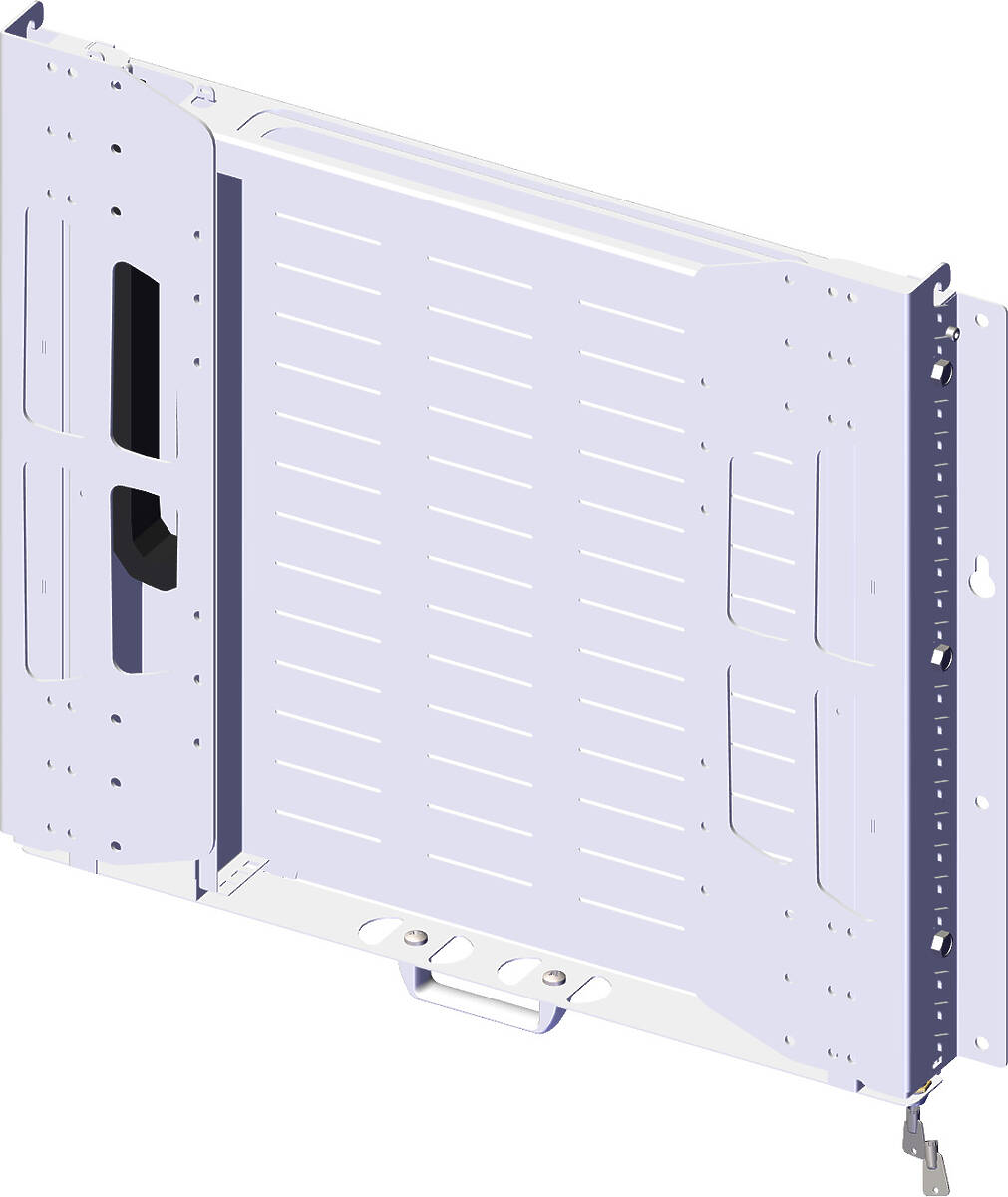

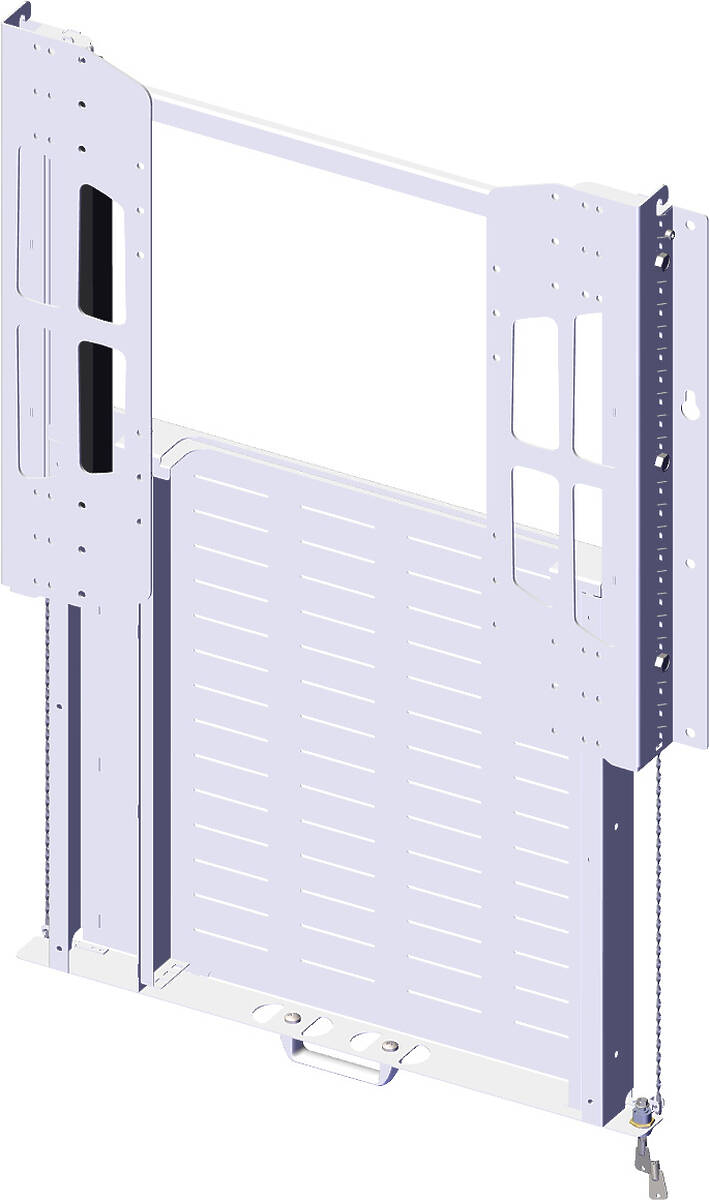

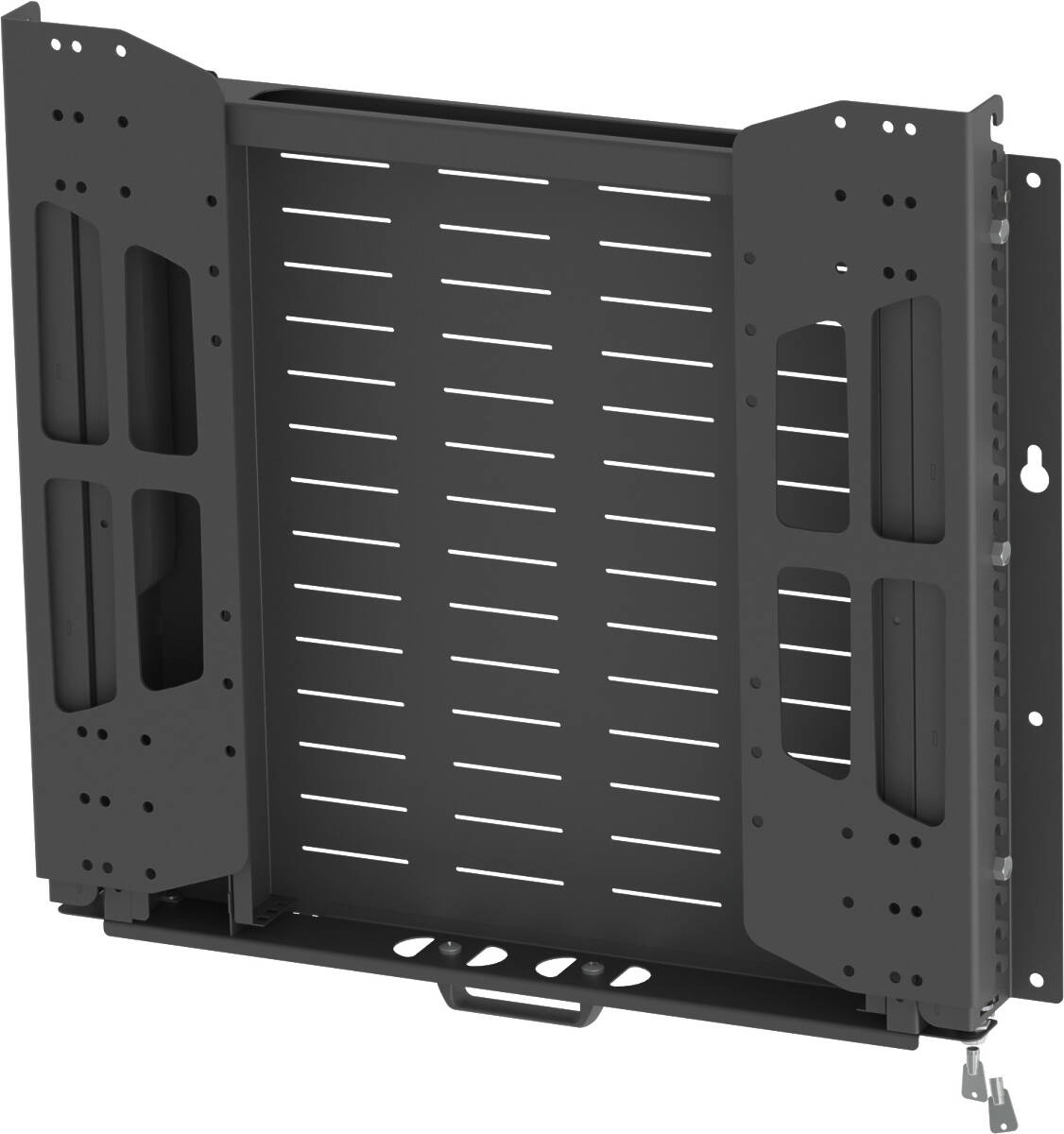

Unicol VTS1 Vertical Serviceable Cassette Screen Mount finished in white product image

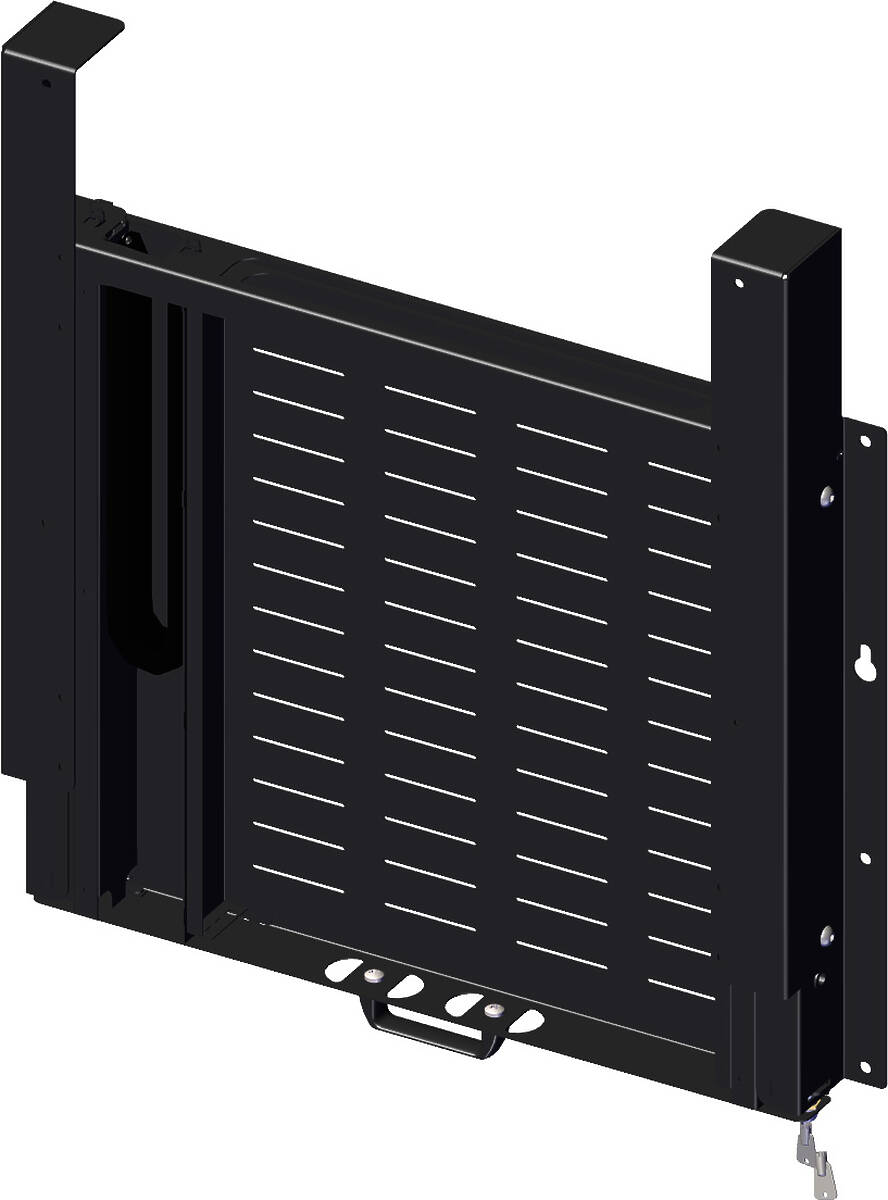

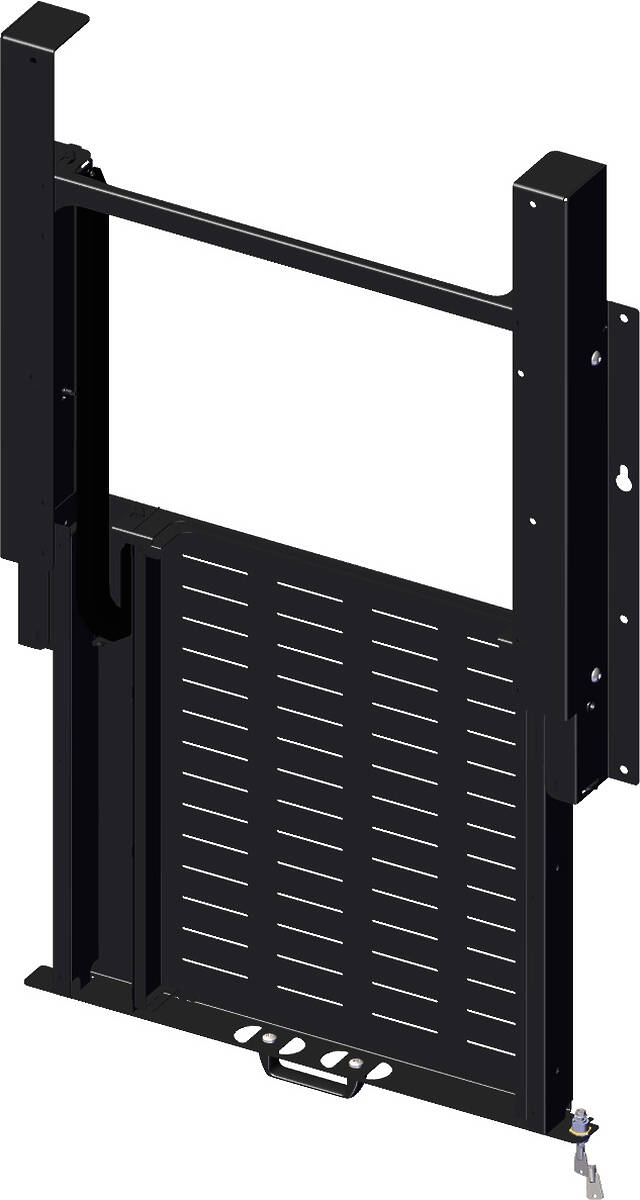

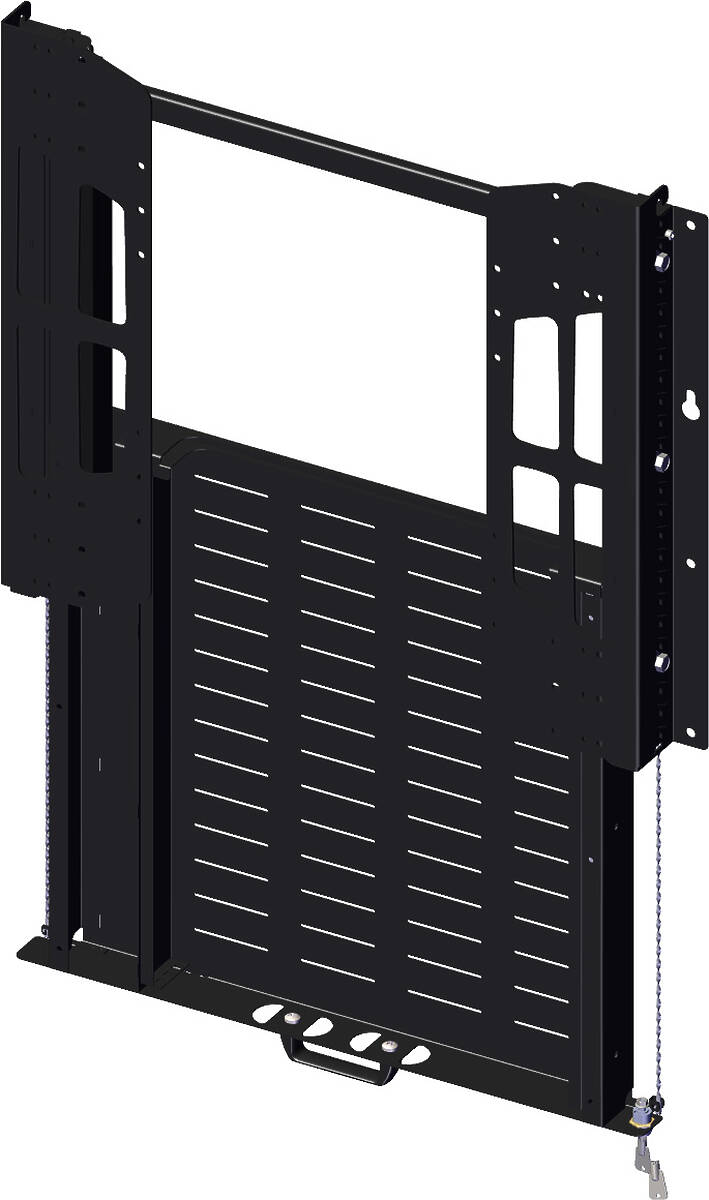

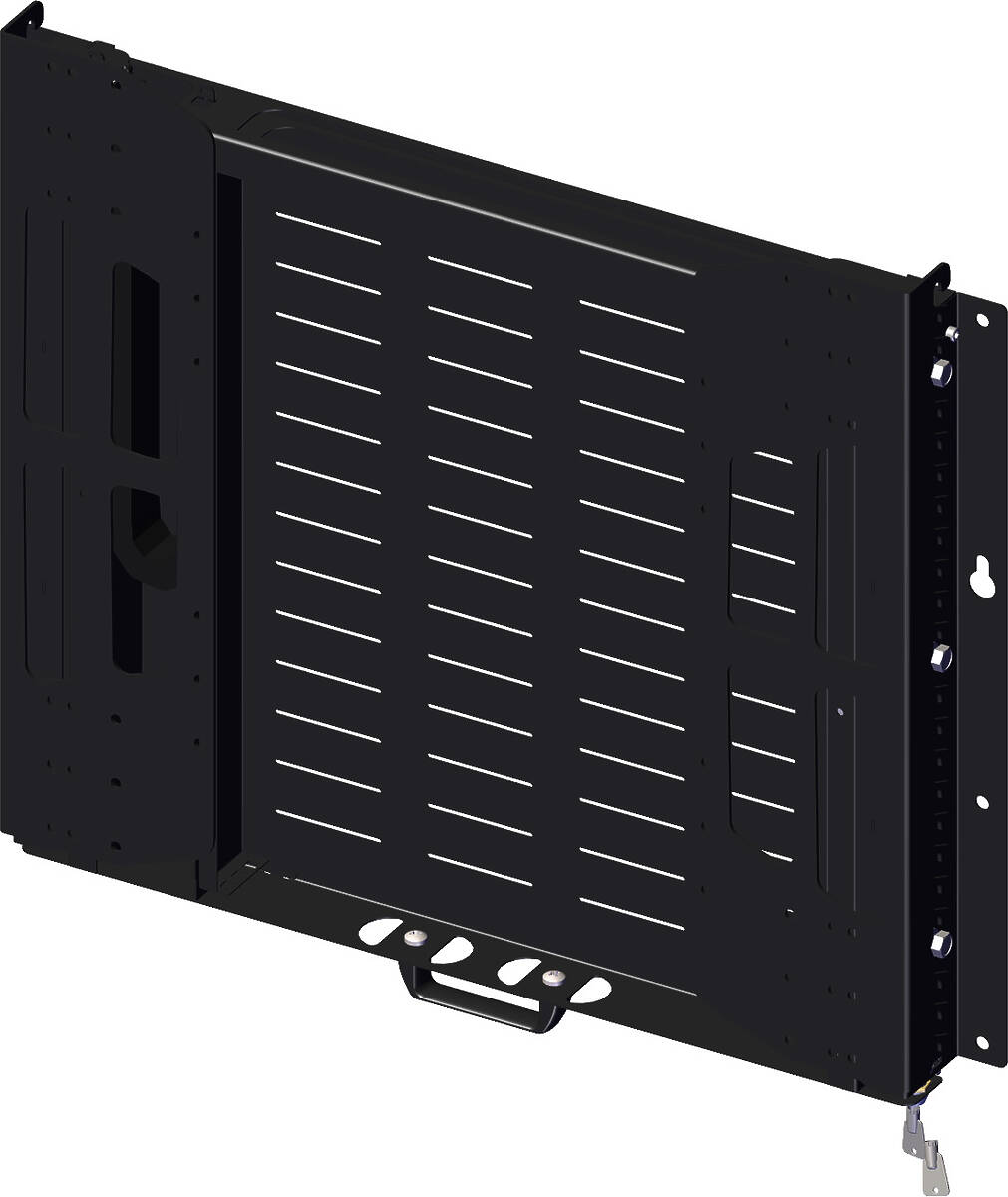

Unicol VTS1 Vertical Serviceable Cassette Screen Mount product image

Unicol VTS1

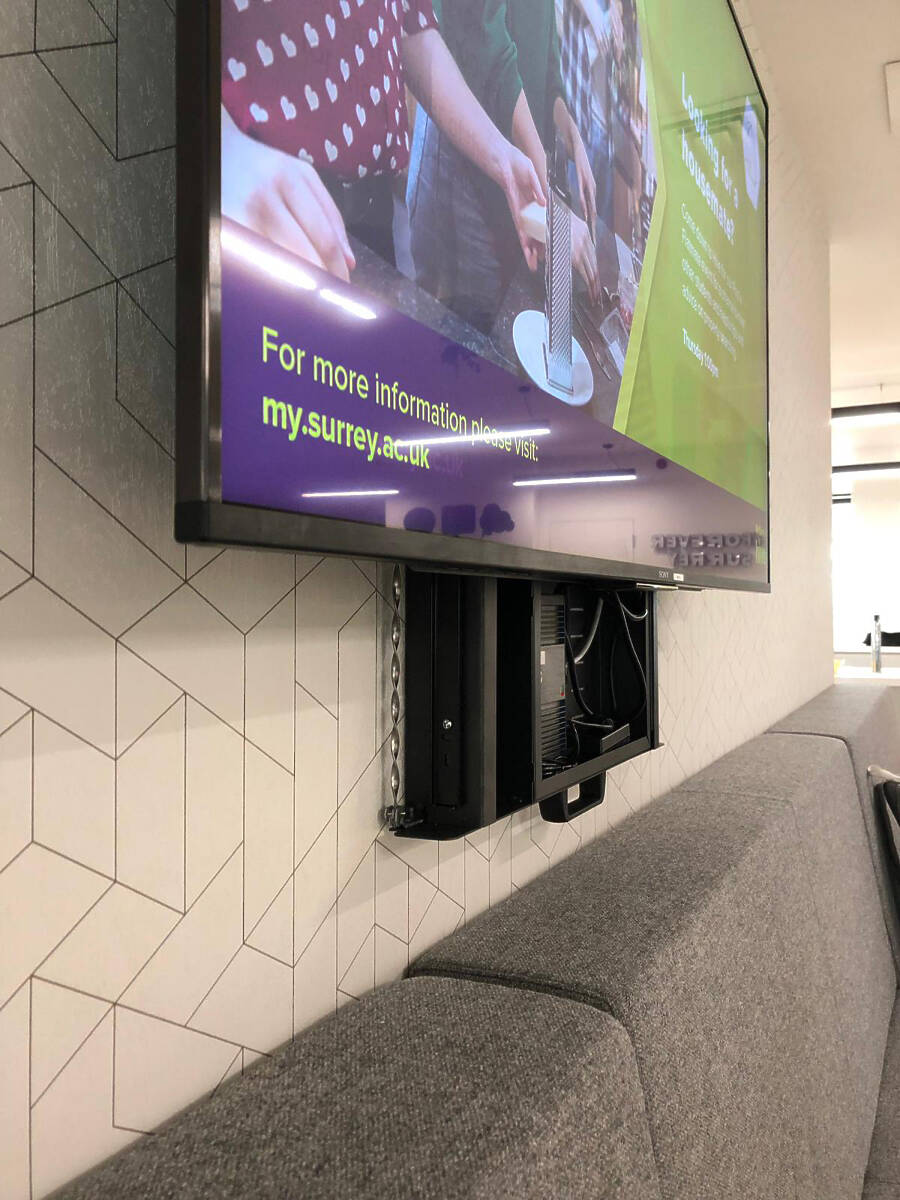

Store devices neatly behind the screen with a lift-and-lower rack.

The VTS1 allows users to swap-in, swap-out any old or broken devices with ease and efficiency. The 19” serviceable cassette tray allows you to separate it from the body of the mount so that devices can be assembled and attached prior to installation/maintenance. Each cassette features a series of slots to ensure devices can be easily fixed, no matter their size.

Built-in cable management keeps cabling hidden and tidy regardless of whether the cassette is open or closed. When the installation is finished, you can simply lock the tray to ensure devices remain safe and secure.

Dependent upon configuration, this solution is suitable for a maximum weight capacity of 60-110kg and covers VESA’s 200x200 to 1000x600mm. Please also consider your cabling.

Designed to fit VESA measurements 400×200, 500×200, 600×200, 400×300, 500×300, 400×400, 600×300, 500×400, 600×400, 400×600, 800×400 and 800×600.

Key Features

Includes rails for mounting monitor
Tidy cable management
19” slide in/out cassette rack tray
Separate equipment tray for pre-assembly
Built in security locks keeps devices safely stored away

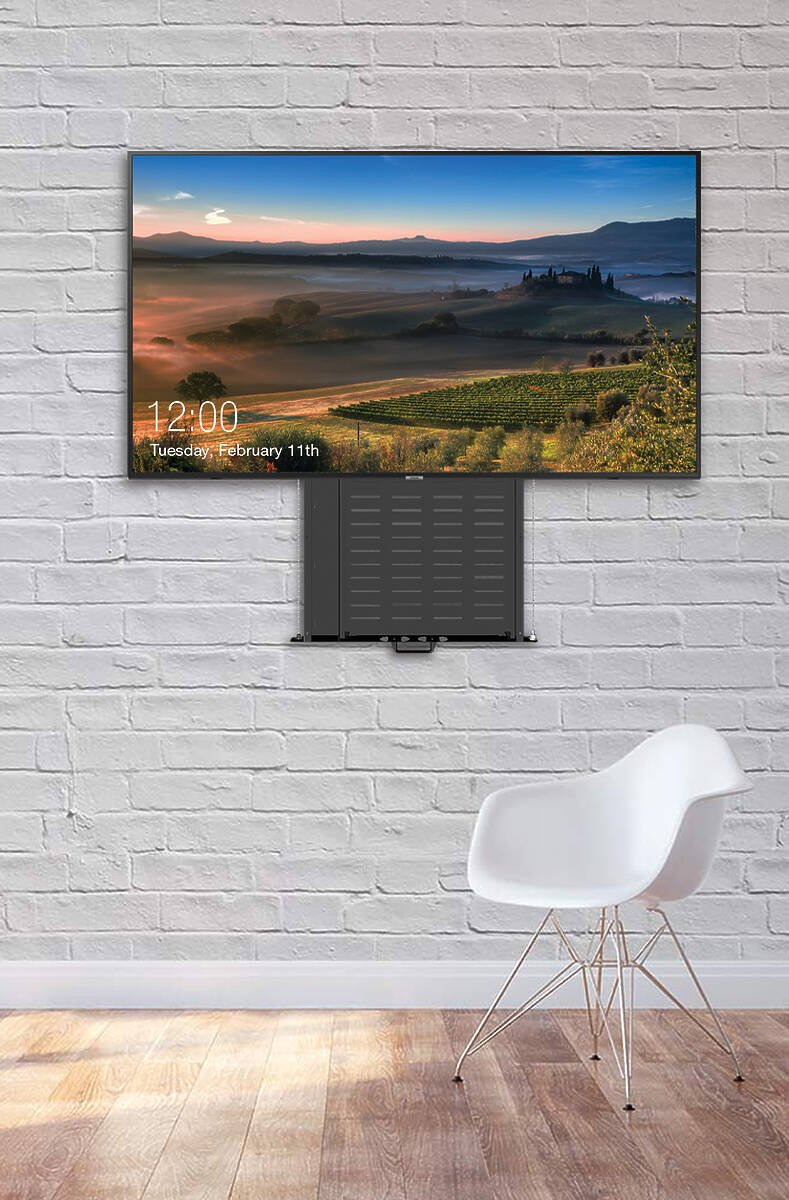

Incorporated into a wall mount – devices sit neatly behind the screen
Cable Management Chain: 30w × 15h mm (Internal dims) with minimum bend radius 28mm
See entire Unicol Vertislide Range

Unicol VTS1 Specifications

Product Group	Unicol Vertislide
Colour Options	Custom RAL colours available at additional cost
Screen Size	71 – 110″
Max Load	110.00kg.
VESA Mount Points	400×200 – 900×600
Dimensions	784.0mm width 666.0mm – 1184.0mm height 80.0mm depth
Weight	25.20kg.
Warranty	10 Years
