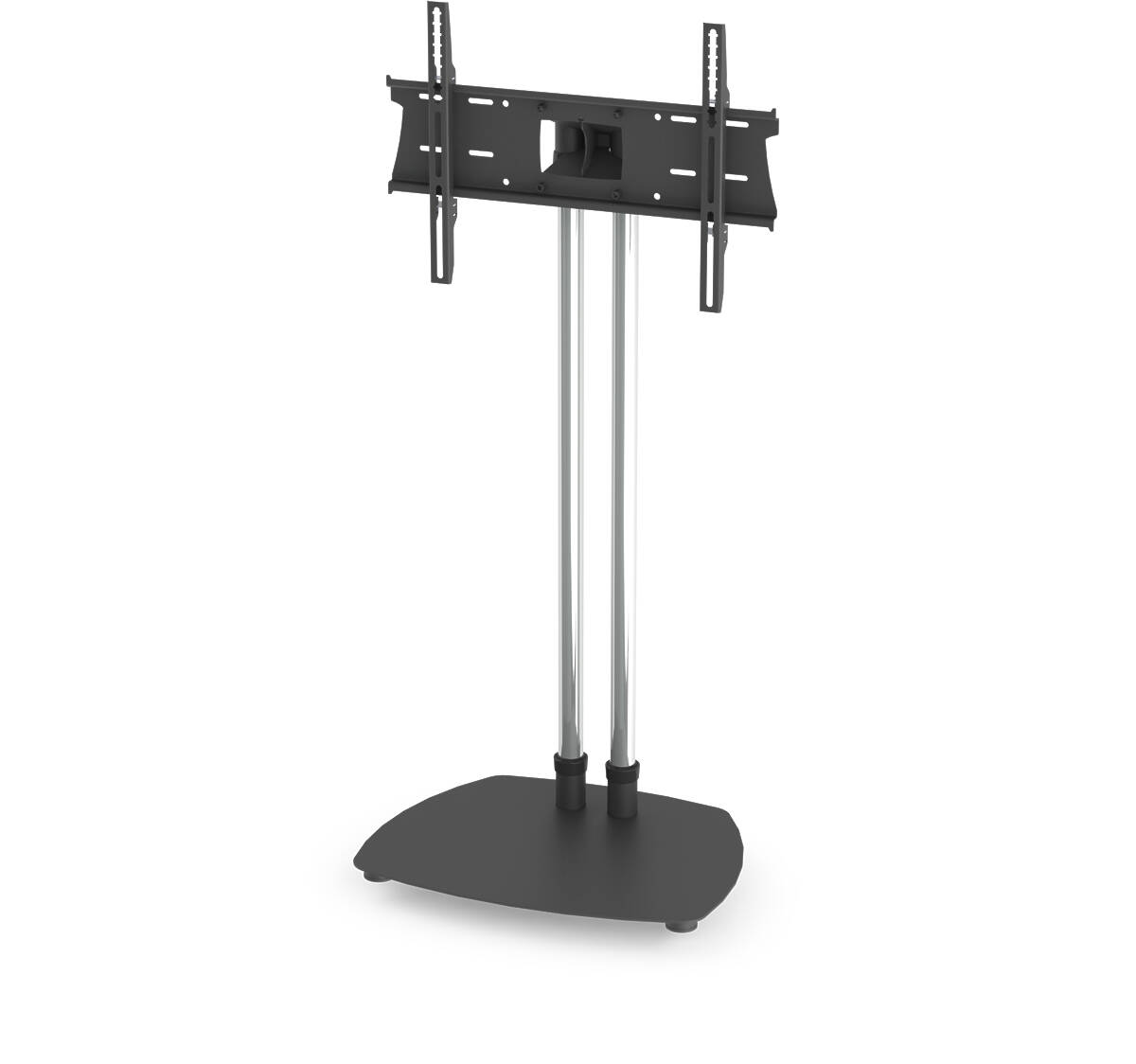

Unicol VSL-1500x2-PS2-PZX

VS1000 Plinth Stand
33–70″/ Max 60kg; VESA 200×200–600×400

Unicol VSL-1500x2-PS2-PZX Description

The VSL-1500x2-PS2-PZX is an ideal solution for a free-standing movable monitor or touch screen installation.

With a wide choice of interchangeable parts, easy assembly and sheer robustness, these units are the favoured choice of trade shows, education, broadcast and AV users everywhere.

Please Note: this solution is suitable for maximum screen weight of 60kg and covers VESA 200×200 to 600×400 (select appropriate bracket).

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

VSL Bolt-down Base with VS1000 standard 110mm column centres.
Twin column cantilever design chosen by commercial users everywhere.

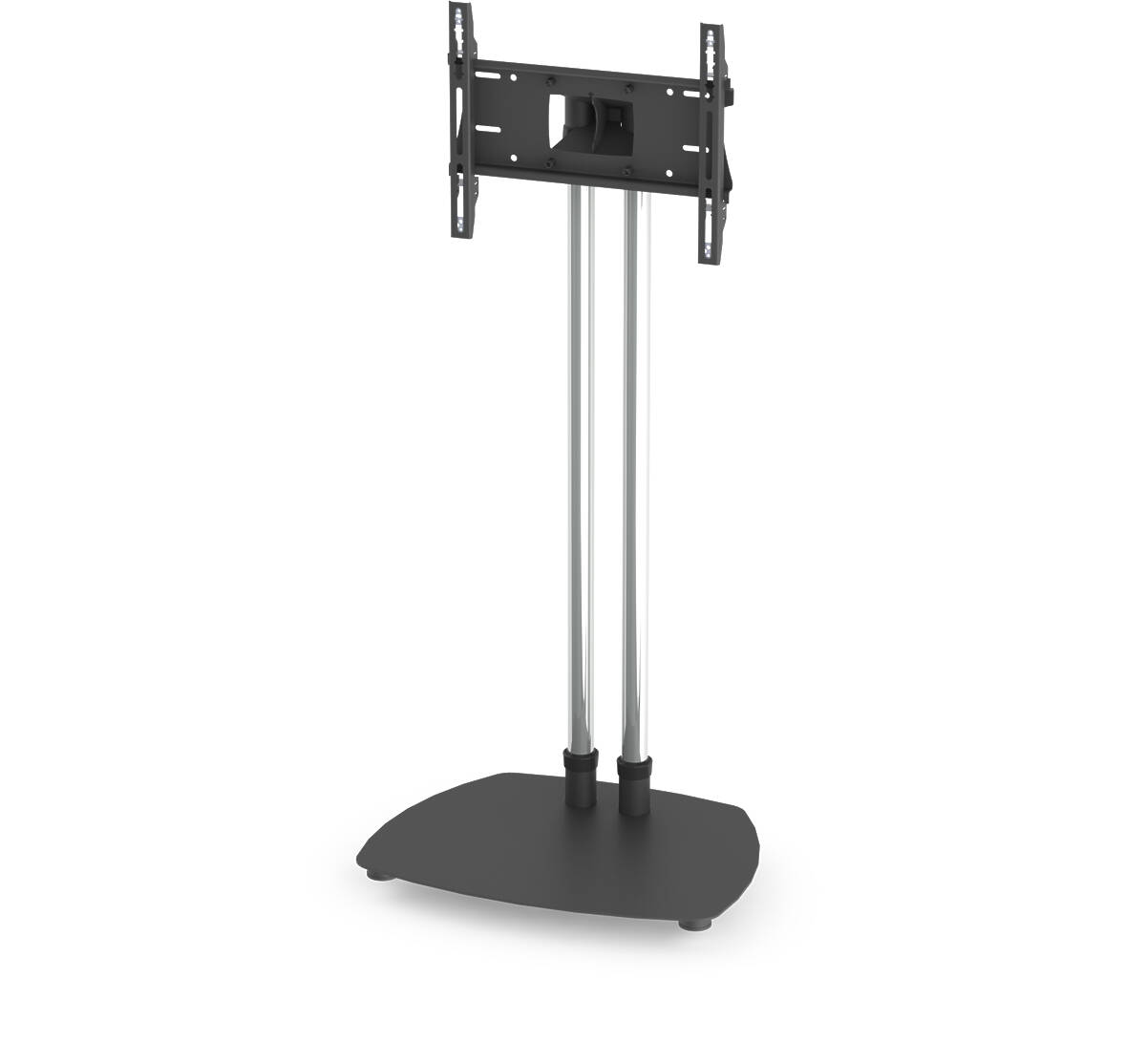

Choice of PZX1 (VESA up to 600×400) or PZX3 (VESA up to 400×400)
Wide selection of component parts enables stands & trolleys of varying types to be easily assembled.
Trolley and Bolt Down versions available.
Glass or Steel Shelves are available also Locking Cabinets.
Designed to accomodate a single monitor
See entire Unicol VS1000 Range

£294 (£352.80 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol VSL-1500x2-PS2-PZX Specifications

Product Group	Unicol VS1000
Monitor Count	1
Colour	Sinterflex Black
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 70″
Max Load	60.00kg.
VESA Mount Points	200×200–600×400mm
Screen Centre Height	1485.00mm
Dimensions	765.0mm width 1560.0mm height 580.0mm depth
Weight	30.80kg.
Warranty	10 Years
Column Centres	110mm
Base Size	740 × 580mm

Ideal For

Conference Suites
Digital Signage
Exhibitions
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Retail
Video conferencing

Unicol VSL-1500x2-PS2-PZX Downloads

Instruction Manual

VSL-1500x2-PS2-PZX Component Parts

Product Code	Description
1 × Unicol 1500x2	2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol PS2	Twin Column Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres; Max 80kg)
1 × Unicol PZX1	*Pozimount Non-tilting Wall Mount for Monitors/TVs ({calcScreenSizeRangeINCH}/ Max {calcMaxWeightKG}; VESA {calcVESARange}; 150×150mm Mount Centres)
1 × Unicol PZX3	*Pozimount Non-tilting Wall Mount for Monitors/TVs ({calcScreenSizeRangeINCH}/ Max {calcMaxWeightKG}; VESA {calcVESARange}; 150×150mm Mount Centres)
1 × Unicol VSL	VS1000 Twin Column Monitor Stand Plinth Base (110mm Column Centres)
	*Please choose option or contact us for assistance
