Unicol VSF-1500x2-PS2-PZX

VS1000 Bolt Down Stand
33–70″ / Max 60kg; VESA 200×200–600×400

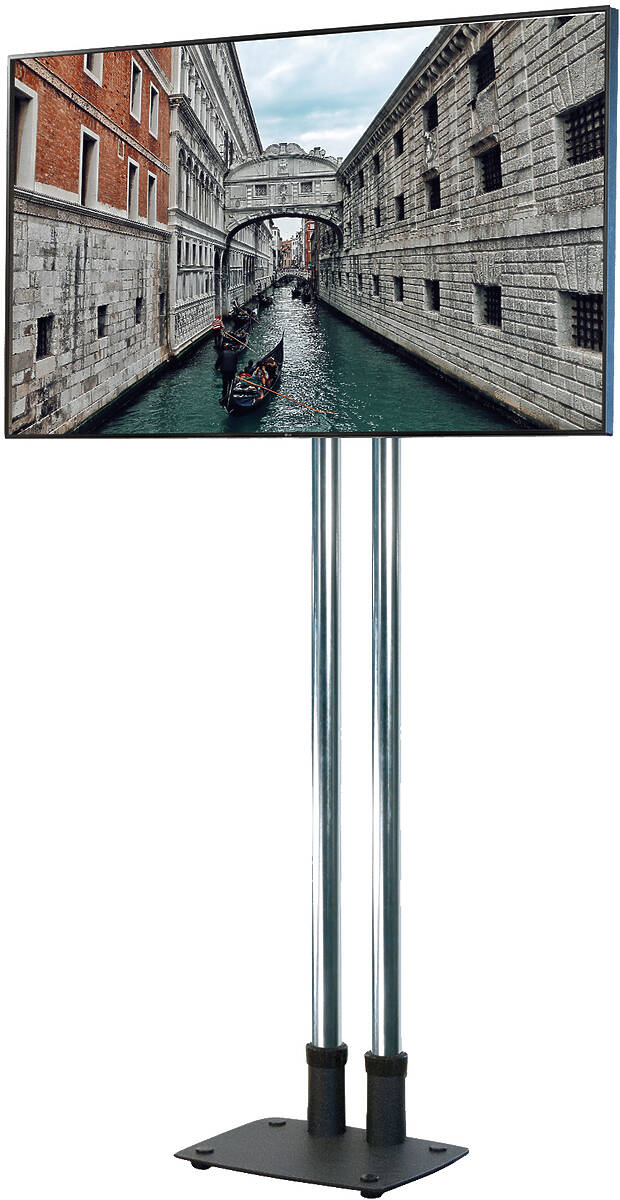

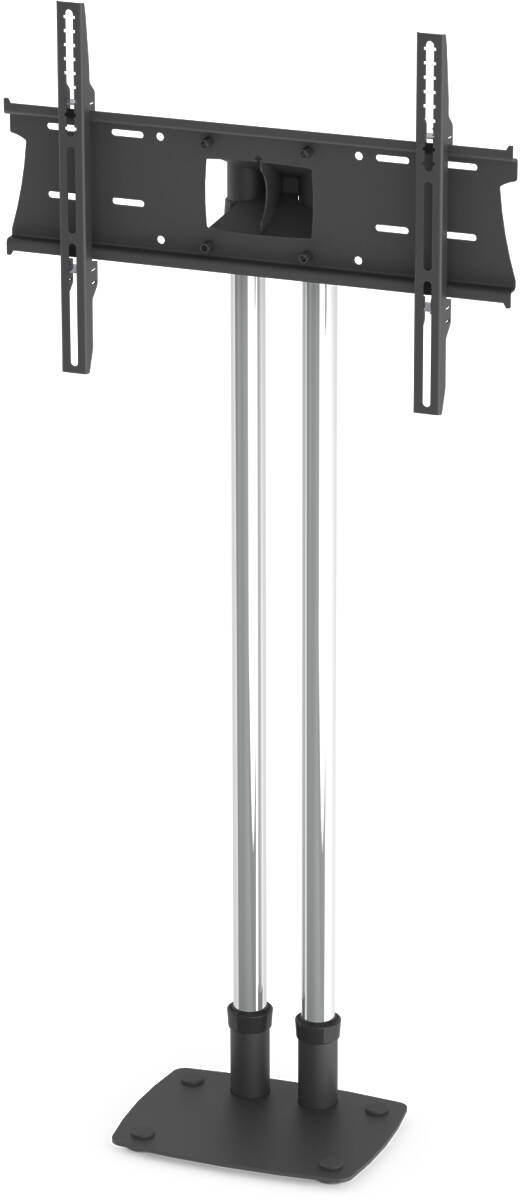

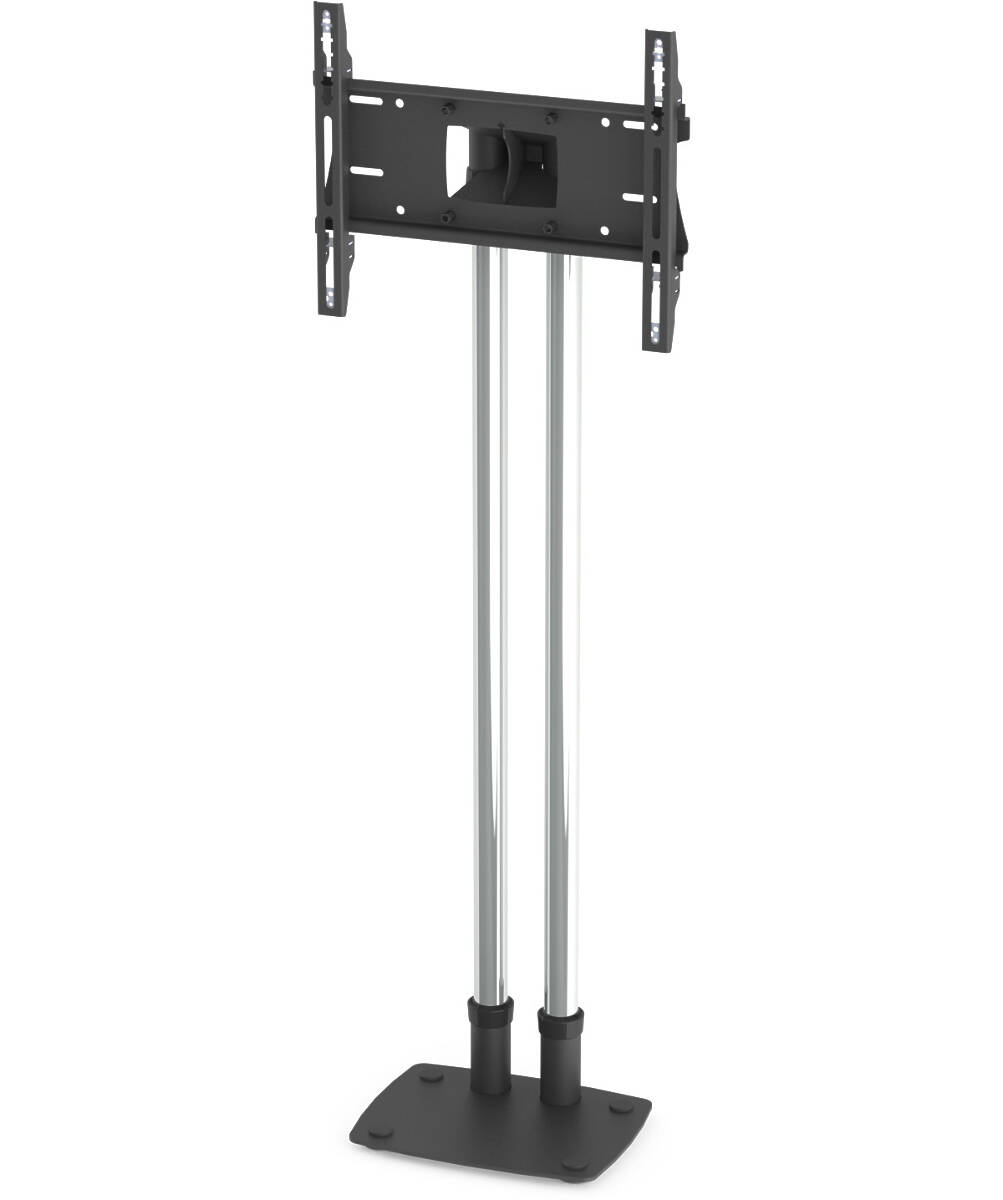

Unicol VSF-1500x2-PS2-PZX VS1000 Bolt Down Stand product image

Unicol VSF-1500x2-PS2-PZX Description

The VSF-1500x2-PS2-PZX is an ideal solution for a free-standing permanent monitor or touch screen installation. The compact VSF base requires 10mm bolts (not supplied) which are concealed with supplied trim caps for a neat finish.

With a wide choice of interchangeable parts, easy assembly and sheer robustness, these units are the favoured choice of trade shows, education, broadcast and AV users everywhere.

Please Note: this solution is suitable for maximum screen weight of 60kg and covers VESA 200×200 to 600×400 (select appropriate bracket).

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

VSF Bolt-down Base with VS1000 standard 110mm column centres.
Height adjustable from base to 151cm
Twin column cantilever design.
Choice of PZX1 (VESA up to 600×400) or PZX3 (VESA up to 400×400)
Wide selection of component parts for easy adaptability.
Trolley and Plinth versions available.
Glass or Steel Shelves are available also Locking Cabinets.
Designed to accomodate a single monitor
See entire Unicol VS1000 Range

£288 (£345.60 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol VSF-1500x2-PS2-PZX Specifications

Product Group	Unicol VS1000
Monitor Count	1
Colour	Sinterflex Black
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 70″
Screen Orientation	Landscape
Max Load	60.00kg.
VESA Mount Points	200×200–600×400mm
Screen Centre Height	1505.00mm
Dimensions	765.0mm width 1525.0mm height 300.0mm depth
Weight	20.30kg.
Warranty	10 Years
Column Centres	110mm
Base Size	400 × 300mm

Ideal For

Classrooms & Training Spaces
Digital Signage
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Restaurants & Cafe's
Retail
Scheduling Displays

Unicol VSF-1500x2-PS2-PZX Downloads

Instruction Manual

VSF-1500x2-PS2-PZX Component Parts

Product Code	Description
1 × Unicol 1500x2	2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol PS2	Twin Column Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres; Max 80kg)
1 × Unicol PZX1	*Pozimount Non-tilting Wall Mount for Monitors/TVs ({calcScreenSizeRangeINCH}/ Max {calcMaxWeightKG}; VESA {calcVESARange}; 150×150mm Mount Centres)
1 × Unicol PZX3	*Pozimount Non-tilting Wall Mount for Monitors/TVs ({calcScreenSizeRangeINCH}/ Max {calcMaxWeightKG}; VESA {calcVESARange}; 150×150mm Mount Centres)
1 × Unicol VSF	VS1000 Twin Column Bolt Down Monitor Stand Base (110mm Column Centres)
	*Please choose option or contact us for assistance
