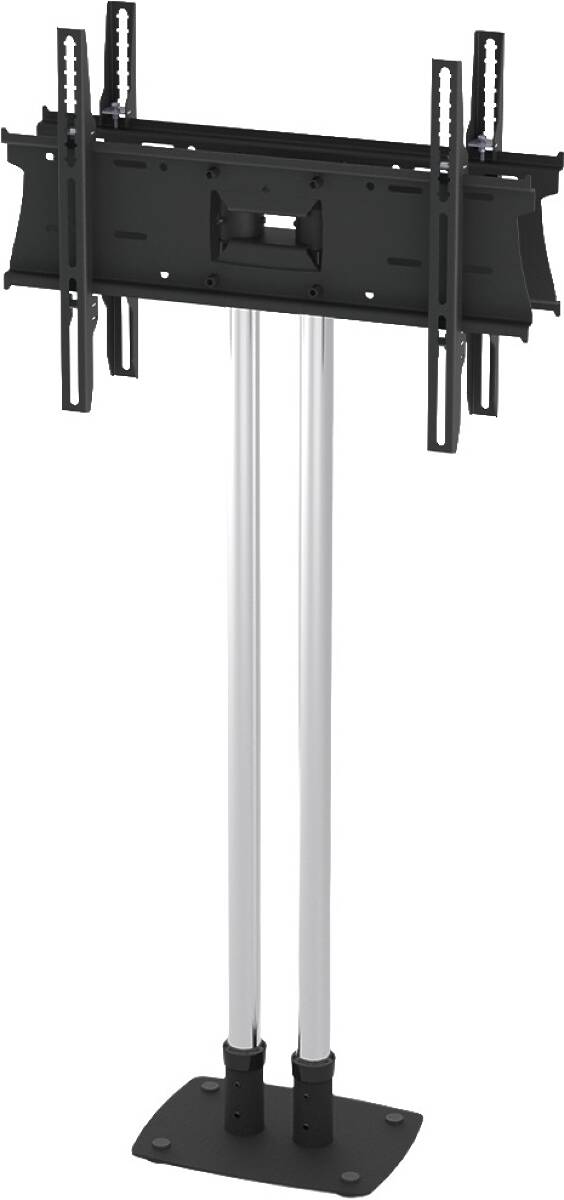

Unicol VSBD-1500x2-PS8-PZXx2

VS1000 Twin Monitor Bolt-Down Back-Tp-Back Stand
33–70″ / Max 60.00kg; VESA 200×200–600×400

Unicol VSBD-1500x2-PS8-PZXx2 Description

The VSBD-1500x2-PS8-PZXx2 is an ideal solution for a free-standing permanent monitor or touch screen installation. The VSBD base requires 10mm bolts (not supplied) which are concealed with supplied trim caps for a neat finish.

With a wide choice of interchangeable parts, easy assembly and sheer robustness, these units are the favoured choice of trade shows, education, broadcast and AV users everywhere.

Please Note: this solution is suitable for maximum screen weight of 60.00kg and covers VESA 200×200–600×400 (select appropriate bracket).

Designed to fit VESA measurements 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 500×200, 600×200, 400×300, 300×400, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

VSBD Bolt-down Base with VS1000 standard 110mm column centres.
Height adjustable from base to 151cm
Twin column cantilever design.
Choice of PZX1 (VESA up to 600×400) or PZX3 (VESA up to 400×400)
Wide selection of component parts for easy adaptability.
Trolley and Plinth versions available.
Glass or Steel Shelves are available also Locking Cabinets.
Integrated cable management
Dual Monitor (Back-To-Back)
Height Adjustable
See entire Unicol VS1000 Range

£425 (£510.00 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol VSBD-1500x2-PS8-PZXx2 Specifications

Product Group	Unicol VS1000
Monitor Count	2
Colour	Sinterflex Black
Colour Options	Custom RAL colours available at additional cost
Screen Size	33–70″
Screen Orientation	Landscape
Max Load	60kg
Per Monitor	30kg
VESA Mount Points	200×200–600×400mm
Screen Centre Height	1505.00mm
Dimensions	765.0mm width 1525.0mm height 300.0mm depth
Column Length	150cm
Column Mount Centres	110mm
Weight	20.30kg.
Warranty	10 Years
Base Size	400 × 300mm

Ideal For

Classrooms & Training Spaces
Digital Signage
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Restaurants & Cafe's
Retail
Scheduling Displays

VSBD-1500x2-PS8-PZXx2 Component Parts

Product Code	Description
1 × Unicol 1500x2	2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol PS8	Twin Column Back-To-Back Twin Monitor Floor-To-Ceiling Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres; Max 80.00kg)
2 × Unicol PZX1	Pozimount Non-tilting Wall Mount for Monitors/TVs (33–70″/ Max 60.00kg; VESA 200×200–600×400)

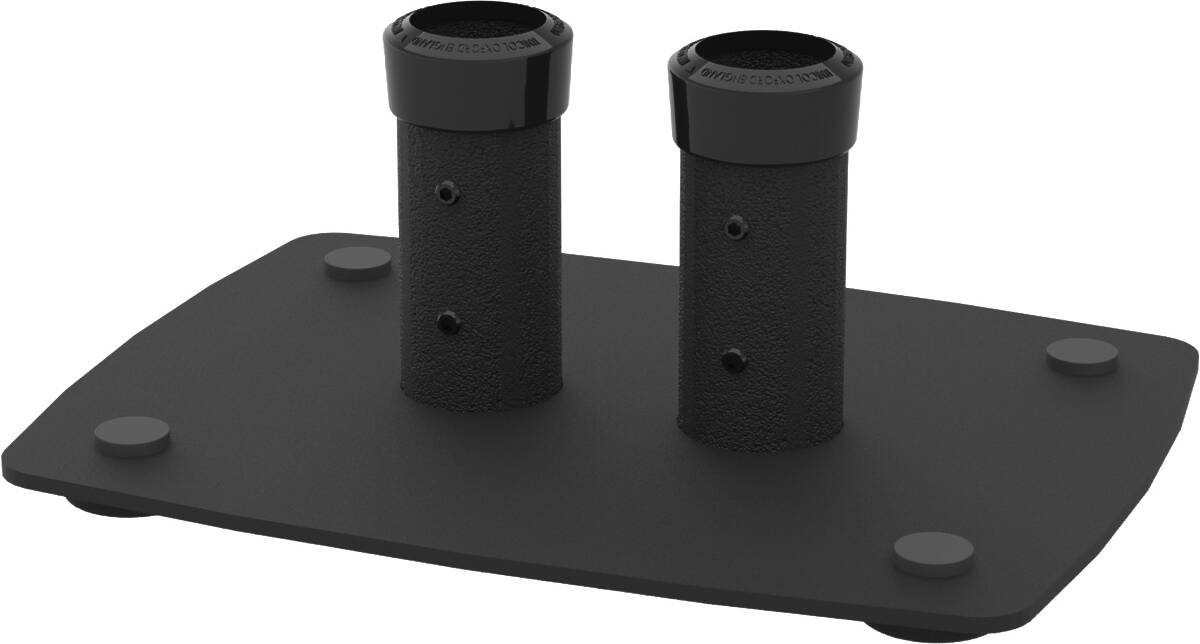

1 × Unicol VSBD	VS1000 Twin Column Bolt Down Monitor Stand Base (110㎝ Column Centres)
