Unicol PS1

Single Column Suspension Adaptor for Pozimount/Xactmatch Wall Mounts
Max 90kg

Unicol PS1 Single Column Suspension Adaptor for Pozimount/Xactmatch Wall Mounts product image. Click to enlarge.
Unicol PS1 Single Column Suspension Adaptor for Pozimount/Xactmatch Wall Mounts product image

Unicol PS1 Description

Part of Unicol’s modular systems, the PS1 adapter secures your choice of screen mount to a single column. Designed to suspend 33–70″ screens, this adapter features 360° swivel to allow you to adjust even after installation. The cable entry point helps to keep cabling neatly stowed away through the column and subsequently the ceiling plate, keeping your installation tidy.

Compatible with any column, and the universal VESA or dedicated mount range.

Compatible with any column, and the universal or dedicated mount range. PS12 Twin column version version also available.

Key Features

£58 (£69.60 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol PS1 Specifications

Product Group Unicol Single Column Mount Adaptor
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 33 – 70″
Max Load 90.00kg.

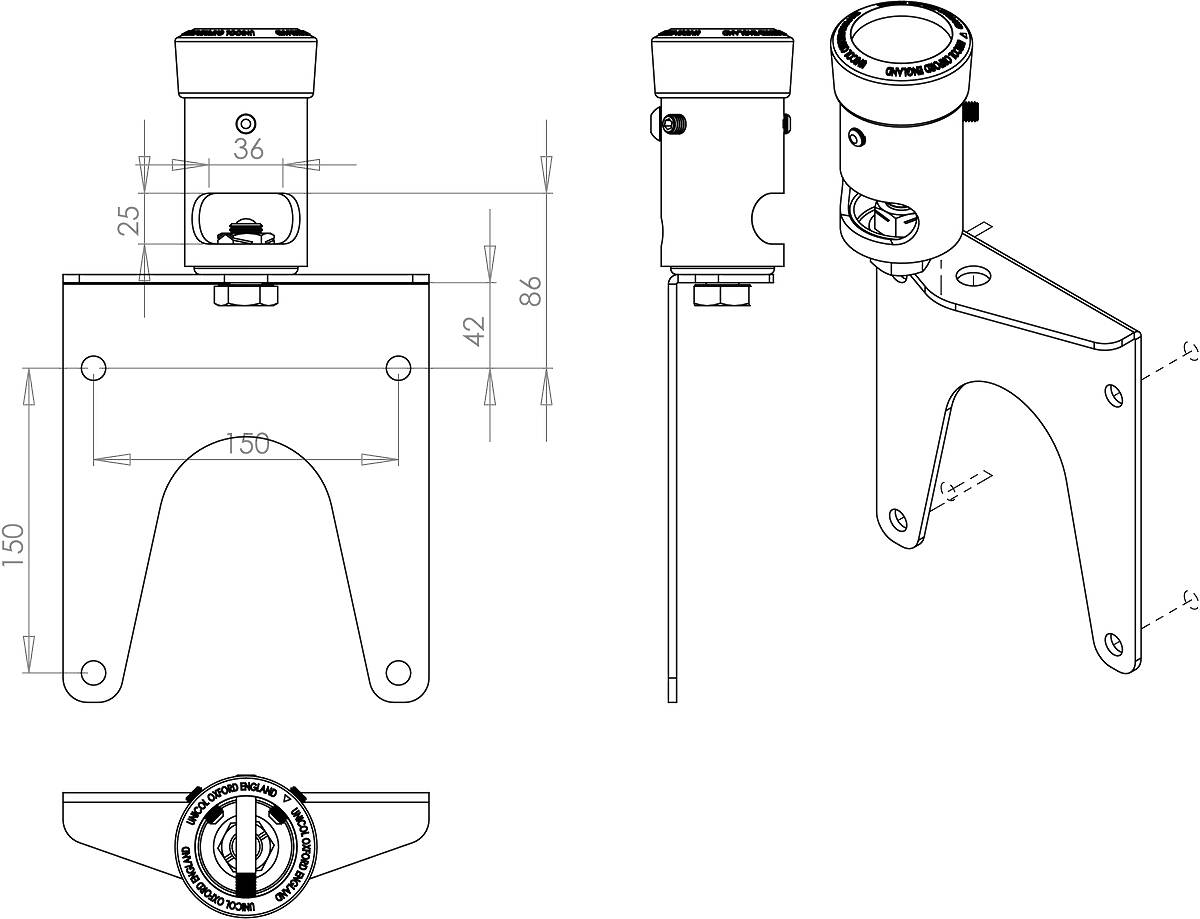

Dimensions 180.0mm width
331.0mm height
70.0mm depth
Bracket Mount Centres 150×150mm
Bracket Rotation 360°
Weight 1.80kg.
Warranty 10 Years

Unicol PS1 Downloads
