Unicol KP310WB

Monitor Wall Arm Mount Kit with 100cm Column
40–70″ / Max 60.00kg; VESA 200×200–400×400; 100cm Column / 0–11° Tilt

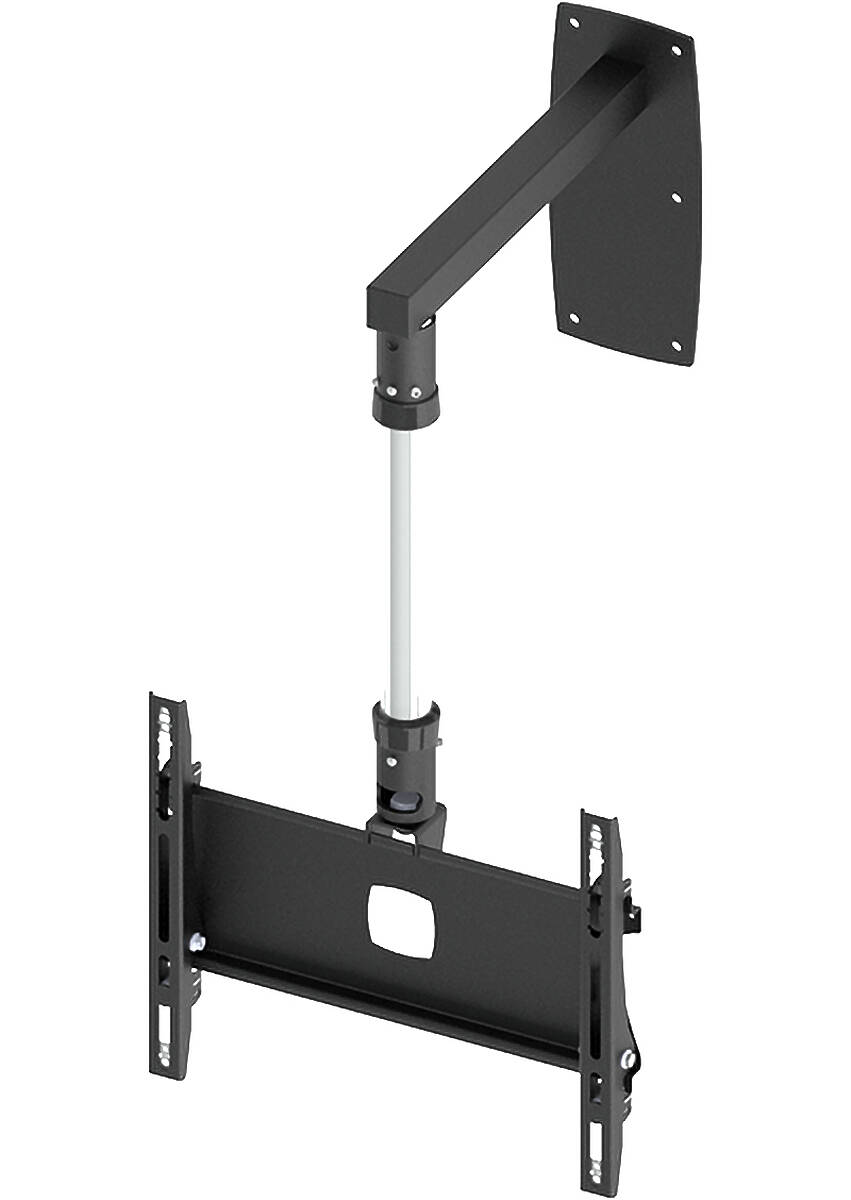

Unicol KP310WB Monitor Wall Arm Mount Kit with 100cm Column product image. Click to enlarge.
1000C product image CP1 product image KP3CB product image

Unicol KP310WB Description

Package Priced Kits that provide simplicity and convenience for large format display suspension installation

This pack combines the necessary wall arm mount, column and PZXW3 universal tilting screen mount for a typical single screen suspension installation. The KP310WB comes with a 100cm Unicol chrome column as standard. Ideal for transport and retail environments that may require multiple solutions across a series of stores or as a ready-to-go one-off solution.

Other column length kits and all white versions (inc. columns) are also available, please call for details.

Designed to fit VESA measurements 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 400×300, 300×400 and 400×400.

Key Features

  • {Wall to Peg Centre} Wall to Peg Centre
  • Supports up to 60.00kg
  • 0–11° Tilt
  • VESA 200×200–400×400
  • Includes wall arm and PZW3 universal tilting monitor mount
  • Designed to accomodate a single monitor
  • See entire Unicol Monitor Wall Arm Mount Range
£207 (£248.40 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol KP310WB Specifications

Product Group Unicol Monitor Wall Arm Mount
Monitor Count 1
Colour Sinterflex Black / Chrome
Colour Options Custom RAL colours available at additional cost
Screen Size 40–70″
Screen Orientation Landscape
Max Load 60kg
VESA Mount Points 200×200–400×400mm
Screen Centre Height 1200.00mm
Dimensions 540.0mm width
1403.0mm height
537.0mm depth
Column Length 100cm
Bracket Tilt 0–11°
Weight 13.30kg.
Warranty 10 Years
Wall to Peg Centre 475.6mm
Arm Length 500mm

Ideal For

  • Hospitality
  • Lobby / Reception Areas
  • Museums and Art Galleries
  • Restaurants & Cafe's
  • Retail
  • Sports Halls and Gyms

Unicol KP310WB Downloads

KP310WB Component Parts

Product Code Description
1 × Unicol 1000C 1000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
1 × Unicol CP1 Single Column Ceiling Plate, Max 60.00kg
1 × Unicol KP3CB Single Sided Tilting Ceiling/Wall Suspension Bracket for Monitors (33–70″ / Max 60.00kg; VESA 200×200–400×400; 0–11° Tilt)
