Unicol FWGSH10

2m High Heavy Duty Goalpost Style Floor-to-Wall Kit
100–130″/ Max 150.00kg; VESA 400×400–1500×1000; 2m to screen centre

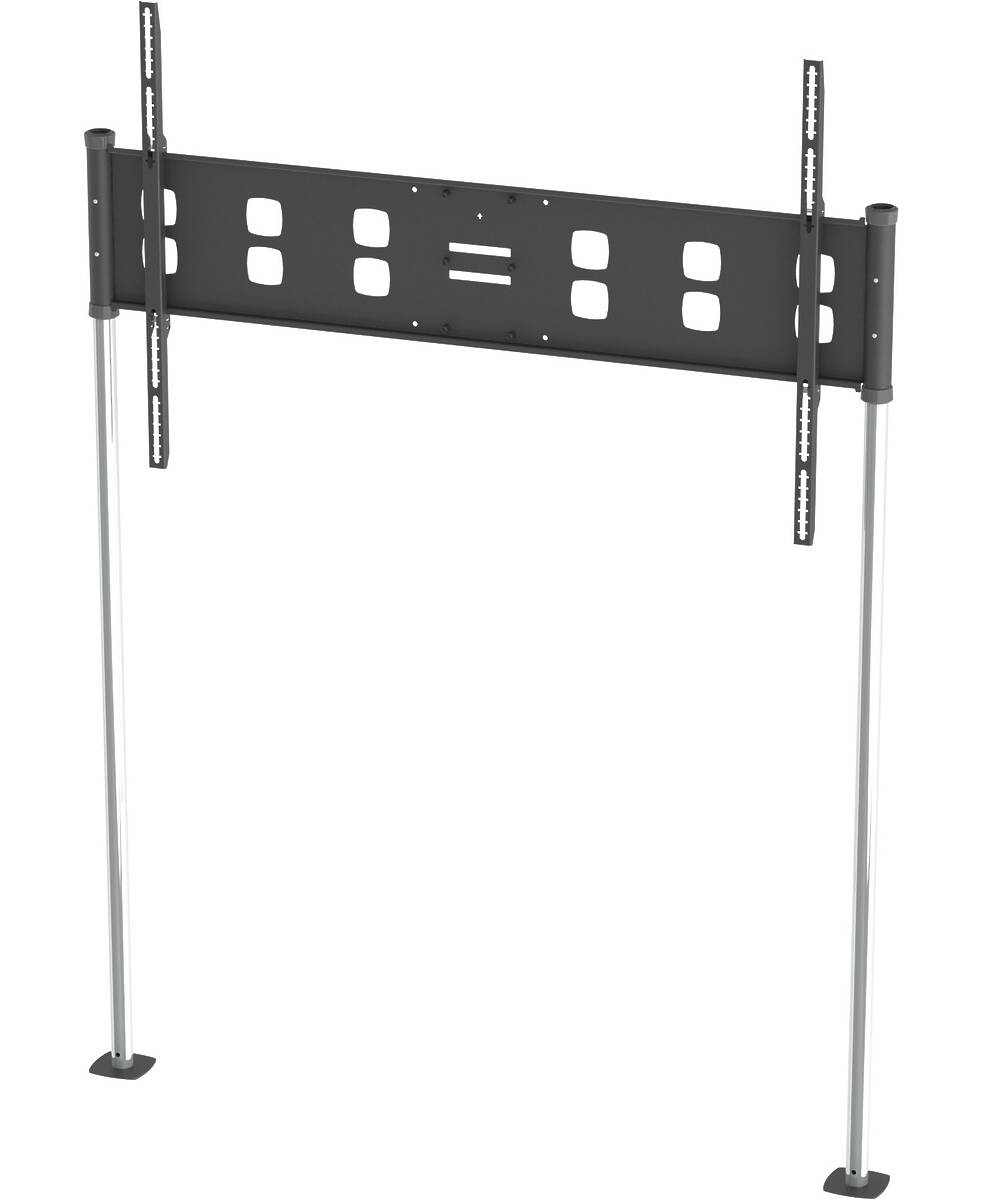

Unicol FWGSH10 2m High Heavy Duty Goalpost Style Floor-to-Wall Kit product image. Click to enlarge.
2000x2 product image FCS10 product image FP1 product image

Unicol FWGSH10 Description

The FWGSH10 is a pre-packaged, large-scale floor-to-wall mounting solution designed to simplify installations in commercial, educational, and presentation environments. Supplied as a complete kit, it includes all components required for a standard setup, reducing preparation time and ensuring a smooth, hassle-free install.

Built around a sturdy goal-post style structure, the FWGSH10 supports screens from 100–130″ weighing up to 150.00kg. Thoughtfully engineered for practicality, the system features integrated cable management within the columns which can then be routed through the floor or wall as required for a neat, professional finish. The kit is supplied with two 200cm columns as standard, offering ample height and flexibility for a range of screen sizes and installation needs.

For smaller displays or alternative layouts, the range also includes single-column and twin-column configurations, providing adaptable options to match your project’s requirements.

This solution is suitable for a maximum weight capacity of 150.00kg.

Designed to fit VESA measurements 400×400, 500×400, 600×400, 400×600, 800×400, 1000×400, 800×600, 1000×600, 1000×800, 1200×800, 1000×1000 and 1500×1000.

Key Features

  • Robust, stylish screen display system
  • Pre-packaged solutions that provide everything you need
  • Sturdy, reliable solution
  • Suitable for screens between 100-130″
  • Wall-To-Floor Fixed Installation
  • Designed to accomodate a single monitor
  • See entire Unicol Floor to Wall Range
£553 (£663.60 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FWGSH10 Specifications

Product Group Unicol Floor to Wall
Monitor Count 1
Colour Sinterflex Black / Chrome
Screen Size 100–130″
Screen Orientation Landscape
Max Load 150kg
VESA Mount Points 400×400–1500×1000mm
Screen Centre Height 2039.00mm
Dimensions 2015.0mm width
2578.0mm height
171.0mm depth
Column Length 200cm
Weight 33.40kg.
Warranty 10 Years

Ideal For

  • Classrooms & Training Spaces
  • Museums and Art Galleries
  • Restaurants & Cafe's
  • Retail
  • Scheduling Displays
  • Touchscreen Applications

Unicol FWGSH10 Downloads

FWGSH10 Component Parts

Product Code Description
1 × Unicol 2000x2 2 × 2000mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol FCS10 Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations (100–130″ / Max 150.00kg; VESA 400×400–1500×1000)
2 × Unicol FP1 135×135mm Floor-to-Ceiling Single Column Base Plate
