Unicol FCUHD

Heavy Duty Goal Post Style Floor-to-Ceiling Kit
110–200″ / Max Load 200KG; VESA 1000×600–2700×1300; Suitable for ceilings up to 4m high

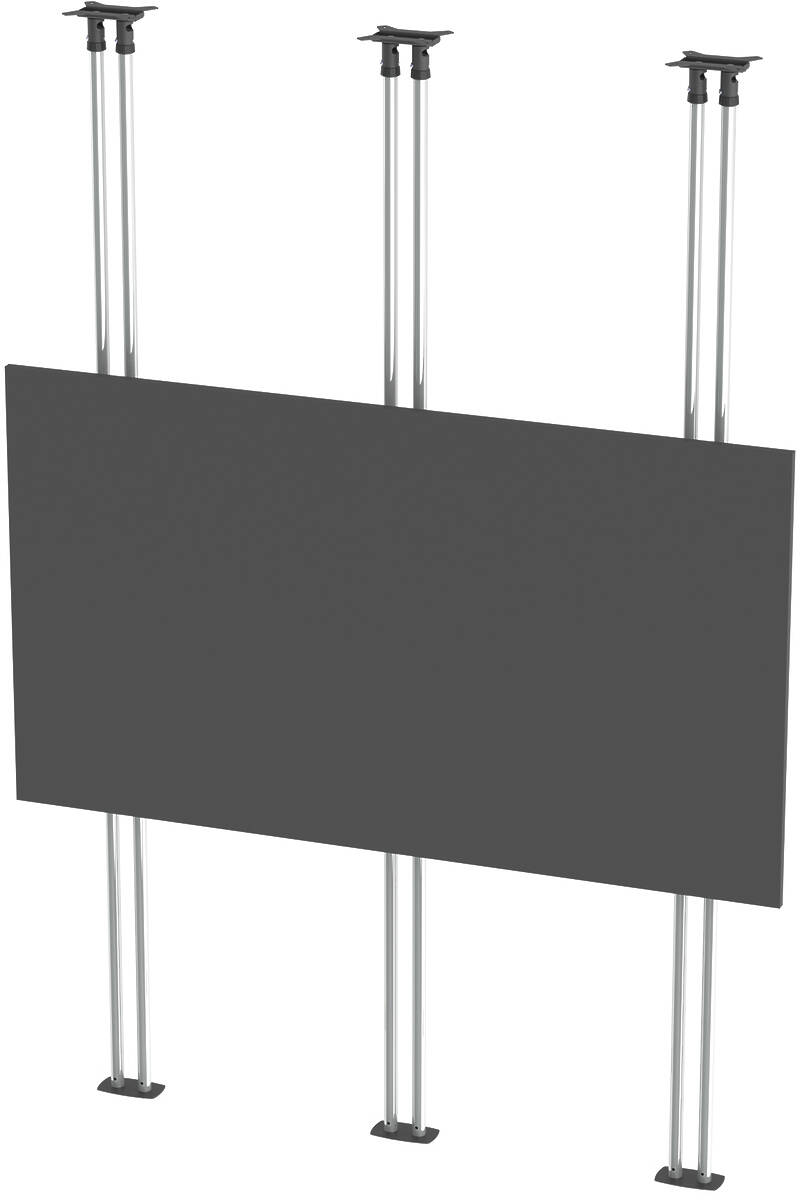

Unicol FCUHD Heavy Duty Goal Post Style Floor-to-Ceiling Kit product image. Click to enlarge.
Unicol FCUHD Heavy Duty Goal Post Style Floor-to-Ceiling Kit product image 2000CX2 product image CP8 product image FP8 product image MD9U140 product image

Unicol FCUHD Description

Floor-to-ceiling all-in-one LED mount, dedicated to all-in-one screens from 110–200″. Also available in floor-to-wall and ceiling suspended versions.

These mounts embody many innovative design features including concealed cable management, precise screen alignment, and in the case of the floor-to-ceiling and suspended versions, ability to cope with high or even sloping ceilings.

This solution is suitable for a maximum weight capacity of 100kg per screen.

Designed to fit VESA measurements 1000×600, 1000×800, 1500×600, 1200×800, 1000×1000, 1500×1000, 1600×1000 and 1700×1200.

Key Features

  • Robust, stylish screen display system
  • Wide range of installation options
  • For all-in-one displays from 110–200″
  • Adaptable for custom accessories, speakers etc.
  • Dual Monitor (Side-By-Side)
  • Integrated cable management
  • See entire Unicol Floor to Ceiling Range
Price: POA
Availability: In Stock with FREE Delivery

Unicol FCUHD Specifications

Product Group Unicol Floor to Ceiling
Monitor Count 2
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 110–200″
Screen Orientation Landscape
Max Load 200kg
Per Monitor 100kg
VESA Mount Points 1000×600–2700×1300mm
Dimensions 2800.0mm width
4120.0mm height
261.0mm depth
Weight 135.80kg.
Warranty 10 Years

Ideal For

  • Conferences
  • Digital Signage
  • Exhibitions
  • Hospitality
  • Retail
  • School Halls
  • Trade Shows
  • Video Walls

Unicol FCUHD Downloads

FCUHD Component Parts

Product Code Description
6 × Unicol 2000Cx2 2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
3 × Unicol CP8 Twin Column Ceiling Plate with 110mm Centres, Max Load 200KG
3 × Unicol FP8 246×143mm Twin Column Base Plate (110mm centres)
2 × Unicol MD9U140 Heavy Duty ScreenRail Rail Module 1400mm wide
