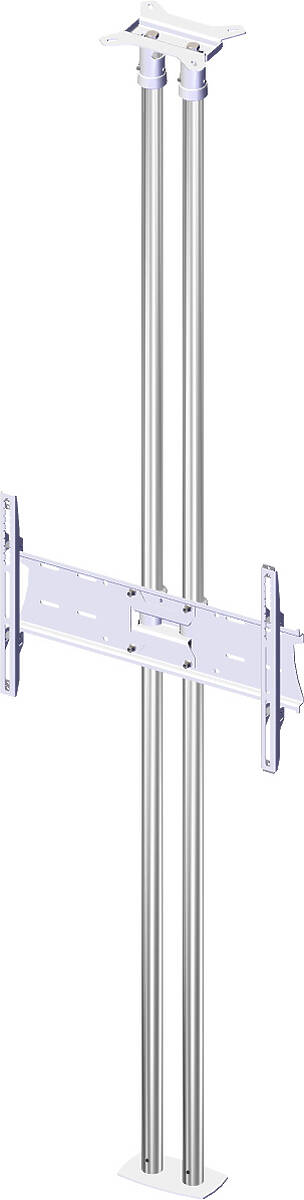

Unicol FCAS1

Single Screen Ceiling to Floor Monitor bracket
58 to 70" / Max 60kg; VESA 200×200 to 600×400; Suitable for ceilings up to 4m high

Unicol FCAS1

The FCAS1 kit allows you to mount screens up to 70”. Cabling can be threaded through the column couplers between the mounts and then up or down through the columns to either the floor or ceiling as necessary. Alternatively, FCAVM column in-fill panels are also available which allow cabling to hide between the columns whilst also providing a stylish finish.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.
  • Robust, stylish screen display system
  • Pre-packaged solution that provides everything you need
  • Comes with a pair of 4m (in 2m halves) columns as standard
  • Suitable for screens between 58 - 70"
  • 765×4115×238 mm (W×H×D)
  • Weight: 29.70kg
  • Max Load: 60.00kg.
  • Custom RAL colours available at additional cost
  • See entire Unicol Floor to Ceiling Range
Ideal For
  • Exhibitions
  • Hospitality
  • Interactive Displays
  • Reception Area
  • Retail

Unicol FCAS1 Downloads

£461 (£553.20 inc. VAT)
Availability: In Stock

FCAS1 Component Parts

Product Code Description
1 × Unicol 2000CX2 2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
1 × Unicol CP8 Twin Column Ceiling Plate with 110mm Centres, Max 200kg
1 × Unicol FP8 246×143mm Twin Column Base Plate (110mm centres)
1 × Unicol PS6A1 Twin floor to ceiling twin column coupler
1 × Unicol PZX1 Pozimount Non-tilting Wall mount for Monitors/TVs (33-70" / 60kg; VESA 200×200 to 600×400)
