Unicol FCAD1

Back-to-Back Twin Screen Floor-to-Ceiling Kit
58–70″/ Max 70kg; VESA 200×200–600×400; Suitable for ceilings up to 4m high

Unicol FCAD1 Back-to-Back Twin Screen Floor-to-Ceiling Kit product image. Click to enlarge.
Unicol FCAD1 Back-to-Back Twin Screen Floor-to-Ceiling Kit product image Unicol FCAD1 Back-to-Back Twin Screen Floor-to-Ceiling Kit finished in white product image 2000CX2 product image AP8 product image FP3 product image PS8 product image PZX1 product image

Unicol FCAD1

The FCAD1 twin-column kit allows you to mount two screens up to 70” back-to-back. Cabling can be threaded through the column couplers between the mounts and then up or down through the columns to either the floor or ceiling as necessary. Alternatively, FCAVM column in-fill panels are also available which allow cabling to hide between the columns whilst also providing a stylish
finish.

This solution is suitable for a maximum weight capacity of 35kg per screen.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

Unicol FCAD1 Specifications

Product Group Unicol Floor to Ceiling
Colour Options Custom RAL colours available at additional cost
Screen Size 58 – 70″
VESA Mount Points 200×200 – 600×400
Dimensions 765.0mm width
4115.0mm height
238.0mm depth
Weight 36.60kg.
Warranty 10 Years

Ideal For

  • Exhibitions
  • Hospitality
  • Lobby / Reception Areas
  • Retail
  • Touchscreen Applications

Unicol FCAD1 Downloads

£542 (£650.40 inc. VAT)
Availability: In Stock with FREE Delivery

FCAD1 Component Parts

Product Code Description
2 × Unicol 2000Cx2 2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)

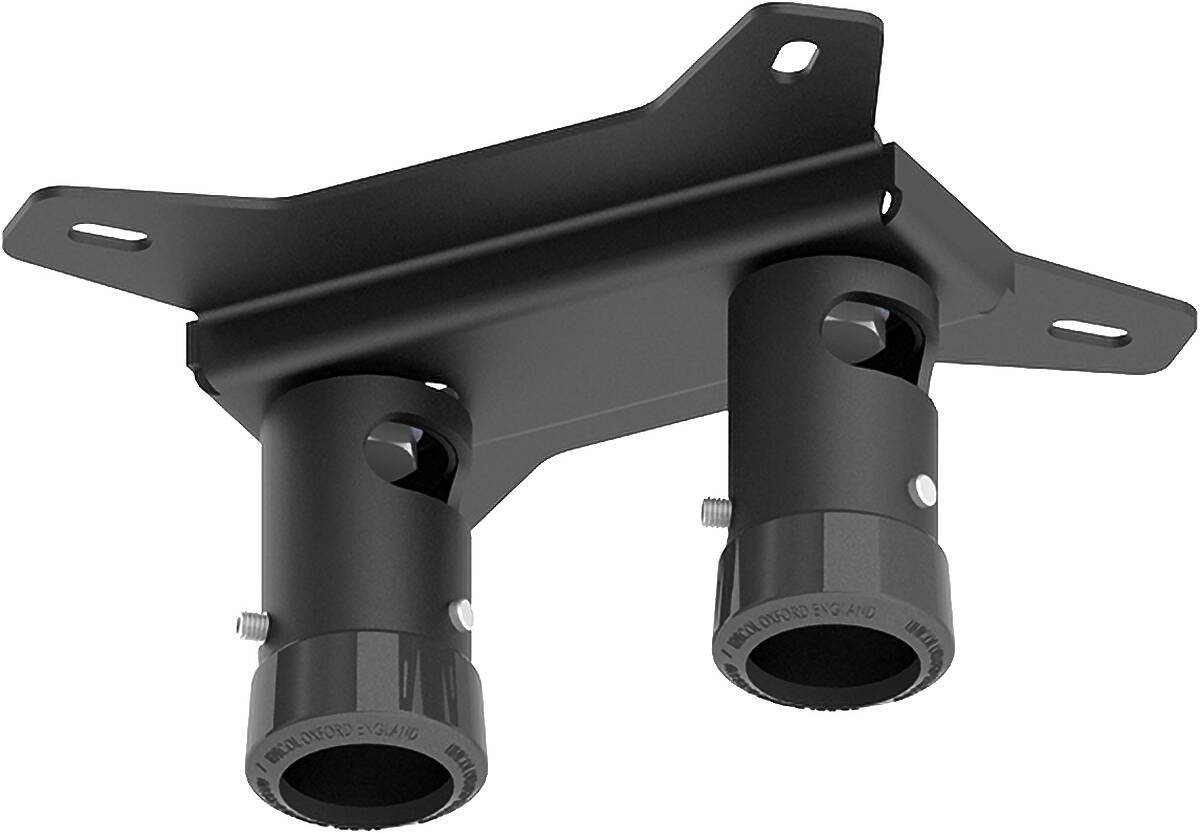

1 × Unicol AP8 Twin Column Ceiling Plate with 150mm Centres, Max 200kg
1 × Unicol FP3 Twin Column Base Plate (150mm centres)
1 × Unicol PS8 Twin Column Back-To-Back Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres;150mm Mount Centres; Max 120kg)
1 × Unicol PZX1 Pozimount Non-tilting Wall mount for Monitors/TVs (33–70″ / Max 60kg; VESA 200×200–600×400;150×150mm Mount Centres)

Unicol Floor To Ceiling Monitor Mounts and Accessories

Unicol 1000x2 2 × 1000mm mild steel chrome finished column for trolleys and floor stands (Available in Chrome or Stainless Steel, Drilled and Undrilled)
Unicol 1000x2
(1000mm undrilled)
Unicol 1500x2 2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
Unicol 1500x2
(1500mm undrilled)
Unicol 2000x2 2 × 2000mm mild steel chrome finished undrilled column for trolleys and floor stands
Unicol 2000x2
(2000mm undrilled)
Unicol AP8 Twin Column Ceiling Plate with 150mm Centres, Max 200kg
Unicol AP8
(150mm Ceiling Plate)
Unicol CP1 Single Column Ceiling Plate, Max 60kg
Unicol CP1
(Ceiling Plate)
See all Unicol Floor To Ceiling Monitor Mounts and Accessories
