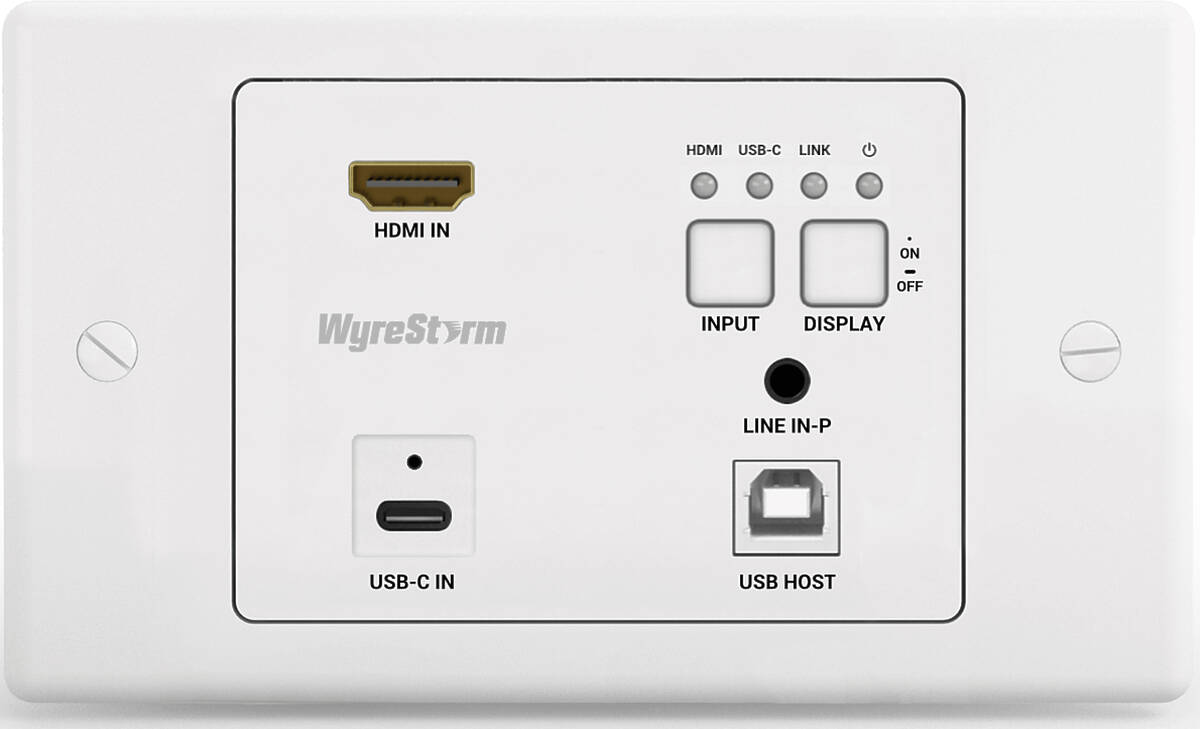

WyreStorm SW-120-TX3-UK
2:1 Synergy HDMI / USB-C over HDBaseT 3.0 wall plate transmitter
1 × HDMI, 1 × USB-C Inputs; 1 × HDBaseT output; Max 100m @ 4K
Availability: Please Call
WyreStorm SW-120-TX3-UK
2 inputs and powerful HDBaseT 3.0 transmission result is this powerful switching transmitter, perfect for higher education classroom/hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
UNCOMPRESSED SIGNAL TRANSMISSION
HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable up to an astonishing 100m/328ft!
PACKED WITH FEATURES
It’s not just an HDBaseT switcher; it’s a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high-speed charging of up to 60 watts for devices like laptops and tablets. With remarkable flexibility, it can seamlessly power the receiver or draw power from it. It’s truly the ultimate in-wall command center.
AUDIO DE-EMBED AND PASSTHROUGH
The SW-120-TX3-Ux offers both source audio de-embed from HDMI and a separate independent audio pass-through lane to send separate audio down to the RX simultaneously.
API-DRIVEN INTELLIGENCE
Featuring a unique API, the SW-120-TX3-Ux intelligently recognizes whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller such as the SYN-KEY10.
WyreStorm SW-120-TX3-UK Key Features
- HDBaseT 3.0 Switching Transmitter supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 300Mbps transfer and HID extension
- Features USB-C charging of up to 60 watts (with compatible PSU, not included)
- Supports independent Analogue audio lane (pass-through) transmitter to receiver
- Bidirectional RS-232 and CEC pass-through communication
- Shared RS-232 port; API control or passthrough to RX
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
- Bidirectional PoH
WyreStorm SW-120-TX3-UK Downloads
WyreStorm SW-120-TX3-UK Specifications

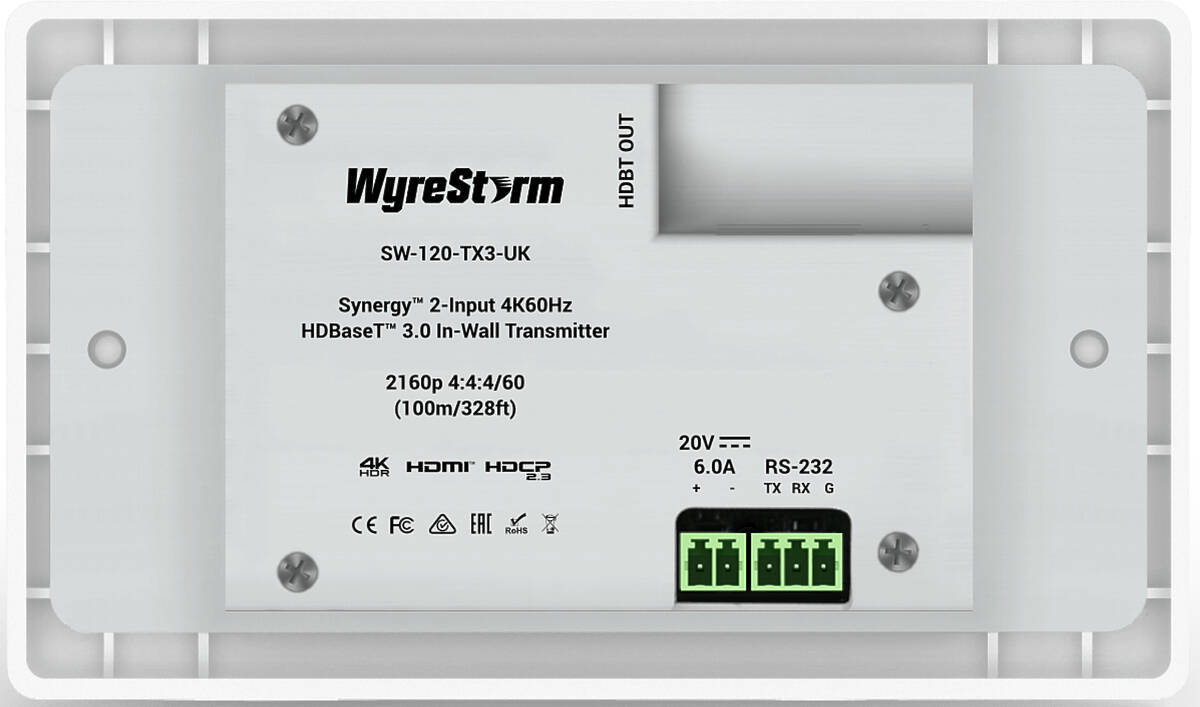

Connectivity |
|
| Inputs | 1 × HDMI 19-pin Type A Female |
| 1 × USB-C (USB Alt Mode/Host) | |
| 1 × RS-232 3-pin Phoenix (Shared; API Control) | |
| 1 × Line-In 3.5mm (1/8in) TRS Stereo | |
| 1 × Type B host | |
| Outputs | 1 × HDBT 8-pin RJ45 |
| 1 × RS-232 3-pin Phoenix (Shared; Passthrough) | |
Audio and Video |
|
| Max Pixel Clock | 600MHz |
| Video Resolution (Max) | 1920 × 1080p @60Hz 12bit |
| 3840×2160 @60hz 4:4:4 8bit | |
| Supported Standards | DCI, RGB, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Audio Formats | 2ch audio over HDBaseT, 1-way to RX |
Control and Communications |
|
| HDMI | HDMI, HDCP 2.3, EDID, CEC Pass-through |
| HDBaseT | HDMI, USB, HDCP 2.3, EDID, 2-way PoH, Bidirectional RS-232, CEC |
| USB | 1 × Type B (host), Maximum Data Throughput: 300Mbps |
| RS-232 | 1 × RS-232 3-pin Phoenix |
Mechanical |
|
| Power Supply | 20V DC 6A (Sold separately) |
| Max Consumption | 6.61W |
| In The Box | 1 × SW-120-TX3-US In-Wall Transmitter |
| 1 × 1.8m USB2.0 Type-B to Type-A cable | |
| 1 × 2m USB-C to USB-C Cable with Locking Connector (5Gbps) | |
| 1 × 3-pin Terminal Block | |
| 1 × 2-pin Terminal Block | |
| 1 × Wall Plate (2-gang US) | |
| 4 × Mounting Screws | |
| 1 × Quickstart Guide | |
