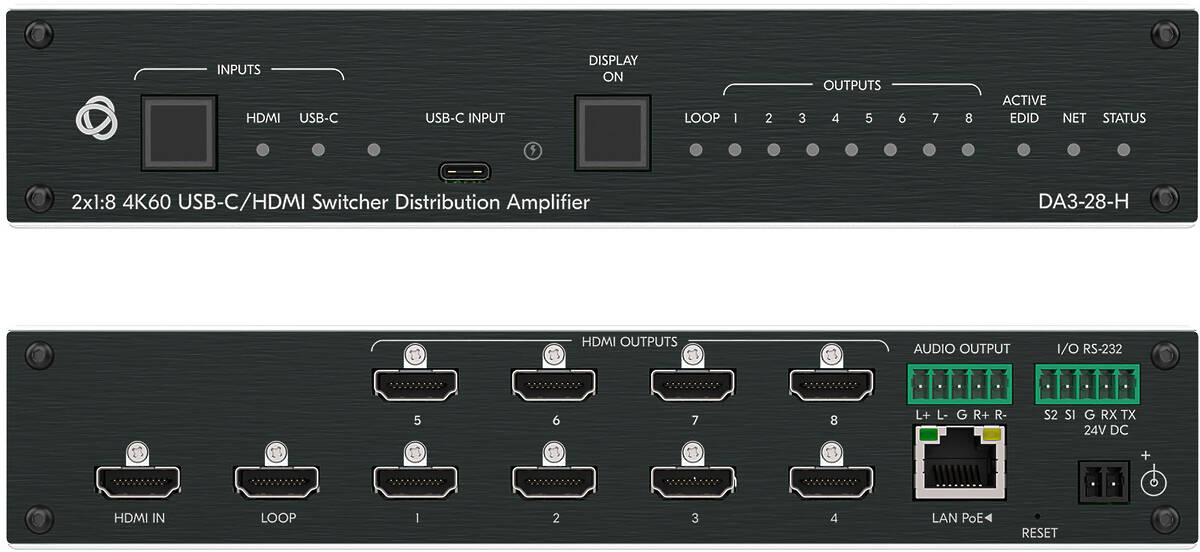

Kramer DA3-28-H
2:1×8 4K HDMI 2.0b/USB -C Switcher and Distribution Amp
1 × HDMI, 1 × USB-C Inputs; 8 × HDMI and 1 × HDMI Loop Outputs; Max. 17.82Gbps 4K@60Hz 4:4:4 24bpp
£1122 (£1346.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer DA3-28-H (10-00002890)
The Kramer DA3-28-H is a premium 2x1:8 switcher and distribution amplifier for up to 4K HDR, video signals that comply with HDCP 2.2 content protection standard. The unit switches between one of two inputs HDMI or USB-C, equalises and re-clocks the selected signal and distributes it to four identical outputs.
Kramer DA3-28-H Key Features
- Combined 2:1 switcher and 1:8 distributor amplifier
- HDMI and USB–C video inputs
- Fully managed (WEB GUI/P3K protocol)
- Resolution — Up to 4K@60Hz (4:4:4)
- Analogue audio extraction
- Bandwidth — Up to 17.82Gbps
- Compliance — HDR10, HDCP 2.2
- Simple, intelligent EDID operation
- Force RGB
- HDCP authorisation control
- PoE powered
- Max. Resolution — 4K@60Hz (4:4:4).
- Intelligent EDID Handling — Use connected display EDID or default EDID, with EDID lock and RGB–force options, to ensure proper operation of HDMI source and display systems.
- Force RGB — When the display lacks YCbCr capabilities, the user can force native delivery of the RGB Colour format in HDMI content to improve picture quality.
- Selectable HDCP authorisation — Allows the user to control the appearance of an HDCP or non–HDCP input to the source to permit delivery of protection–free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non–HDCP mode.
- Sophisticated CEC mediator with flexible routing options.
- Analogue audio output — de–embedded from the HDMI/USB–C input signal
- RS–232 port may be configured to control external devices
- Easy Installation — 1' enclosure for over–ceiling mounting, or side–by–side rack mounting.
- 7 year warranty (Click Here for details)
- Order Code: 10-00002890
Kramer DA3-28-H Downloads
Kramer DA3-28-H Specifications
Connectivity |
|
| Inputs | 1 × HDMI On a female HDMI connector |
| 1 × USB-C On USB type-C female connector | |
| Outputs | 8 × HDMI On female HDMI connectors |
| 1 × HDMI Local On a female HDMI connector | |
| Ports | 1 × 1000baset Ethernet On an RJ45 female connector for LAN connection & extension |
| 1 × Analogue Audio On a 5-pin R-L Analogue audio output | |
| 1 × IO On 2-pin terminal block connectors | |
| 2 × RS-232 On 3-pin terminal block connectors | |
Video |
|
| Max Bandwidth | 18Gbps (6Gbps per graphic channel) |
| Max Resolution | 4K@60Hz 4:4:4 24bpp resolution |
| Content Protection | HDCP 2.3 |
| Compliance | HDMI 2.0b |
Security |
|
| Web-UI Communication | HTTPS |
| User Access | Multiple roles and credentials |
| IT LAN Authentication | 802.1x |
| Penetration Protection Certification | : OWASP-10 |
Mechanical |
|
| Power Source | 20 VDC |
| Max Consumption | 76W |
| HDMI Max Power | 2.5W (5V@0.5A) Provided Per HDMI Port |
| Operating Temp | 0° to +40°C (32° to 104°F) |
| Storage Temp | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Enclosure Type | Half-U 19" |
| Type | Aluminium |
| Cooling | Low noise fan |
| In The Box | Power Adapter |
| Product Dimensions | 21.46cm × 16.30cm × 4.36cm |
| (8.45" × 6.42" × 1.72" ) W×D×H | |
| Product Weight | 1.3kg (2.8lbs) approx. |
| Shipping Dimensions | 39.4cm × 29.60cm × 9.10cm |
| (15.51" × 11.65" × 3.58" ) W×D×H | |
| Shipping Weight | 1.8kg (4.1lbs) approx. |
Regulatory Compliance |
|
| Safety | CE, FCC, UL |
| Environmental | RoHs, WEEE |
Kramer DA3-28-H Usage Diagram
