Kramer 105A
1:5 Audio Distribution Amplifier
£90 (£108.00 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 105A (90-010590)

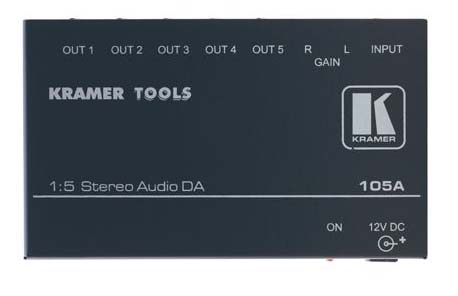

The Kramer 105A is a high performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.
Kramer 105A Key Features
- Level (Gain) Controls.
- S/N Ratio — 80dB (unweighted).
- Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- Up to 7 year warranty (Click Here for details)
- Order Code: 90-010590
Kramer 105A Downloads
Kramer 105A Specifications
Connectivity |
|
| Input | 1 × unbalanced stereo/balanced mono, 1Vpp/33kΩ on a 3.5mm mini jack |
| Outputs | 5 × unbalanced stereo/balanced mono, 1Vpp/50Ω on 3.5mm mini jacks |
Audio Specifications |
|
| Max. Output | 5Vpp |
| Audio Bandwidth (-3db) | 20kHz |
| S/n Ratio | 80dB unweighted |
| Coupling | AC |
| Audio THD + Noise | 0.03% (2nd harmonic) |
Mechanical |
|
| Control | Left and right gain rear trimmers (0 to +3.5dB) |
| Power | 12V DC, 100mA |
| In The Box | 105A, Power supply, mounting bracket |
| Product Dimension | 12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H |
| Product Weight | 0.1kg (0.3lbs) approx. |
| Shipping Dimension | 15.70×12.00×8.70cm (6.18×4.72×3.43") W×D×H |
| Shipping Weight | 0.5kg (1.1lbs) approx. |
Kramer 105A Usage Diagram
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £36 | £43.20 |
| Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £36 | £43.20 |
| Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £55 | £66.00 |
| Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | £371 | £445.20 |
