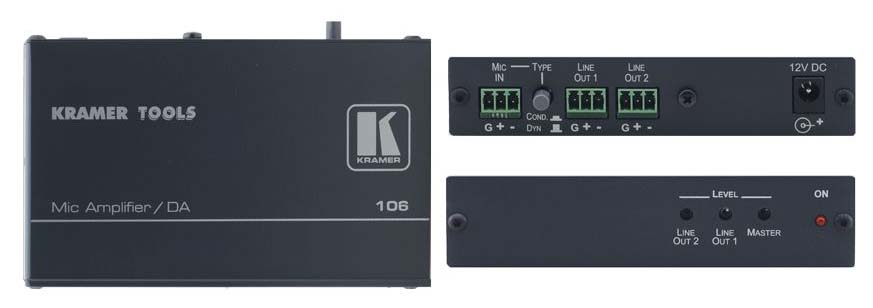

Kramer 106
1:2 Microphone Line & Distribution Amplifier
£97 (£116.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 106 (90-701390)
The Kramer 106 is a high-quality distribution amplifier for balanced mono microphone signals. It takes one dynamic or condenser microphone input and distributes the signal to two line-level outputs.
Kramer 106 Key Features
- Mic Input Selector — Condenser or dynamic.
- Phantom Power — 48V DC.
- S/N Ratio — 81dB.
- Level (Gain) Controls — Individual and master output adjustments.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- Up to 7 year warranty (Click Here for details)
- Order Code: 90-701390
Kramer 106 Downloads
Kramer 106 Specifications
Connectivity |
|
| Input | 1 × balanced mono microphone on a 3-pin terminal block connector |
| Outputs | 2 × balanced mono line outputs on 3-pin terminal block connectors |
Audio Specifiations |
|
| Max. Output Level | 27Vpp (22dBu) |
| Bandwidth | >40kHz |
| S/n Ratio | 81dB |
| Controls | Mic. type selector pushbutton, - 14dB to +68dB LINE OUT trimmers (master trimmer at max.), +37dB to +68dB master trimmer (line out trimmer at max.) |
| Coupling | Input, AC |
| output, DC | |
| Input Impedance | ~10kΩ |
| Output Impedance | 50Ω |
| Gain | Up to 68dB |
| Audio THD + Noise | 0.18% |
| Audio 2nd Harmonic | 0.16% |
Mechanical |
|
| Power | 12V DC, 220mA |
| In The Box | 106, Power supply, mounting bracket |
| Product Dimension | 12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H |
| Shipping Dimension | 15.70×12.00×8.70cm (6.18×4.72×3.43") W×D×H |
| Shipping Weight | 0.5kg (1.1lbs) approx. |
| Product Weight | 0.2kg (0.4lbs) approx. |

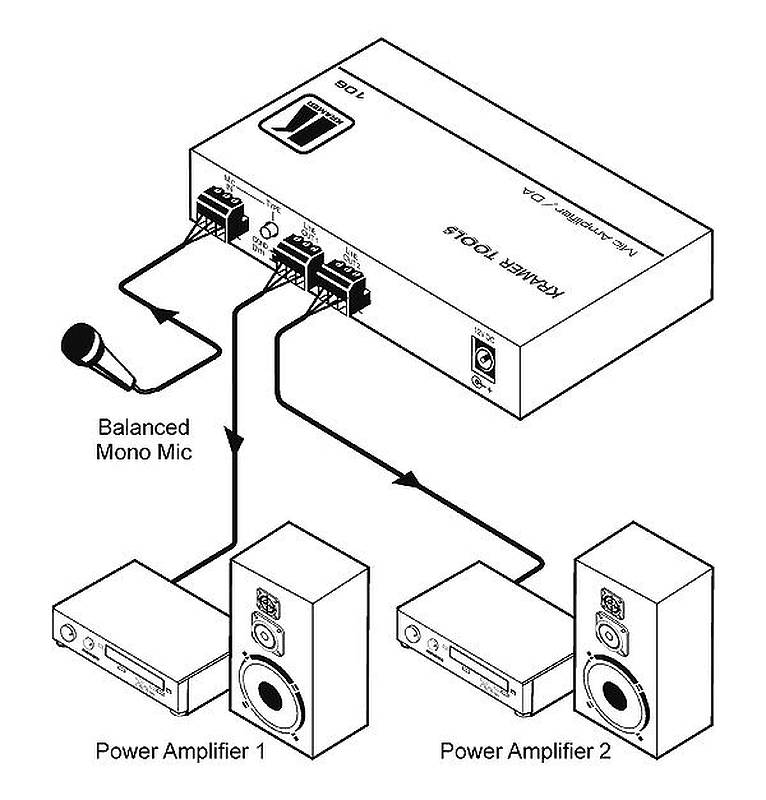

Kramer 106 Usage Diagram
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £36 | £43.20 |
| Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £36 | £43.20 |
| Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £55 | £66.00 |
| Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | £371 | £445.20 |
