CYP EL-8500VA

8:1*2 Presentation Switcher/Scaler with HDMI and HDBaseT outputs
4 × HDMI, 2 × HDBaseT, 2 × RGBHV inputs; 1 × HDMI, 1 × HDBaseT outputs; Max. 70m on HDBaseT output

£1895 (£2274.00 inc. VAT)
Availability: In stock

CYP EL-8500VA

The CYP EL-8500VA is a multi-format scaling HDMI, USB Type C, HDBaseT, and VGA input presentation switch, which allows the user to output at a scaled resolution of the user's choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.

This unit also includes multiple analogue stereo audio inputs and a microphone input along with an amplified analogue stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analogue input with the microphone input for presentation or lecture theatre usage. The ability to switch back and forth between mixed and non-mixed audio simplifies the presentation experience.

A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, IR remote, Telnet, and RS-232.

  • Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
  • HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
  • Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Audio mixer function allows the mixing of audio from any analog input with the microphone input
  • Trigger Control Keypad support for easy, single-button, function activation (Optional)
  • Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT Receiver (PD) (compatible Receivers only)
  • Comprehensive EDID and HDCP management (HDCP 2.2)
  • Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers
  • USB for service/firmware updates


CYP EL-8500VA Specifications

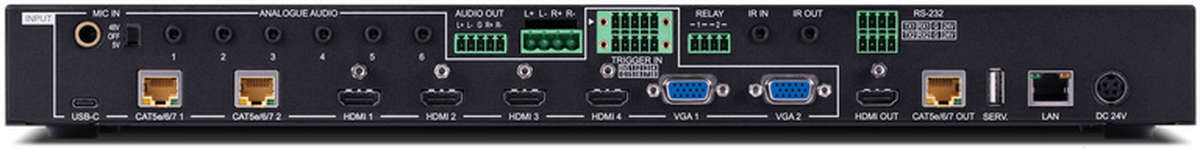

Connectivity

Inputs 4 × HDMI Uncompressed AV and Data
2 × RJ45 HDBaseT HDMI & Propriety Data
2 × 15pin D-sub VGA RGBHV
1 × 6.35mm Stereo Jack Microphone
6 × 3.5mm Stereo mini-jack Stereo(L/R)
1 × Phoenix (10 pin) Trigger In (8)
1 × 9pin D-sub RS-232 Control RS-232 Data
1 × 3.5mm Stereo mini-jack Infra Red Receiver
1 × RJ45 Control IP
1 × USB-C USB-C / Thunderbolt
Outputs 1x HDMI Uncompressed AV and Data
1 × RJ45 HDBaseT HDMI & Propriety Data
2 × 3.5mm Stereo mini-jack Stereo(L/R)
1 × 3.5mm Stereo mini-jack Infra Red Emitter

Video Specifications

Max. Resolution HDMI 4K@60Hz 4:4:4
USB-C 4K@60Hz 4:4:4
HDBaseT 4K@60Hz 4:2:0
HDBaseT Range 70m @ 4K
100m @ 1080p
with Cat 5e/6/7 cable

Mechanical

PoE PSU PoH
PSU 24V/6.25A
Dimensions 432mm × 194mm × 49mm
Net Weight 2500g
Gross Weight 4100g

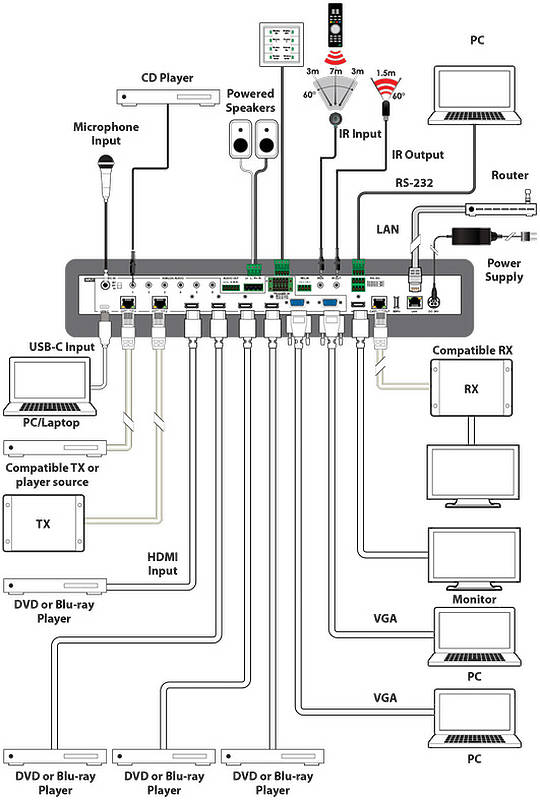

CYP EL-8500VA Usage Diagram



CYP EL-8500VA Usage Diagram


CYP EL-8500VA Optional Cables

DescriptionLengthPriceInc. VAT
CYP HDMI2-030-FX Flexi Form HDMI Cable, High Speed with Ethernet 0.3m £8 £9.60
CYP HDMI2-050-FX Flexi Form HDMI Cable, High Speed with Ethernet 0.5m £9 £10.80
CYP HDMI2-075-FX Flexi Form HDMI Cable, High Speed with Ethernet 0.8m £10 £12.00
CYP HDMP-050M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) 0.5m £19 £22.80
CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) 1.0m £21 £25.20
CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) 2.0m £24 £28.80
CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) 3.0m £28 £33.60
CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) 5.0m £40 £48.00
