Extron AAP SuperPlate 170 (70-1076-72)

AAP SuperPlate Double Space

HDMI, USB 3.2 Type-A, USB-C, and Network

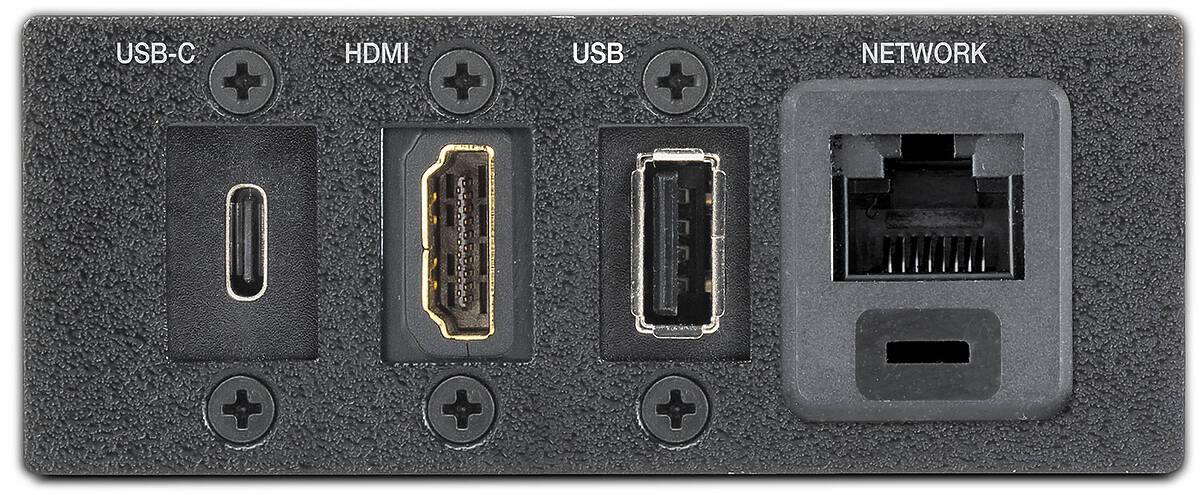

Extron AAP SuperPlate 170 70-1076-72 product image
£210 (£252.00 inc. VAT)
Availability: In stock


The AAP SuperPlate Series of double-space AAP™ AV Connectivity Modules provides convenient, pass-through connectivity for HDMI, DisplayPort, VGA, Stereo Audio, Network, or USB signals, and USB-C power. For ease of installation, all connections except Network utilise pigtail cables. Network modules utilise a female to female CAT 5e barrel. The AAP SuperPlate Series is designed to work with any Extron AV Connectivity Mounting Frame or enclosure that accommodates two or more single-space AAP modules, including Cable Cubby Series Cable Access Enclosures, the AVEdge Edge Mount Enclosure, and TMK 100 Series Under Table Mounts; sold separately.

Extron AAP SuperPlate 170 Key Features
