Extron AAP SuperPlate 130 (70-1076-32)

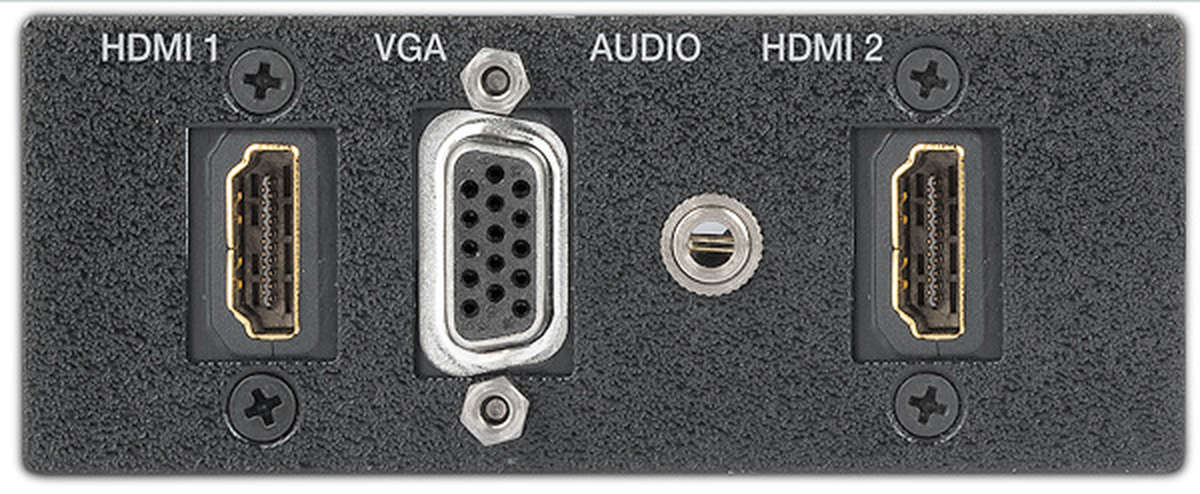

AAP SuperPlate Double Space 2 × HDMI, One VGA and One Stereo Audio finished in black or white [70-1076-33]

£134 (£160.80 inc. VAT)
Availability: Please Call

The AAP SuperPlate Series of double-space AAP™ AV Connectivity Modules provides convenient, pass-through connectivity for HDMI, DisplayPort, VGA, Stereo Audio, Network, or USB signals. For ease of installation, all connections except Network utilize short, female to female pigtail cables. Network modules utilize a female to female CAT 5e barrel. The AAP SuperPlate Series is designed to work with any Extron AV Connectivity Mounting Frame or enclosure that accommodates two or more single-space AAP modules, including Cable Cubby Series Cable Access Enclosures, HSA 400 and HSA 402 Hideaway Access Enclosures, the AVEdge Edge Mount Enclosure, and TMK 100 Series Under Table Mounts; sold separately.

Extron AAP SuperPlate 130 Key Features

Double-space AAP™ AV Connectivity Modules for HDMI, DisplayPort, VGA, Stereo Audio, Network, or USB (model dependent)
- HDMI: HDMI female to HDMI female 10" (25 cm) pigtail
- DisplayPort: DisplayPort female to DisplayPort female on 10" (25 cm) pigtail
- VGA: VGA 15-pin female to VGA 15-pin female on 6" (15 cm) pigtail
- Stereo Audio: Stereo Audio 3.5 mm stereo mini jack to captive screw on 10" (25 cm) pigtail
- Network: RJ-45 female to female barrel - CAT 5e barrel
- USB 2.0: Type‑A female to Type‑A female on 10" (25 cm) pigtail
- USB 3.2: Type‑A female to Type‑B female on 10" (25 cm) pigtail
New USB 3.2 transfers data between USB devices at rates up to 5 Gbps
Signals passed through unprocessed
Supports DDC transmission - Facilitates EDID communication between the display and connected HDMI, DisplayPort, and VGA sources
Available in black or white
Cable access enclosures and other mounting hardware sold separately
