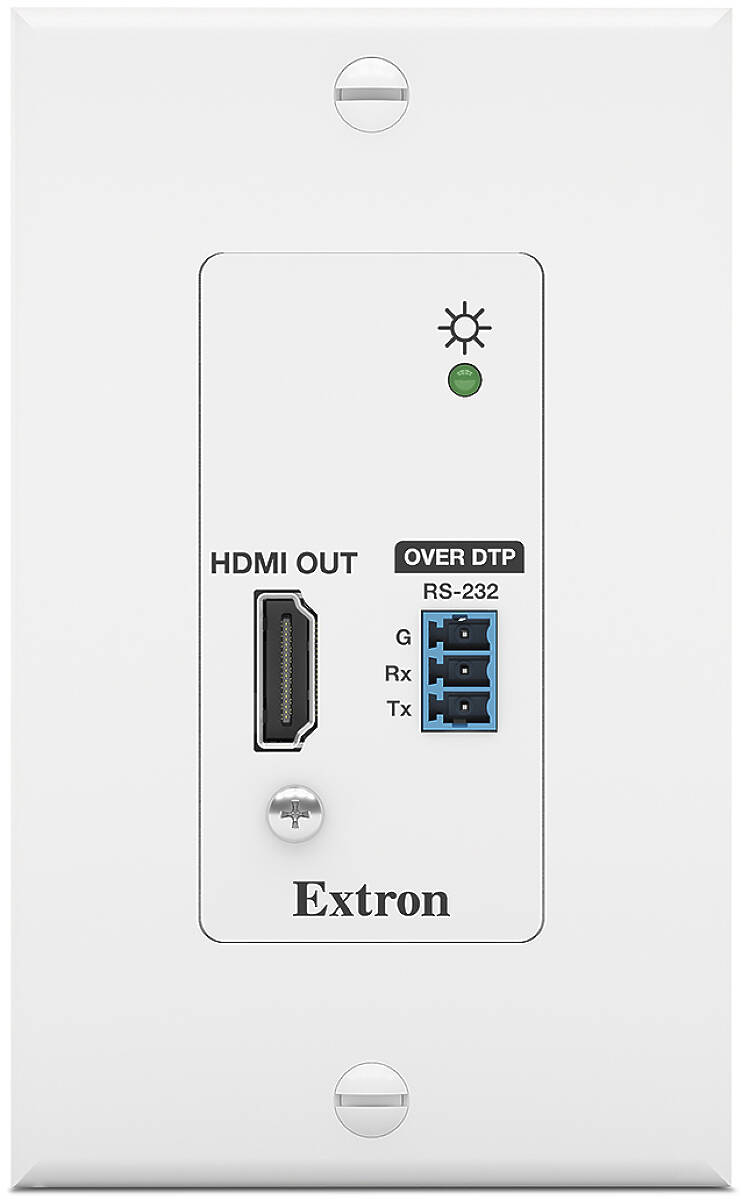

Extron DTP3 R 201 D (60-2072-53)
1:1 DTP3 HDMI 4K/60 Decorator Style Wallplate Receiver in White
1 × DTP input; 1 × HDMI output; Max 100m at 4K/60 and 5K
Availability: In stock

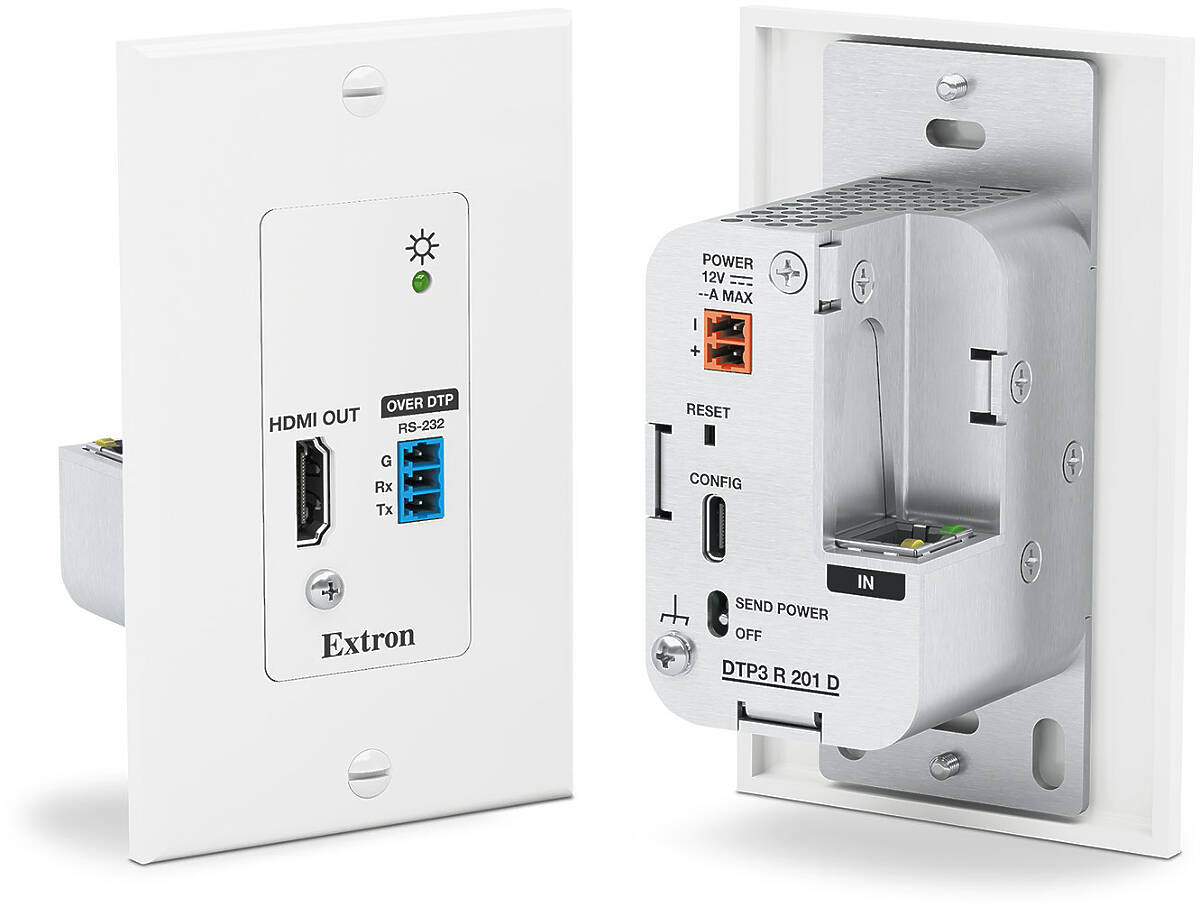

The Extron DTP3 R 201 D is a single-gang decorator-style digital twisted pair receiver that works with Extron DTP3‑enabled products to extend HDMI with embedded audio, power, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 at 4:4:4 Colour sampling and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The one-gang form factor provides maximum space efficiency in wall mount, floor box, and furniture mount applications. The wall-mountable design and remote power capability of the DTP3 R 201 D provide the convenience of placing output connections precisely where they are needed. The DTP3 R 201 D enables the reliable, long distance transmission of HDMI 2.0b signals, supporting data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between source and display, ensuring direct compatibility and optimal signal transmission between devices.
Convenient Control and Power
For added convenience, a USB-C configuration port on the rear panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 R 201 D is made simple with Extron's PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited setup, commissioning, real-time operation and monitoring.
The DTP3 R 201 D can be remotely powered over the same shielded twisted pair cable by a DTP3-enabled product. In addition, it can be configured to provide power to a connected transmitter, allowing the single supply powering both devices to be located wherever it is most convenient for the installation.

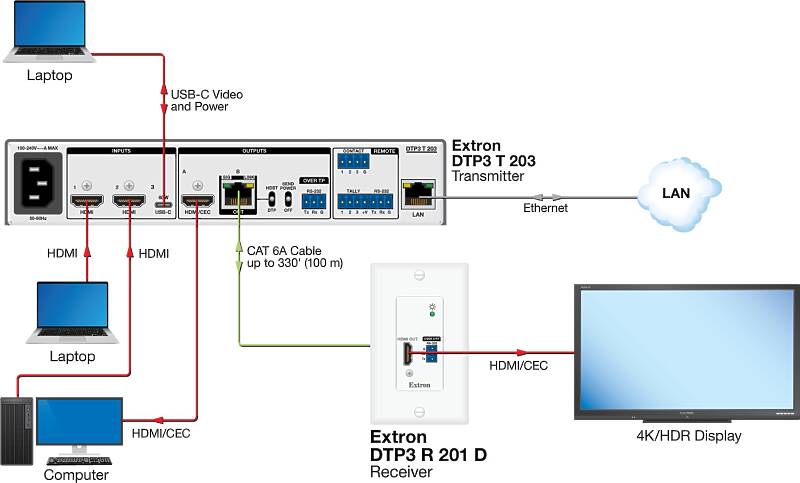

The DTP3 R 201 D can be integrated with an Extron DTP3 CrossPoint® Presentation Matrix Switcher, or other DTP3 and first-generation DTP-enabled products to drive displays and other output devices at remote locations. The receiver mounts in an included single-gang decorator-style wallplate that fits a standard US one-gang size junction box. The wall-mountable form factor of the DTP3 R 201 D allows for discreet placement in walls, furniture, and floor boxes.
To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.
See also: Extron DTP3 T 203Extron DTP3 R 201 D Key Features
- Receives HDMI with embedded audio, power, and control up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 R 201 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports video resolutions up to 4K/60, including 5K - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Supports ultra-wide aspect ratios, including 21:9 and 5K
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12-bit, 3D, HD lossless audio formats, and CEC
- Compatible with DTP3 and DTP-enabled products - Enables mixing and matching with desktop and wall plate transmitters, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products.
- Remote power capability with DTP3 products - For simplified installation, the receiver can be remotely powered by a DTP3-enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP3 transmitter.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- Bidirectional RS-232 pass-through for AV device control - Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Mounts in an included one-gang decorator-style wallplate - The one-gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
- Support for HDR - High Dynamic Range Video - Enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- Supports multiple embedded audio formats - The DTP3 R 201 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- CEC insertion - A control processor can insert CEC commands at select DTP3 switchers to control devices connected at the receiver's HDMI output.

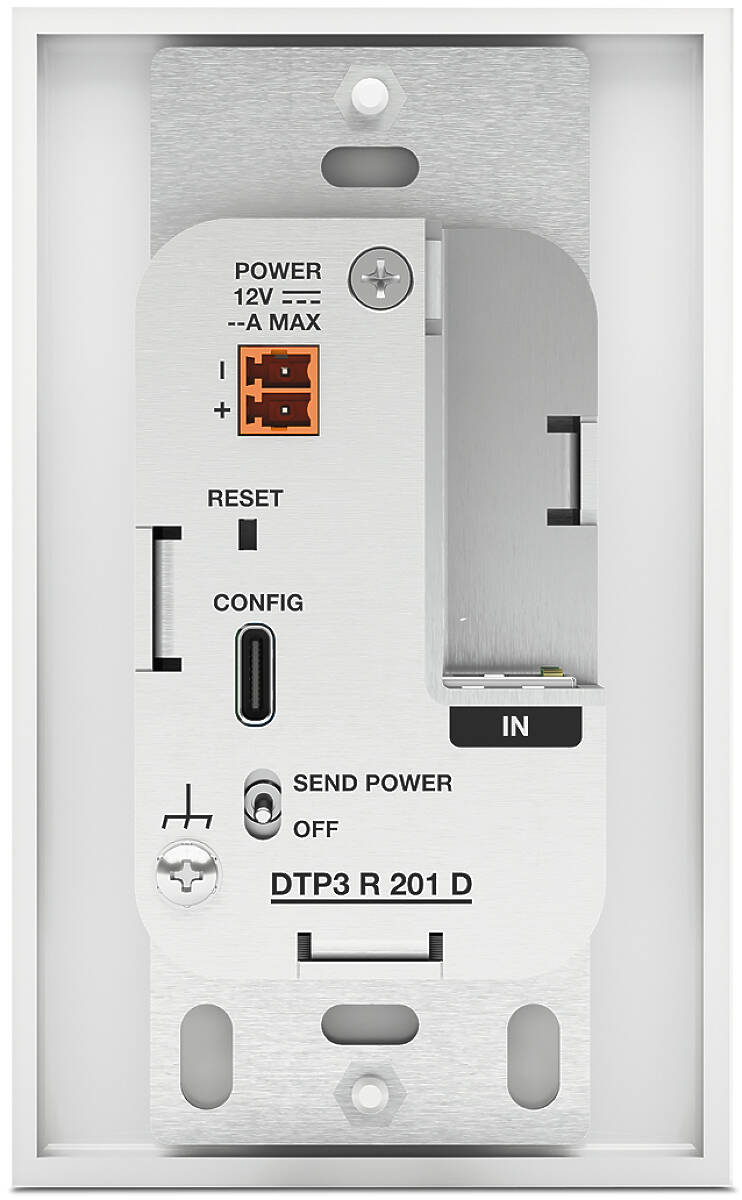

- Rear panel USB-C® configuration port - Provides convenient access for information and firmware updates.
- LED indicator for power status - Provides visual indication of device status.
- RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
- Optional, external Extron Everlast® power supply available, part # 70-1174-01 - Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
- TAA Compliant version available - Please inform your local Extron representative if your order requires compliance with TAA regulations.
