Proprietary HDMI Twisted Pair Extenders from Extron
Transmitting HDMI signals over twisted pair (Cat-5, Cate-5E, Cat-6 etc.) is the cost effective way to distribute sources over medium to long distances. A transmitter at source and receiver at destination and twister pair cable in between. Note that the distances quoted depend on cable quality. Use CAT6a or CAT7 for longest distances and shielded cable for best results. For Video over IP systems see Video Over IP.
Proprietary HDMI Twisted Pair Extenders from Extron
| Product | Description | Price | Inc. VAT | ||||||
|---|---|---|---|---|---|---|---|---|---|
|
Extron DTP HD DA4 4K 230 | 1:4 DTP/HDBaseT-Lite HDMI distribution amplifier with RS-232/IR/PoC Max. 70m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 4 × DTP/HDBaseT outputs | POA | ||||||
|
Extron DTP HD DA4 4K 330 | 1:4 DTP/HDBaseT HDMI distribution amplifier with RS-232/IR/PoC Max. 100m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 4 × DTP/HDBaseT outputs | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP HD DA8 4K 230 | 1:8 DTP/HDBaseT-Lite HDMI distribution amplifier with RS-232/IR/PoC Max. 70m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 8 × DTP/HDBaseT outputs | POA | ||||||
|
Extron DTP HD DA8 4K 330 | 1:8 DTP/HDBaseT HDMI distribution amplifier with RS-232/IR/PoC Max. 100m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 8 × DTP/HDBaseT outputs | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP HDMI 4K 230 Rx | 1:1 HDMI Twisted Pair Receiver Max. 70m at 1080P using CAT5E or better shielded TP cable | POA | ||||||
|
Extron DTP HDMI 4K 230 Tx | 1:1 HDMI Twisted Pair Transmitter Max. 70m at 1080P using CAT5E or better shielded TP cable | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP HDMI 4K 330 Rx | 1:1 Long Distance HDMI Twisted Pair Receiver Max. 100m at 1080P using CAT5E or better shielded TP cable | POA | ||||||
|
Extron DTP HDMI 4K 330 Tx | 1:1 Long Distance HDMI Twisted Pair Transmitter Max. 100m at 1080P using CAT5E or better shielded TP cable | POA | ||||||
| Back to Top | |||||||||
|

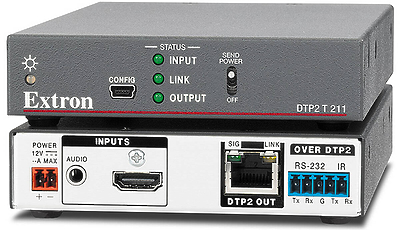

Extron DTP2 T 211 | 1:1 HDMI 2.0 4K/60 DTP2 Transmitter with Audio Embedding and PoE 1 × HDMI input; 1 × DTP2 RJ45 output; Max. 100m @ 4K | POA | ||||||
|

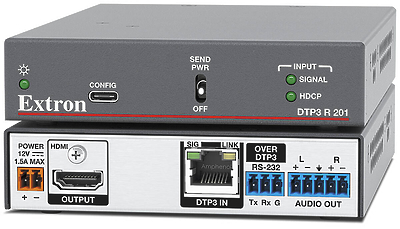

Extron DTP3 R 201 | 1:1 4K/60 4:4:4 HDMI 2.0b/RS-232/PoC over DTP3 Receiver with audio de-embedding 1 × DTP3 input; 1 × HDMI, 1 × stereo audio outputs; Max. 100m using Cat6A STP | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP3 R 201 | 1:1 4K/60 4:4:4 HDMI 2.0b/RS-232/PoC over DTP3 Receiver with audio de-embedding 1 × DTP3 input; 1 × HDMI, 1 × stereo audio outputs; Max. 100m using Cat6A STP | POA | ||||||
|
Extron DTP3 R 311 | 1:1×2 4K HDMI / USB 2.0 / Audio and Control over DTP 3 Twisted Pair Receiver 1 × DTP3 TP Input; 1 × HDMI, 1 × Audio Outputs and 4 Port USB Hub; Max 70m @ 4K 4:4:4 over STP Cable | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP3 T 202 | 1:1 4K/60 HDMI 2.0 / PoC /RS-232 / DTP3 / HDBaseT Transmitter with Input Loop-Through and Audio Embedding 1 × HDMI input; 1 × DTP/HDBaseT output; Max 18Gbps, 100m @ 4K/60/4:4:4 | POA | ||||||
|

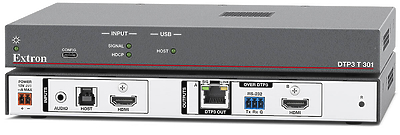

Extron DTP3 T 301 | 1:1 DTP3 Transmitter for 4K/60 HDMI 2.0b, USB Data, Control and analogue audio 1 × HDMI, 1 × USB, 1 × 3.5mm Stereo Audio, 1 × RS-232 Input; 1 × DTP3 Output; Max 100m @ 4K/60 4:4:4, 18Gbps | POA | ||||||
| Back to Top | |||||||||
|
Extron DTP3 T 311 | 1:1×2 4K HDMI / USB 2.0 / Audio and Control over DTP 3 Twisted Pair Transmitter 1 × HDMI, 1 × USB, 1 × Audio Inputs; 1 × DTP3, 1 × HDMI outputs; Max 70m @ 4K 4:4:4 over STP Cable | POA | ||||||
|
Extron HC 404 | 3:1 Meeting Collaboration System with PoE HDMI transmitter wall plate scaling receiver Max HD/WUXGA, 6.75Gbps | POA | ||||||
| Back to Top | |||||||||
|

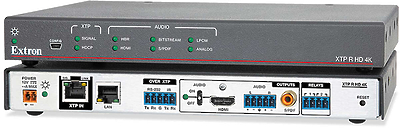

Extron XTP R HD 4K | 1:1 4K HDMI / IR / RS-232 / Ethernet over XTP Receiver Max 100m at 1080p or 4K using Cat5e or better shielded cable | POA | ||||||
|

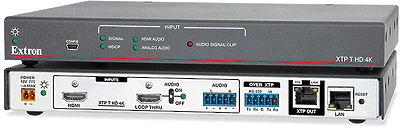

Extron XTP T HD 4K | 1:1 4K HDMI / IR / RS-232 / Ethernet over XTP Transmitter HDMI loop through; Max 100m at 1080p or 4K using Cat5e or better shielded cable | POA | ||||||
| Back to Top | |||||||||
