Extron DTP3 T 211 (60-2070-52)
1:1 4K/60 USB-C DTP3 / HDBaseT Transmitter
1 × USB-C Video/Audio/Power and Control Input; 1 × RJ45 and 1 × HDMI output; Max 100m using Extron XTP DTP 22 TP cable
Availability: In stock

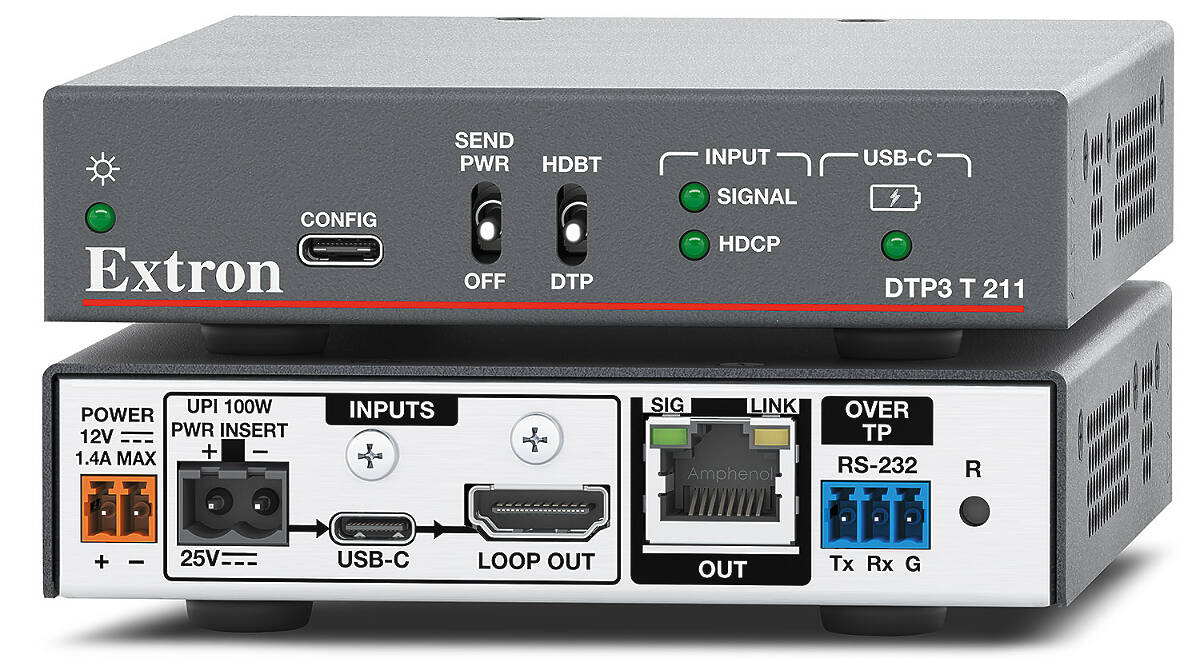

The Extron DTP3 T 211 is a long-distance, digital twisted pair transmitter for sending USB-C video with embedded audio, power, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It provides one USB-C input and an HDMI loop-out for local monitoring. Up to 100 watts USB-C charging is available when deployed with the Extron UPI 100 Power Inserter. The transmitter supports video resolutions up to 4K/60 at 4:4:4 color sampling, EDID Minder®, and HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The compact enclosure size and remote power capability make the DTP3 T 211 ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.
The DTP3 T 211 enables the reliable, long distance transmission of USB-C DisplayPort alt-mode video supporting Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals to an HDBaseT-enabled display. It is backward compatible with first-generation DTP-enabled products.
Convenient Power and Control

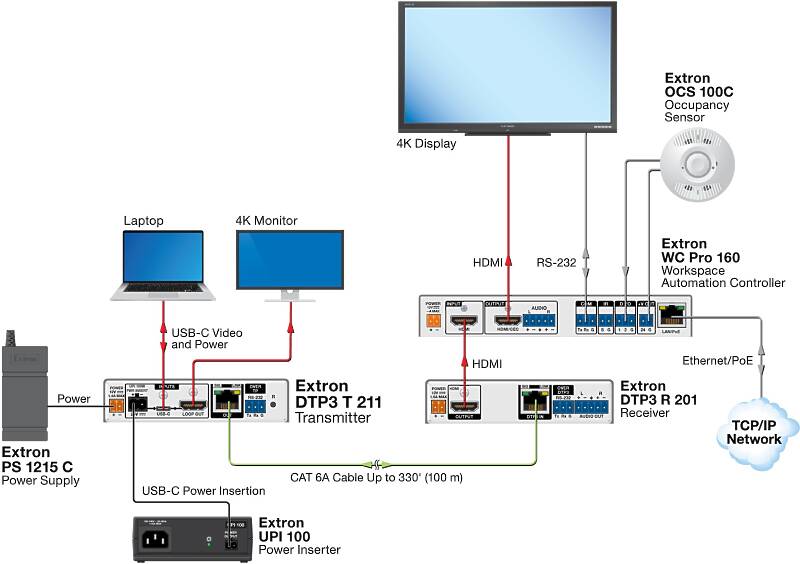

When connected to the Extron UPI 100 Power Inserter, the DTP3 T 211 can deliver up to 100 W over USB‑C to charge a laptop or other personal device. The transmitter can also be configured to provide power to the connected DTP3 receiver, or receive power over the DTP3 connection, allowing the single supply powering both devices to be located wherever it is most convenient for the installation.
Bidirectional RS-232 control signals can be transmitted alongside the video signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C configuration port on the front panel offers ready access to information and easy updating of firmware. Setup is made simple with Extron’s PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited commissioning, real-time operation, and monitoring.
Features that Streamline Integration
To enhance and simplify integration of devices and to help ensure optimal system performance, the DTP3 T 211 features Extron EDID Minder, which automatically manages EDID by maintaining continuous communication with each source. The technology ensures that the sources power up properly and reliably output content for display.

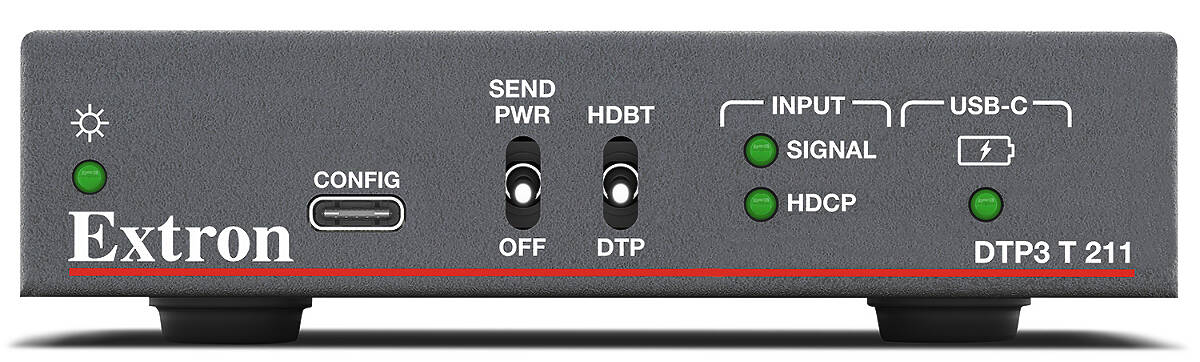

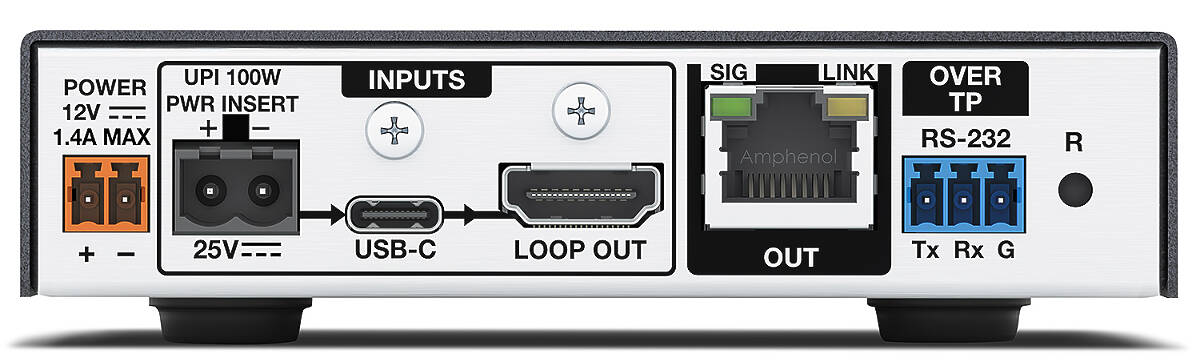

Front panel LED indicators provide immediate visual confirmation of signal presence for the input, as well as power, HDCP status, and USB-C charging. On the back panel, LEDs indicate signal presence and link status for the output. An HDMI input loop-out provides an output signal to drive a local monitor.
The DTP3 T 211 transmitter is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low-profile design allows for discreet placement in tight spaces. To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.
See also: Extron DTP3 R 301Extron DTP3 T 211 Key Features
- Transmits USB-C® video with embedded audio, power, and control up to 330 feet (100 meters) over a shielded CAT 6A cable - The DTP3 T 211 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports video resolutions up to 4K/60, including 5K - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Connects USB-C® sources that support DisplayPort Alt Mode
- Powers and charges a USB-C device with up to 100 watts using the optional UPI 100 power inserter
- HDMI input loop-out - Features an active HDMI loop-out for local monitor support or system expansion.
- Remote power capability with DTP3 products - For simplified installation, the transmitter can be remotely powered by a DTP3-enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP3 receiver.
- Supports ultra-wide aspect ratios, including 21:9 and 5K
- Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager software is available for advanced EDID editing and creating custom EDID files.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, Deep Colour up to 12-bit, and HD lossless audio formats
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Compatible with DTP3 and DTP-enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- DTP3 output is compatible with HDBaseT-enabled devices - The DTP3 output can be configured to send video and embedded audio, plus bidirectional RS-232 signals to an HDBaseT-enabled display.
- Bidirectional RS-232 pass-through for AV device control - Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- User-selectable HDCP authorisation - Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
- Supports multiple embedded audio formats - Compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- Output muting control - Provides the capability to mute the video or audio output at any time.
- Front panel USB-C® configuration port - Provides convenient access for information and firmware updates.
- LED indicators for signal presence, HDCP, and USB-C charging - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- 1" (2.5 cm) high, quarter rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
- Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
- External Extron Everlast® power supply included, replacement part # 70-1174-01 - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
- Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty
Extron DTP3 T 211 Optional Cables
| Description | Length | Price | Inc. VAT | |
| Extron HDMI Ultra/1 4K Premium High Speed HDMI Ultra-Flexible Cable | 0.5m | £38 | £45.60 | |
| Extron XTP DTP 22/3 Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems | 0.9m | £44 | £52.80 | |
| Extron HDMI DVI-D/3 HDMI to DVI High Performance Cable: HDMI Male to DVI-D Male | 0.9m | £44 | £52.80 | |
| Extron HDMI Ultra/3 4K Premium High Speed HDMI Ultra-Flexible Cable | 0.9m | £52 | £62.40 | |
| Extron XTP DTP 24/3 Pre-terminated Shielded Twisted Pair Cable for XTP & DTP | 0.9m | £32 | £38.40 | |
| Extron XTP DTP 22/6 Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems | 1.8m | £62 | £74.40 | |
| Extron HDMI Ultra/6 4K Premium High Speed HDMI Ultra-Flexible Cable | 1.8m | £96 | £115.20 | |
| Extron XTP DTP 24/6 Pre-terminated Shielded Twisted Pair Cable for XTP & DTP | 1.8m | £44 | £52.80 |
