Extron NBP 108 EU (60-2051-01)

Network Button Panel with 8 Buttons – Flex55 and EU Wall Frame

£750 (£900.00 inc. VAT)
Availability: In stock

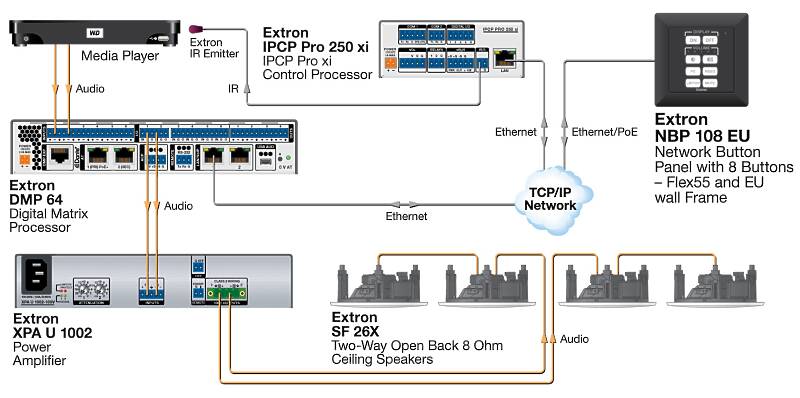

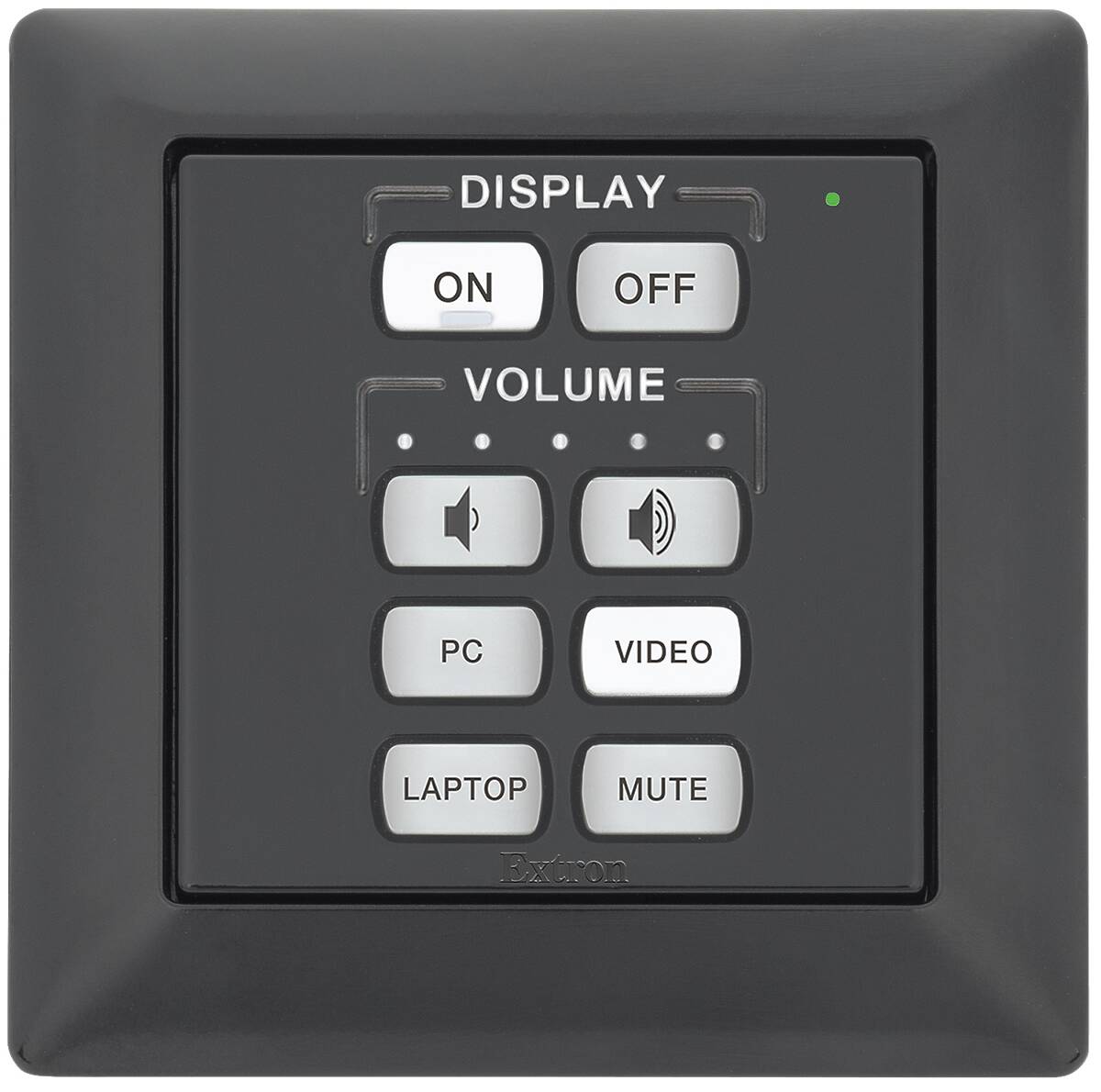

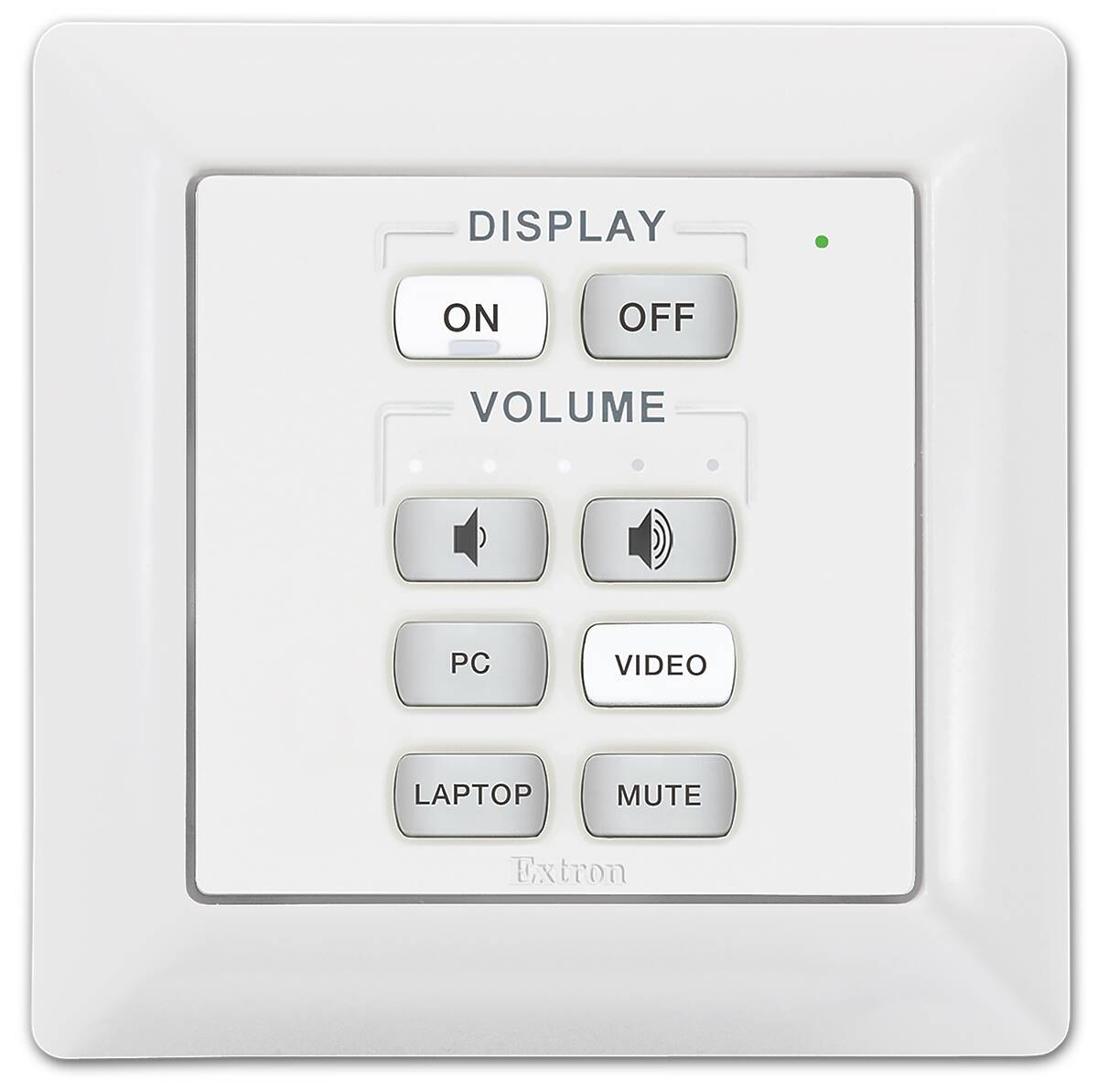

The Extron NBP 108 EU Network Button Panel is a fully-customizable AV system control interface for Extron control systems. This customizable, easy-to-use control panel works in conjunction with the control processor over a standard Ethernet network to perform a wide variety of AV system functions such as display On/Off, input switching, volume control, and much more. The NBP 108 EU features eight customizable, soft-touch buttons that are backlit for easy operation in low-light environments and the convenience of PoE. For applications worldwide, the NBP 108 EU is compatible with Flex55 modules, mounting kits, and enclosures, as well as EU junction boxes.

Extron NBP 108 EU Key Features

Fully customizable Network Button Panel integrates easily with Extron control systems
Eight backlit, soft-touch buttons that can be customized using Extron's Custom Button Builder
Network Button Panels use standard Ethernet connectivity

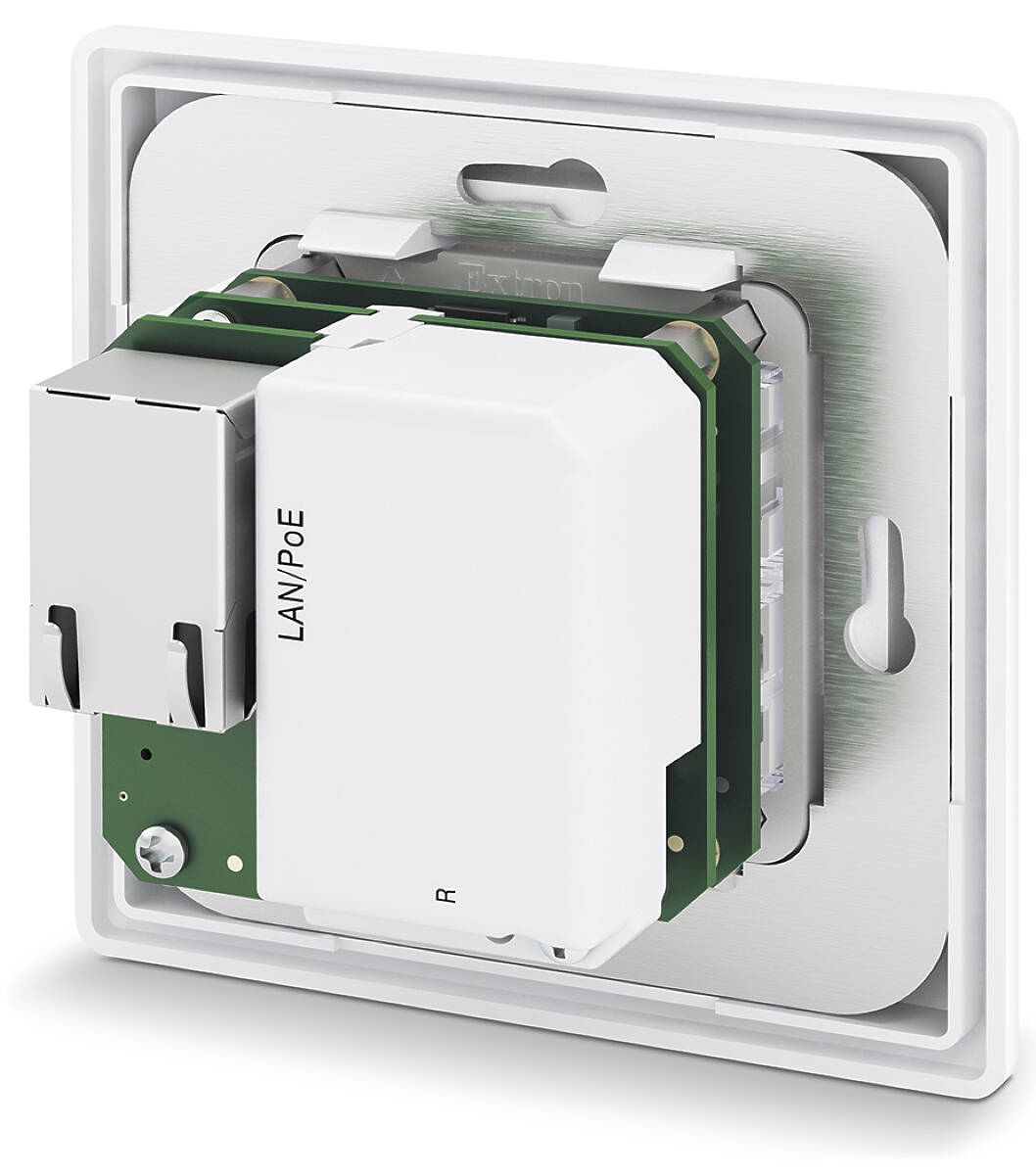

PoE powered - 802.3af Power over Ethernet allows this button panel user interface to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply.
Discrete On and Off display power - Simplifies system operations and eliminates the need for an external display remote.
Volume adjustment buttons with LED level indication - Individual up and down buttons for audio level control with five LEDs that indicate current audio settings.
Built-in speaker provides audible feedback for button presses
Fully customizable using Extron control system software - Configurable using Global Configurator Plus, Global Configurator Professional, or programmable using ControlScript.
Use a single button panel or combine multiple button panels to accommodate a broad variety of system designs
Vast library of Pro Series device drivers and modules for use with Global Configurator and ControlScript respectively - Start and execute projects quickly using Extron Global Configurator device drivers and ControlScript modules to control various display and source devices, such as projectors, flat-panel displays, and media players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
Section 508 Compliant - Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
Communication LED indicates various states of the button panel
Supports the Extron Control App
Compatible with Flex55 modules, mounting kits, and enclosures or EU junction box
Includes black and white Flex55 wall plates and mounting bracket
