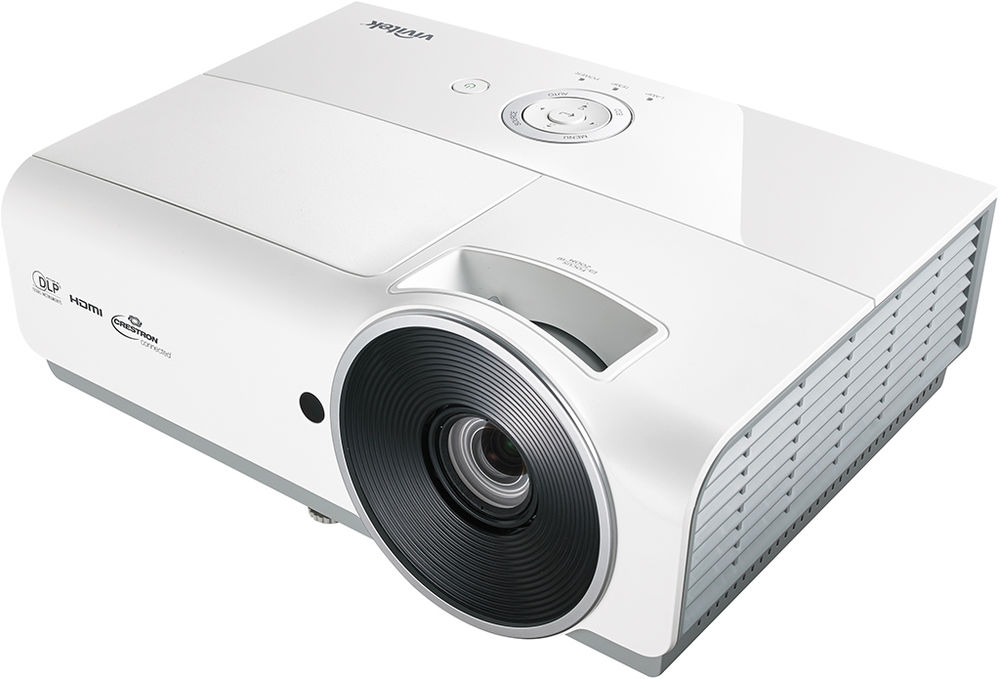

Vivitek DW814 Projector

No Longer Available

Click for Current Vivitek range

Vivitek DW814 Key Features

• DLP Display Technology
• 3,800 Lumens
• Wide XGA Resolution
• 3,500 hour lamp life (typical)
• 15,000:1 Contrast Ratio
• 3.05kg (6.7lb.)
• 6 segment colour wheel (RYGCWB)
• Native Widescreen
• 12v Trigger
• PIN Code Security
• 3D Projection Ready
• Monitor Out
• Network Control

• Meeting Room Projectors

Vivitek DW814 Specifications

Categories	Office / Desktop Portable Widescreen Short Throw Zoom
Manufacturer	Vivitek (Click for rest of range)
Vivitek DW814 Optical Features
System	1 * 0.65" DMD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	3,800
Contrast	15,000:1
Lamp	240W
Lamp Life	3,500hrs. (7,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.2x
Throw Ratio	1.28 - 1.54:1
Image Size	30"-302" diagonal
Throw Distance	1.00-10.00m
Throw distance for 100" image	2.76 - 3.31m
KeystoneCorrection	±40° (Vertical)
Vivitek DW814 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

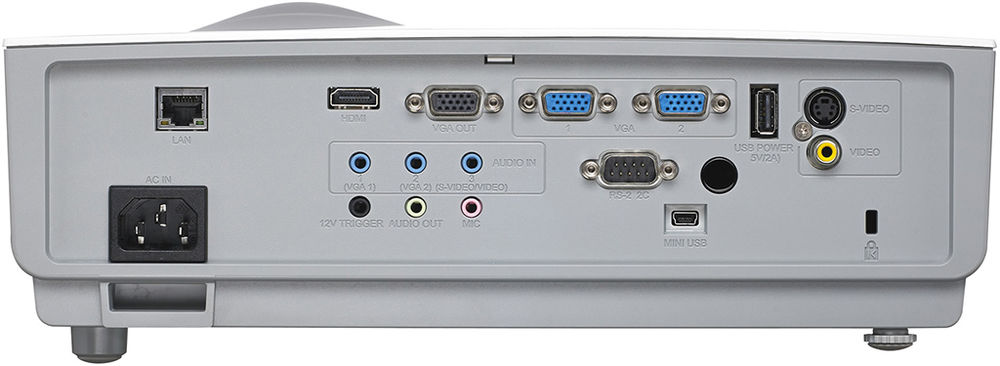

Vivitek DW814 Terminals
HDMI	1
RGBHV (15-pin HD)	2
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	2
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Vivitek DW814 General
Speakers	10w mono
Remote Control	Vivitek DW814 only
Noise	36db (32db ECO mode)
Dimensions	314*126*216mm (W*H*D)
Weight	3.05kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	320Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	1 year/1000 hours (whichever first)
Vivitek DW814 Package Contents
Accessories	VGA Cable User Manual (CD) Quick Start Guide Remote Controller (with battery)

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DW814 Accessories

Description	Price	Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg	£133.00	£159.60
