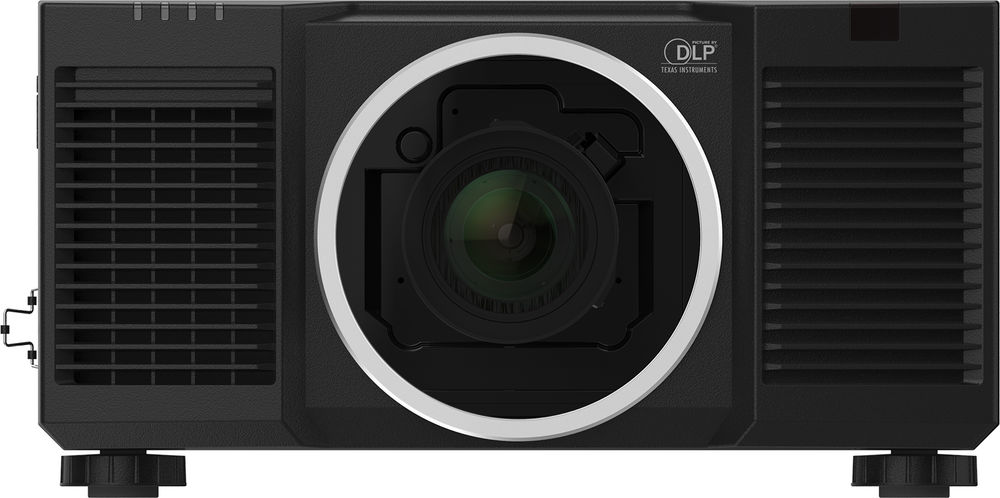

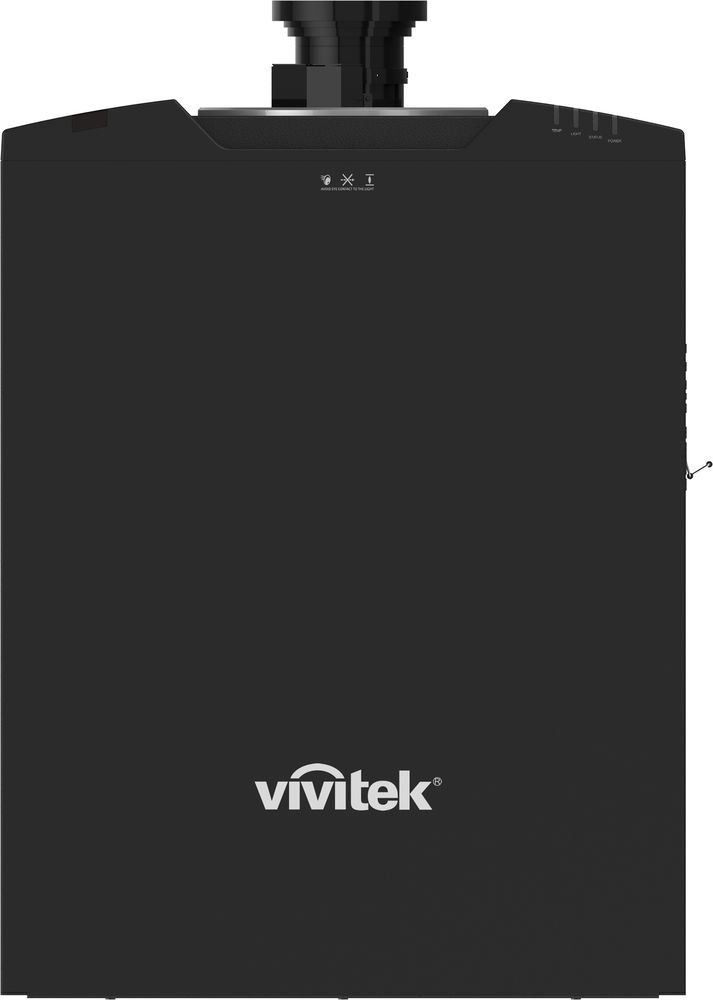

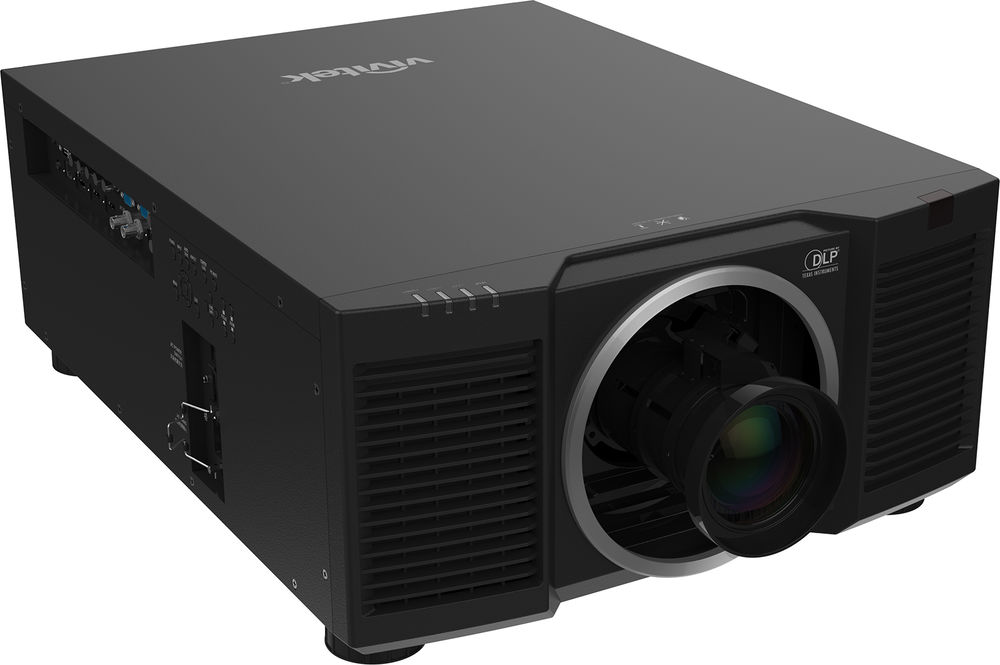

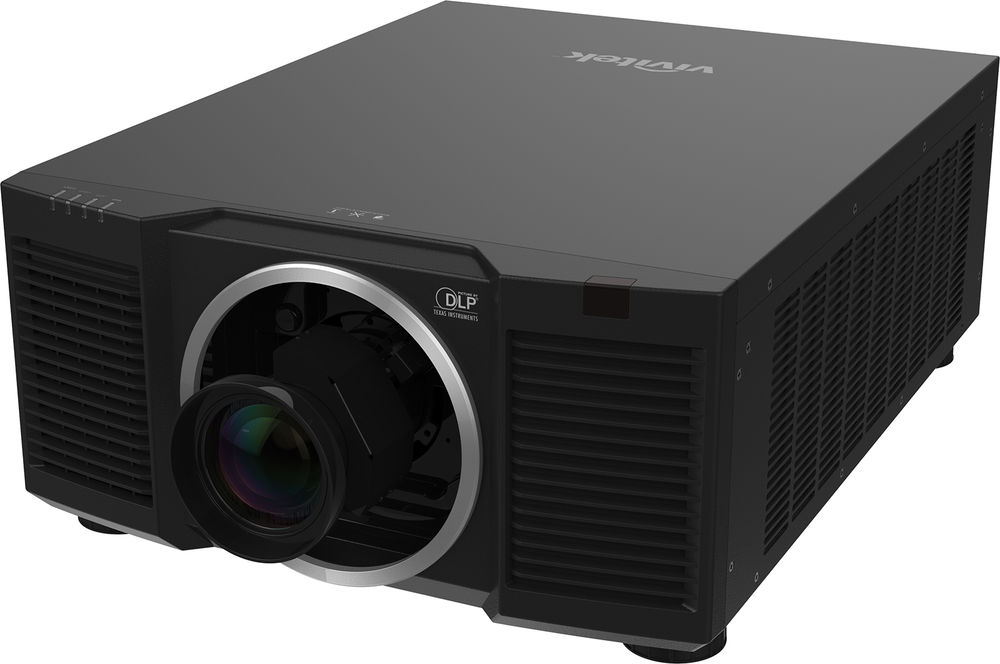

Vivitek DU9800Z Projector

£20825 (£24990.00 inc. VAT)
Availability: Please Call

Vivitek DU9800Z Key Features

• DLP Display Technology
• 18000 ANSI Lumens
• 5 Optional Lenses (Click Here)
• WUXGA 1920*1200 Native Resolution
• 20000 hour lamp life (typical)
• 10000:1 Contrast Ratio
• 48kg (105.8lb.)
• Native Widescreen
• Lens Shift
• 12v Trigger
• Horizontal & Vertical Keystone Correction
• Portrait Mode
• HDBaseT
• Interchangeable Lens System
• Can Be Installed Vertically
• Lens-centred Design
• Digital (HDMI/DVI/DisplayPort) Input
• 3D Projection Ready
• Monitor Out
• Network Control

Vivitek DU9800Z
Brochure

Instruction Manual

• 3D Projection
• Exhibitions and large venues
• Horizontal Surface Projection
• Lecture Theatres
• LED/Laser
• Museums
• Portrait Mode Applications
• Super bright applications

Vivitek DU9800Z Specifications

Categories	3D Ready Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift
Manufacturer	Vivitek (Click for rest of range)
Vivitek DU9800Z Optical Features
System	1 * 0.96" DMD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
ANSI Lumens	18000
Contrast	10000:1
Lamp	Laser light source
Lamp Life	20000hrs. (20000hrs. ECO mode)
Lens	Click for optional lenses
Interchangeable	Yes
Image Size	30"-300" diagonal
Lens Shift	Ver50% Horizontal: 15%
KeystoneCorrection	±40° (Vertical)
	±60° (Horizontal)
Vivitek DU9800Z Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

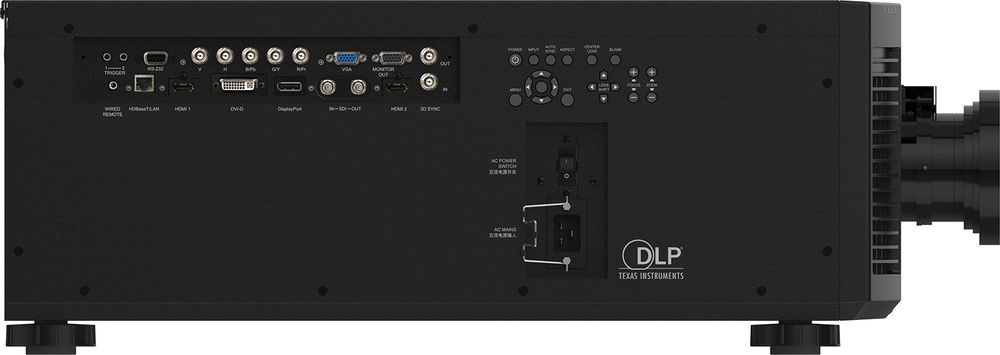

Vivitek DU9800Z Terminals
DVI	1
HDMI	2
RGBHV (15-pin HD)	1
RGBHV (BNC/RCA)	1
S-Video	1
Composite	1
HD-SDI	1
Monitor Out	Yes
RS-232	1
HDBaseT	1
12v Trigger	Yes
Network Ready	Yes
Vivitek DU9800Z General
Speakers	No

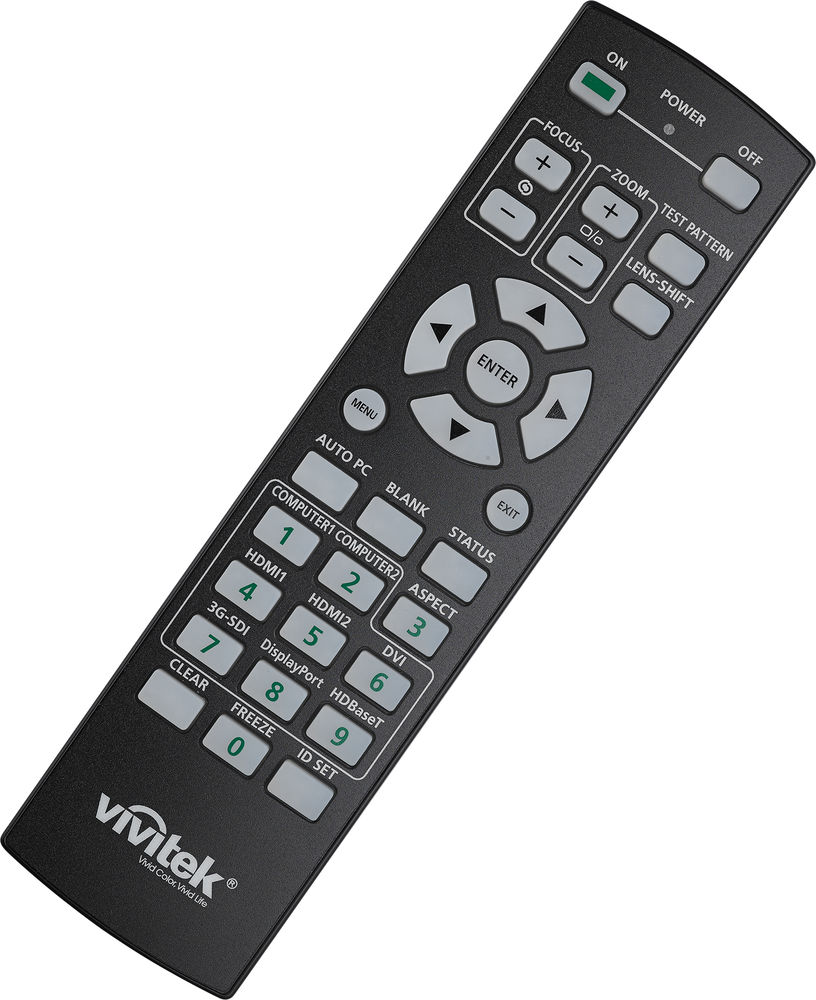

Remote Control	Vivitek DU9800Z only
Noise	43db
Dimensions	530*248*693mm (W*H*D)
Weight	48.00kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	1800Watts
Manufacturers Warranty	5 year Return to base
Light Source Warranty	3 years/10,000 hours (whichever first)
Vivitek DU9800Z Package Contents
Accessories	HDMI Cable User Manual (CD) Lens Cap Warranty Card (by region) Remote Controller (with battery) AC Power Cord

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DU9800Z Optional Lenses

Description	Price	Inc. VAT
Vivitek D98-0810 Ultra Wide Zoom Lens	£2813	£3375.60
Vivitek D98-1215 Wide Zoom Lens	£2813	£3375.60
Vivitek D98-1520 Standard Throw Zoom Lens	£1469	£1762.80
Vivitek D98-2040 Semi Long Throw Zoom Lens	£2548	£3057.60
Vivitek D98-4070 Long Throw Zoom Lens	£2813	£3375.60
