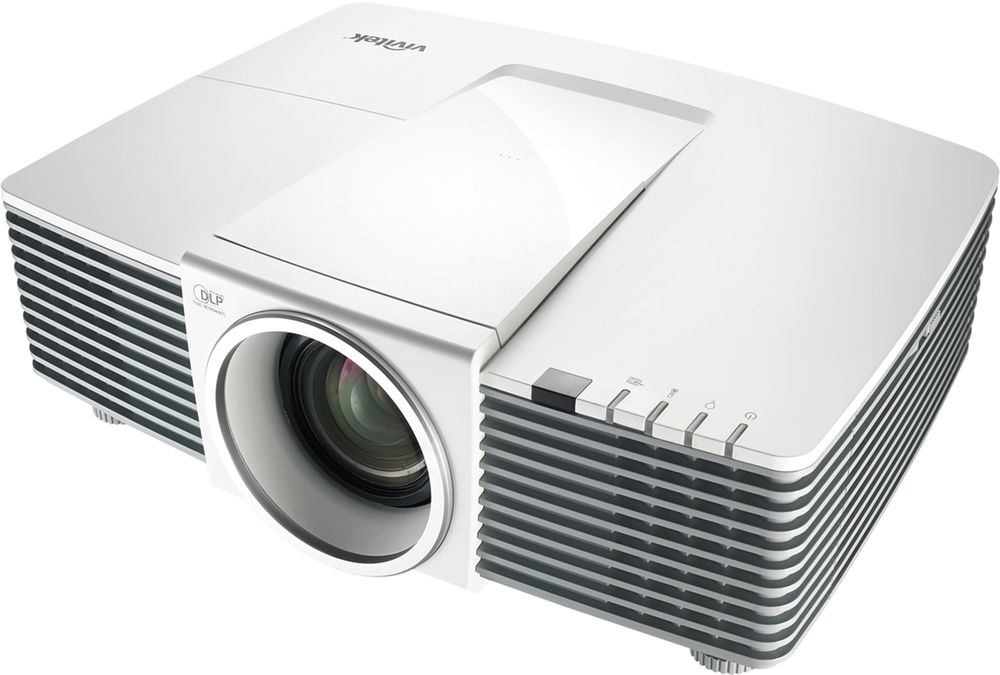

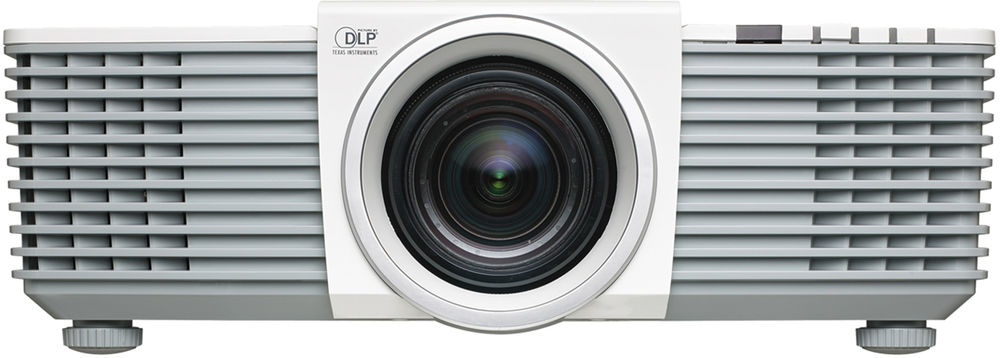

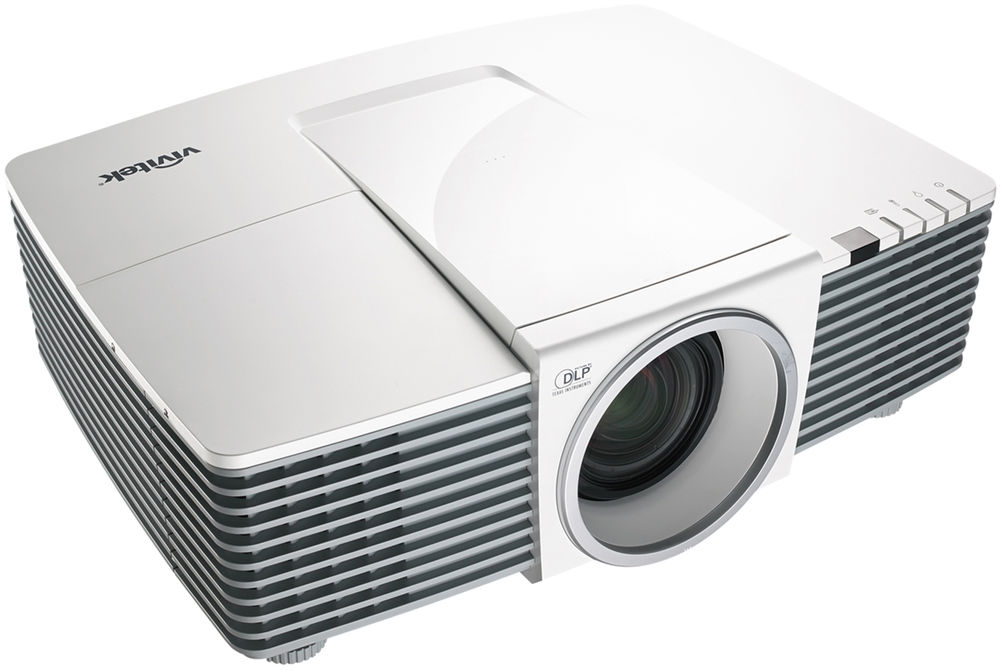

Vivitek DH3331 Projector

No Longer Available

Click for Current Vivitek range

Vivitek DH3331 Key Features

• DLP Display Technology
• 5,000 Lumens
• 1080P 1920*1080 Native Resolution
• 1,500 hour lamp life (typical)
• 10,000:1 Contrast Ratio
• 8.4kg (18.5lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• 12v Trigger
• Horizontal & Vertical Keystone Correction
• HDBaseT
• MHL
• Lens-centred Design
• PIN Code Security
• DICOM Simulation Mode
• 3D Projection Ready
• Monitor Out
• Network Control

Vivitek DH3331 Downloads

Brochure

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• Medical Imaging

Vivitek DH3331 Specifications

Categories	HDBaseT Lens Shift Short Throw Zoom Installation HD
Manufacturer	Vivitek (Click for rest of range)
Vivitek DH3331 Optical Features
System	1 * 0.65" DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	5,000
Contrast	10,000:1
Lamp	370W/280W
Lamp Life	1,500hrs. (3,500hrs. ECO mode)
Interchangeable	No
Zoom Range	1.7x
Throw Ratio	1.25 - 2.13:1
Image Size	21"-361" diagonal
Throw Distance	1.00-10.00m
Throw distance for 100" image	2.77 - 4.72m
Lens Shift	Vertical: -13.5% +28.7% Horizontal: 10.
KeystoneCorrection	±30° (Vertical)
	±25° (Horizontal)
Vivitek DH3331 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq.	15,31-91kHz
Vertical Freq.	24-30, 4Hz

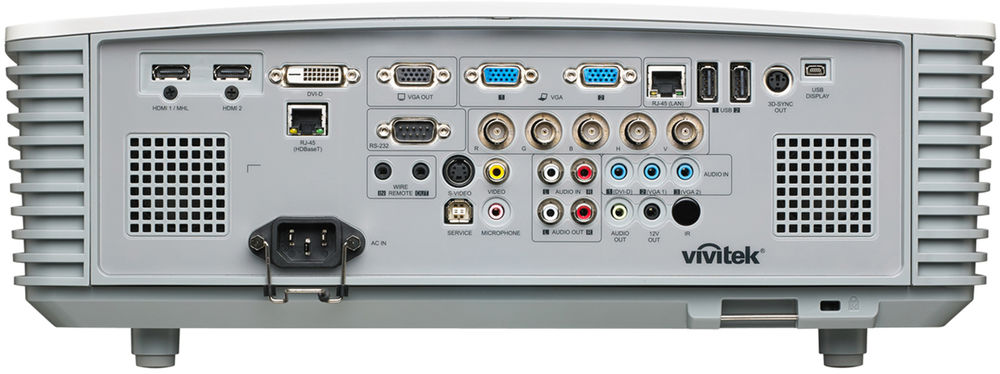

Vivitek DH3331 Terminals
DVI	1
HDMI	2
RGBHV (15-pin HD)	2
RGBHV (BNC/RCA)	1
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	5
Audio Out	2
USB	2
RS-232	1
HDBaseT	1
12v Trigger	Yes
Network Ready	Yes
Vivitek DH3331 General
Speakers	7W Stereo
Remote Control	Vivitek DH3331 only
Noise	36db (30db ECO mode)
Dimensions	445*160*330mm (W*H*D)
Weight	8.40kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	480Watts
Manufacturers Warranty	3 year RTB
Light Source Warranty	1 year/1000 hours (whichever first)
Vivitek DH3331 Package Contents
Accessories	AC Power Cord VGA Cable Remote Control Filter Documentation Kit

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DH3331 Accessories

Description	Price	Inc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg	£153.00	£183.60
