Sharp A175U W Projector

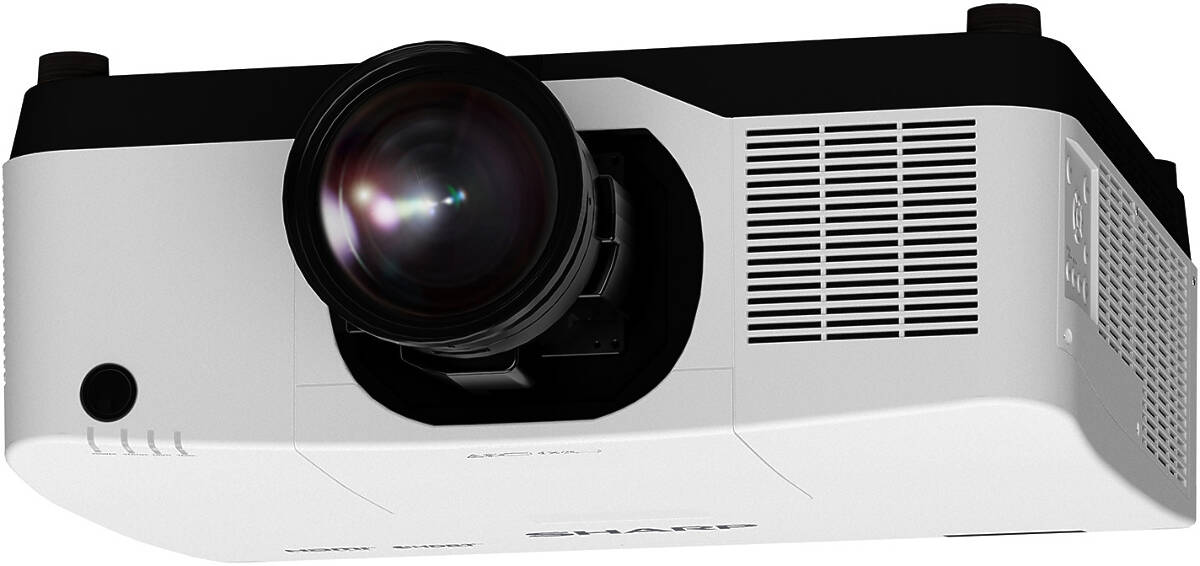

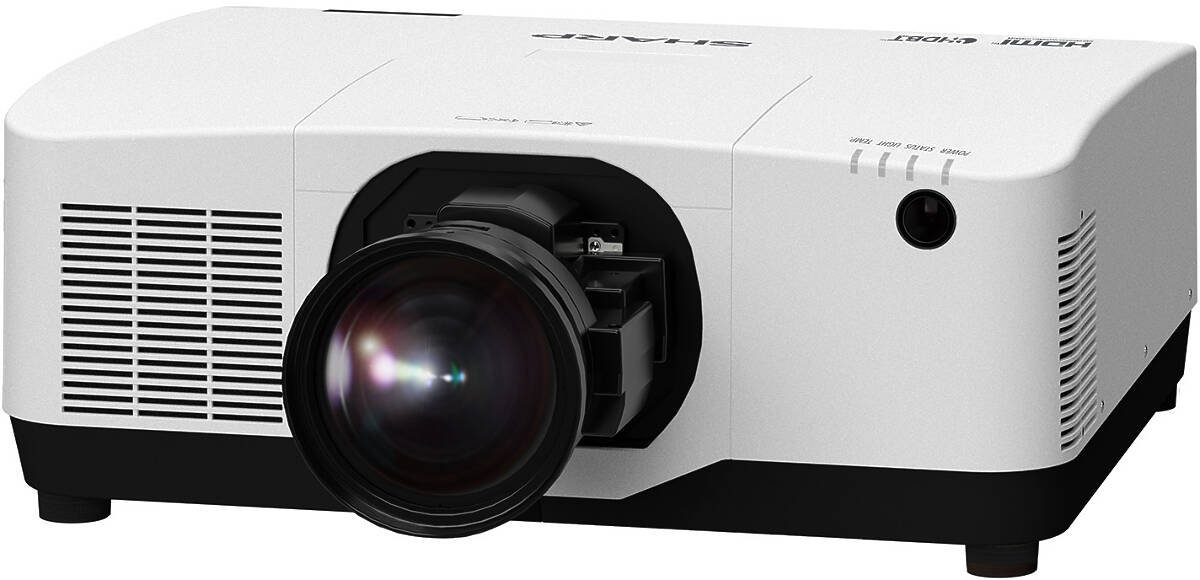

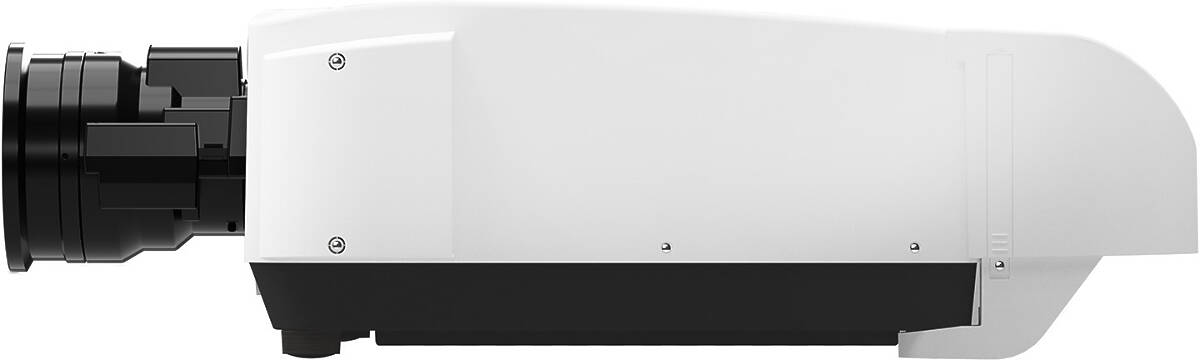

Sharp A175U W 16000 Lumens WUXGA projector product image. Click to enlarge.

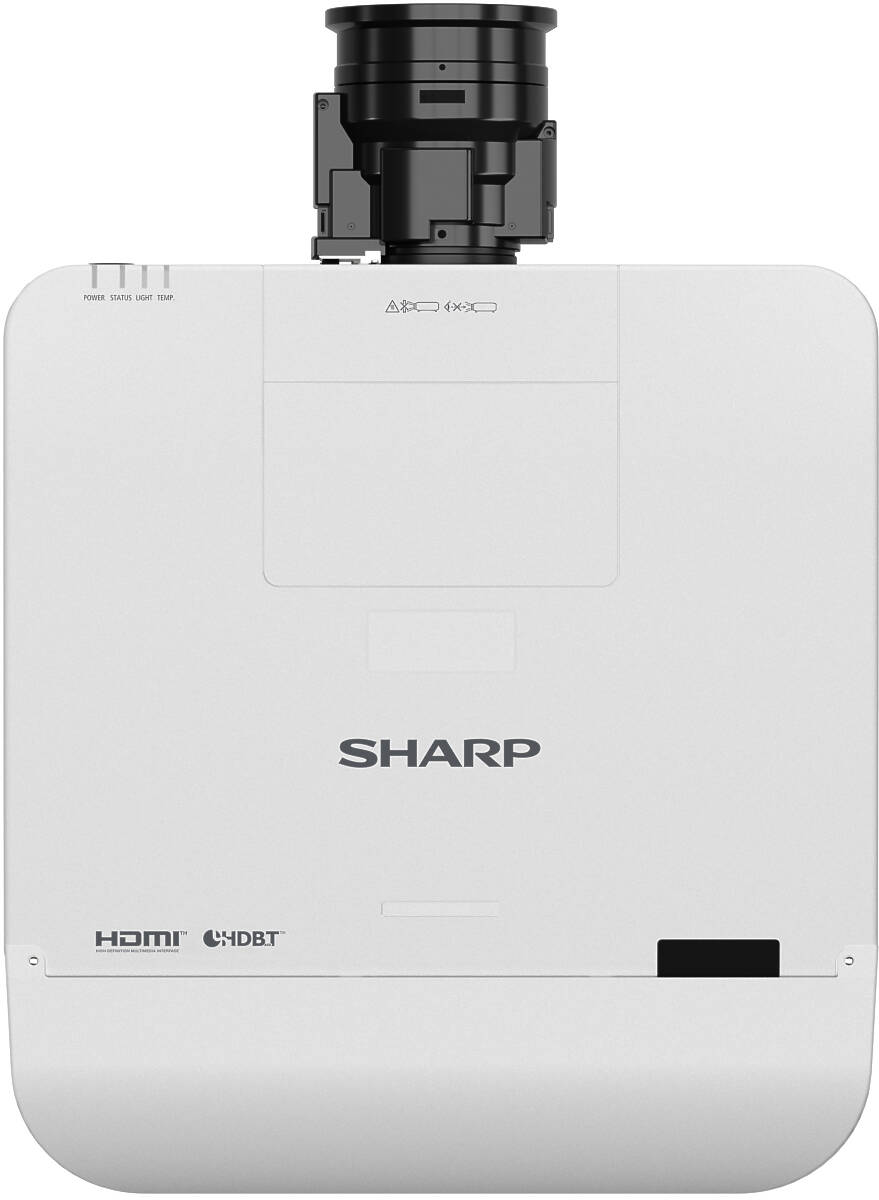

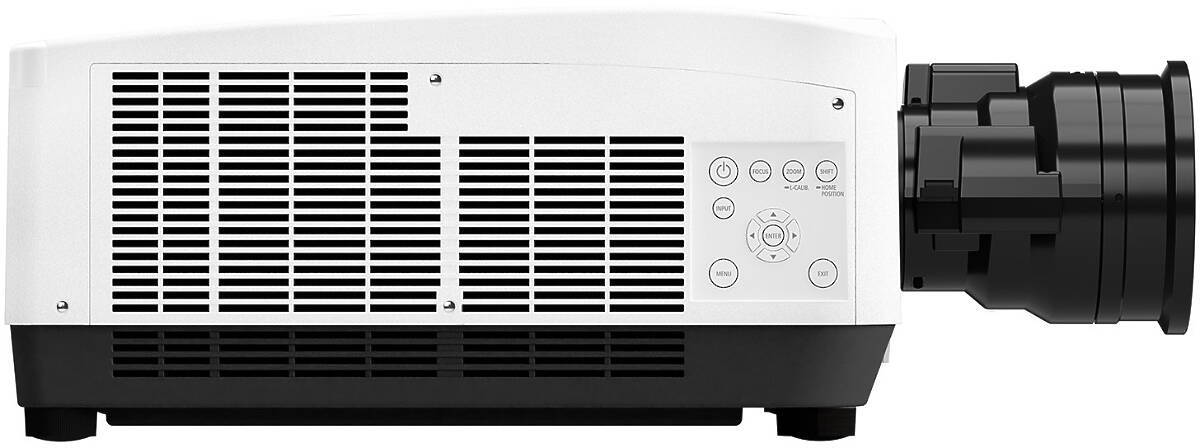

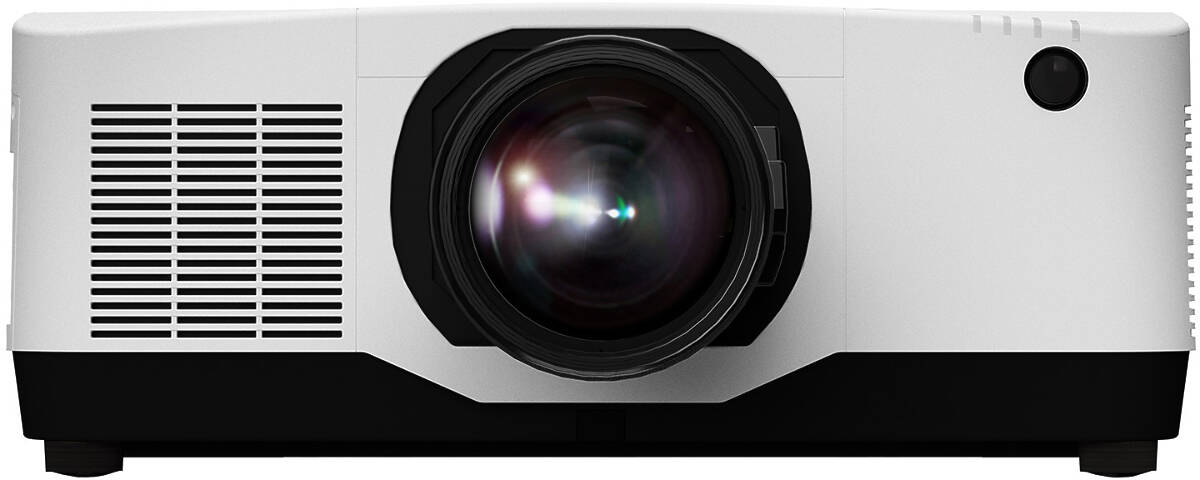

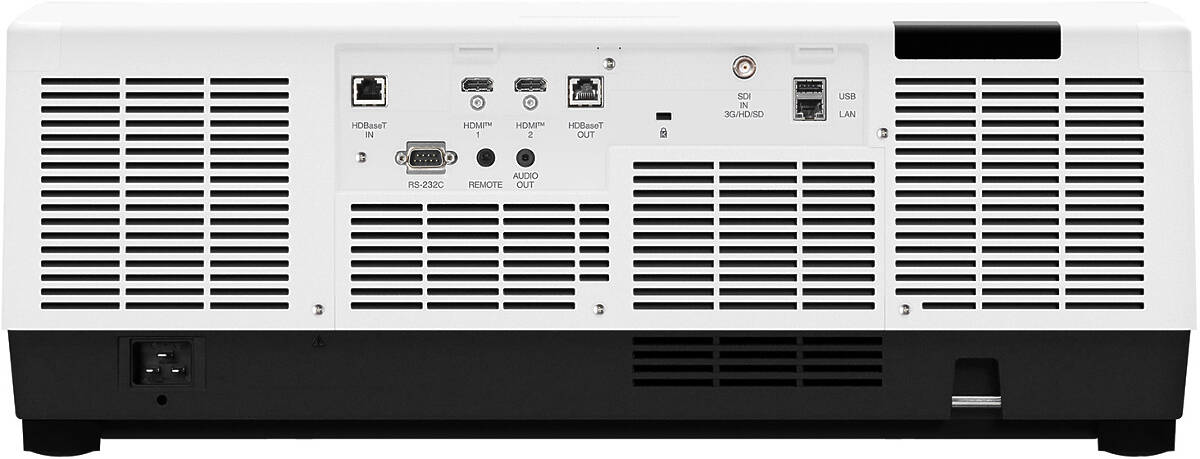

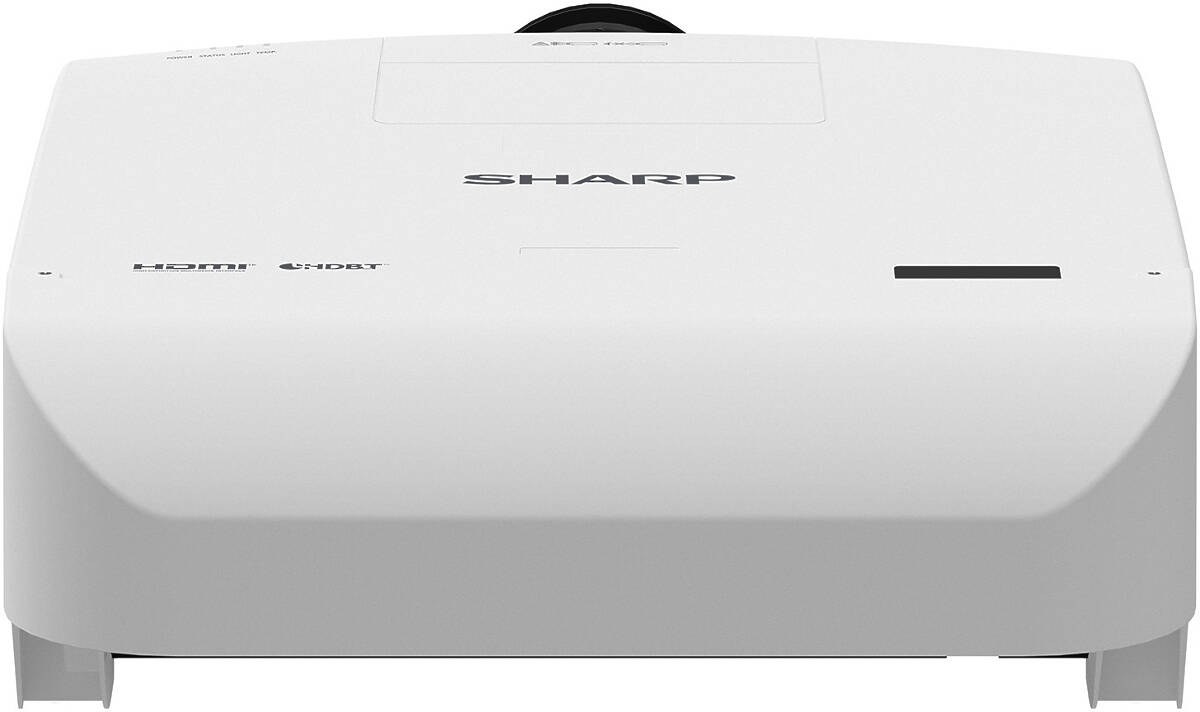

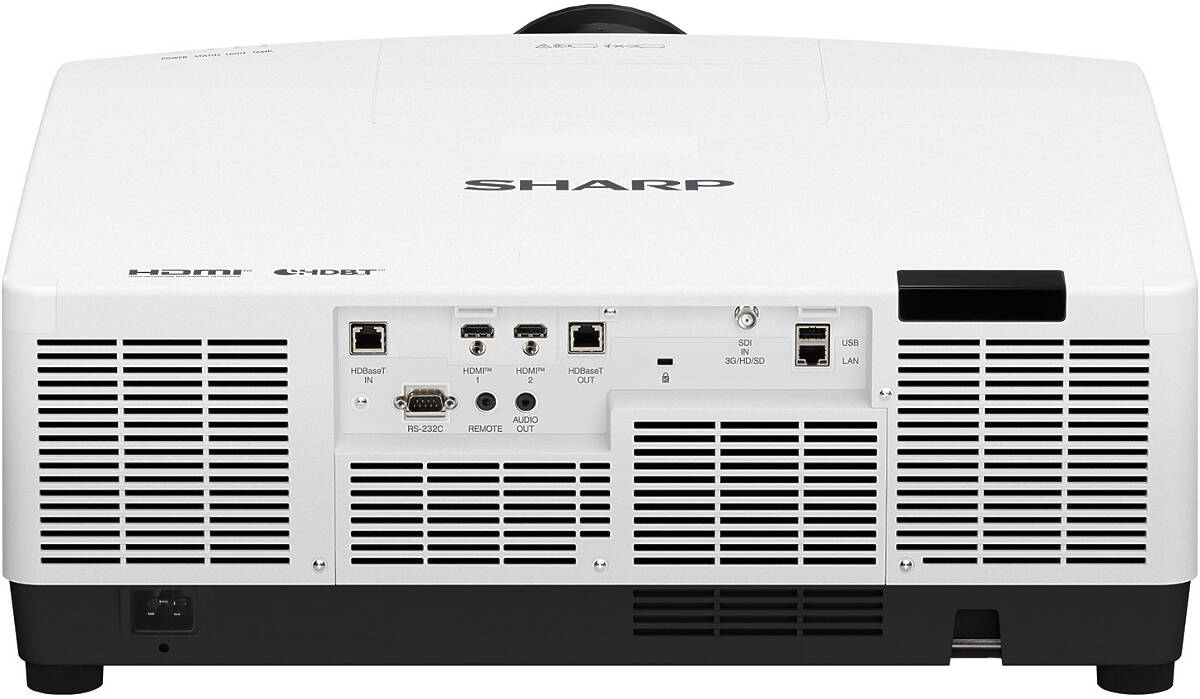

Sharp A175U W 16000 Lumens WUXGA projector connectivity (terminals) product image Sharp A175U W 16000 Lumens WUXGA projector product image Sharp A175U W 16000 Lumens WUXGA projector Front View product image Sharp A175U W 16000 Lumens WUXGA projector product image Sharp A175U W 16000 Lumens WUXGA projector connectivity (terminals) product image Sharp A175U W 16000 Lumens WUXGA projector product image Sharp A175U W 16000 Lumens WUXGA projector product image Sharp A175U W 16000 Lumens WUXGA projector Top View product image
£13847 (£16616.40 inc. VAT)
Availability: 3-5 days

Sharp A175U W Key Features

  • FREE Delivery on this item
  • LCD Display Technology
  • 16000 Lumens Colour Light Output
  • 9 Optional Lenses (Click Here)
  • WUXGA 1920×1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 3,000,000:1 Contrast Ratio
  • 28.7kg (63.3lb.)
  • Finished in White
  • Cinema Quality Picture (CQP) Processing for best image quality
  • TileMatrix to power 4Kx2K resolution across four projectors
  • 360° Installation
  • Native Widescreen
  • Lens Shift
  • Seamless Switching
  • Horizontal & Vertical Keystone Correction
  • Portrait Mode
  • HDBaseT
  • Picture-In-Picture
  • Picture-and-Picture
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Warrantied for 24/7 use
  • High Dynamic Range (HDR) Ready
  • Edge Blending
  • DICOM Simulation Mode
  • Motorised Zoom and Focus
  • Stacking Function
  • Monitor Out
  • Network Control

Sharp A175U W Downloads


Sharp A175U W Specifications

Categories Conference / Large Venue
HDBaseT
Interchangeable Lens
Lens Shift
LED/Laser HD
Manufacturer Sharp (Click for rest of range)

Sharp A175U W Optical Features
System 3 × LCD
Resolution WUXGA (1920×1200)
Aspect Ratio 16:10
Lumens 16,000
Colour Light Output 16000 Lumens
Contrast 3,000,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (20,000hrs. ECO mode)
Lens Click for optional lenses
Interchangeable Yes
Suggested Max Size (60ft.lamberts) 214.66 * 134.16 in. (253 in. diagonal)
(545 * 341cm)
Image Size 30" – 300" diagonal
Lens Shift Up to H:±25, V:+65, -65
KeystoneCorrection ±30° (Vertical)
±40° (Horizontal)

Sharp A175U W Compatibility
Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

Sharp A175U W Connectivity
HDMI 2 × HDMI 2.0 Type A (HDCP 2.2)
SDI 1 × 3G-SDI (SMPTE ST 424M / SMPTE 292M)
HDBaseT 1 × RJ-45 HDCP 2.2
RS-232 1 × 9-Pin D-Sub
Network 1 × RJ45
USB 1 × Type A USB 2.0
Control 1 × 3.5mm Mini Jack for Wired Remote
Display Out 1 × HDBaseT
Audio Out 1 × 3.5mm Mini Jack
3D Sync Out 1 × 3-Pin Mini DIN

Sharp A175U W General
Speakers No
Remote Control Sharp A175U W only
Noise 38db (35db ECO mode)
Dimensions 599×238×490mm (W×H×D)
Weight 28.70kg
Power Supply 100–240V AC; 50–60Hz
Power Consumption 925Watts
Manufacturers Warranty 3 year loan support
Light Source Warranty 3 year/10000 hours (whichever first)

Sharp A175U W Package Contents
Accessories IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

Additional Details
Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Special Characteristics AMX Beacon; Built-in Display/Multiscreen Splitter; Crestron Connected; Digital 3D Reform; Geometric Correction; HDR10 Support; High Altitude Mode; HTTP Browser Control; IP5X/IP6X rated; Lens Memory; Light Source Adjustment; Manual Wall Colour Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OSD with 27 languages; PJ LINK; Rec2020 to Rec709 colour conversion Test Pattern; Timer-Function; UHD player support

Green Features
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.5W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant

Ivojo Multimedia are approved Sharp dealers and supply only UK products with full UK warranties.
