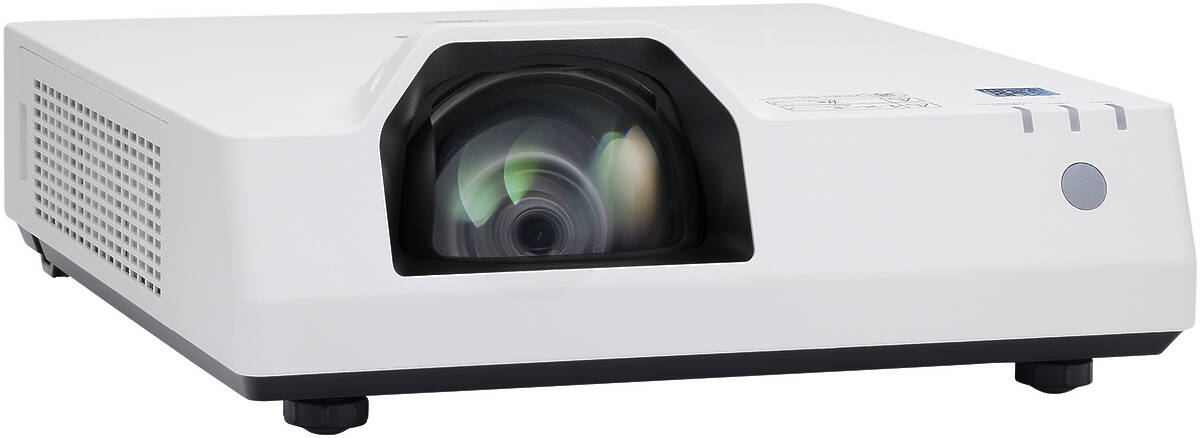

Panasonic PT-TMZ400 Projector

£1504 (£1804.80 inc. VAT)
Availability: Please Call

Panasonic PT-TMZ400 Key Features

• LCD Display Technology
• 4,000 Lumens
• WUXGA 1920*1200 Native Resolution
• 20,000 hour lamp life (typical)
• 3,000,000:1 Contrast Ratio
• 4.9kg (10.8lb.)
• Ultra Short Throw (0.43:1)
• Native Widescreen
• PC Free Presentations
• Logo capture and display
• PIN Code Security
• DICOM Simulation Mode
• Network Control

Panasonic PT-TMZ400 Downloads

Brochure

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• LED/Laser
• Medical Imaging
• PC Free Presentations
• Ultra short throw

Panasonic PT-TMZ400 Throw Chart (Click for details)

Panasonic PT-TMZ400 Specifications

Categories	PC Free Ultra Short Throw HD LED/Laser HD
Manufacturer	Panasonic (Click for rest of range)
Panasonic PT-TMZ400 Optical Features
System	3×16.3mm (0.64 in) diagonal
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	4,000
Contrast	3,000,000:1
Lamp	Laser diodes
Lamp Life	20,000hrs. (240,000hrs. ECO mode)
Lens	Fixed Short Throw
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.43 - 0.43:1
Image Size	50"-105" diagonal
Throw Distance	0.46-0.97m
Throw distance for 100" image	0.93 - 0.93m
Lens Shift	No
KeystoneCorrection	±15° (Vertical)
	±15° (Horizontal)
Panasonic PT-TMZ400 Compatibility
Computer Resolutions	UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	4K, UHD, HD, 720p, PAL, SECAM, NTSC

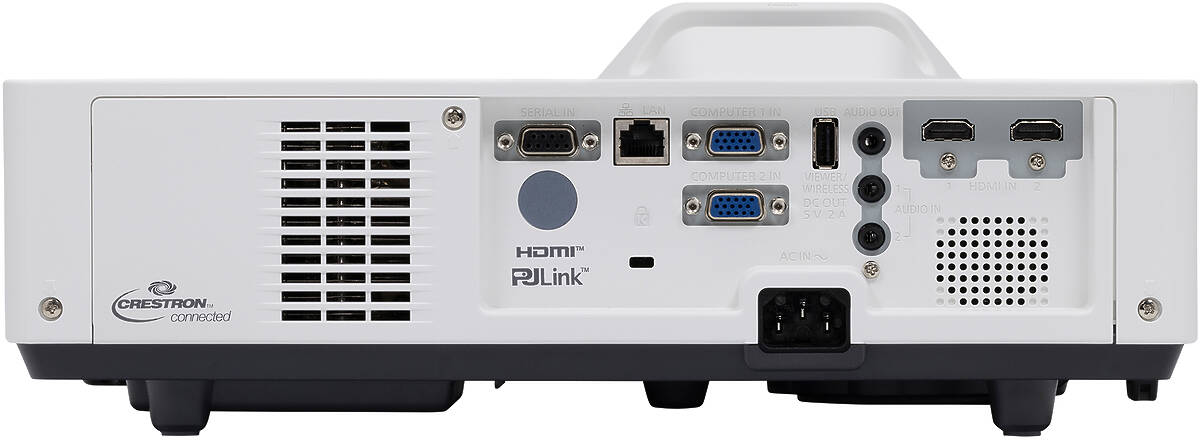

Panasonic PT-TMZ400 Terminals
HDMI	2
RGBHV (15-pin HD)	2
Audio In	2
Audio Out	1
USB	1
RS-232	1
Network Ready	Yes
Panasonic PT-TMZ400 General
Speakers	10w Mono
Remote Control	Panasonic PT-TMZ400 only
Noise	35db (24db ECO mode)
Dimensions	349*138*370mm (W*H*D)
Weight	4.90kg
Power Supply	AC 100 V-240 V, 50/60 Hz
Power Consumption	240Watts
Manufacturers Warranty	3 Year/20,000 Hours (Whichever first)
Light Source Warranty	3 Year/20,000 Hours (Whichever first)
Additional Specs
Connectivity Details	HDMI 19-pin × 2 (Compatible with HDCP 1.4, Deep Colour, 4K/30p signal input), CEC supported D-sub HD 15-pin (female) × 2 (RGB/YpbPr/YCbCr) M3 stereo mini-jack × 2 D-sub 9-pin (female) × 1 for computer control (RS-232C compliant) RJ-45 × 1 for network control, 10Base-T, 100Base-TX USB connector (Type A) × 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2A) M3 stereo mini-jack × 1
Applicable Software	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®, Wireless Projector App for iOS/Android

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.

Panasonic PT-TMZ400 Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
