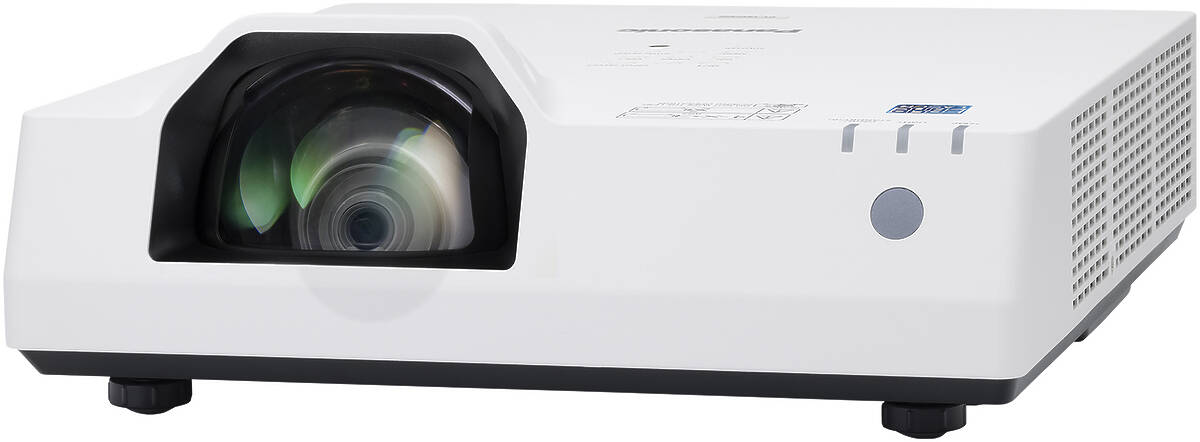

Panasonic PT-TMX380 Projector

£1291 (£1549.20 inc. VAT)
Availability: Please Call

Panasonic PT-TMX380 Key Features

  • LCD Display Technology
  • 3,800 Lumens
  • XGA 1024*768 Native Resolution
  • 20,000 hour lamp life (typical)
  • 3,000,000:1 Contrast Ratio
  • 4.9kg (10.8lb.)
  • Ultra Short Throw (0.46:1)
  • PC Free Presentations
  • Logo capture and display
  • PIN Code Security
  • DICOM Simulation Mode
  • Network Control


Panasonic PT-TMX380 Throw Chart (Click for details)

Panasonic PT-TMX380 Specifications

Categories LED/Laser
PC Free
Ultra Short Throw
Manufacturer Panasonic (Click for rest of range)

Panasonic PT-TMX380 Optical Features

System 3×16.3mm (0.64 in) diagonal
Resolution XGA (1024*768)
Aspect Ratio 4:3
Lumens 3,800
Contrast 3,000,000:1
Lamp Laser diodes
Lamp Life 20,000hrs. (240,000hrs. ECO mode)
Lens Fixed Short Throw
Interchangeable No
Zoom Range Fixed
Throw Ratio 0.46 - 0.46:1
Image Size 50"-105" diagonal
Throw Distance 0.45-0.99m
Throw distance for 100" image 0.93 - 0.93m
Lens Shift No
KeystoneCorrection ±15° (Vertical)
±15° (Horizontal)

Panasonic PT-TMX380 Compatibility

Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

Panasonic PT-TMX380 Terminals

HDMI 2
RGBHV (15-pin HD) 2
Audio In 2
Audio Out 1
USB 1
RS-232 1
Network Ready Yes

Panasonic PT-TMX380 General

Speakers 10w Mono
Remote Control Panasonic PT-TMX380 only
Noise 35db (24db ECO mode)
Dimensions 349*138*370mm (W*H*D)
Weight 4.90kg
Power Supply AC 100 V-240 V, 50/60 Hz
Power Consumption 240Watts
Manufacturers Warranty 3 Year/20,000 Hours (Whichever first)
Light Source Warranty 3 Year/20,000 Hours (Whichever first)

Additional Specs

Connectivity Details HDMI 19-pin × 2 (Compatible with HDCP 1.4, Deep Colour, 4K/30p signal input), CEC supported
D-sub HD 15-pin (female) × 2 (RGB/YpbPr/YCbCr)
M3 stereo mini-jack × 2
D-sub 9-pin (female) × 1 for computer control (RS-232C compliant)
RJ-45 × 1 for network control, 10Base-T, 100Base-TX
USB connector (Type A) × 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2A)
M3 stereo mini-jack × 1
Applicable Software Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®, Wireless Projector App for iOS/Android

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
