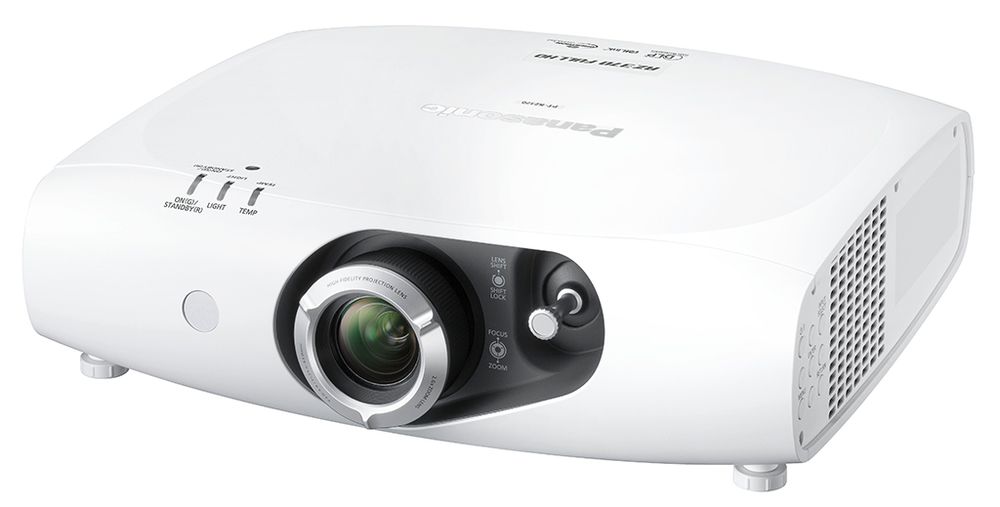

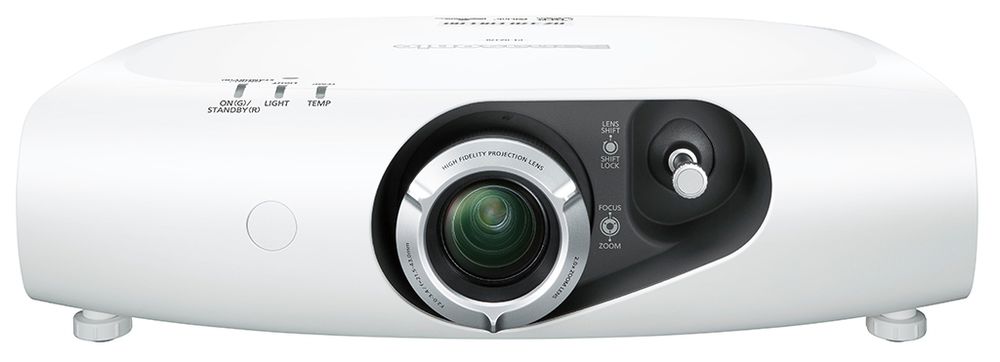

Panasonic PT-RW330EA Projector
Panasonic PT-RW330EA Key Features
- DLP Display Technology
- 3,500 Lumens
- Wide XGA Resolution
- 20,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 11kg (24.3lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- HDCP Compliant DVI
- Lens Shift
- 1080p/24FPS compatible
- Can Be Installed Vertically
- Lens-centred Design
- Logo capture and display
- Quick Power On
- Quick Power Off
- Warrantied for 24/7 use
- DICOM Simulation Mode
- Monitor Out
- Network Control
Panasonic PT-RW330EA Specifications
| Categories | LED/Laser Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-RW330EA Optical Features |
|
| System | 1 * 0.65" DMD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 3,500 |
| Contrast | 10,000:1 |
| Lamp | LED/Laser-combined |
| Lamp Life | 20,000hrs. |
| Interchangeable | No |
| Zoom Range | 2x |
| Throw Ratio | 1.53 - 3.09:1 |
| Image Size | 40"-300" diagonal |
| Throw Distance | 1.30-19.60m |
| Throw distance for 100" image | 3.30 - 6.66m |
| Lens Shift | Vertical: +73/-48% Horizontal: +27/-35% |
| Keystone |
±40° (Vertical) |
Panasonic PT-RW330EA Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, SXGA, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 27-120Hz |

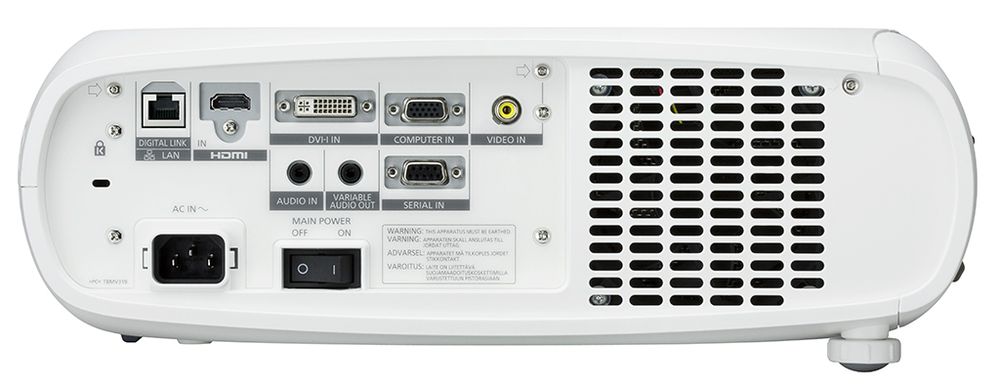

Panasonic PT-RW330EA Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 1 |
| Audio Out | 1 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-RW330EA General |
|
| Speakers | No |

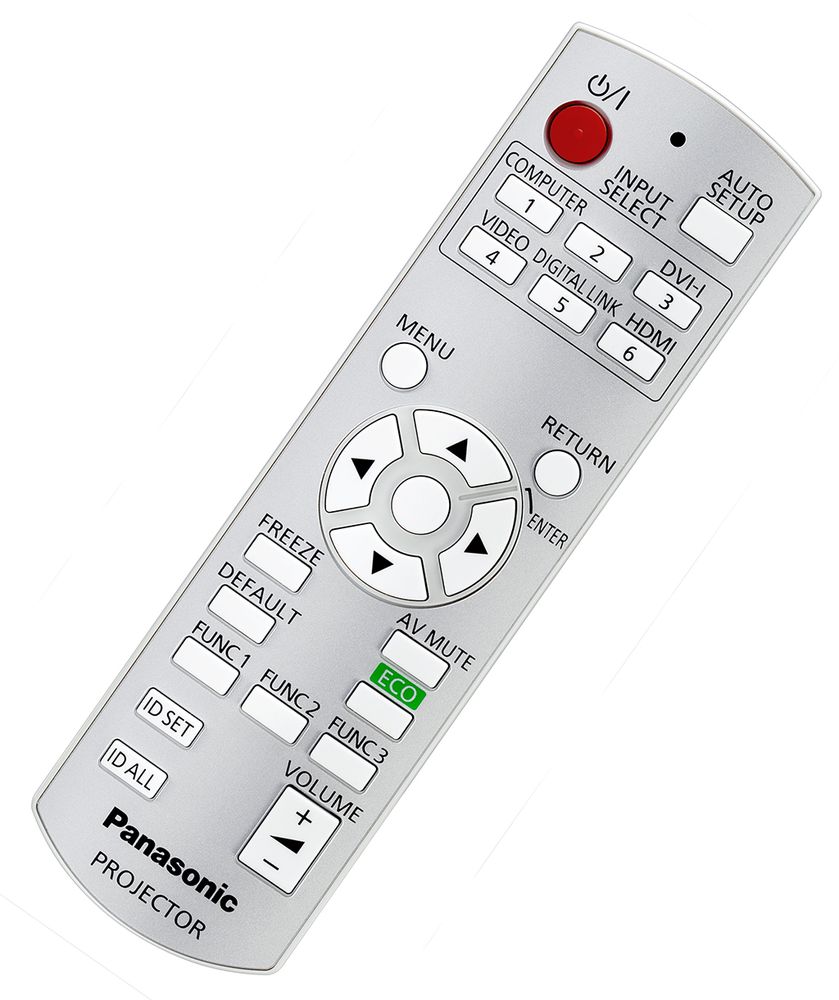

| Remote Control | Panasonic PT-RW330EA only |
| Noise | 35db (29db ECO mode) |
| Dimensions | 455*137*415mm (W*H*D) |
| Weight | 11.00kg |
| Power Supply | 100-240V AC, 50/60 Hz |
| Power Consumption | 460Watts |
| Manufacturers Warranty | 3 collect/return with loan if available |
| Light Source Warranty | 3 years/10,000 hours (whichever first) |
Panasonic PT-RW330EA Package Contents |
|
| Accessories | Power cord (with secure lock) x 1*8 wireless remote control unit batteries for remote control (R6/LR6/AA type x 2) software CD-ROM (Logo Transfer Software Multi Projector Monitoring & Control Software) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
