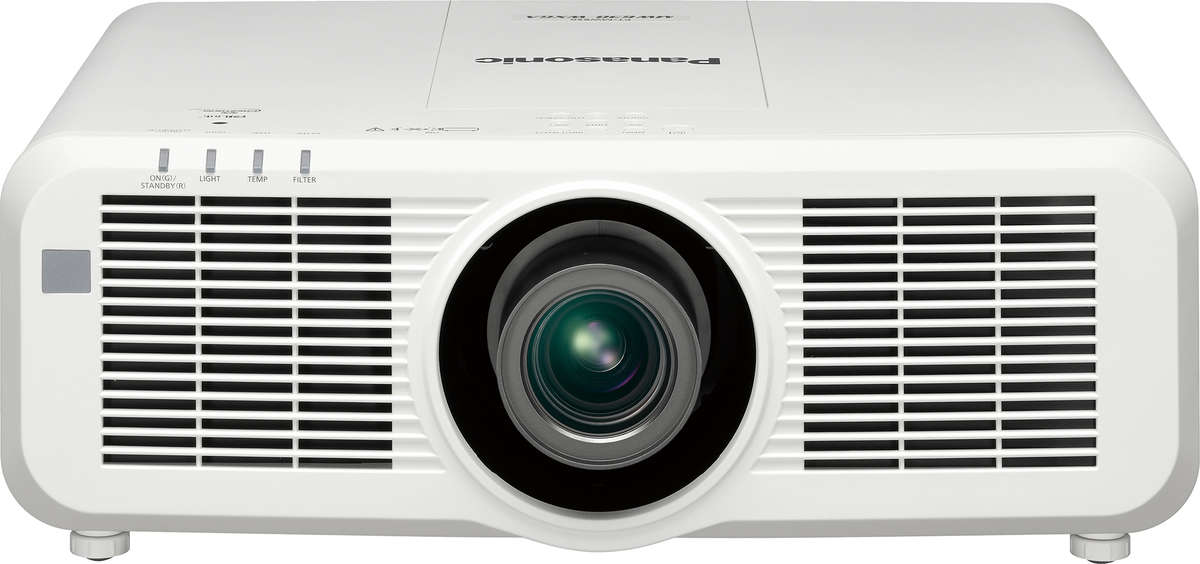

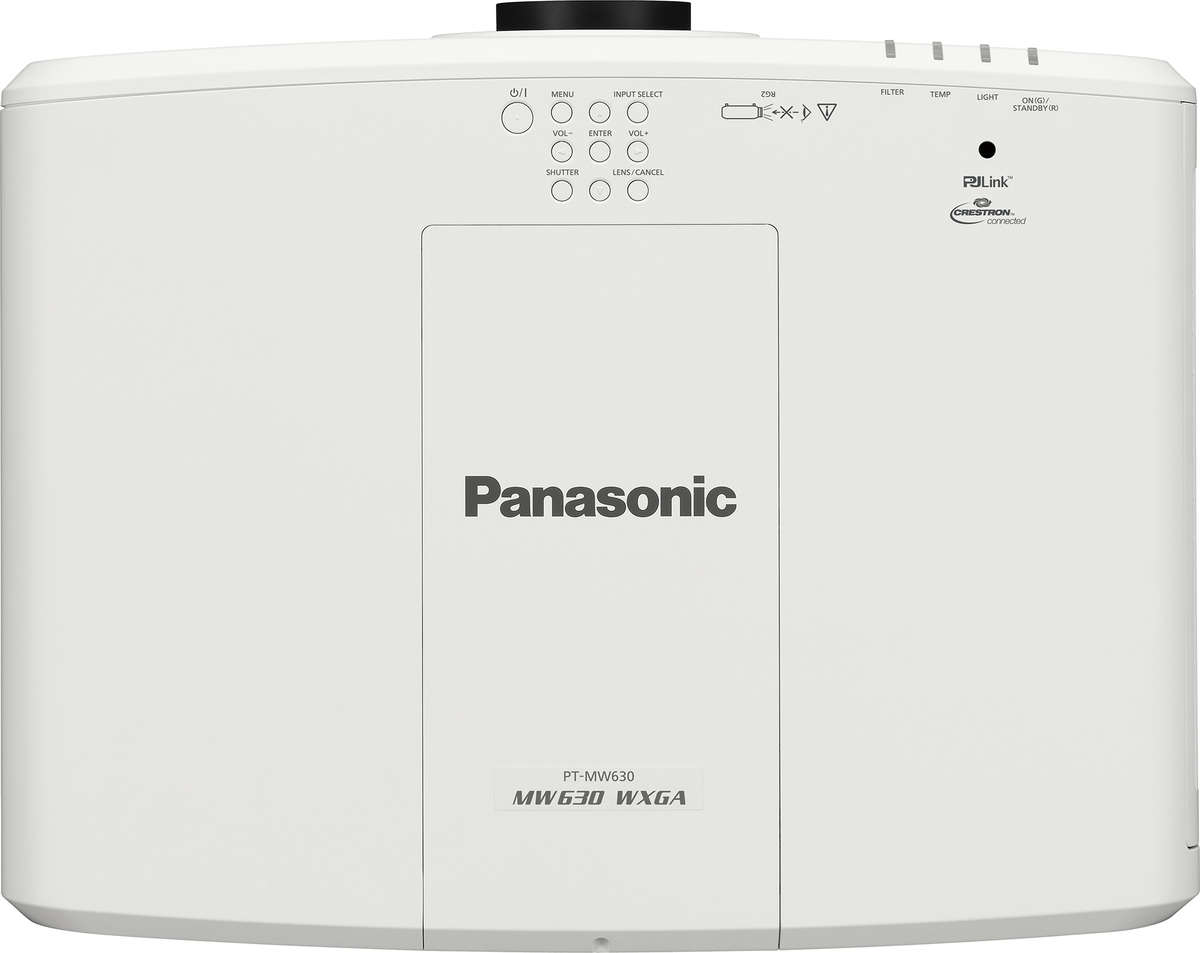

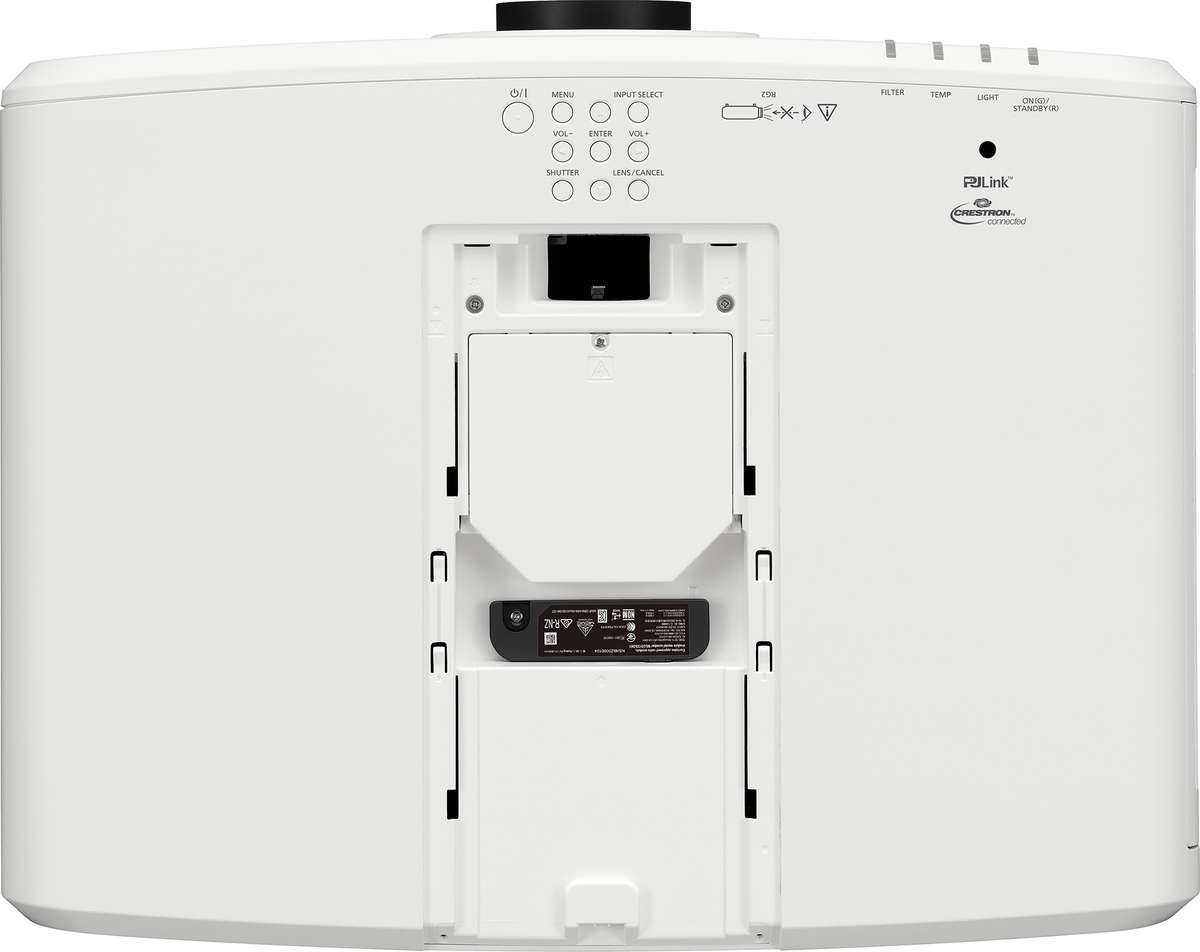

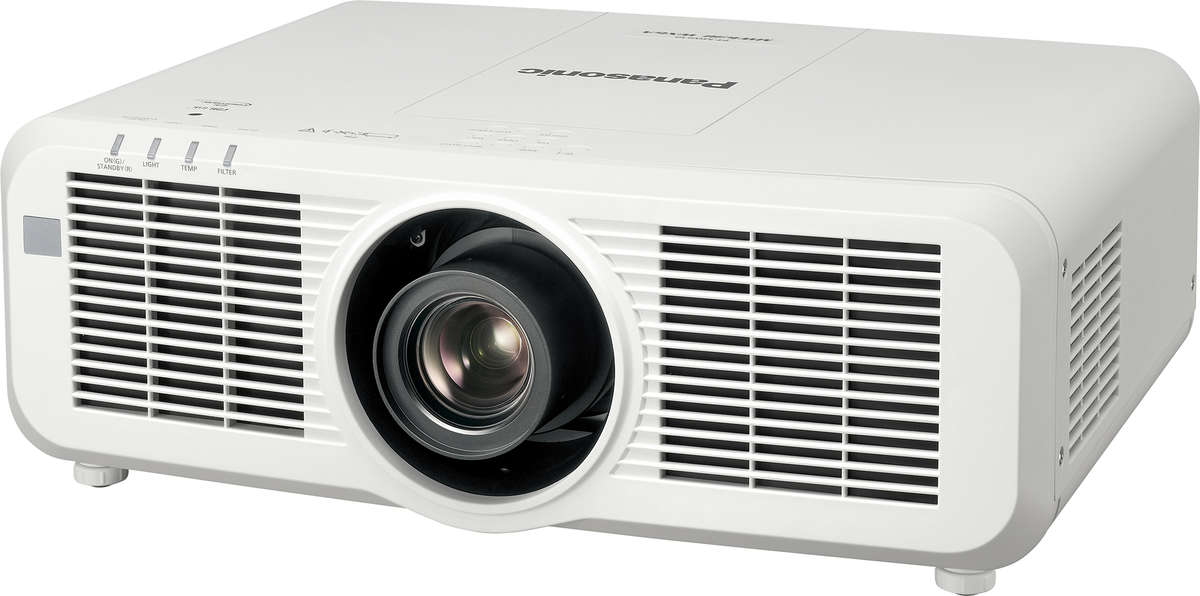

Panasonic PT-MW630LEJ Projector
Panasonic PT-MW630LEJ Key Features
- LCD Display Technology
- 6500 Lumens Colour Light Output
- Wide XGA Resolution
- 10,000 hour lamp life (typical)
- 3,000,000:1 Contrast Ratio
- 16.9kg (37.3lb.)
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Monitor Out
- Network Control
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- Portrait Mode Applications
- School Halls
Panasonic PT-MW630LEJ Specifications
| Categories | Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-MW630LEJ Optical Features |
|
| System | 3 * 0.76" LCD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 6,500 |
| Colour Light Output | 6500 Lumens |
| Contrast | 3,000,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 10,000hrs. (20,000hrs. ECO mode) |
| Interchangeable | No |
| Lens Shift | Vertical: ±67% Horizontal: ±35% |
| Keystone |
±35° (Vertical) |
| ±35° (Horizontal) | |
Panasonic PT-MW630LEJ Compatibility |
|
| Computer Resolutions | FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 1080p, 1080i, 720p, PAL, SECAM, NTSC |
| Horizontal Freq. | 15-91kHz |
| Vertical Freq. | 24-100Hz |
Panasonic PT-MW630LEJ Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 2 |
| Network Ready | Yes |
Panasonic PT-MW630LEJ General |
|
| Speakers | 10w Mono |
| Remote Control | Panasonic PT-MW630LEJ only |
| Noise | 32db (26db ECO mode) |
| Dimensions | 560*205*443mm (W*H*D) |
| Weight | 16.90kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 505Watts |
| Manufacturers Warranty | Not Quoted |
| Light Source Warranty | 90 Days/1000 hours (whichever first) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-MW630LEJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELW21 Fixed Short Throw Lens | £1065 | £1278.00 |
| Panasonic ET-ELW22 Ultra Short Throw Zoom Lens | Discontinued | |
| Panasonic ET-ELW20 Short Throw Zoom Lens | £1065 | £1278.00 |
| Panasonic ET-ELT20 Semi-long throw zoom Lens | Discontinued | |
| Panasonic ET-ELT21 Long Throw Zoom Lens | Discontinued | |
Panasonic PT-MW630LEJ Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
