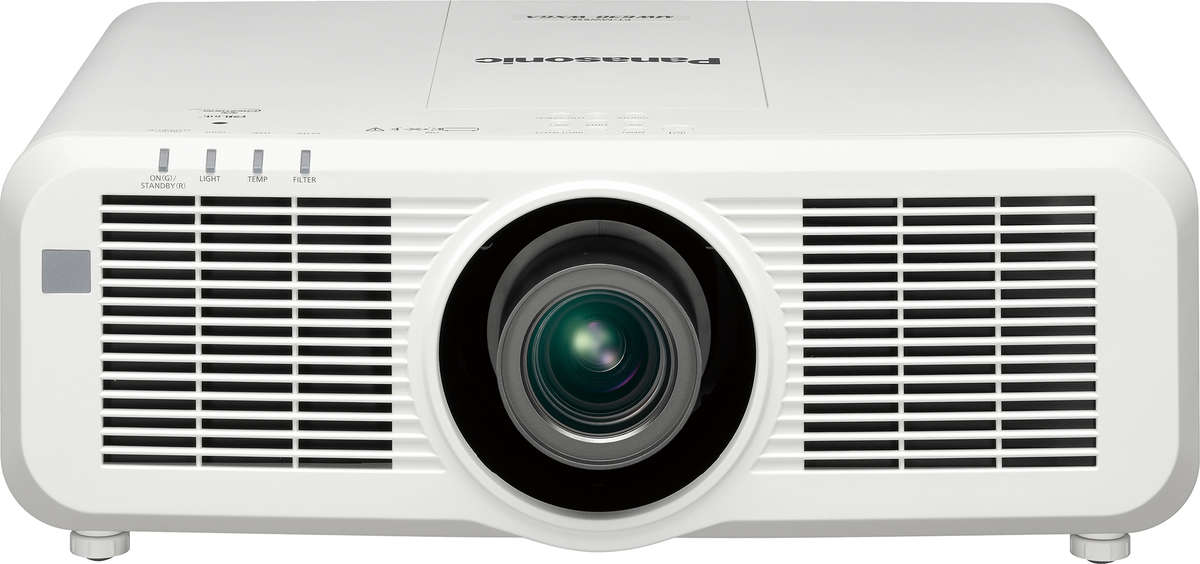

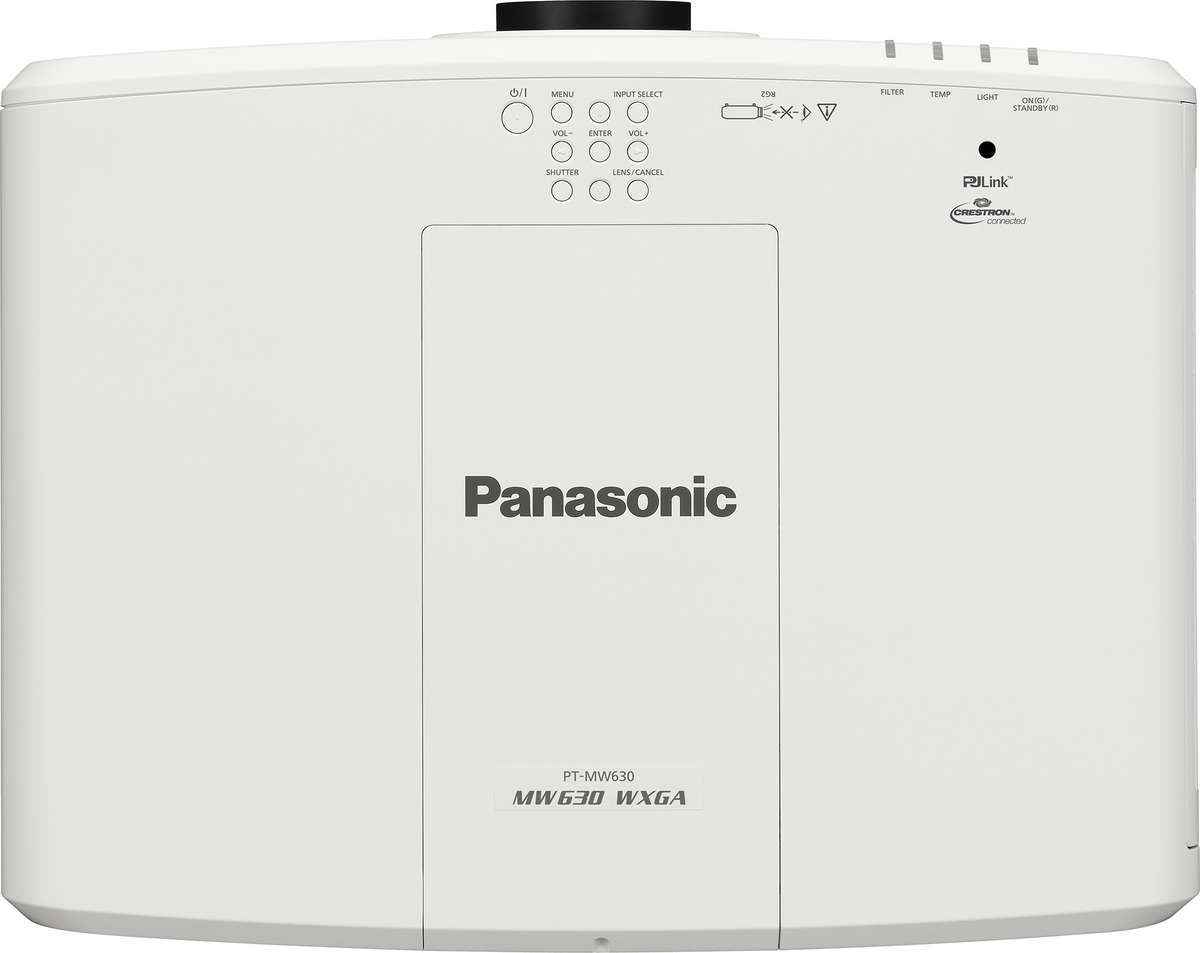

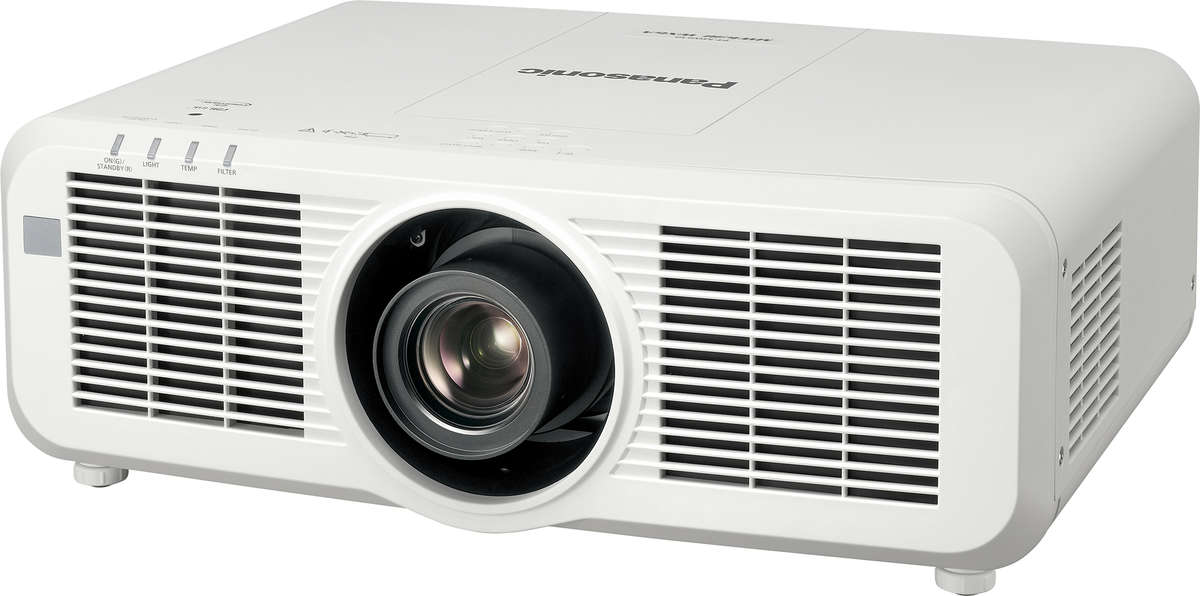

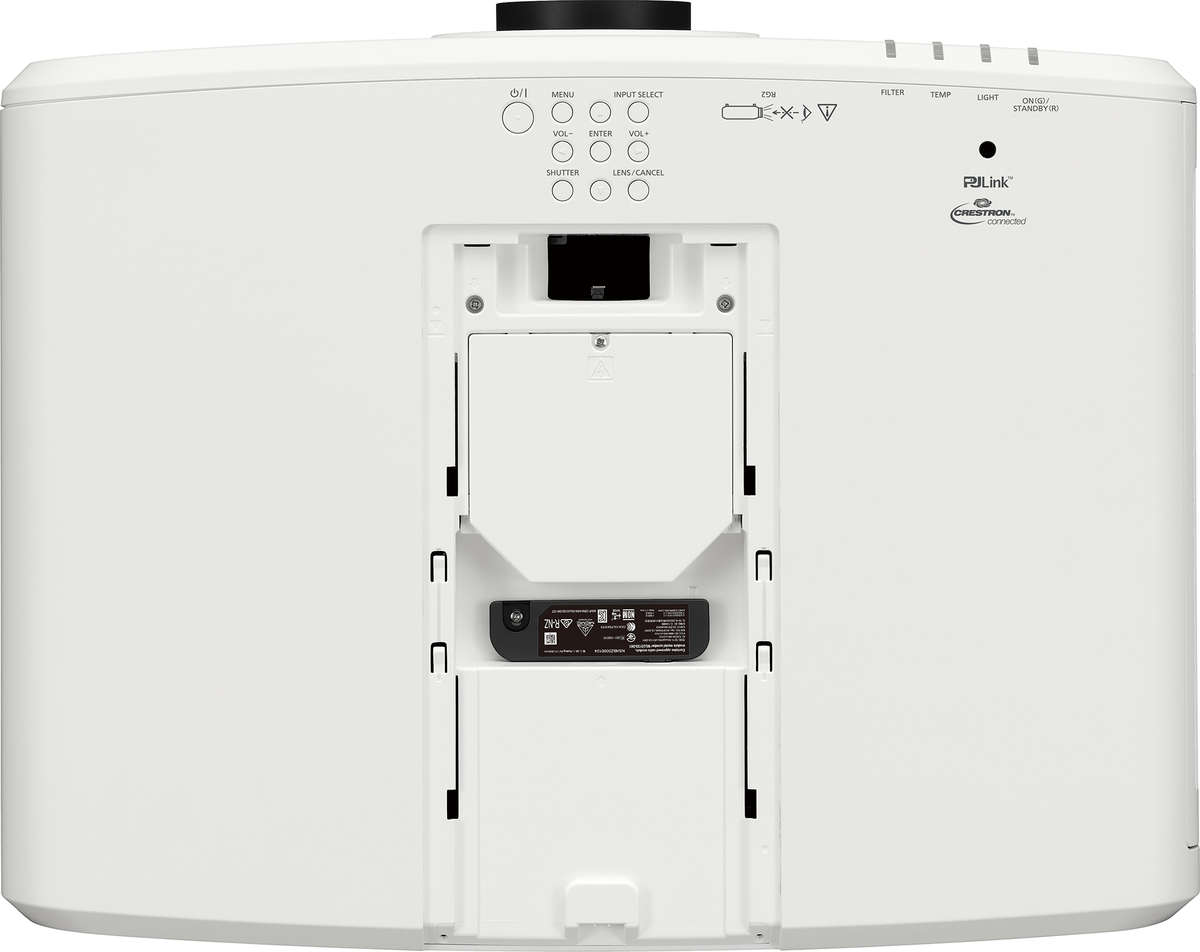

Panasonic PT-MW630EJ Projector
Panasonic PT-MW630EJ Key Features
- LCD Display Technology
- 6500 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- Wide XGA Resolution
- 10,000 hour lamp life (typical)
- 3,000,000:1 Contrast Ratio
- 16.9kg (37.3lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Monitor Out
- Network Control
Panasonic PT-MW630EJ Downloads
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- Portrait Mode Applications
- School Halls
Panasonic PT-MW630EJ Specifications
Categories | Interchangeable Lens Lens Shift |
Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-MW630EJ Optical Features |
|
System | 3 * 0.76" LCD |
Resolution | WXGA (1280*800) |
Aspect Ratio | 16:10 |
Lumens | 6,500 |
Colour Light Output | 6500 Lumens |
Contrast | 3,000,000:1 |
Lamp | Laser Diode |
Lamp Life | 10,000hrs. (20,000hrs. ECO mode) |
Interchangeable | Yes |
Throw Ratio | 1.6 - 2.8:1 |
Image Size | 40"-400" diagonal |
Throw Distance | 1.38-24.28m |
Throw distance for 100" image | 3.45 - 6.03m |
Lens Shift | Vertical: ±67% Horizontal: ±35% |
Keystone |
±35° (Vertical) |
±35° (Horizontal) | |
Panasonic PT-MW630EJ Compatibility |
|
Computer Resolutions | FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
Video Resolutions | 1080p, 1080i, 720p, PAL, SECAM, NTSC |
Horizontal Freq. | 15-91kHz |
Vertical Freq. | 24-100Hz |
Panasonic PT-MW630EJ Terminals |
|
HDMI | 2 |
RGBHV (15-pin HD) | 1 |
RGBHV (BNC/RCA) | 1 |
Composite | 1 |
Monitor Out | Yes |
Audio In | 3 |
Audio Out | 1 |
USB | 2 |
RS-232 | 2 |
Network Ready | Yes |
Panasonic PT-MW630EJ General |
|
Speakers | 10w Mono |
Remote Control | Panasonic PT-MW630EJ only |
Noise | 32db (26db ECO mode) |
Dimensions | 560*205*443mm (W*H*D) |
Weight | 16.90kg |
Power Supply | 100-240V AC; 50-60Hz |
Power Consumption | 505Watts |
Manufacturers Warranty | Not Quoted |
Light Source Warranty | 90 Days/1000 hours (whichever first) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-MW630EJ Optional Lenses
Description | Price | Inc. VAT |
Panasonic ET-ELW21 Fixed Short Throw Lens | £1286 | £1543.20 |
Panasonic ET-ELW22 Ultra Short Throw Zoom Lens | Discontinued | |
Panasonic ET-ELW20 Short Throw Zoom Lens | £1286 | £1543.20 |
Panasonic ET-ELT20 Semi-long throw zoom Lens | Discontinued | |
Panasonic ET-ELT21 Long Throw Zoom Lens | Discontinued |
