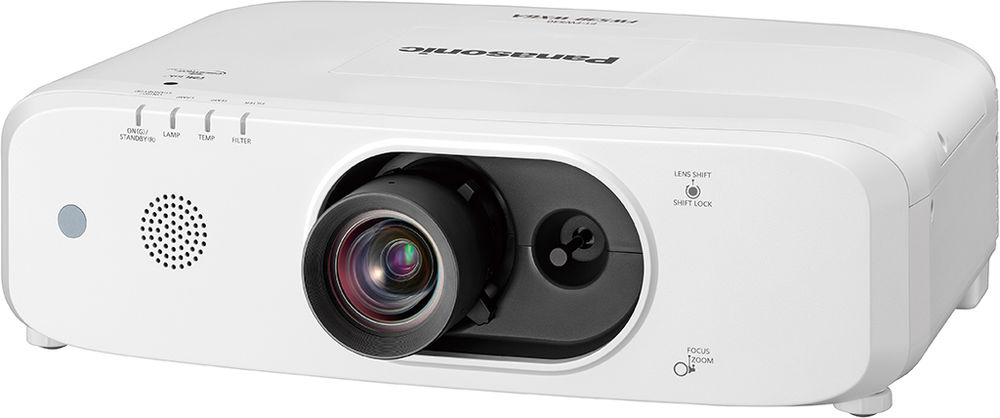

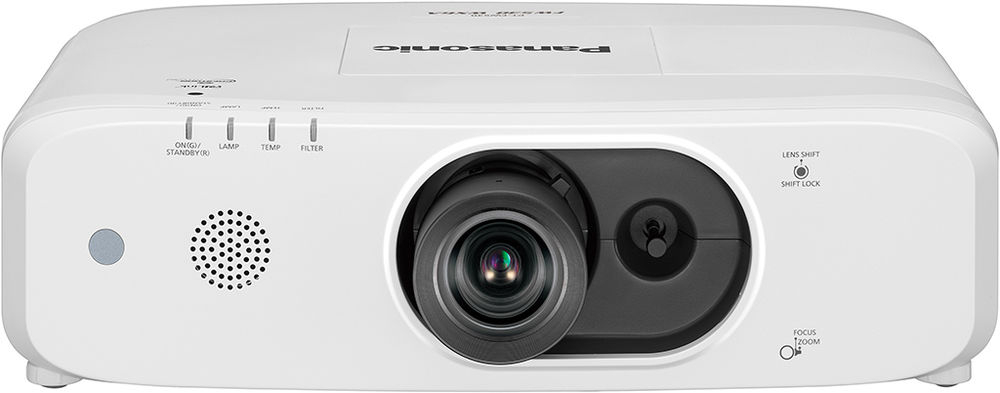

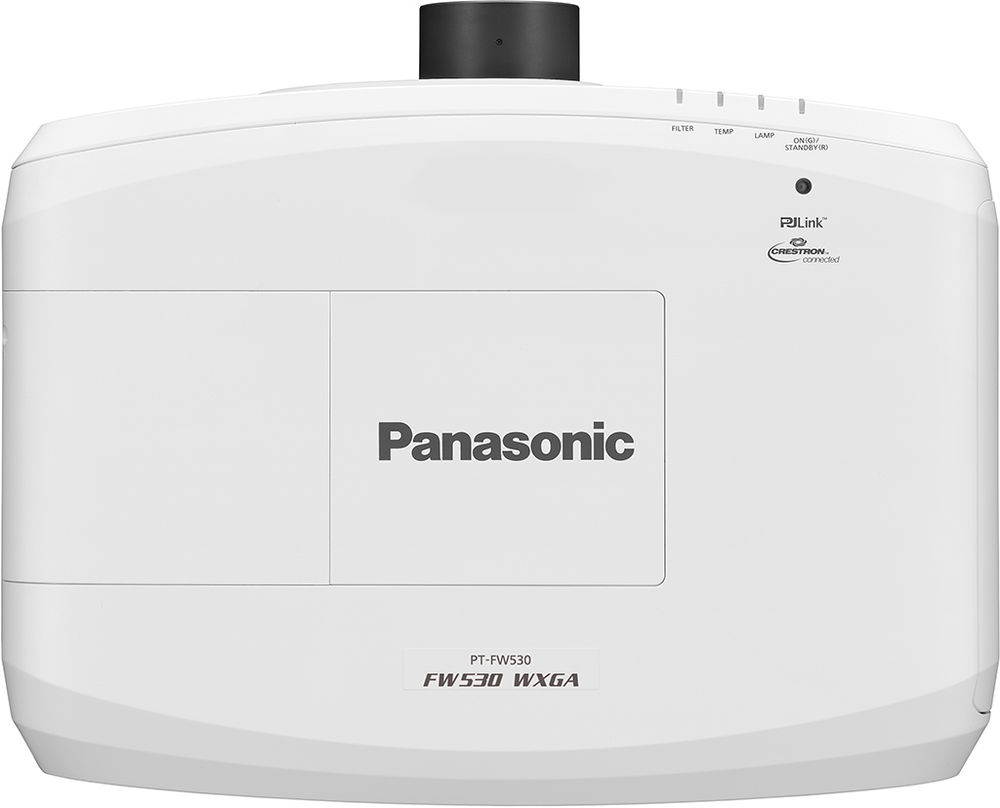

Panasonic PT-FW530EAJ Projector
Panasonic PT-FW530EAJ Key Features
- LCD Display Technology
- 4500 Lumens Colour Light Output
- Wide XGA Resolution
- 6,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 7.9kg (17.4lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Lens-centred Design
- PIN Code Security
- DICOM Simulation Mode
- Network Control
Panasonic PT-FW530EAJ Specifications
| Categories | Lens Shift Short Throw Zoom |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-FW530EAJ Optical Features |
|
| System | 3 * 0.64" LCD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 4,500 |
| Colour Light Output | 4500 Lumens |
| Contrast | 10,000:1 |
| Lamp | 270W UHM |
| Lamp Life | 6,000hrs. (8,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.9x |
| Throw Ratio | 1.22 - 2.26:1 |
| Image Size | 40"-300" diagonal |
| Throw Distance | 1.03-14.71m |
| Throw distance for 100" image | 2.63 - 4.87m |
| Lens Shift | Horizontal: 30% Vertical: 60% |
| Keystone |
±35° (Vertical) |
| ±35° (Horizontal) | |
Panasonic PT-FW530EAJ Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |

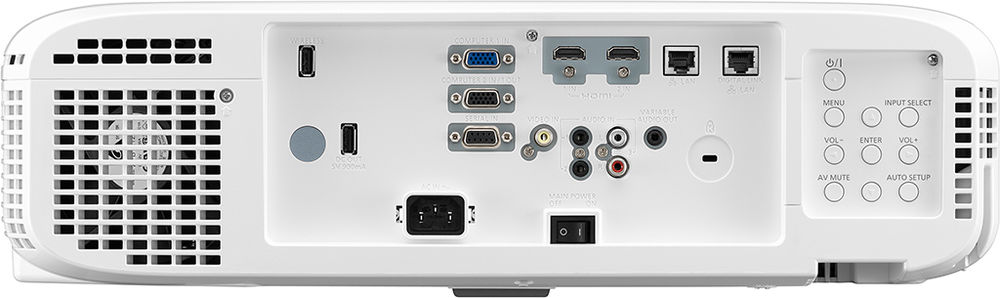

Panasonic PT-FW530EAJ Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 2 |
| S-Video | 1 |
| Composite | 1 |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-FW530EAJ General |
|
| Speakers | 10W Mono |
| Remote Control | Panasonic PT-FW530EAJ only |
| Noise | 33db (29db ECO mode) |
| Dimensions | 498*145*398mm (W*H*D) |
| Weight | 7.90kg |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 400Watts |
| Manufacturers Warranty | 3 year collect/return with loan if available |
| Light Source Warranty | 6 months/500 hours (whichever first) |
Panasonic PT-FW530EAJ Package Contents |
|
| Accessories | Power cord (including power cord holder) x 1 wireless remote control unit x1 batteries for remote control (AAA/R03/LR03 type) x 2 software CD-ROM (Logo Transfer Software Multi Monitoring & Control Software) x 1 |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
