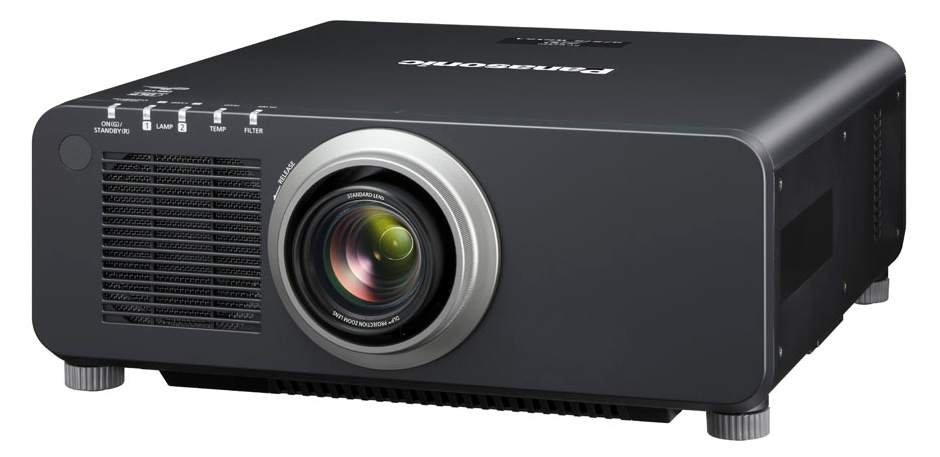

Panasonic PT-DZ870ELK Projector
Panasonic PT-DZ870ELK Key Features
- DLP Display Technology
- 8,500 Lumens
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 3,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 18.3kg (40.3lb.)
- Native Widescreen
- HDCP Compliant DVI
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Portrait Mode
- Picture-In-Picture

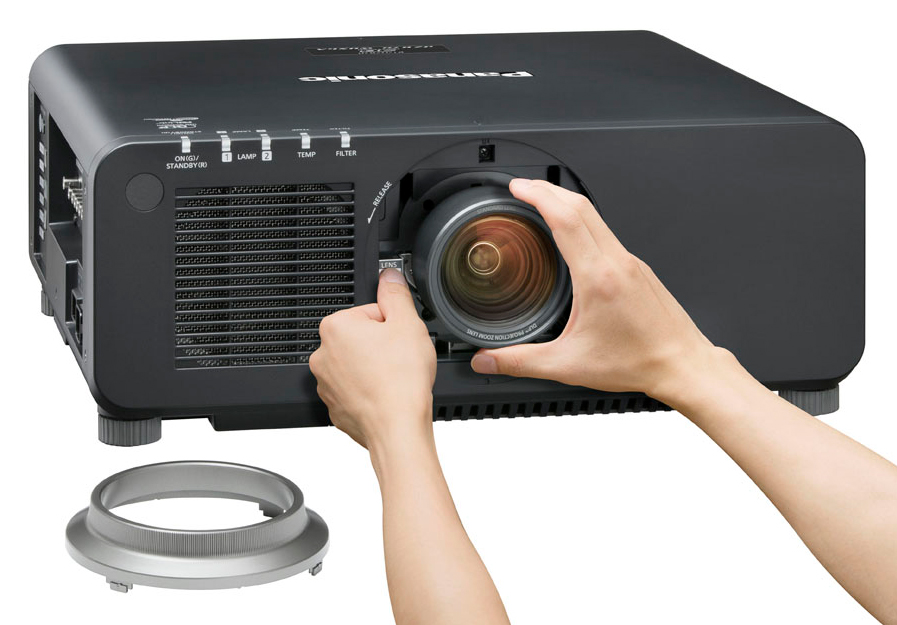

- Interchangeable Lens System
- 1080p/24FPS compatible
- Can Be Installed Vertically
- Lens-centred Design
- Mechanical Shutter
- Logo capture and display
- PIN Code Security
- Edge Blending
- Video Wall Function
- DICOM Simulation Mode
- 3D Projection Ready
- Motorised Zoom and Focus
- sRGB Colour Mode
- Network Control
Panasonic PT-DZ870ELK Downloads
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- Medical Imaging
- Museums
- Portrait Mode Applications
- Super bright applications
- Theatres
Panasonic PT-DZ870ELK Specifications
| Categories | Conference / Large Venue Interchangeable Lens Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-DZ870ELK Optical Features |
|
| System | 1 * 0.67" DMD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 8,500 |
| Contrast | 10,000:1 |
| Lamp | 2x420W UHM |
| Lamp Life | 3,000hrs. (4,000hrs. ECO mode) |
| Interchangeable | Yes |
| Lens Shift | Vertical: 50% Horizontal: 10% |
| Keystone |
±40° (Vertical) |
| ±15° (Horizontal) | |
Panasonic PT-DZ870ELK Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 24-162Hz |

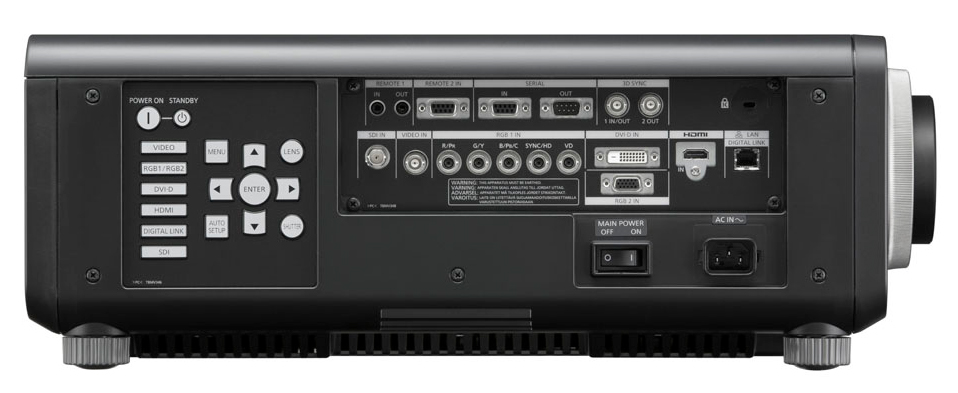

Panasonic PT-DZ870ELK Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| HD-SDI | 1 |
| RS-232 | 2 |
| Network Ready | Yes |
Panasonic PT-DZ870ELK General |
|
| Speakers | No |

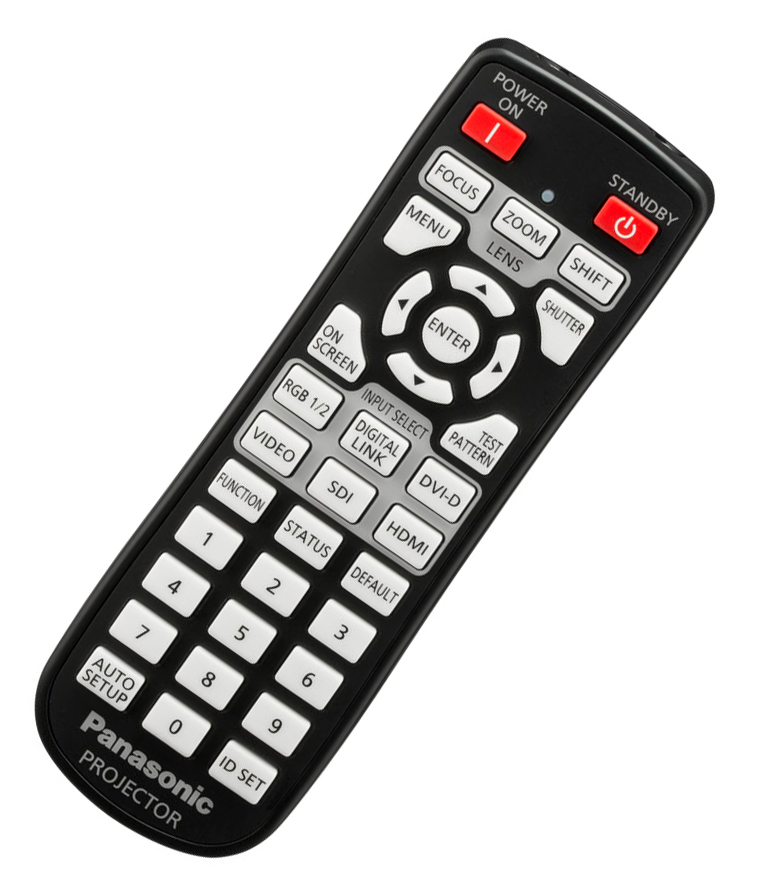

| Remote Control | Panasonic PT-DZ870ELK only |
| Noise | 40db (35db ECO mode) |
| Dimensions | 498*200*556mm (W*H*D) |
| Weight | 18.30kg |
| Power Supply | 120-240 V AC, 10-5.2 A, 50/60 Hz |
| Power Consumption | 1030Watts |
| Manufacturers Warranty | 1 year return to base |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
Panasonic PT-DZ870ELK Package Contents |
|
| Accessories | Power cord with secure lock wireless/wired remote control unit batteries (R03/AAA type x 2) software CD-ROM (Logo Transfer Software Multi Projector Monitoring & Control Software) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-DZ870ELK Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-DLE030 Ultra short throw mirror Lens | Discontinued | |
| Panasonic ET-DLE055 Ultra short throw fixed Lens | £1797 | £2156.40 |
| Panasonic ET-DLE085 Ultra short throw zoom Lens | £2193 | £2631.60 |
| Panasonic ET-DLE150 Short throw zoom Lens | £1398 | £1677.60 |
| Panasonic ET-DLE250 Mid-range zoom Lens | £1462 | £1754.40 |
| Panasonic ET-DLE350 Semi-long throw zoom Lens | £1462 | £1754.40 |
| Panasonic ET-DLE450 Long throw zoom Lens | £1462 | £1754.40 |
Panasonic PT-DZ870ELK Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Panasonic PT-DZ870ELK Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1008B | LCD | 8500 | 15.4 | £5512 | £6614.40 |
| Epson EB-PU1008W | LCD | 8500 | 15.4 | £5487 | £6584.40 |
| Christie DWU880-GS-BK | DLP | 8000 | 19 | £5482 | £6578.40 |
| Christie DWU880-GS-WH | DLP | 8000 | 19 | £5482 | £6578.40 |
| Fujifilm FP-Z8000-B | DLP | 8000 | 18.4 | £14154 | £16984.80 |
| Panasonic PT-RZ890WEJ | DLP | 8500 | 21.3 | £11022 | £13226.40 |
| Vivitek DU7199Z-BK | DLP | 8600 | 20.6 | £6391 | £7669.20 |
| Vivitek DU7199Z-WH | DLP | 8600 | 20.6 | £6391 | £7669.20 |
