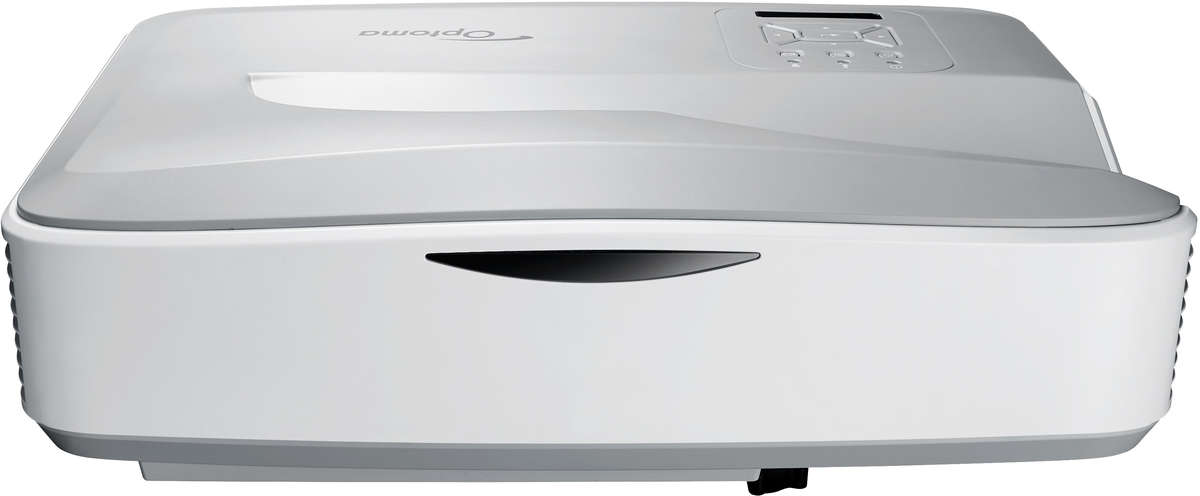

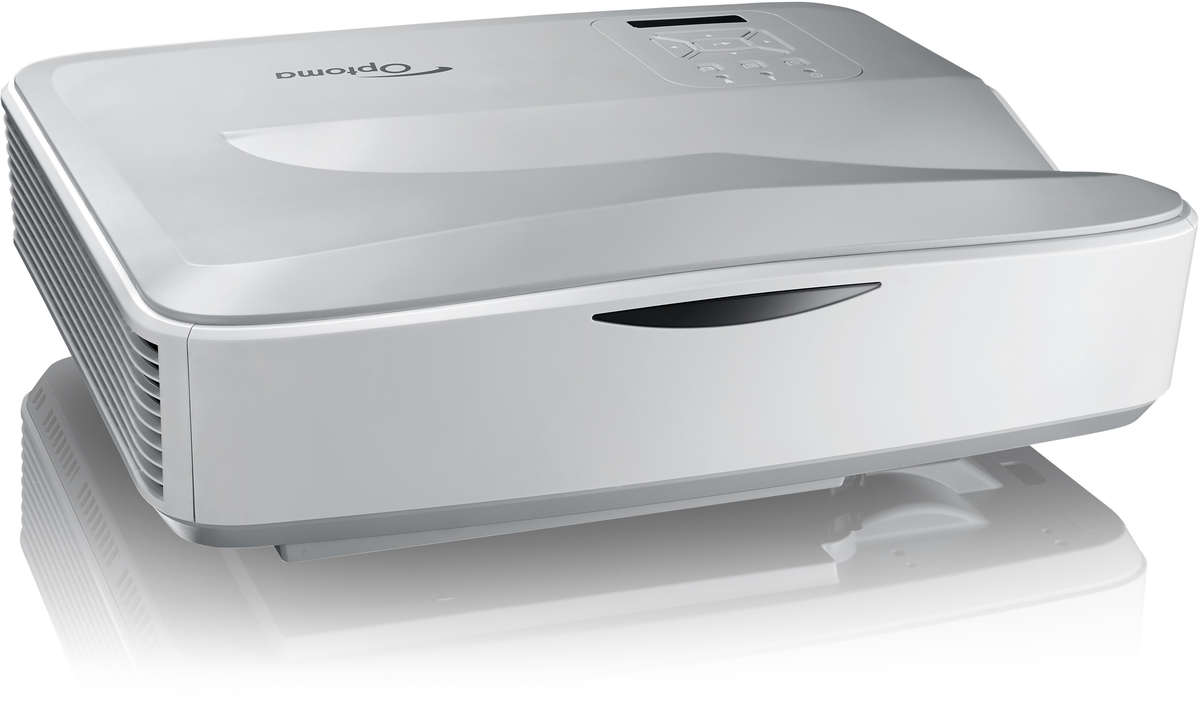

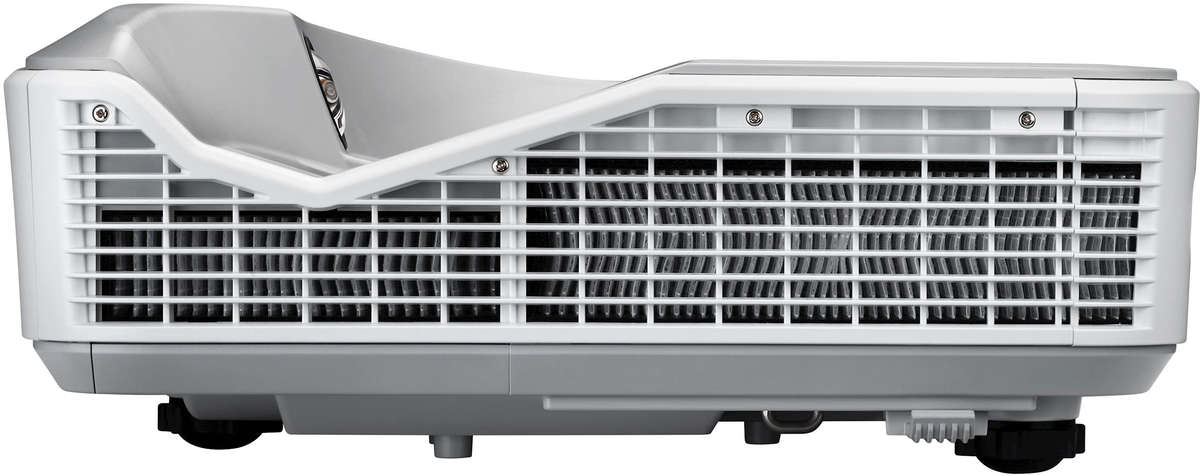

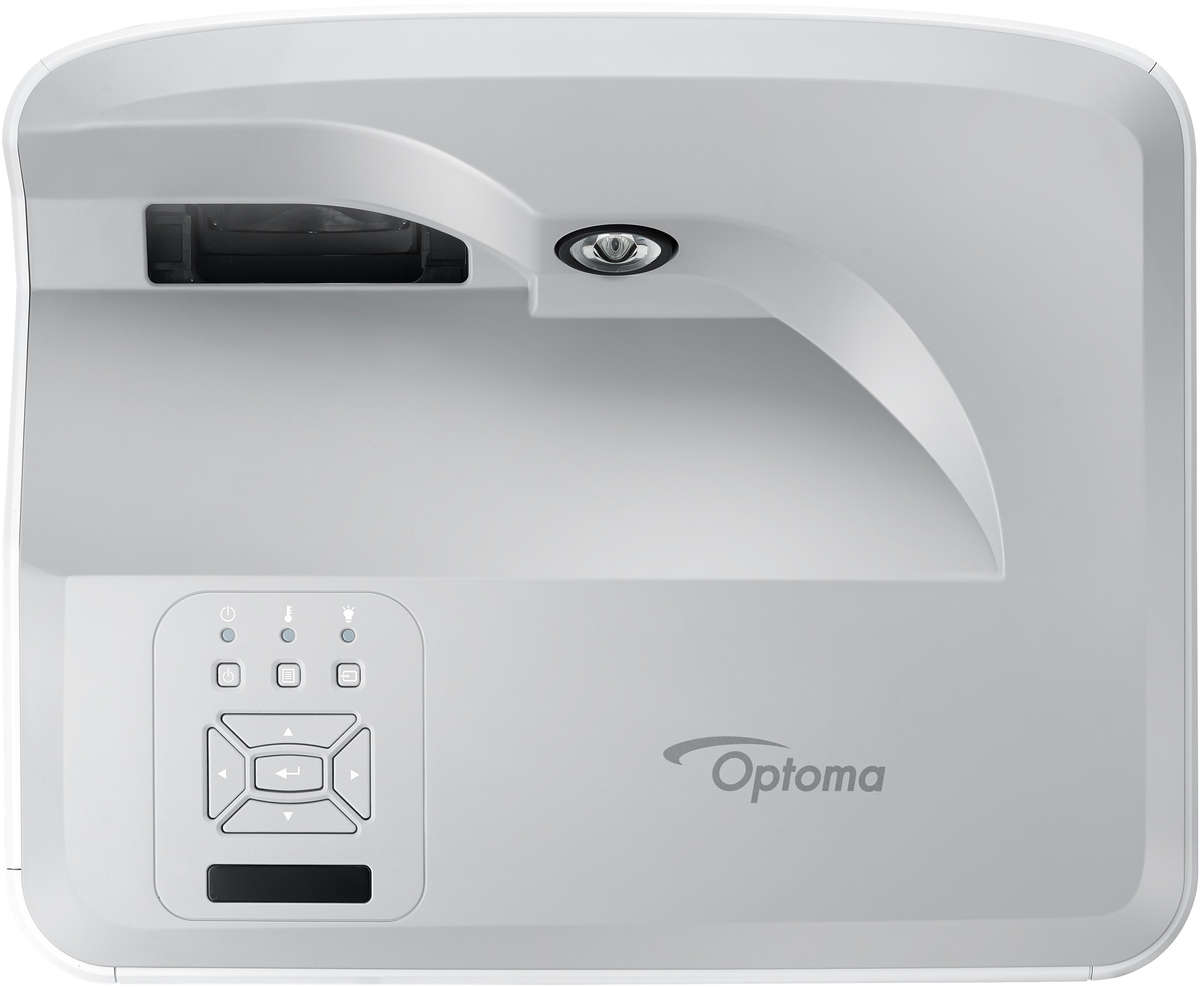

Optoma HZ40UST Projector

No Longer Available

Click for Current Optoma range

Optoma HZ40UST Key Features

• FREE Delivery on this item
• DLP Display Technology
• 4,000 Lumens
• 1080P 1920*1080 Native Resolution
• 30,000 hour lamp life (typical)
• 2,500,000:1 Contrast Ratio
• 5.6kg (12.3lb.)
• Ultra Short Throw (0.25:1)
• Native Widescreen
• 12v Trigger
• PIN Code Security
• 3D Projection Ready
• Monitor Out
• Network Control

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• LED/Laser
• Ultra short throw

Optoma HZ40UST Specifications

Categories	Ultra Short Throw HD LED/Laser HD
Manufacturer	Optoma (Click for rest of range)
Optoma HZ40UST Optical Features
System	1 * DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	4,000
Contrast	2,500,000:1
Lamp	Laser Diode
Lamp Life	30,000hrs.
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.25 - 0.25:1
Image Size	81"-107" diagonal
Throw Distance	0.45-0.59m
Throw distance for 100" image	0.55 - 0.55m
Lens Shift	No
KeystoneCorrection	±15° (Vertical)
Optoma HZ40UST Compatibility
Computer Resolutions	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
Horizontal Freq.	15.3-91.1kHz
Vertical Freq.	24-85(120 for 3D)Hz

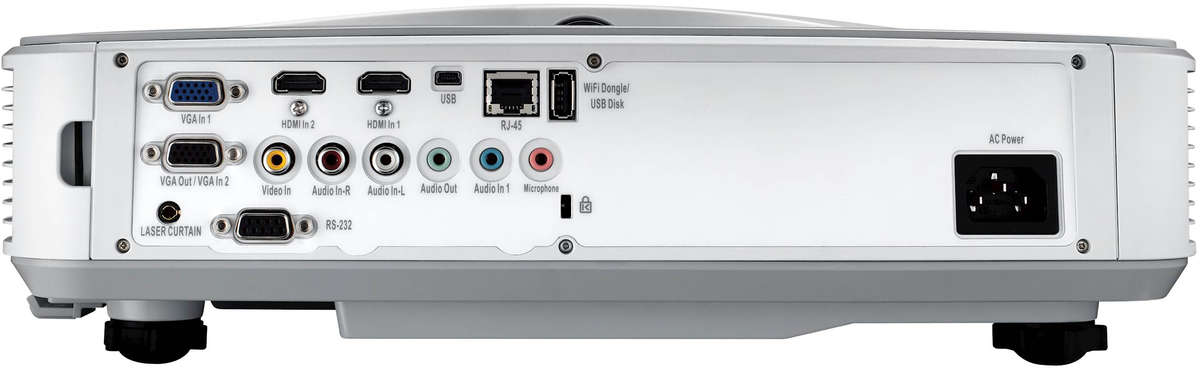

Optoma HZ40UST Terminals
HDMI	2
RGBHV (15-pin HD)	2
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma HZ40UST General
Speakers	10w Mono

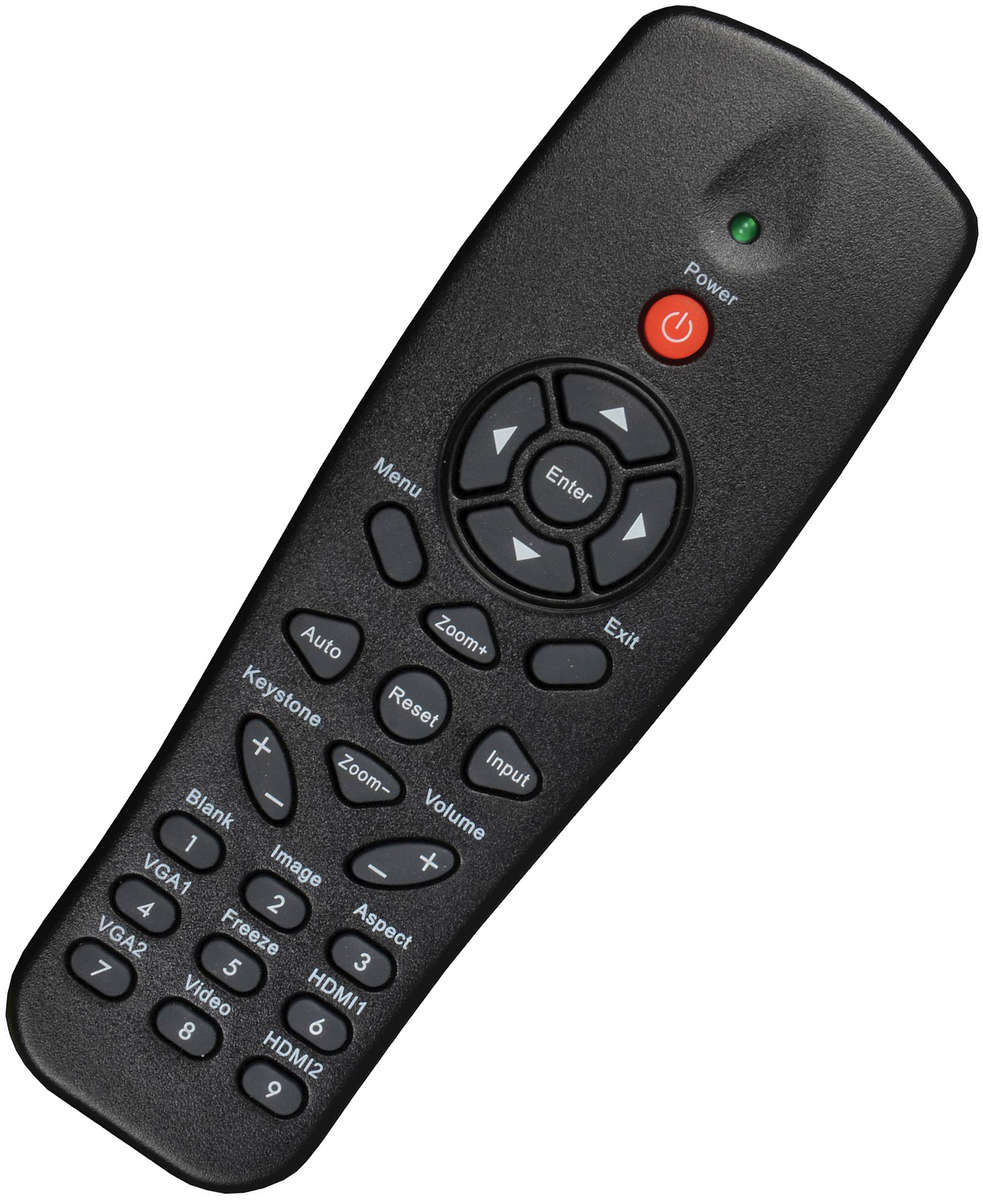

Remote Control	Optoma HZ40UST only
Noise	30db
Dimensions	382*124*310mm (W*H*D)
Weight	5.60kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	330Watts
Manufacturers Warranty	2 year return to base
Light Source Warranty	5 years/12,000 hours (whichever first)
Optoma HZ40UST Package Contents
Accessories	AC power cord Remote control 2x AAA batteries Basic user manual
Additional
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
Security	Security bar, Kensington Lock, Password protected interface

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.
