Optoma EH512 Projector

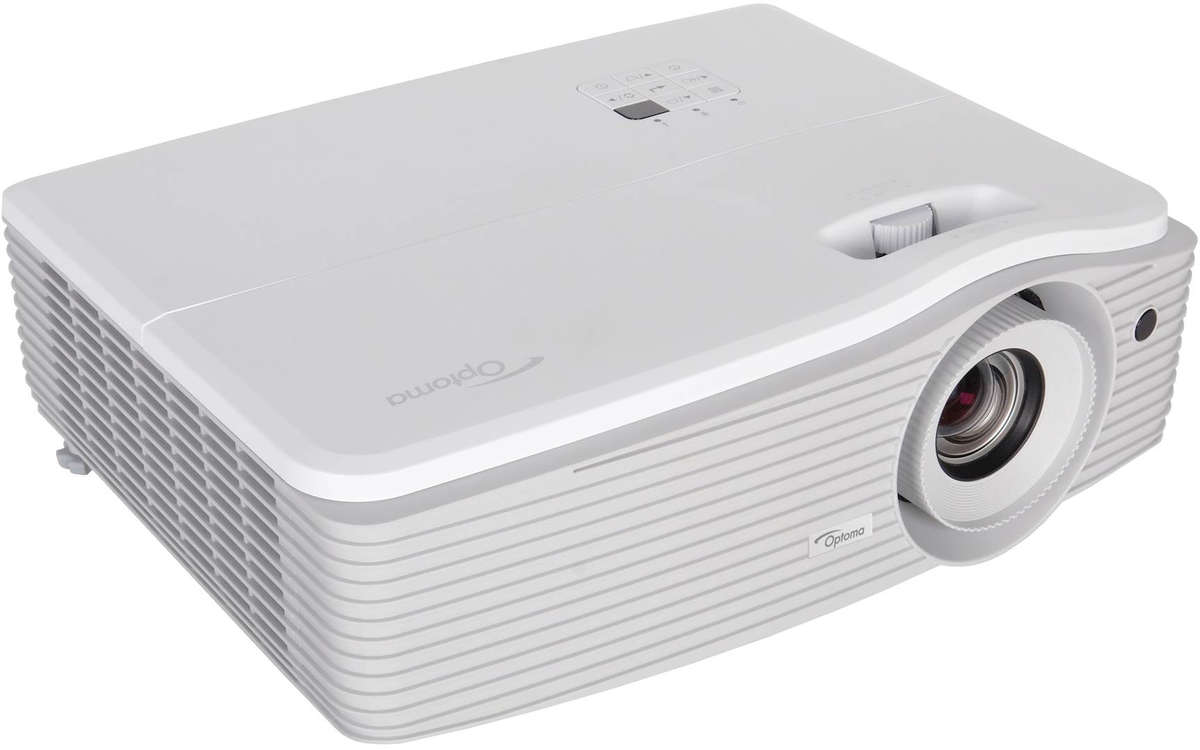

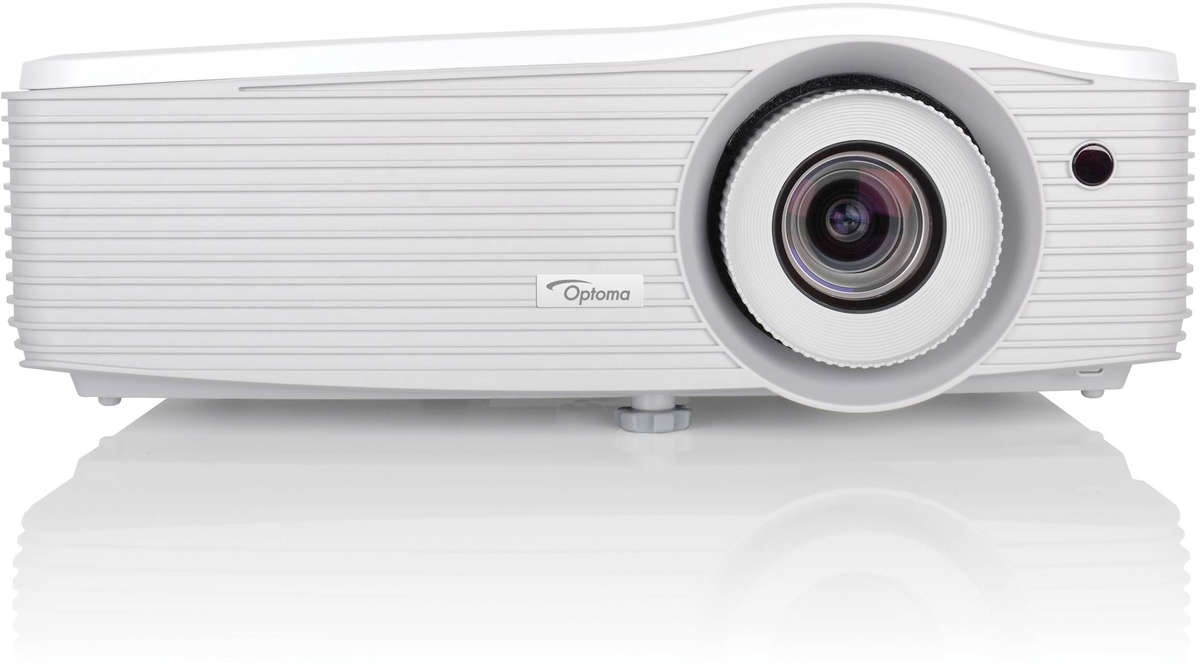

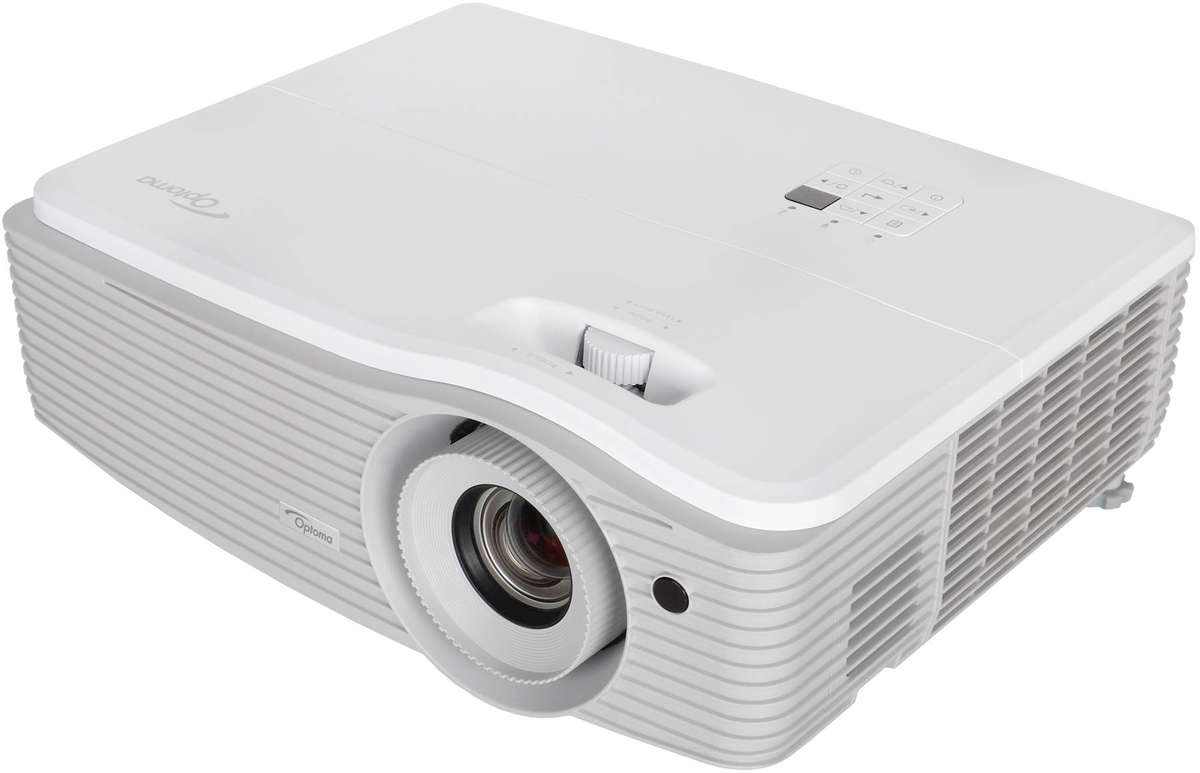

Optoma EH512 5000 ANSI Lumens 1080P projector product image
Optoma EH512 5000 ANSI Lumens 1080P projector product image Optoma EH512 5000 ANSI Lumens 1080P projector product image Optoma EH512 5000 ANSI Lumens 1080P projector product image Optoma EH512 5000 ANSI Lumens 1080P projector product image
No Longer Available

Click for Current Optoma range

Optoma EH512 Key Features

  • FREE Delivery on this item
  • DLP Display Technology
  • 5000 ANSI Lumens
  • 1080P 1920*1080 Native Resolution
  • 3000 hour lamp life (typical)
  • 15000:1 Contrast Ratio
  • 3 year return to base warranty
  • 4.6kg (10.1lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Lens Shift
  • 12v Trigger
  • Direct Power On
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Mouse Emulation Remote
  • Laser Pointer Remote
  • MHL
  • PIN Code Security
  • Warrantied for 24/7 use
  • Digital (HDMI/DVI/DisplayPort) Input
  • 3D Projection Ready
  • Monitor Out
  • Network Control
Optoma EH512 pdf brochure
Optoma EH512
Brochure
Optoma EH512 Instruction manual
Instruction Manual


Optoma EH512 Throw Chart (Click for details)

Optoma EH512 throw distance chart

Optoma EH512 Specifications

Categories Lens Shift
Wireless
Office / Desktop HD
Manufacturer Optoma (Click for rest of range)

Optoma EH512 Optical Features
System 1 * DMD
Resolution 1080P (1920*1080)
Aspect Ratio 16:9
ANSI Lumens 5000
Contrast 15000:1
Lamp 330W
Lamp Life 3000hrs. (7000hrs. ECO mode)
Lens 1.6x Manual Zoom and Focus
Interchageable No
Zoom Range 1.6x
Throw Ratio 1.41 - 2.24:1
Image Size 26"-301" diagonal
Throw Distance 1.30-9.40m
Throw distance for 100" image 3.12 - 4.96m
Lens Shift Ver. +17%

Optoma EH512 Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. 15.375-9kHz
Vertical Freq. 24-85Hz

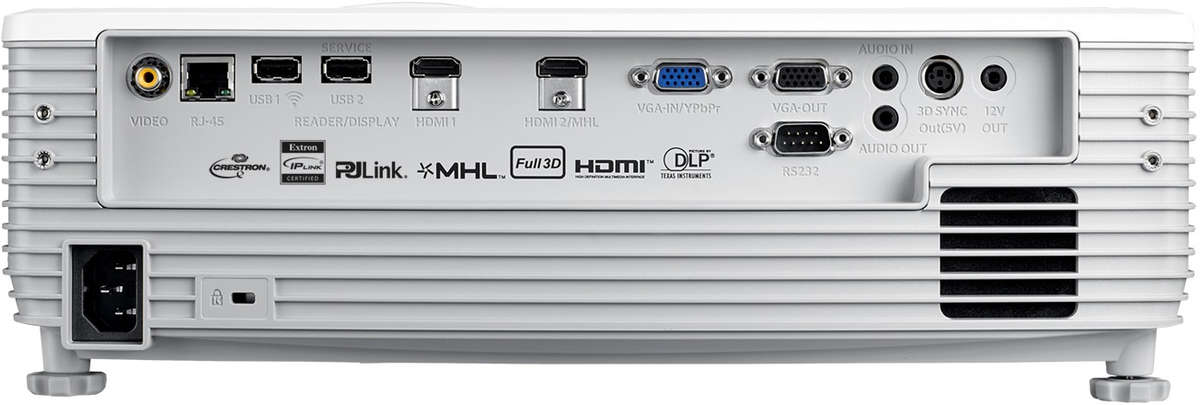

Optoma EH512 Terminals
HDMI 2
RGBHV (15-pin HD) 1
Composite 1
Monitor Out Yes
Audio In 1
Audio Out 1
USB 2
RS-232 1
12v Trigger Yes
Network Ready Yes

Optoma EH512 General
Speakers 10w Stereo

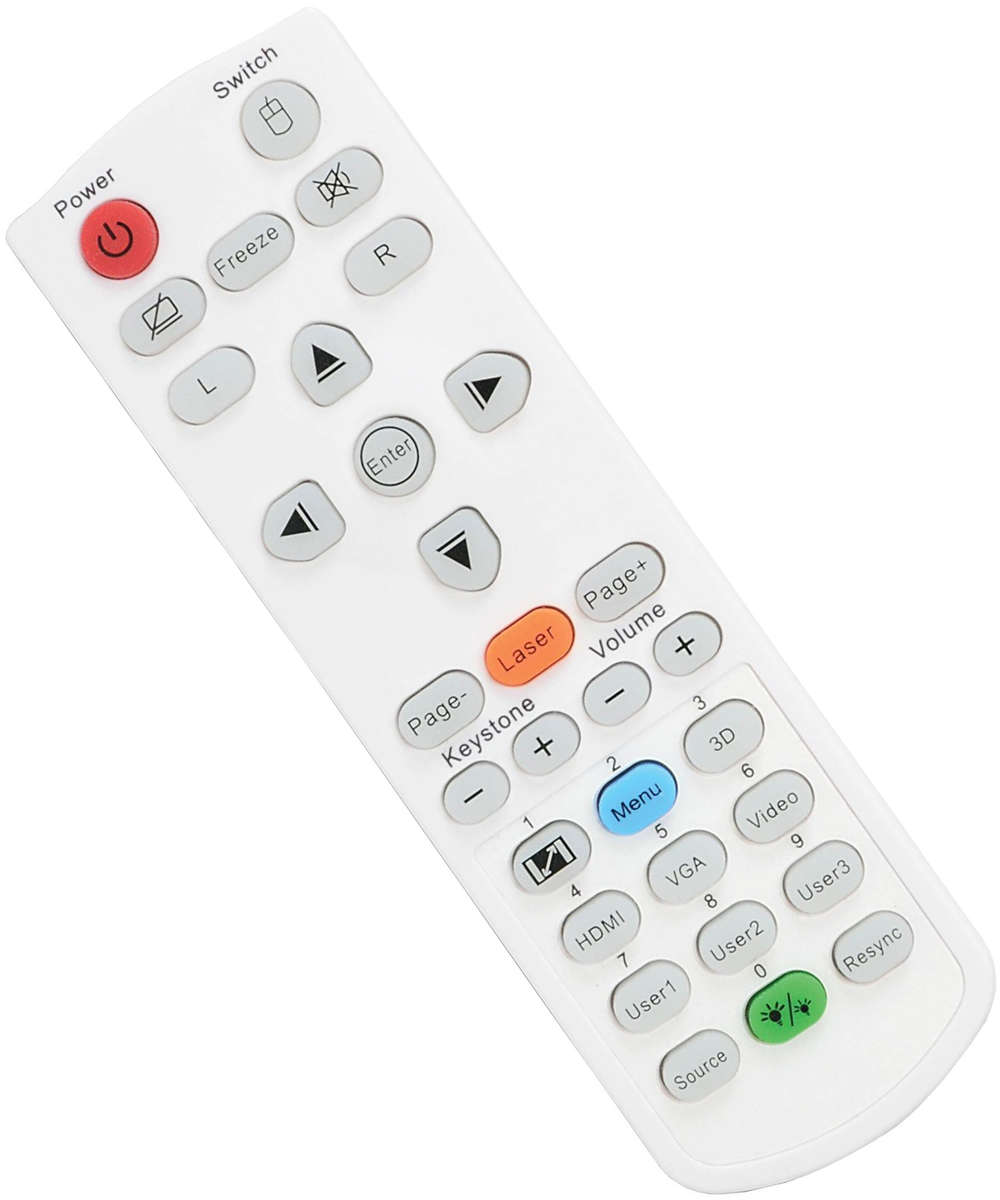

Remote Control Optoma EH512 + Mouse Emulation + Laser Pointer
Noise 30db
Dimensions 369*132*295mm (W*H*D)
Weight 4.60kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 390Watts
Manufacturers Warranty 3 year return to base
Light Source Warranty 1 Year/1000 hours (whichever first)

Optoma EH512 Package Contents
Accessories AC power cord
Remote control
2x AAA batteries
Basic user manual

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.



Optoma EH512 Accessories

Description Price Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg £113 £135.60
Optoma SP.7CR01GC01 Replacement lamp £208 £249.60
Optoma UHDCast Pro 1:1 4K UHD wireless presentation dongle £76 £91.20
Optoma WHD200 2:1 Wireless HDMI transmitter and receiver for select projectors and monitors (2 x HDMI inputs, 1 x HDMI output; Max. 20m @ 1080p) £240 £288.00
Unicol projector brackets and stands
Projector ceiling mounts and brackets
LCD/LED wall and ceiling brackets
Projection Screens
Twisted Pair extenders for LCD and LED large format displays
Twisted pair extenders, distribution and switching
HDMI, DVI, DisplayPort and twisted pair cables for large format displays
HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables
Scalers and video processors for large format displays
Scalers, EDID emulators, multi-windows processors and capture hardware



Optoma EH512 Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Optoma DZ500 DLP 5500 5.5 £1384 £1660.80
Optoma ZH406 DLP 4500 5.5 £1086 £1303.20
Optoma ZH506e White DLP 5500 5.5 £1521 £1825.20
Vivitek DH976-WT DLP 4800 3.75 £965 £1158.00
