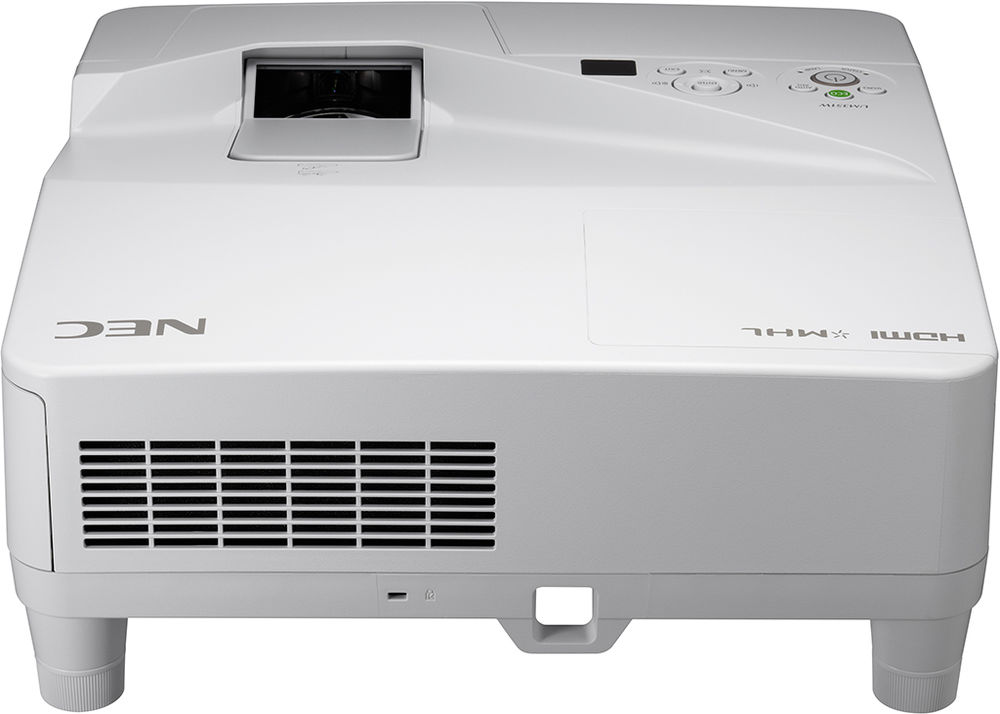

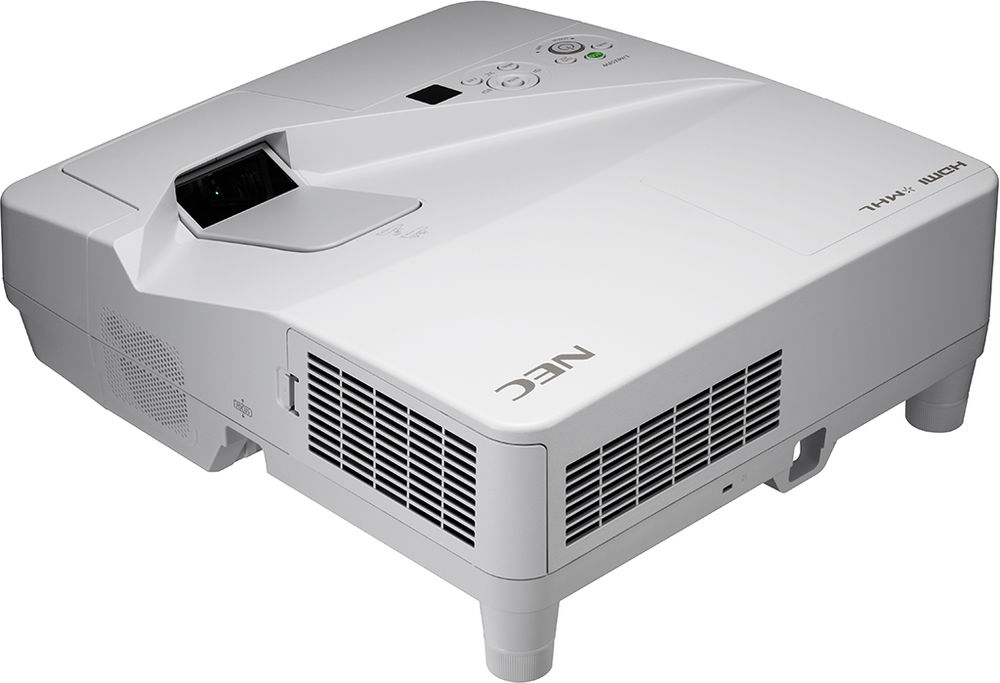

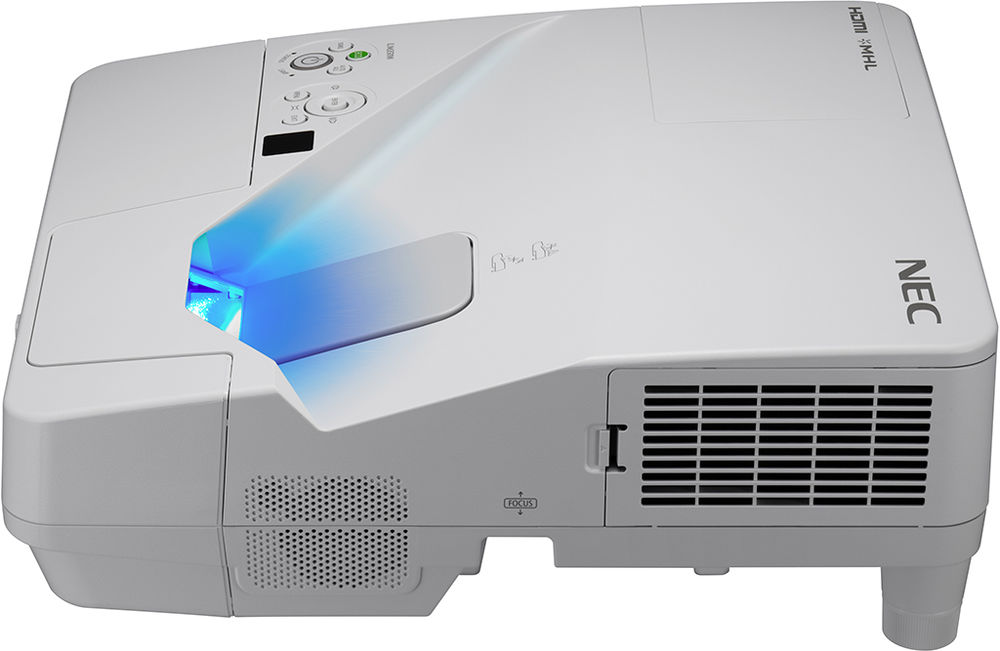

NEC UM301X Projector
NEC UM301X Key Features
- LCD Display Technology
- 3,000 Lumens
- XGA 1024*768 Native Resolution
- 3,800 hour lamp life (typical)
- 4,000:1 Contrast Ratio
- 5.5kg (12.1lb.)
- Ultra Short Throw (0.36:1)
- PC Free Presentations
- Direct Power Off
- Mouse Emulation Remote

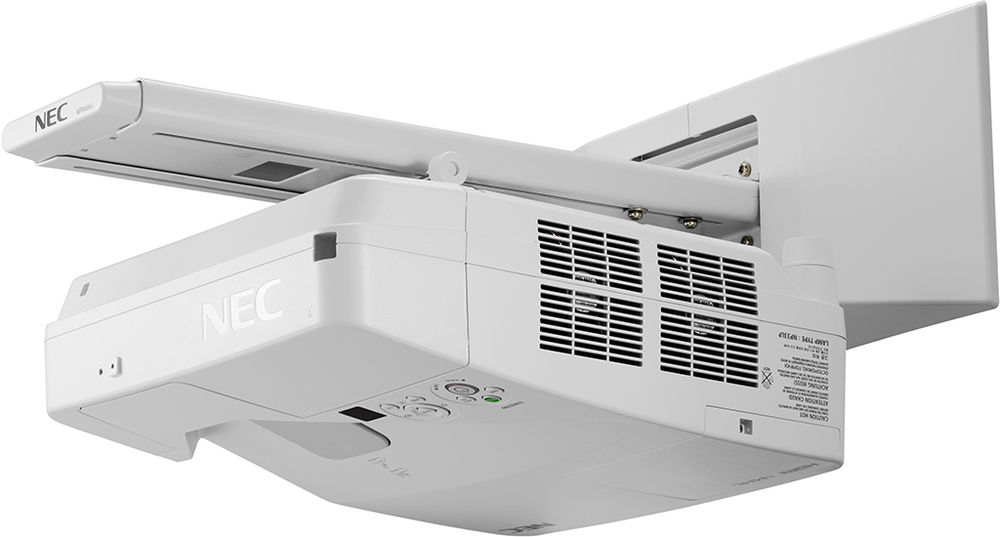

- Includes Wall Bracket
- Micro Lens Array
- Logo capture and display
- PIN Code Security
- Quick Power On
- Quick Power Off
- DICOM Simulation Mode
- Monitor Out
- Network Control
NEC UM301X Downloads
NEC UM301X Specifications
| Categories | PC Free Ultra Short Throw |
| Manufacturer | NEC (Click for rest of range) |
NEC UM301X Optical Features |
|
| System | 3 * 0.59" LCD |
| Resolution | XGA (1024*768) |
| Aspect Ratio | 4:3 |
| Lumens | 3,000 |
| ECO Mode Lumens | 1,800 |
| Contrast | 4,000:1 |
| Lamp | 235W/140W Eco |
| Lamp Life | 3,800hrs. (6,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | Fixed |
| Throw Ratio | 0.36 - 0.36:1 |
| Image Size | 58"-110" diagonal |
| Throw Distance | 0.45-0.85m |
| Throw distance for 100" image | 0.73 - 0.73m |
| Lens Shift | No |
| Keystone |
±10° (Vertical) |
NEC UM301X Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 24-120Hz |

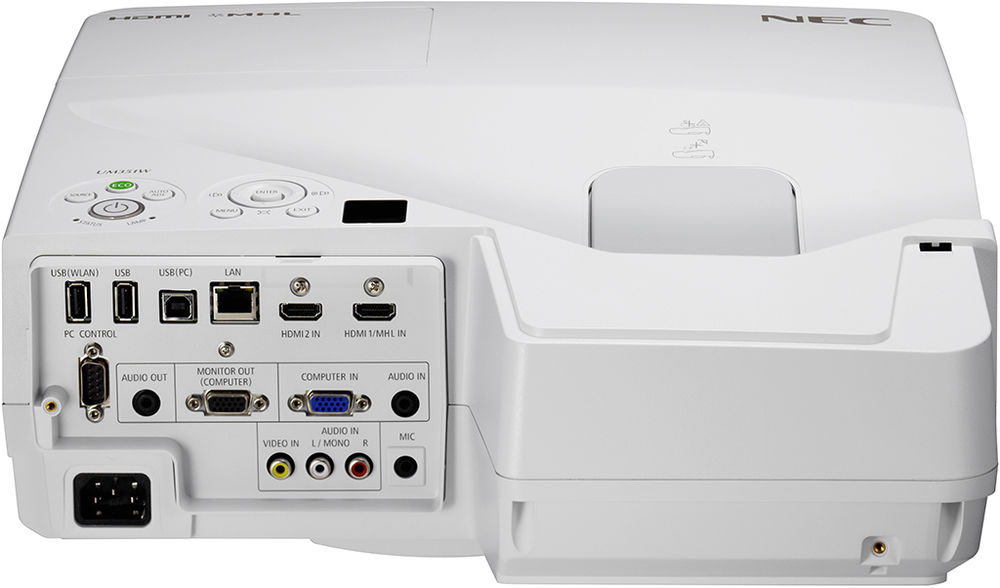

NEC UM301X Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 3 |
| RS-232 | 1 |
| Network Ready | Yes |
NEC UM301X General |
|
| Speakers | 20w mono |
| Remote Control | NEC UM301X + Mouse Emulation |
| Noise | 35db (27db ECO mode) |
| Dimensions | 378*112*428mm (W*H*D) |
| Weight | 5.50kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 344Watts |
| Manufacturers Warranty | 3 year pan European loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC UM301X Package Contents |
|
| Accessories | IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Wall-mount kit NP04WK |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC UM301X Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 10 Hard case for projectors weighing 5-10kg | £153.00 | £183.60 |
| NEC NP32LP / 100013962 Replacement lamp | £253 | £303.60 |
