Maxell MC-CW301 Projector
Maxell MC-CW301 Key Features
- LCD Display Technology
- 3100 Lumens Colour Light Output
- Wide XGA Resolution
- 5,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 3.6kg (7.9lb.)
- Ultra Short Throw (0.6:1)
- Native Widescreen
- Direct Power On
- PC Free Presentations
- iOS App Compatible
- Mouse Emulation Remote
- Logo capture and display
- PIN Code Security
- Monitor Out
- Network Control
Maxell MC-CW301 Specifications
| Categories | PC Free Portable Widescreen Ultra Short Throw |
| Manufacturer | Maxell (Click for rest of range) |
Maxell MC-CW301 Optical Features |
|
| System | 3 * 0.59" LCD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 3,100 |
| ECO Mode Lumens | 2,077 |
| Colour Light Output | 3100 Lumens |
| Eco Mode CLO | 2077 Lumens |
| Contrast | 10,000:1 |
| Lamp | 225W UHP |
| Lamp Life | 5,000hrs. (10,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | Fixed |
| Throw Ratio | 0.6 - 0.6:1 |
| Image Size | 60"-150" diagonal |
| Throw Distance | 0.74-1.95m |
| Throw distance for 100" image | 1.29 - 1.29m |
| Lens Shift | No |
| Keystone |
±5° (Vertical) |
Maxell MC-CW301 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |

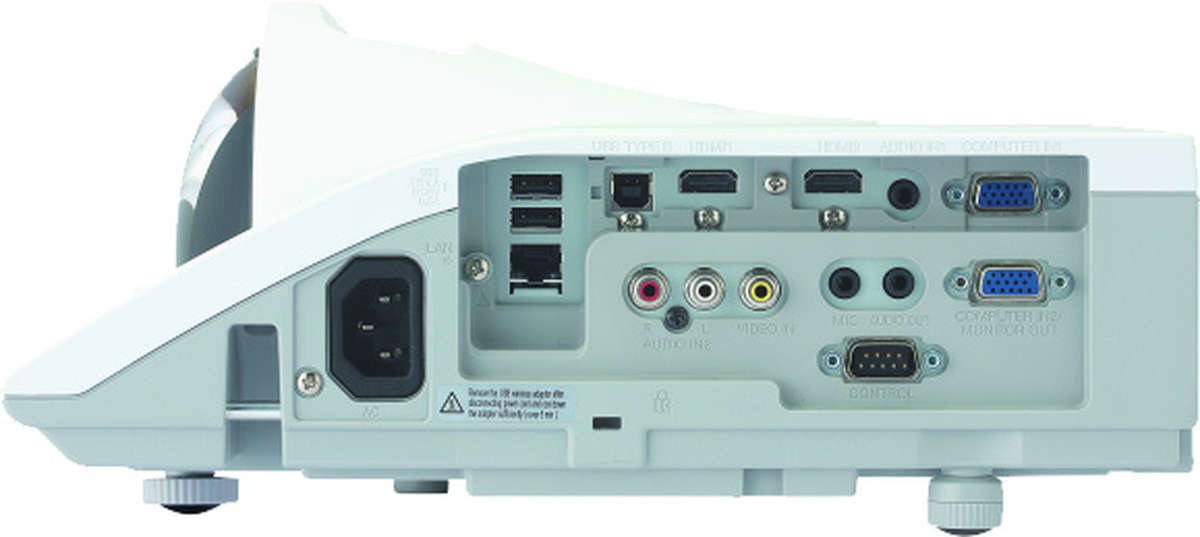

Maxell MC-CW301 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 2 |
| S-Video | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 4 |
| Audio Out | 1 |
| USB | 3 |
| RS-232 | 1 |
| Network Ready | Yes |
Maxell MC-CW301 General |
|
| Speakers | 10w mono |
| Remote Control | Maxell MC-CW301 + Mouse Emulation |
| Noise | 37db (30db ECO mode) |
| Dimensions | 345*85*303mm (W*H*D) |
| Weight | 3.60kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 320Watts |
| Manufacturers Warranty | 3 year return to base |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
Maxell MC-CW301 Package Contents |
|
| Accessories | Power Cable (1.8m) Computer Cable (2m) IR Remote Control Unit AA Batteries Application CD (for network etc.) CD User Manual Concise User Manual Security Label Lens Cover Adapter Cover HDMI Cable Holder Cable Tie (large x1 medium x2) |
Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
