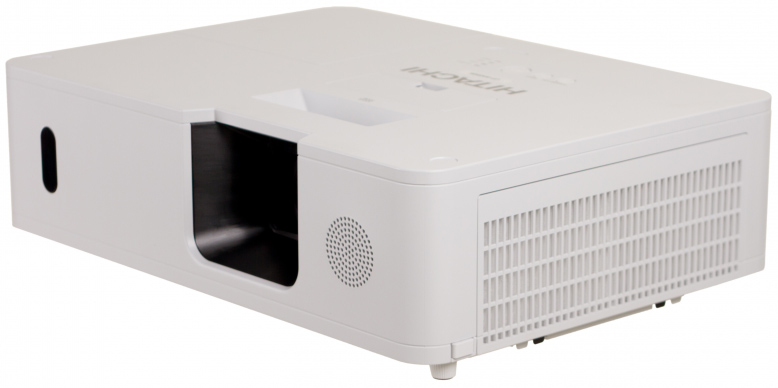

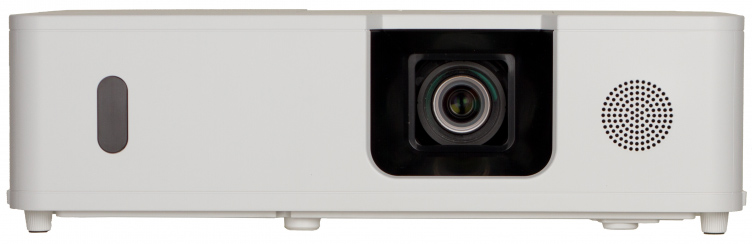

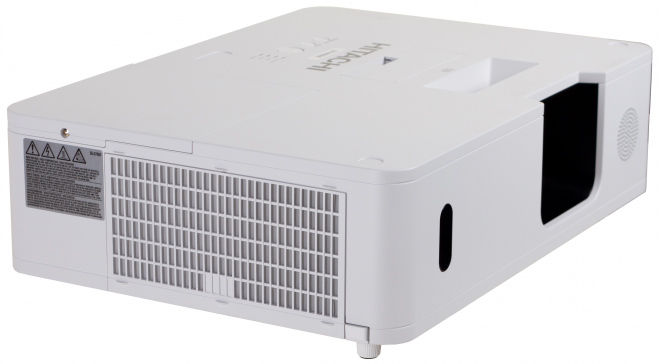

Hitachi CP-WX5506 Projector


Hitachi CP-WX5506 Key Features

  • LCD Display Technology
  • 5400 Lumens Colour Light Output
  • Wide XGA Resolution
  • 4,000 hour lamp life (typical)
  • 10,000:1 Contrast Ratio
  • 6.8kg (15.0lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Lens Shift
  • Horizontal & Vertical Keystone Correction
  • HDBaseT
  • MHL
  • Picture-In-Picture
  • Picture-and-Picture
  • PIN Code Security
  • Edge Blending
  • DICOM Simulation Mode
  • Stacking Function
  • Monitor Out
  • Network Control

Hitachi CP-WX5506 Specifications

Categories HDBaseT
Lens Shift
Office / Desktop
Short Throw Zoom
Manufacturer Hitachi (Click for rest of range)

Hitachi CP-WX5506 Optical Features

System 3 * 0.63" LCD
Resolution WXGA (1280*800)
Aspect Ratio 16:10
Lumens 5,400
ECO Mode Lumens 3,618
Colour Light Output 5400 Lumens
Eco Mode CLO 3618 Lumens
Contrast 10,000:1
Lamp 300W
Lamp Life 4,000hrs. (6,000hrs. ECO mode)
Interchangeable No
Zoom Range 1.6x
Throw Ratio 1.3 - 2.1:1
Image Size 30"-300" diagonal
Throw Distance 0.80-13.60m
Throw distance for 100" image 2.80 - 4.52m
Lens Shift Powered Vertical 10:1~1:1
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Hitachi CP-WX5506 Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p

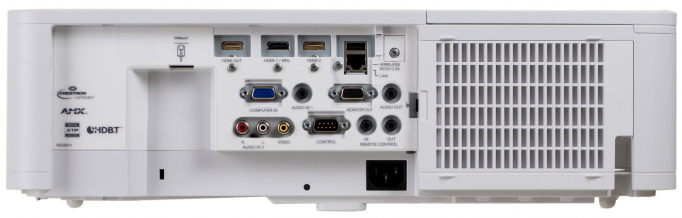

Hitachi CP-WX5506 Terminals

HDMI 2
RGBHV (15-pin HD) 1
Composite 1
Monitor Out Yes
USB 1
RS-232 1
HDBaseT 1
Network Ready Yes

Hitachi CP-WX5506 General

Speakers 16w mono
Remote Control Hitachi CP-WX5506 only
Noise 38db (29db ECO mode)
Dimensions 460*138*334mm (W*H*D)
Weight 6.80kg
Power Supply 100-240V AC; 50-60Hz
Manufacturers Warranty 3 year de/re-install
Light Source Warranty 6 moths/1000 hours (whichever first)

Ivojo Multimedia are approved Hitachi dealers and supply only UK products with full UK warranties.
