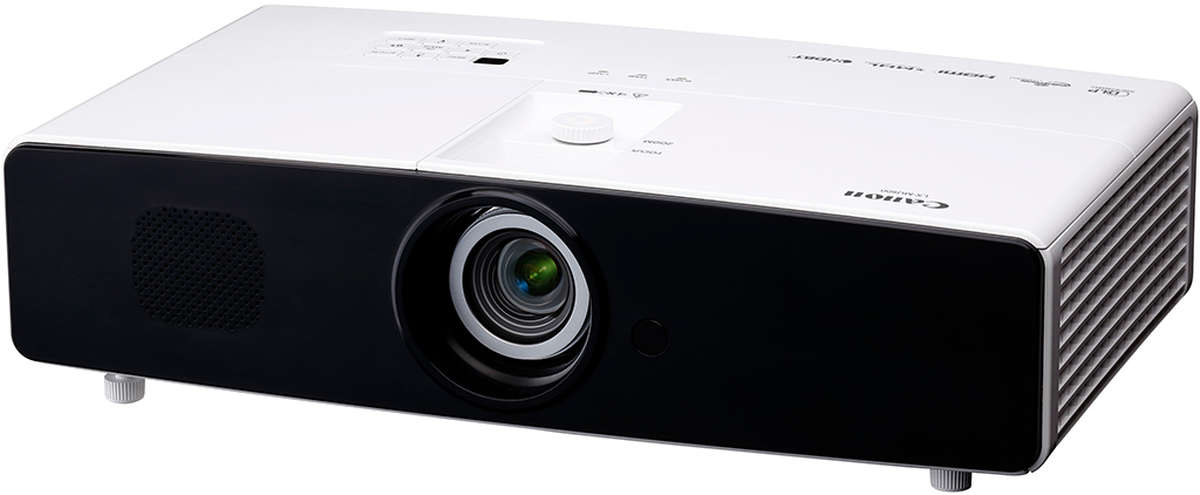

Canon LX-MW500 Projector

Canon LX-MW500 Key Features

  • DLP Display Technology
  • 5000 Lumens Colour Light Output
  • Wide XGA Resolution
  • 2000 hour lamp life (typical)
  • 3750:1 Contrast Ratio
  • 3 year return to base warranty
  • 5.4kg (11.9lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Lens Shift
  • Horizontal & Vertical Keystone Correction
  • HDBaseT
  • MHL
  • Lens-centred Design
  • Digital (HDMI/DVI/DisplayPort) Input
  • sRGB Colour Mode
  • Monitor Out
  • Network Control

Canon LX-MW500 Throw Chart (Click for details)

Canon LX-MW500 Specifications

Categories HDBaseT
Lens Shift
Office / Desktop
Short Throw Zoom
Manufacturer Canon (Click for rest of range)

Canon LX-MW500 Optical Features

System 1 * 0.67" DMD
Resolution WXGA (1280*800)
Aspect Ratio 16:10
ANSI Lumens 5000
ECO Mode Lumens 4000
Colour Light Output 5000 Lumens
Eco Mode CLO 4000 Lumens
Contrast 3750:1
Lamp 370W/296W
Lamp Life 2000hrs. (2500hrs. ECO mode)
Lens F15.75-25.1mm; f=2.45-3.07mm
Interchageable No
Zoom Range 1.6x
Throw Ratio 1.12 - 1.8:1
Image Size 60"-240" diagonal
Throw Distance 1.45-9.30m
Throw distance for 100" image 2.41 - 3.88m
Lens Shift Vertical: 52% - 55%
Keystone Correction ±30° (Vertical)
±30° (Horizontal)

Canon LX-MW500 Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. kHz
Vertical Freq. Hz

Canon LX-MW500 Terminals

RGBHV (15-pin HD) 2
S-Video 1
Composite 1
Monitor Out Yes
Audio In 2
Audio Out 1
RS-232 1
HDBaseT 1
Network Ready Yes

Canon LX-MW500 General

Speakers 2 * 10w
Remote Control Canon LX-MW500 only
Noise 38db (35db ECO mode)
Dimensions 465*112*261mm (W*H*D)
Weight 5.40kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 500Watts
Manufacturers Warranty 3 year return to base
Light Source Warranty 90 Days/1000 hours (whichever first)

Canon LX-MW500 Package Contents

Accessories LV-RC08 remote control
VGA cable
Power cord

Ivojo Multimedia are approved Canon dealers and supply only UK products with full UK warranties.

Canon LX-MW500 Accessories

Description Price Inc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg £133 £159.60
Canon LX-LP02 / 1035C001 Replacement lamp £344 £412.80
Chief SL236SPI Projector Lift for installation class projectors (Projector dimensions up to 521*235*578mm and 15.9kg) £2324 £2788.80

Canon LX-MW500 Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
NEC P554W LCD 5500 4.8 £843 £1011.60
Panasonic PT-VW540EJ LCD 5500 4.8 £1044 £1252.80
Panasonic PT-VW545NEJ LCD 5500 4.9 £1447 £1736.40
